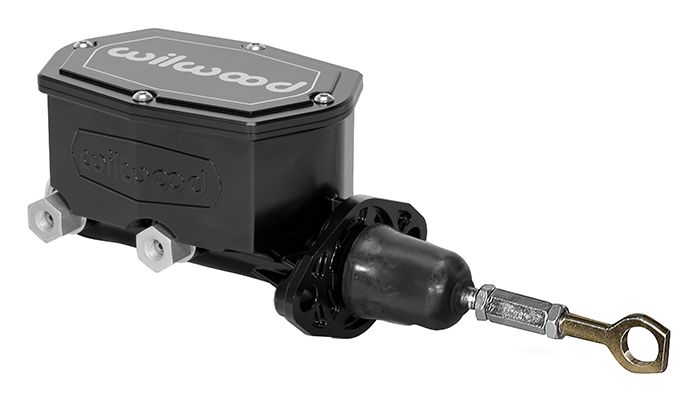

Wilwood Compact Tandem Master Cylinder, Black (WB260-15543-BK)

Wilwood Compact Tandem Master Cylinder, Black (WB260-15543-BK)

1-1/8" Bore. Suit Ford Mustang
SKU: WB260-15543-BK
Contact for availability
$604.40 - $604.40
$604.40
$604.40 - $604.40
$604.40
+ GST
Availability:
Please contact for availability

WB260-15543-BK - COMPACT TANDEM M/CYL, MUSTANG

1-1/8" Bore. Suit Ford Mustang

Part Number: WB260-15543-BK

Wilwood’s Compact Tandem Master Cylinder for Mustangs comes with the correct pushrod; 4 bore sizes; 7/8" through 1-1/8th and is available in 2 finishes ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal. They’re designed for mount flanges from 3.22" to 3.40", which match the 64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders.
