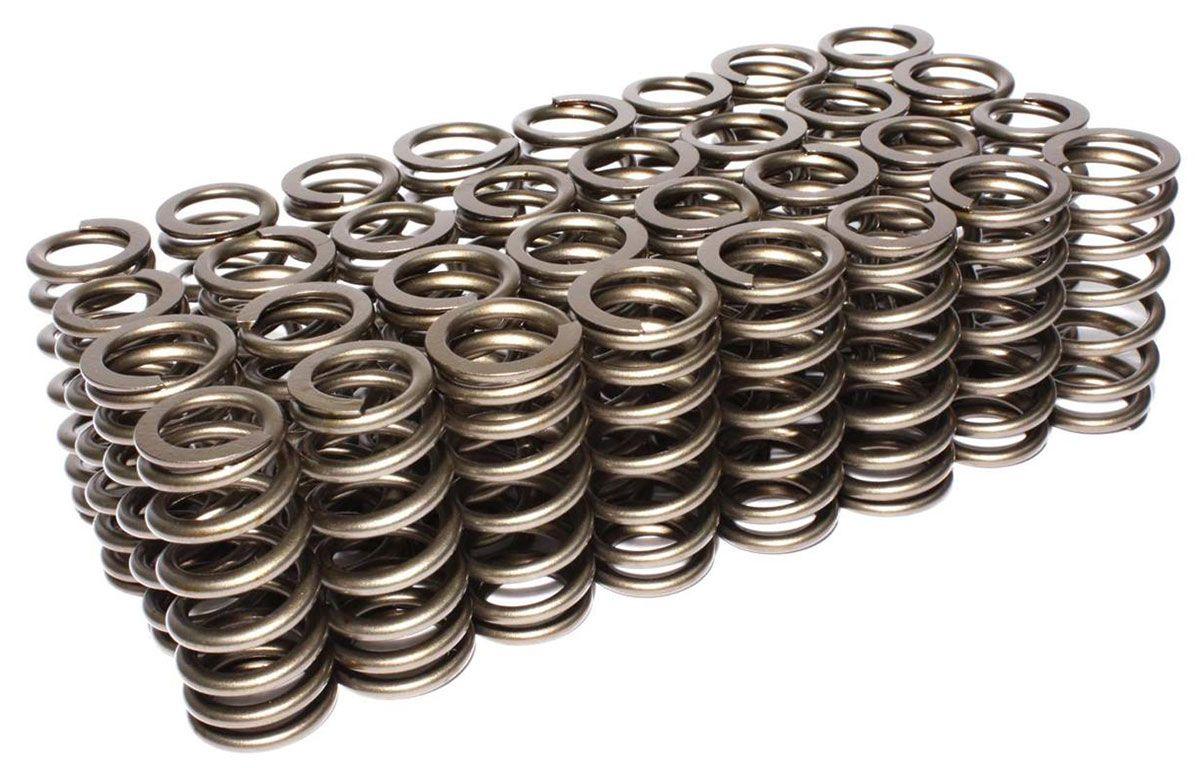

COMP Performance Street Beehive Valve Springs (CO26123-32)

CO26123-32 - BEEHIVE VALVE SPRINGS 1.470 OD

.943"/1.105 O.D With 90 lbs @ 1.470" Seat Pressure (32)

Part Number: CO26123-32

PERFORMANCE STREET
COMP Cams Performance Street Valve Springs provide extra stability and endurance. These are the most popular COMP springs for street applications and are used primarily by customers with performance hydraulic flat tappet & hydraulic rollers in mind. COMP technicians will match the proper spring for each customer's given lift and install height requirements
Spring O.D:
Top .943" / Bottom 1.105"
Spring I.D:
Top .580" / Bottom .742"
Seat Load:
90 @ 1.470"
Open Load:
252 @ .970"
Coil Bind:
.900"
Rate (LBS/In):
324 lbs
Max Lift:
.500"
