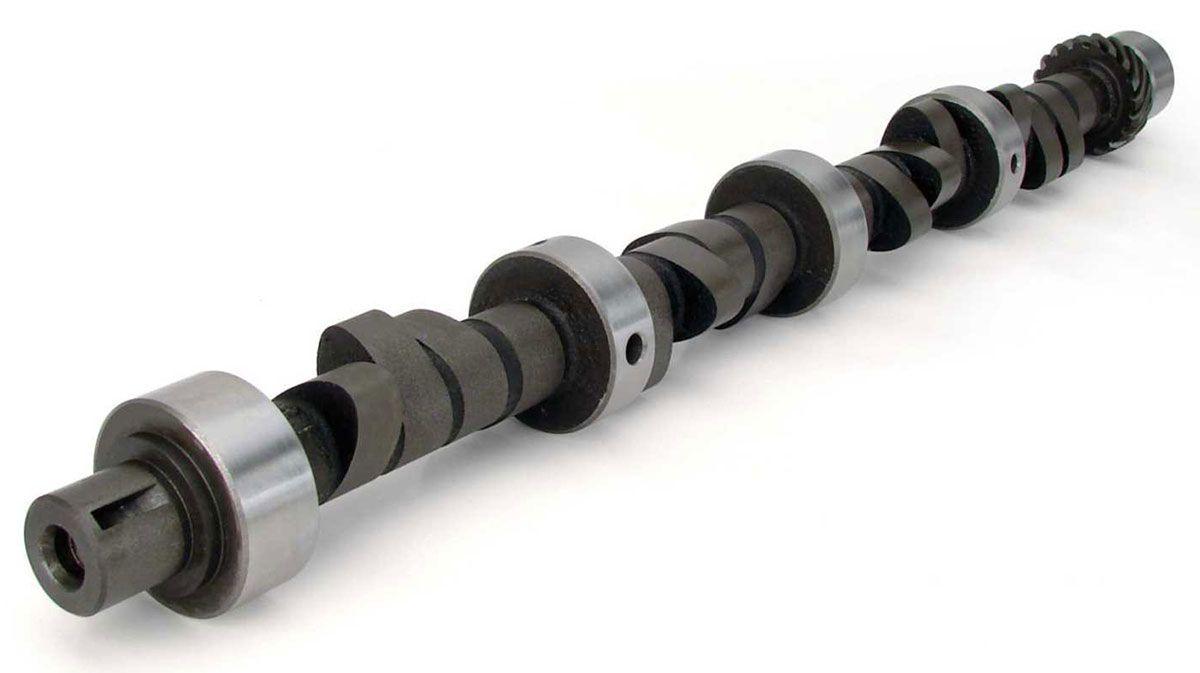

COMP Nitrous HP Hydraulic Flat Tappet Camshaft - NX274H (CO12-564-4)

CO12-564-4 - SBC HYDRAULIC CAMSHAFT NX274H

Suit SB Chev 262-400 1958-1999

Part Number: CO12-564-4

Xtreme Energy Cams are designed to maximize torque, acceleration and throttle response while providing excellent high RPM horsepower. A faster intake valve opening increases engine vacuum and enhances throttle response. Special intake closing ramps close the valve sooner, providing more cylinder pressure and torque without resulting in excessive valve train noise. Faster ramps achieve maximum velocity sooner, increasing the area under the lift curve and providing maximum horsepower. Smoother exhaust designs allow for a more effective purge of spent gasses from the combustion chamber to further increase horsepower.
Camshaft suits street/strip application, 125+ hp kit or medium blower, 2500+ stall, rough idle
RPM operating range 2400 - 6500
Duration advertised Inlet 274°, Exh 292°
Duration advertised @ .050" Inlet 230°, Exh 244°
Valve lift with 1.5 rocker Inlet .487", Exh .501"
Lobe separation angle 113°
