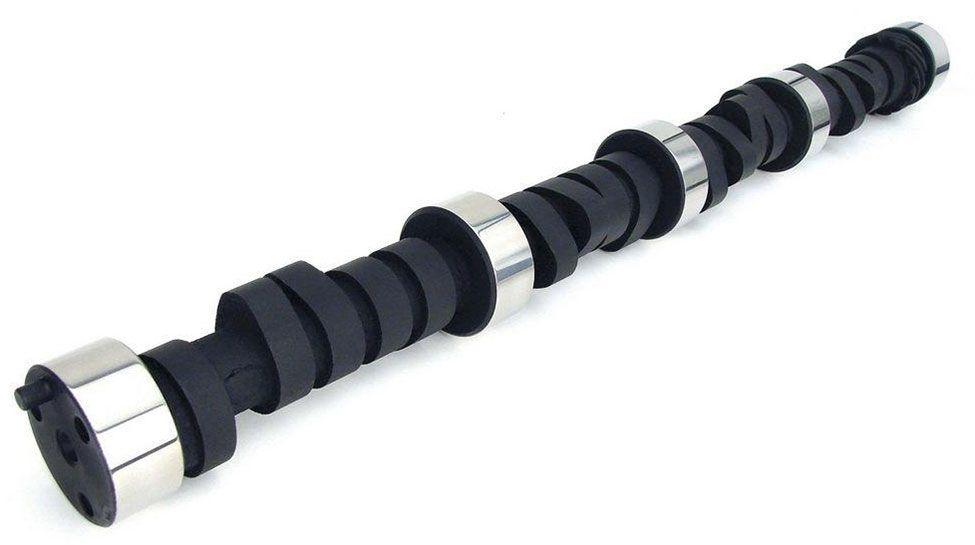

COMP High Energy Hydraulic Camshaft - 260H (CO31-216-2)

High Energy/Marine 212/212 Hydraulic Flat Cam for Ford 221-302. Excellent combo of torque & power. Best for towing in 302 stick with low gears.

Camshaft Material:
Valve Springs Required:
Assembly Lubricant Included:
Engine Family: Ford 221,260, 289, 302 c.i. 8 Cylinder (1963-1995)
RPM OperatingRange: 1,200-5,200
Grind Number: 260H
Cam Type: Hydraulic Flat Tappet
Lifter Style: Hydraulic Flat Tappet
Camshaft Series: Marine
Usage: Street/Performance
Advertised Intake Duration: 260
Advertised Exhaust Duration: 260
Intake Duration at .050 Inch Lift: 212
Exhaust Duration at .050 Inch Lift: 212
Intake Valve Lift: 0.447
Exhaust Valve Lift:0.447
Lobe Lift Intake: 0.28
Lobe Lift Exhaust: 0.28
Lobe Separation: 110
Intake Centerline: 106
Exhaust Close ATDC: 16
Intake Open BTDC: 24
Exhaust Open BBDC: 64
Intake Close ABDC: 56
Camshaft Gear Attachment: 1-Bolt
