COMP GM LS Beehive Valve Spring Kit (CO26918CS-KIT)

CO26918CS-KIT - LS BEEHIVE VALVE SPRING KIT

1.075"/1.310 O.D With 125 lbs @ 1.800" Seat Pressure

Part Number: CO26918CS-KIT

This Beehive Valve Spring Kit for LS engines is designed for hydraulic roller cams and includes carefully matched Beehive Springs, retainers, locks, seals and spring seats. With a .625" maximum lift, these Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life.

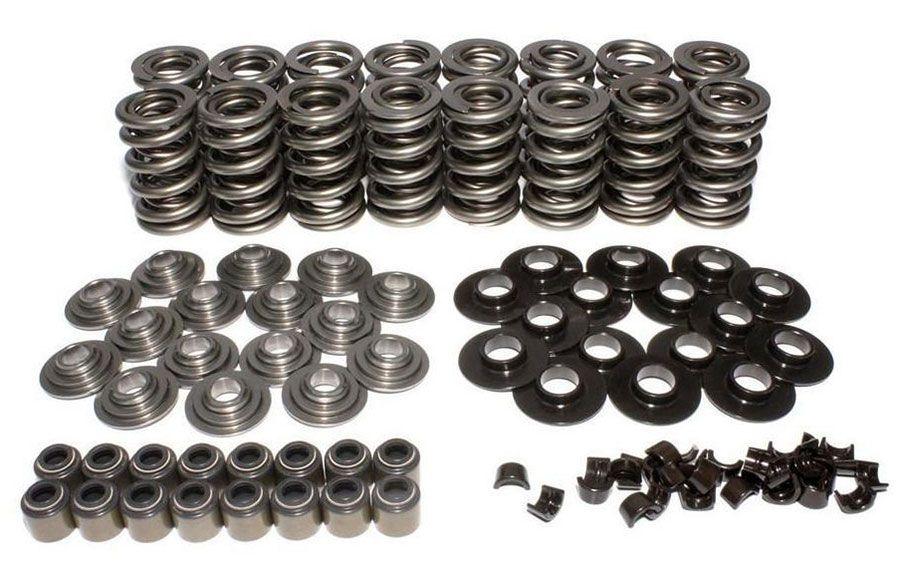

Kit Contains:
Beehive Springs #26918-16
Steel Retainers #774-16
7° Steel Valve Locks #623-16
Valve Seals #511-16
Spring Seats #4705-16
Spring Specifications
Spring O.D: Top 1.075" / Bottom 1.310"
Spring I.D: Top .650" / Bottom .885"
Seat Load: 125 @ 1.800"
Open Load: 367 @ 1.150"
Coil Bind: 1.100"
Rate (LBS/In): 372 lbs
Max Lift: .625"
