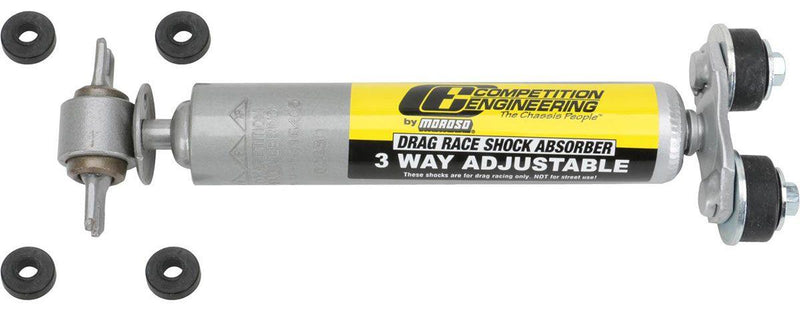

Comp Engineering 3-Way Adjustable Front Drag Shock (MOC2630)

MOC2630 - SHOCK 3 WAY ADJUST FORD FRONT

Suit Ford Mustang, Fairmont, Mercury Comet, Cougar From 1965-77

Part Number: MOC2630

Competition Engineering's 3-Way Adjustable Drag Shocks are designed to allow the racer to dial-in the race car to meet changing track conditions. Shock valving plays a very important role in the way your car will perform both during initial launch and throughout the quarter mile.
The principle behind our shock absorber design is to allow the front end of the race car to rise rapidly upon initial launch, creating greater weight transfer and better traction to the rear tires. As the car travels down the track, the front end will gradually descend to its ride height without unloading the rear tires which is a major cause of wheel spin. Our rear shocks work in conjunction with our front shocks making the transition from initial launch to top end charge as smooth as possible.
Competition Engineering's Rear Drag Shocks can be adjusted for changing track conditions by simple compressing and turning the shock. For slick tracks, set to the 50/50 adjustment; on good tracks, set to the 70/30 for better weight transfer.
Competition Engineering's Front Drag Shocks are adjustable in three ratios: 90/10, 80/20 and 60/40. These ratios reflect the percentage of force required to extend and compress the shock absorber. You can quickly change the valve setting by simply compressing the shock fully and rotating the shaft until the indexing notch mates with the desired setting on the body. It’s as simple as twist and click.
Our Rear Drag Shocks are also adjustable in three ratios: 70/30, 60/40 and 50/50. These ratios also represent the percentage of force required to compress and extend the shock unit. Only this time, the first number is compression and the second extension. These shocks also adjust by compressing them fully and rotating to the desired setting on the body.
Extended Length:
15.02"
Collapsed Length:
9.80"
Diameter:
1.63"
Application:
Ford Mustang, Fairmont 1965-70
Ford Maverick 1970-77
Mercury Comet 1971-77
Mercury Cougar 1967-70
