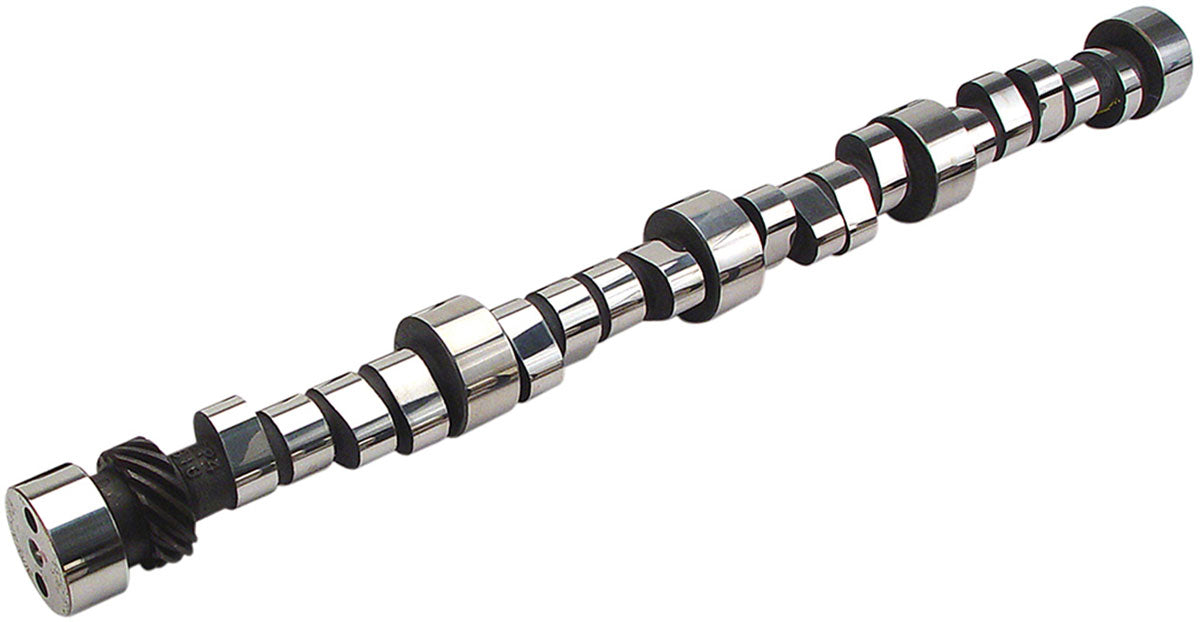

Comp Cams Xtreme Energy Hydraulic Roller Camshaft (XR288HR), Suit BB Chev GEN VI 454 & 502 - CO01-421-8
236/242 @ .050", .521"/.540", 110@deg; Lobe Sep
Comp Cams Xtreme Energy Hydraulic Roller Camshaft (XR288HR), Suit BB Chev GEN VI 454 & 502 - CO01-421-8
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
BBC MK6 HYD ROLLER CAM XR288HR
236/242 @ .050", .521"/.540", 110@deg; Lobe Sep
Part Number: CO01-421-8
Xtreme Energy 236/242 Hydraulic Roller Cam for Chevy Big Block GEN VI street/strip applications with 10.1:1 Compression and a 2800+ stall. Needs a good intake and headers. Rough idle.
Specifications:
Engine Family: Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
RPM Operating Range: 2,500-6,000
Cam Type: Hydraulic Roller
Camshaft Series: Xtreme Energy
Camshaft Gear Attachment: 3-Bolt
Usage: Street/Performance
Advertised Intake Duration: 288
Advertised Exhaust Duration: 294
Intake Duration at .050 Inch Lift: 236
Exhaust Duration .050 Inch Lift: 242
Intake Valve Lift: 0.521
Exhaust Valve Lift: 0.54
Lobe Separation: 110
Valve Timing Lift: 0.006
Exhaust Close ATDC: 33
Intake Open BTDC: 38
Exhaust Open BBDC: 81
Intake Close ABDC: 70
