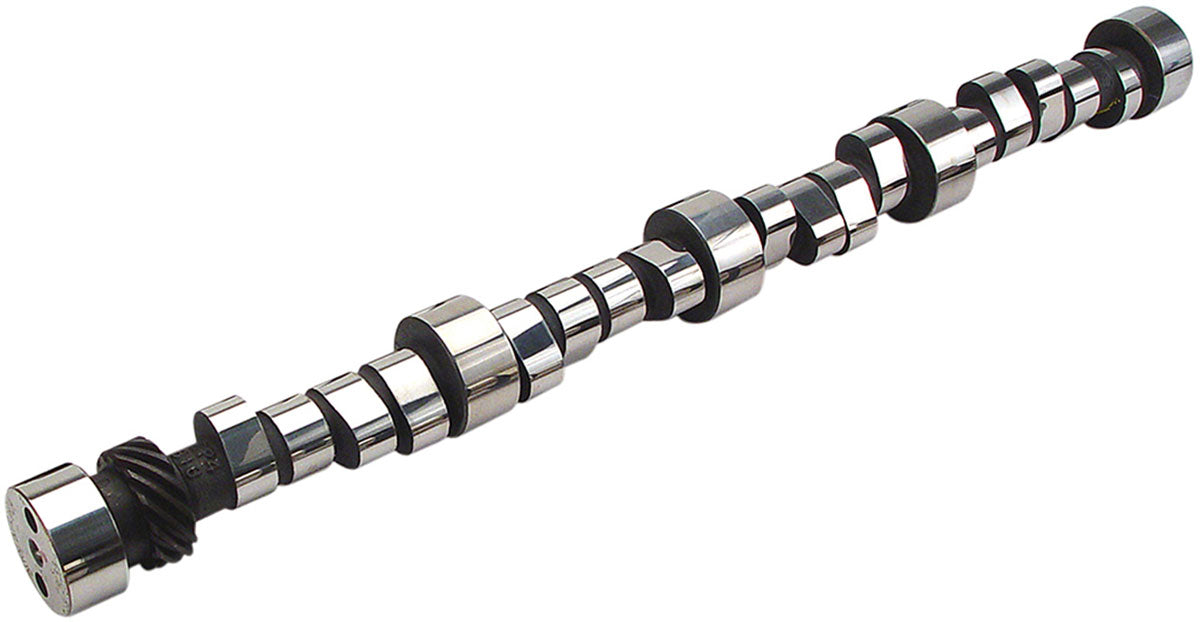

Comp Cams Xtreme Energy Hydraulic Roller Camshaft (XR282HR), Suit BB Chev GEN VI 454 & 502 - CO01-418-8
230/236 @ .050", .510"/.510", 110@deg; Lobe Sep
Comp Cams Xtreme Energy Hydraulic Roller Camshaft (XR282HR), Suit BB Chev GEN VI 454 & 502 - CO01-418-8
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
BBC MK6 HYD ROLLER CAM XR282HR
230/236 @ .050", .510"/.510", 110@deg; Lobe Sep
Part Number: CO01-418-8
Xtreme Energy 230/236 Hydraulic Roller Cam for Chevy Big Block GEN VI. For high performance street engines. Needs an improved intake manifold, headers, lower gears and a 2500+ stall.
Specifications:
Engine Family: Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
RPM Operating Range: 2,200-5,800
Cam Type: Hydraulic Roller
Camshaft Series: Xtreme Energy
Camshaft Gear Attachment: 3-Bolt
Usage: Street/Performance
Advertised Intake Duration: 282
Advertised Exhaust Duration: 288
Intake Duration at .050 Inch Lift: 230
Exhaust Duration .050 Inch Lift: 230
Intake Valve Lift: 0.51
Exhaust Valve Lift: 0.51
Lobe Separation: 110
Intake Centerline: 106
Valve Timing Lift: 0.006
Exhaust Close ATDC: 30
Intake Open BTDC: 35
Exhaust Open BBDC: 78
Intake Close ABDC: 67
