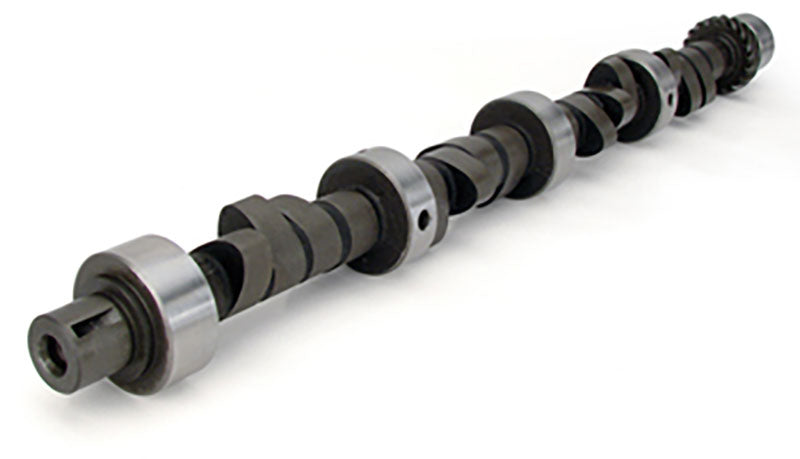

Comp Cams Magnum Mechanical Single bolt Camshaft, 282S - CO21-247-4
Suit BB Chrysler 383-440 (1959-80)
Comp Cams Magnum Mechanical Single bolt Camshaft, 282S - CO21-247-4 is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
383-440 MECHANICAL CAM 282s
Suit BB Chrysler 383-440 (1959-80)
Part Number: CO21-247-4
Mechanical (Solid) Flat Tappet Camshaft Excellent for Street/Strip; 383 Needs 2800 Stall; 440 Use 2400 Stall; 700-800 CFM Carb and Headers.
Specifications:
Engine Family: Chrysler 383-440 c.i. 8 Cylinder (1959-1980)
RPM Operating Range: 2,500-5,800
Cam Type: Solid Flat Tappet
Camshaft Series: Magnum
Camshaft Gear Attachment: 1-Bolt
Usage: Street/Strip
Advertised Intake Duration: 282
Advertised Exhaust Duration: 282
Intake Duration at .050 Inch Lift: 236
Exhaust Duration .050 Inch Lift: 236
Intake Valve Lift: 0.495
Exhaust Valve Lift: 0.495
Lobe Separation: 110
Valve Timing Lift: 0.015
Exhaust Close ATDC: 27
Intake Open BTDC: 35
Exhaust Open BBDC: 75
Intake Close ABDC: 67
Make: Chrysler
Engine: 383-440 c.i. 8 Cylinder (1959-1980)
Lifter Type: Solid Flat Tappet
