CLEARANCE - Wilwood 260-14157-BK Tandem Master Cylinder 15/16" Black (64-72 Mustang)

CLEARANCE ITEM

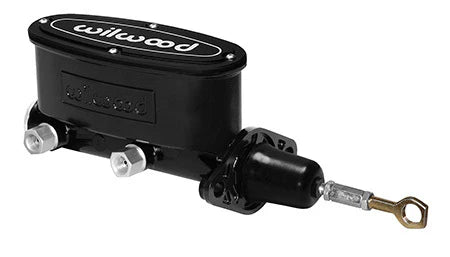

Wilwood’s Tandem Aluminum Master Cylinder for Mustangs comes with the correct pushrod; a 15/16" bore, and is available in 3 finishes; plain, ball burnished, and black e-coat.

These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal. They’re designed for mount flanges from 3.22” to 3.40”, which match the 64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore.

The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see PN 260-13190, or 220-13189 for retrofit kit.

Master Cylinder Dimensions

Bore Size: 15/16"
Area (in²): 0.69
Stroke: 1.1
Volume (cu in): n/a

Master Cylinder Description

Type: Tandem Outlet
Outlets: 2
Material: Aluminum
Finish: Black E-Coat

Reservoir

Res Type: Integral
Res Size (oz): 8.0 / 4.8
Res Size(cu in): 14.4 / 8.7
Rate: n/a
