Classic Instruments Vintage Series Truck Package - CT67VT-LS

The Vintage Series for 1967-1972 Chevy Truck LS Sending Units

Part Number: CT67VT-LS

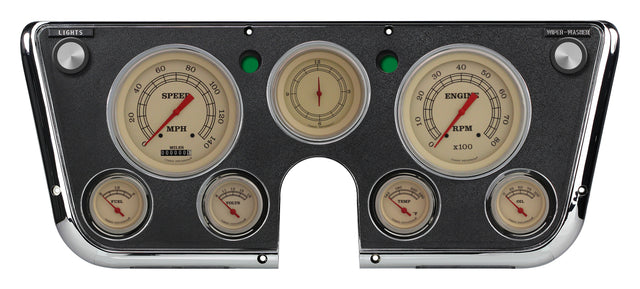

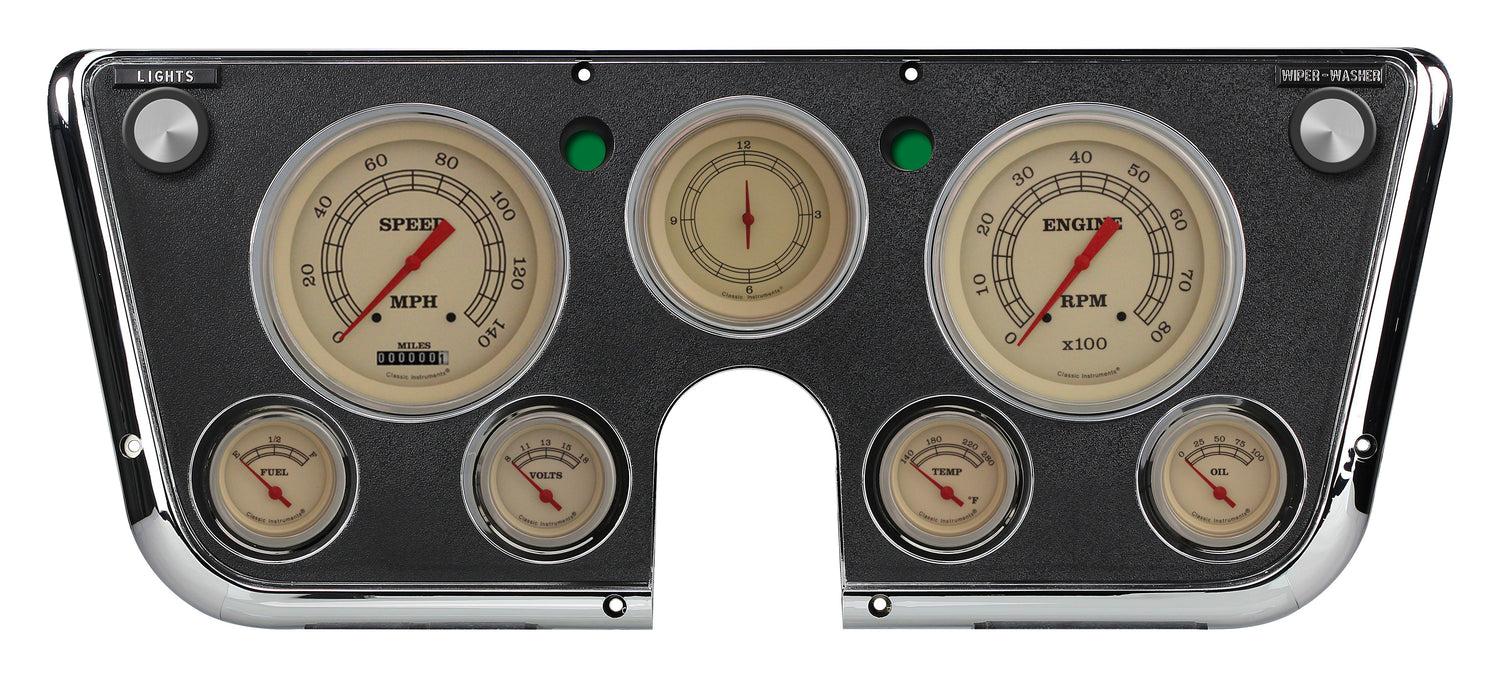

*Fuel sending unit not included, fuel gauge is calibrated to stock 0-90 OHM. **Dash bezel not included. The 1967-72 Chevy Truck Package with our Vintage Series installed, features a 4 5/8" Speedometer and tachometer, 3 3/8" Clock, and 2 1/8" Fuel (0-90 OHM), Oil, Temp, and Volt gauges. A blue LED high-beam indicator is installed in the speedometer. The set includes pre-wired electrical connections, mounting hardware, all necessary* sending units, and a wiring harness constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors. It is equipped with our ZST™ and works directly with ECM or VSS signals so no additional control box is needed.

Features and Benefits

• LED lighting with built-in LED dimmer, and molded “light intensifier” ring for bright, even lighting. Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster
• High beam indicator hidden at the top of the tachometer, red LED HaloTM
• Standard GM sender kit included (t­­emp., fuel, oil, speedometer senders), part no. SNGM
• Turn signal indicators in the left and right sides of cluster, green LEDs

Fuel Sending unit not included
