Classic Instruments Black Package - CV66B-LS

The Black Direct-fit Package for 1966-1967 Chevelle LS Sending Units

Part Number: CV66B-LS

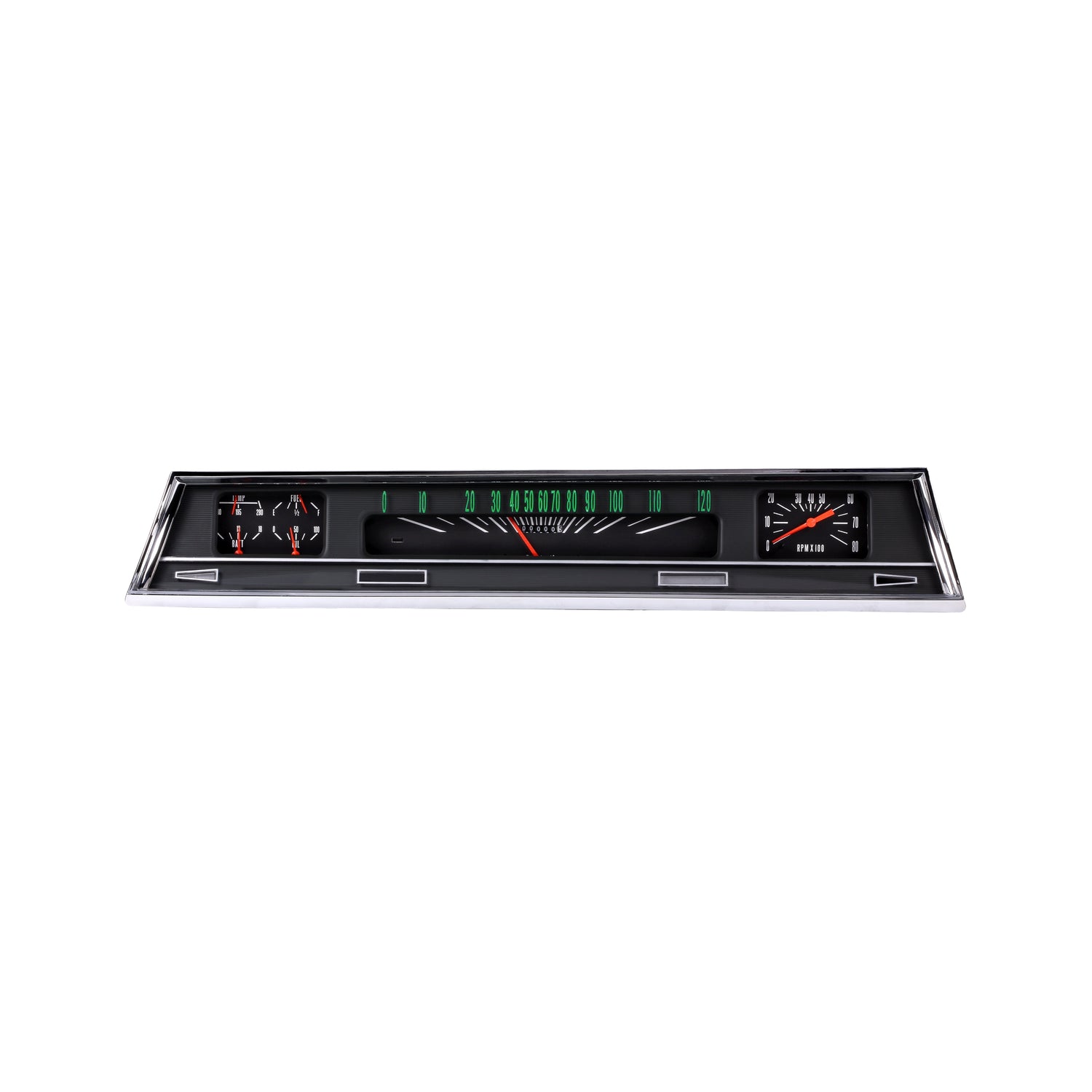

Note: Our instrument cluster includes an aftermarket reproduction lens which has some variation in color. You may use your original factory lens if you prefer. The 1966-67 Chevelle direct-fit cluster in black features a speedometer and tachometer, and fuel, oil, temperature, and volt gauges. The all-electric cluster arrives ready to install directly into the stock dash of 66-67 Chevelles, with ease. Additionally, the turn signals and high beam indicator are in the stock locations and it also features a built-in shift light and warning light. Everything needed to install the package is provided in the kit including all necessary sending units. It features our ZST™ and works directly with ECM or VSS signals requiring no additional control boxes. The cluster is designed to reuse the stock fuel-sending unit or any aftermarket fuel sender (purchased separately) with the built-in ohm range selector switch.

Features and Benefits

• Arrives ready to install in existing bezel
• Single-connector wiring harness for quicker setup
• Glass lens included
• Built-in ECM signal filter switch, on-board filter switch to allow direct connections to ECM speed signals, no additional control boxes needed

Fuel Sending unit not included
