Classic Instruments | SKU: AX309YAPF

Classic Instruments Autocross Yellow 2 5/8" Fuel Gauge - AX309YAPF

Name: Classic Instruments Autocross Yellow 2 5/8" Fuel Gauge - AX309YAPF
Brand: Classic Instruments
SKU: AX309YAPF
Price: 494.0 NZD
Availability: OutOfStock

Fuel Gauge,Full Sweep 2 5/8" Diameter

$494.00 NZD + GST

Shipping calculated at checkout.

Description

Fuel Gauge,Full Sweep 2 5/8" Diameter

Part Number: AX309YAPF

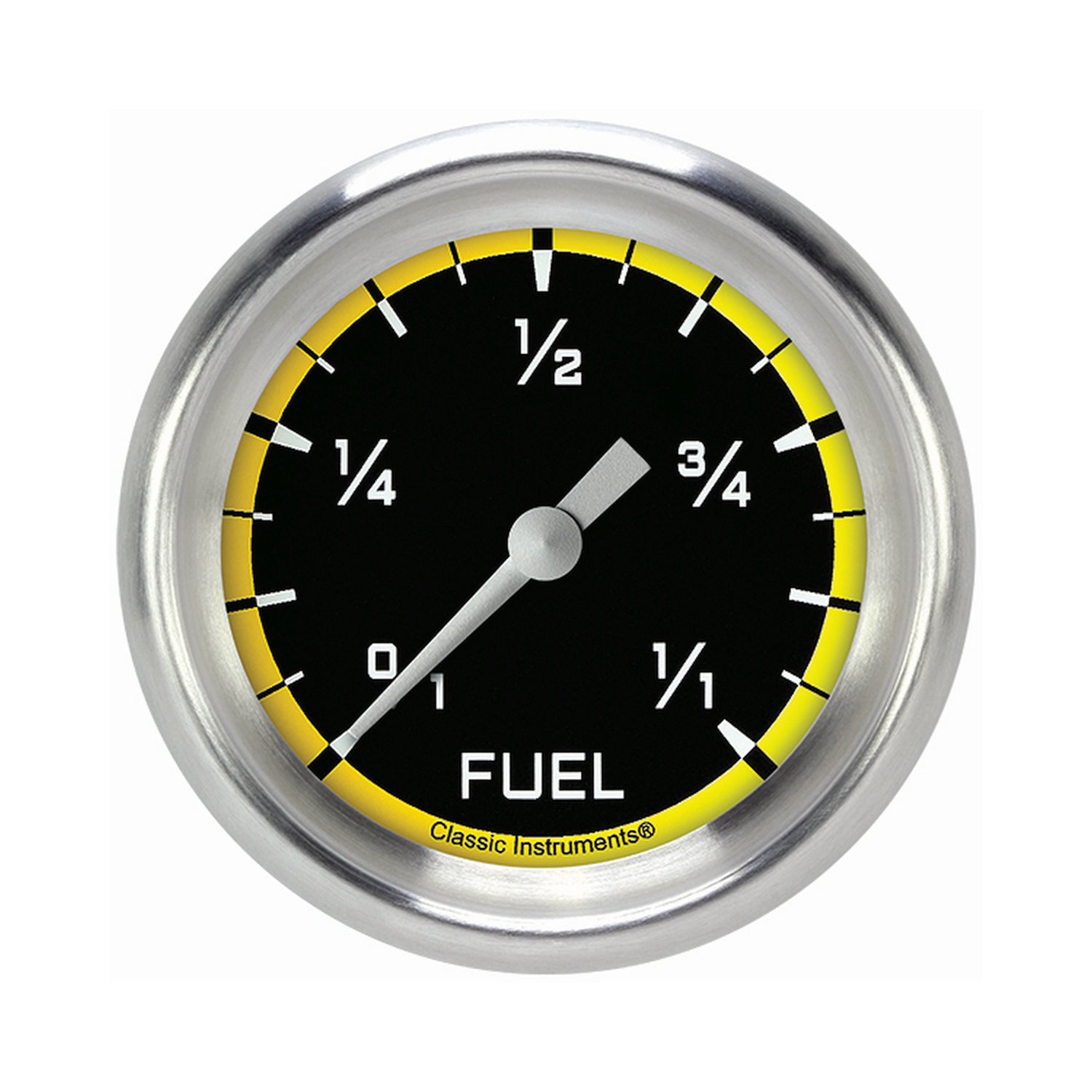

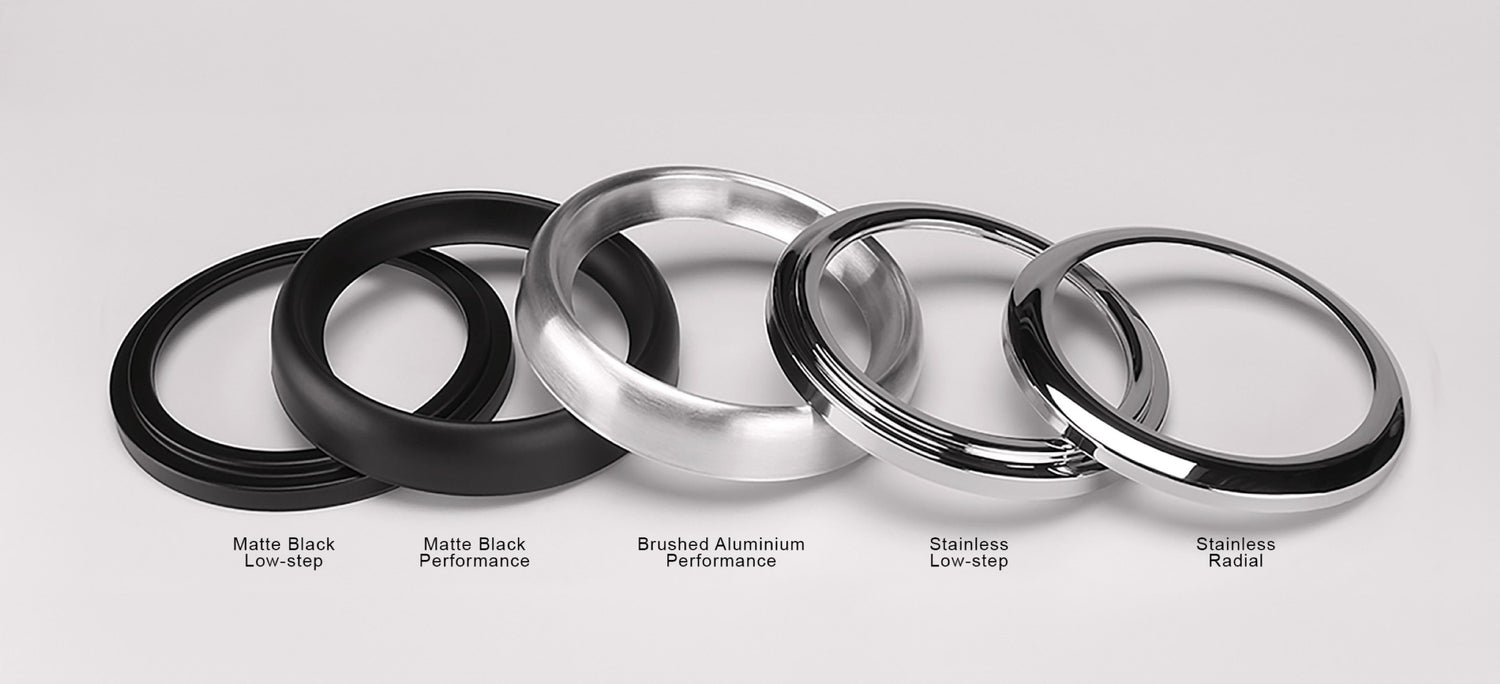

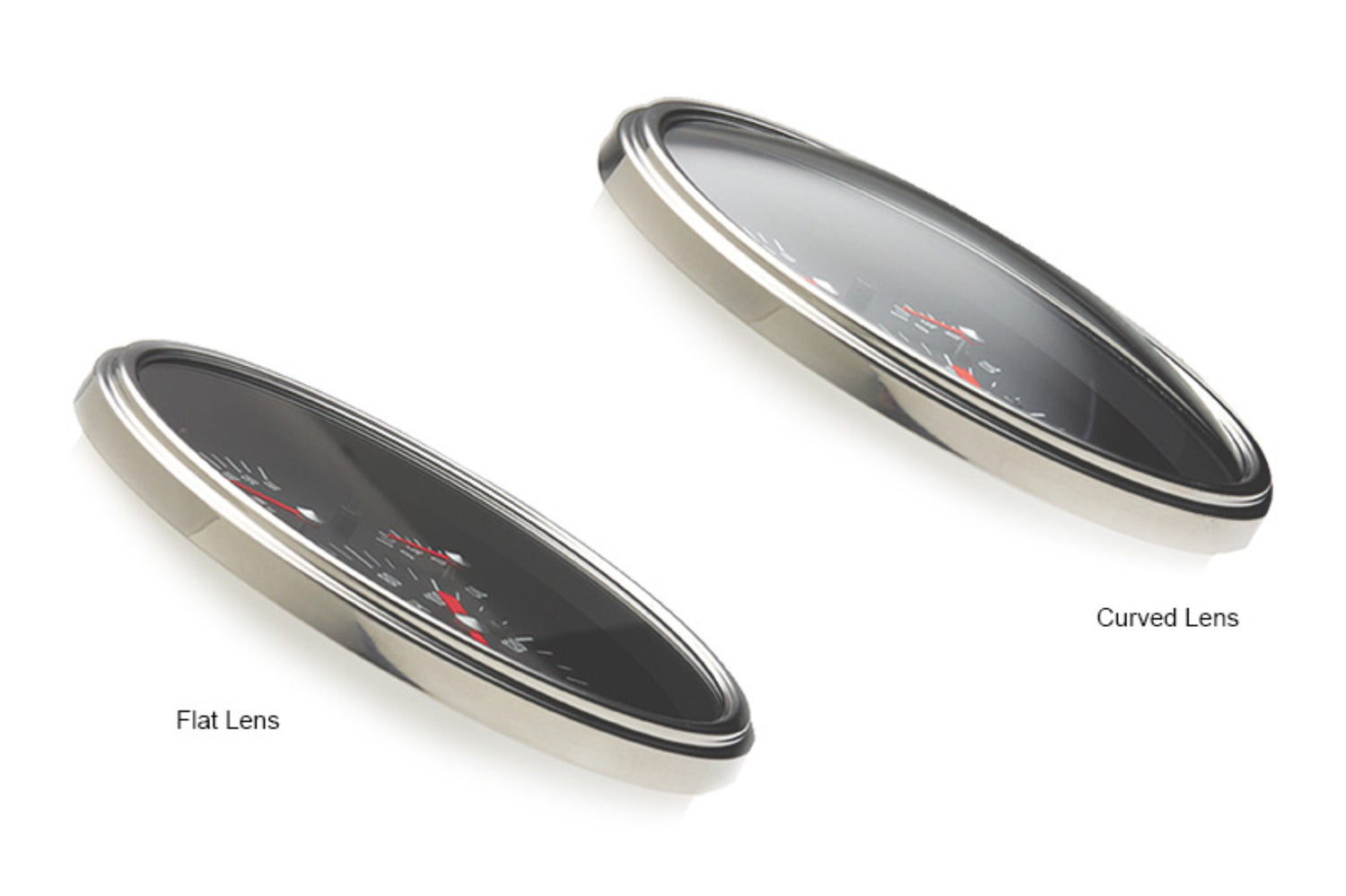

AutoCross Yellow 2 5/8" Full sweep fuel level gauge with aluminum performance bezel and flat glass lens. See available lens and pointer upgrades in the appropriate drop-down menus.

Features and Benefits

• Installation hardware included
• Push-button calibration
• Programmable OHM range for compatibility with any fuel sending unit
• LED lighting, choose between Warm White or Cool White
• Integrated red warning light, illuminates entire gauge red when activated
• Warning light output for additional warning indicator lights
• Easy to read 2 5/8" size
• Full sweep provides increased accuracy
• Rugged air core movement combined with microprocessor technology for precision and durability
• Analog .5 – 4.5VDC output for data logging systems

Specifications

Brand	Classic Instruments
Category	Body
Emission Code	6
Gauge Bezel Color	Brushed Aluminum
Gauge Diameter	2 5/8"
Gauge Face Color	Black/Yellow
Gauge Pointer Color	White
Gauge Type	Fuel Level
part type	Fuel Level Gauge
Product Type	Gauge
Sender Ohm Range	Programmable
Sending Unit Included	No
Sub Category	Instrument Panel
Sweep	Full Sweep
Warning	California Proposition 65
