Classic Instruments | SKU:
AX109GBLF

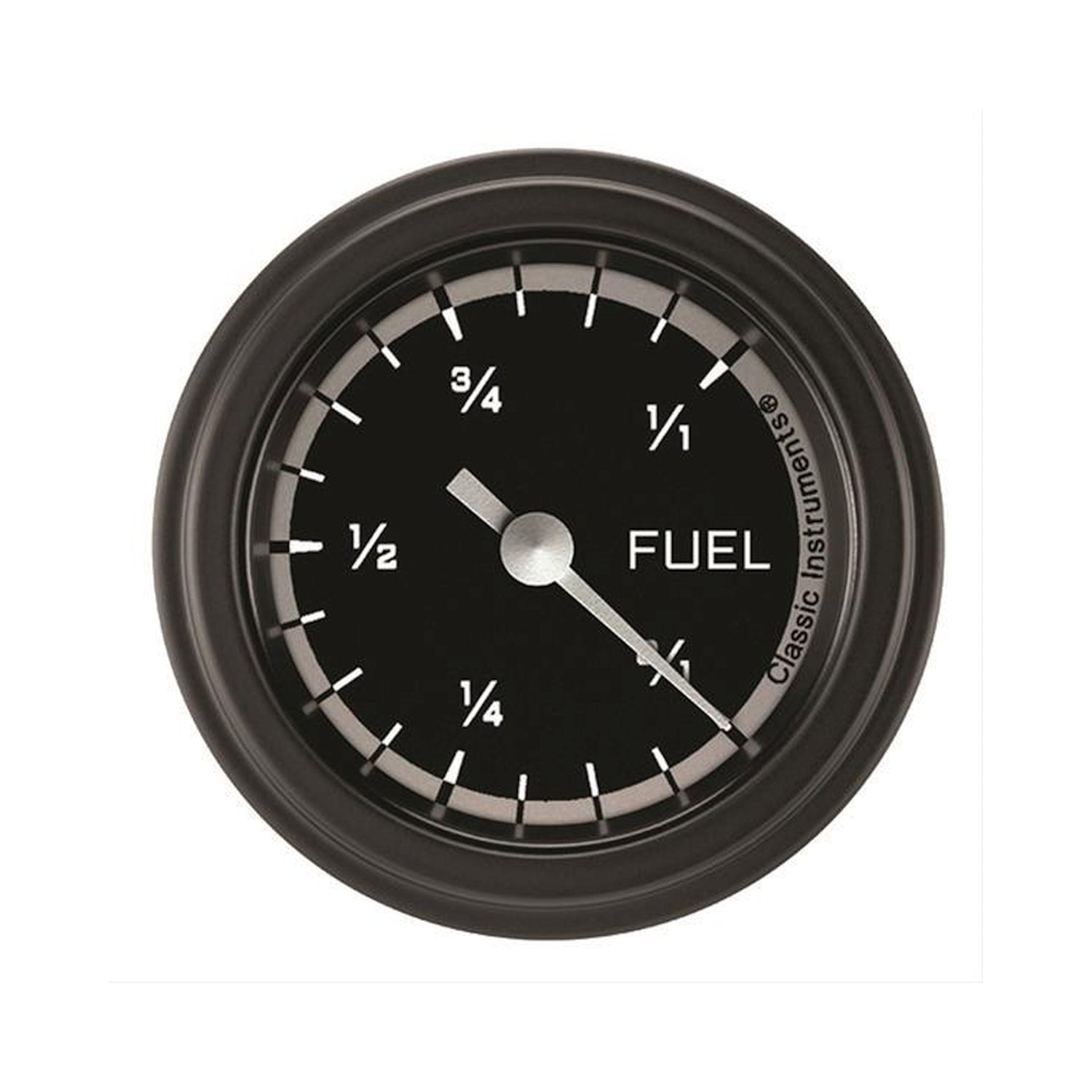

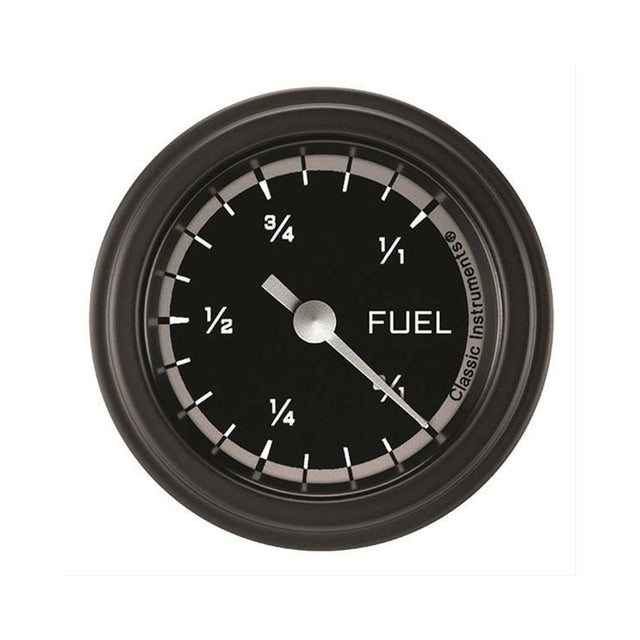

Classic Instruments Autocross Gray 2-1/8" Fuel Level Gauge - AX109GBLF
Fuel Gauge,Full Sweep 2 1/8" Diameter
Regular price
$466.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Special Order Item
This item is available to order. Additional freight charges will apply. Please contact us for current availability and lead time.
Contact to order
Classic Instruments Autocross Gray 2-1/8" Fuel Level Gauge - AX109GBLF
Special order item. Additional freight charges will apply.
Classic Instruments Autocross Gray 2-1/8" Fuel Level Gauge - AX109GBLF
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
Fuel Gauge,Full Sweep 2 1/8" Diameter
Part Number: AX109GBLF

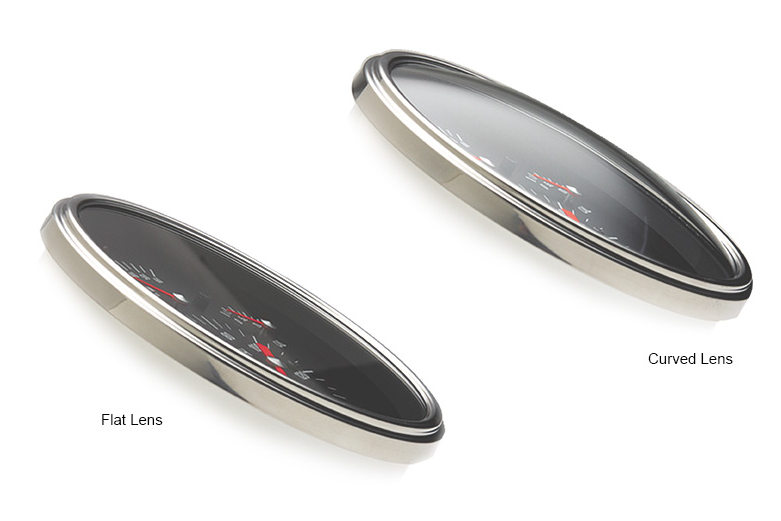

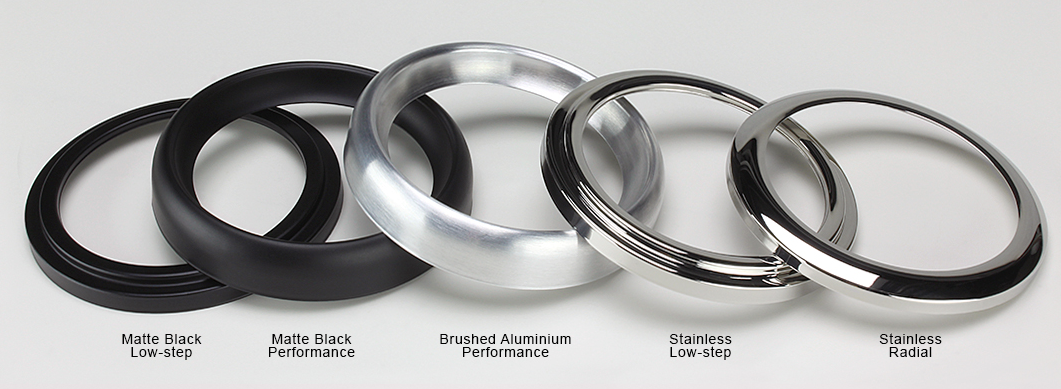

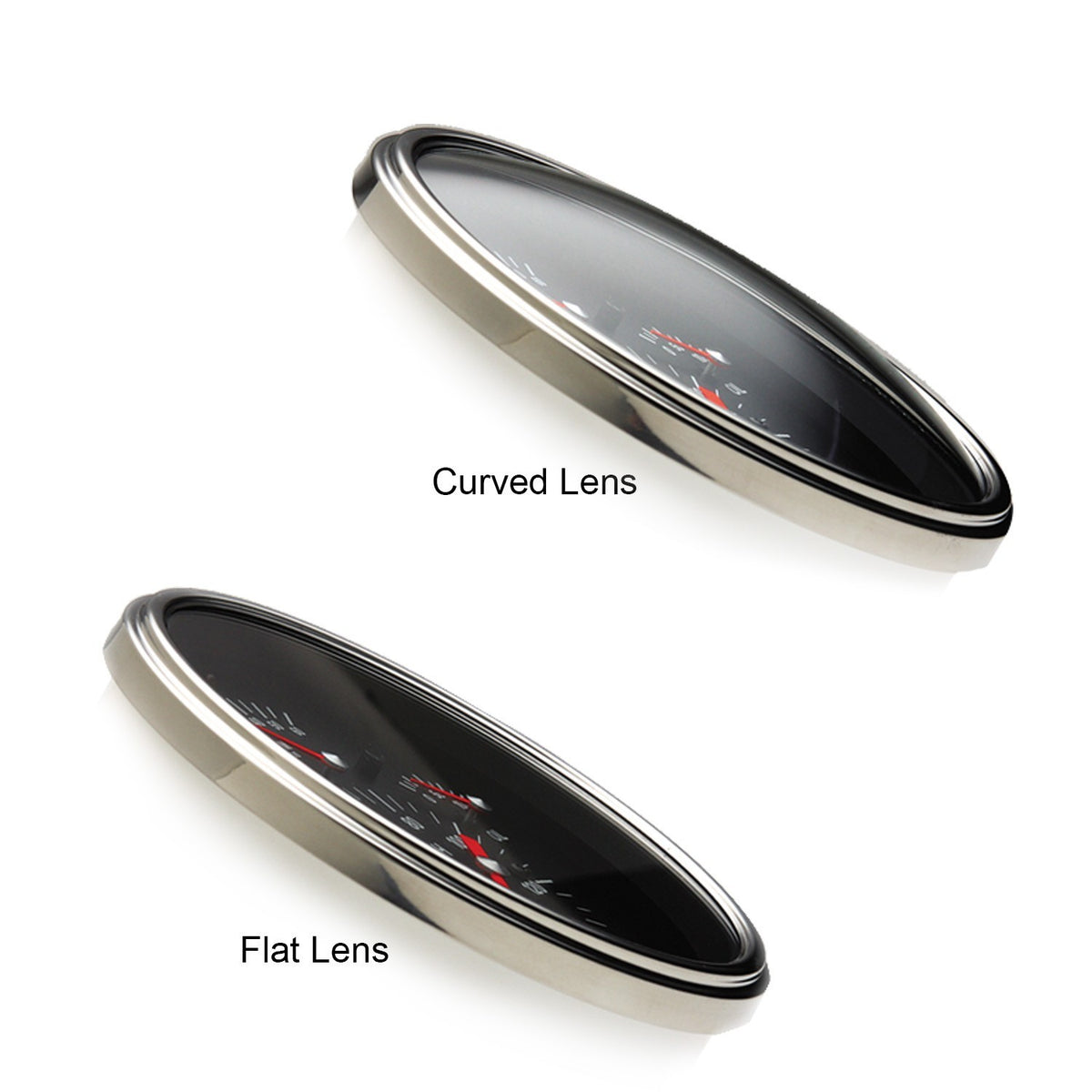

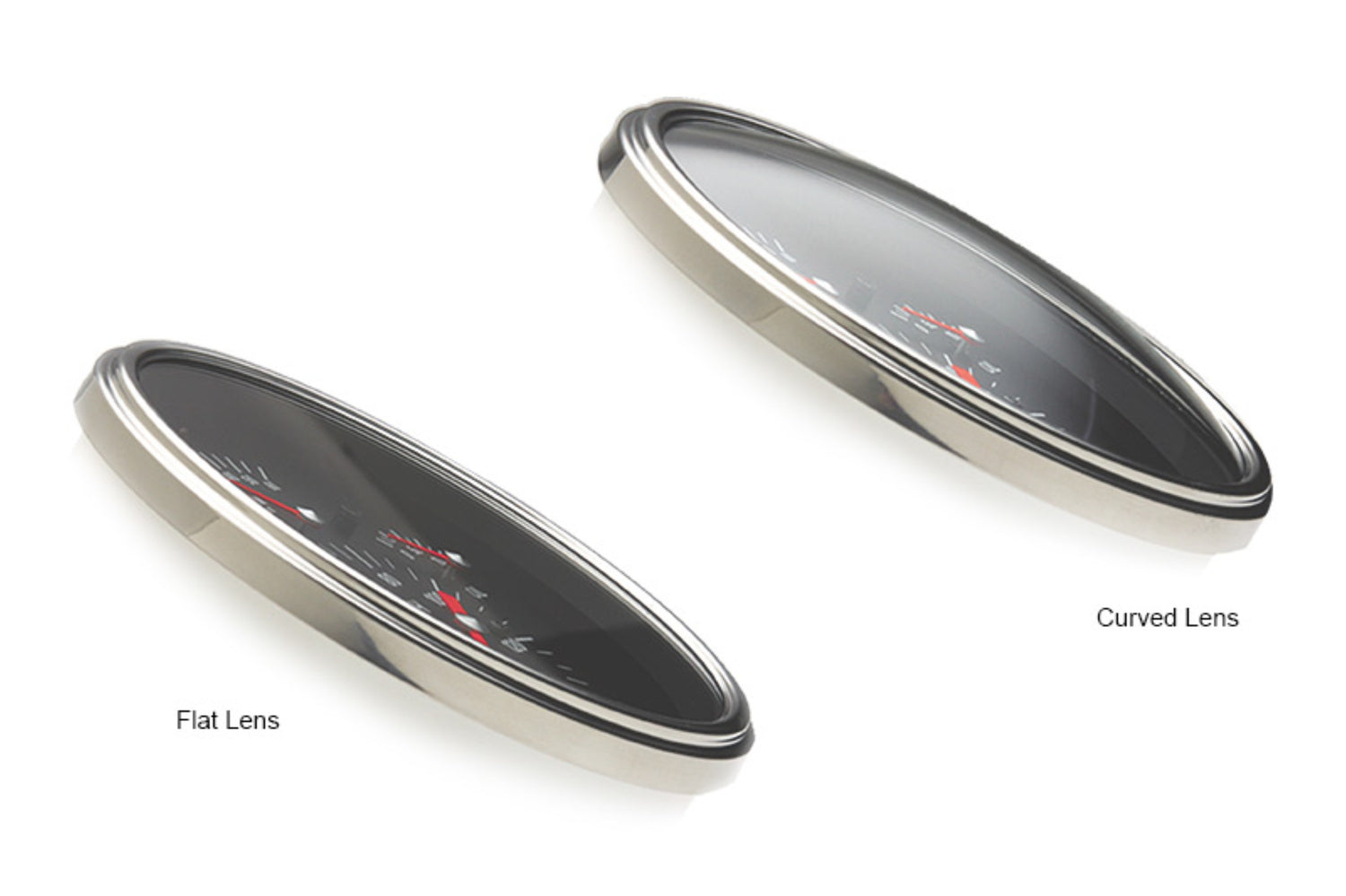

AutoCross Gray 2 1/8" Full sweep fuel level gauge with standard matte-black low step bezel and flat glass lens. See available bezel, lens, and pointer upgrades in the appropriate drop-down menus.
Features and Benefits
• Full sweep provides increased accuracy
• Programmable OHM range for compatibility with any fuel sending unit
• Integrated red warning light, illuminates entire gauge red when activated
• LED lighting, choose between Warm White or Cool White
• Analog .5 – 4.5VDC output for data logging systems
• Rugged air core motor combined with microprocessor technology for precision and durability
• Small 2 ⅛" hole size
• Push-button calibration

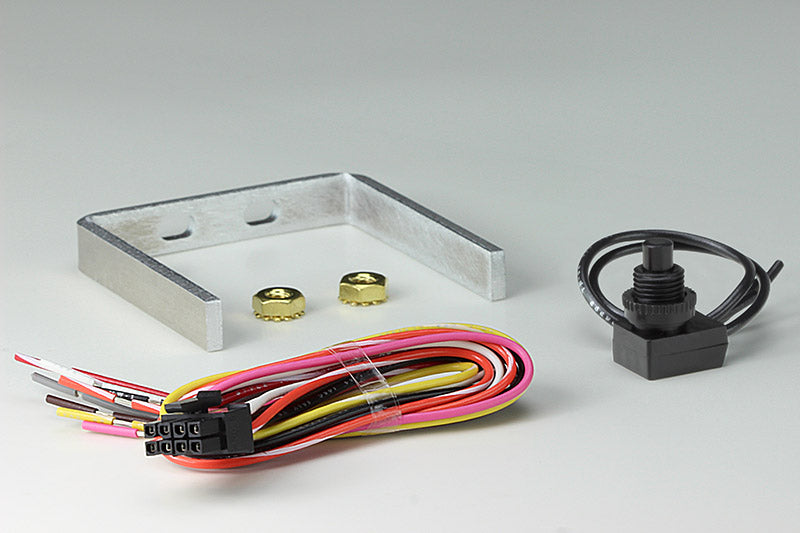

• Installation hardware included
• Warning light output for additional warning indicator lights
Part Number: AX109GBLF
AutoCross Gray 2 1/8" Full sweep fuel level gauge with standard matte-black low step bezel and flat glass lens. See available bezel, lens, and pointer upgrades in the appropriate drop-down menus.
Features and Benefits
• Full sweep provides increased accuracy
• Programmable OHM range for compatibility with any fuel sending unit
• Integrated red warning light, illuminates entire gauge red when activated
• LED lighting, choose between Warm White or Cool White
• Analog .5 – 4.5VDC output for data logging systems
• Rugged air core motor combined with microprocessor technology for precision and durability
• Small 2 ⅛" hole size
• Push-button calibration
• Installation hardware included
• Warning light output for additional warning indicator lights
Specifications
Specifications
-
Specifications
Brand Classic Instruments Bulb Type Incandescent Category Body Color Black/Gray Emission Code 6 Gauge Background Color Black/Gray Gauge Bezel Color Matte Black Gauge Diameter 2.125 Gauge Face Color Black/Gray Gauge Pointer Color White Gauge Series AutoCross Gray Gauge Size 2-1/8" Gauge Size (Mm) 53.98 Gauge Type Fuel Level Illuminated Yes Illumination Color White part type Fuel Level Gauge Product Type Gauge Sender Ohm Range Programmable Sending Unit Included No Sub Category Instrument Panel Sweep Full Sweep Universal Or Specific Fit Universal Warning California Proposition 65 Warranty Manufacturer's 7 Year Warranty -
