Classic Instruments | SKU:
AN326SLC-12

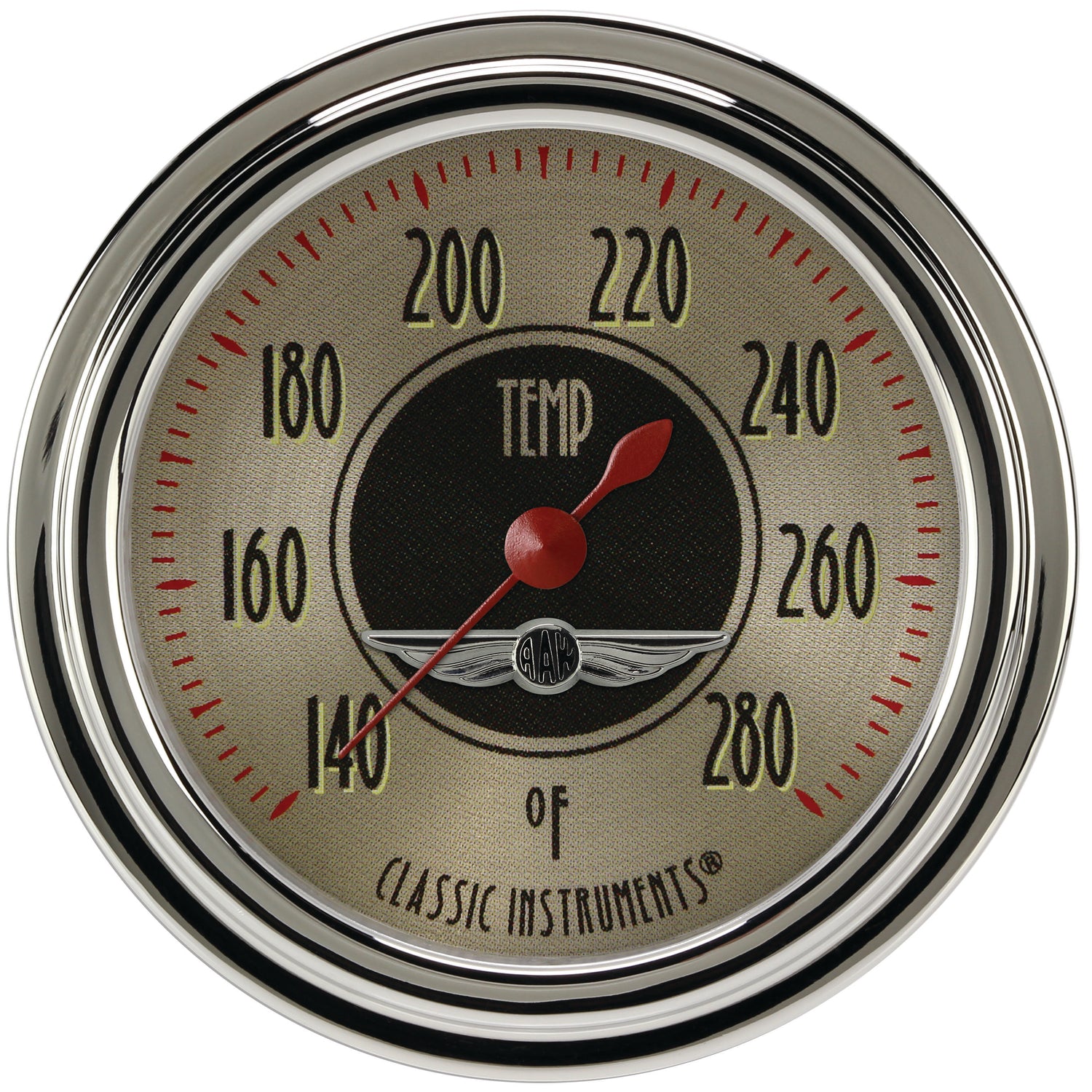

Classic Instruments All American Nickel 2-5/8" Full Sweep Water Temp Gauge - AN326SLC-12
All American Nickle 2 5/8" Full Sweep Water Temperature Gauge
Sold out
Regular price
$528.60 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Classic Instruments All American Nickel 2-5/8" Full Sweep Water Temp Gauge - AN326SLC-12
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Stock Status:
Description
Description
All American Nickle 2 5/8" Full Sweep Water Temperature Gauge
Part Number: AN326SLC-12
Features include:
- Rugged air core movement combined with microprocessor technology for precision and durability
- Full sweep provides increased accuracy
- Easy to read 2 5/8" size
- Push-button calibration
- Integrated red warning light, illuminates entire gauge red when activated
- Warning light output for additional warning indicator lights
- Analog .5 – 4.5VDC output for data logging systems
- LED lighting, choose between Warm White or Cool White

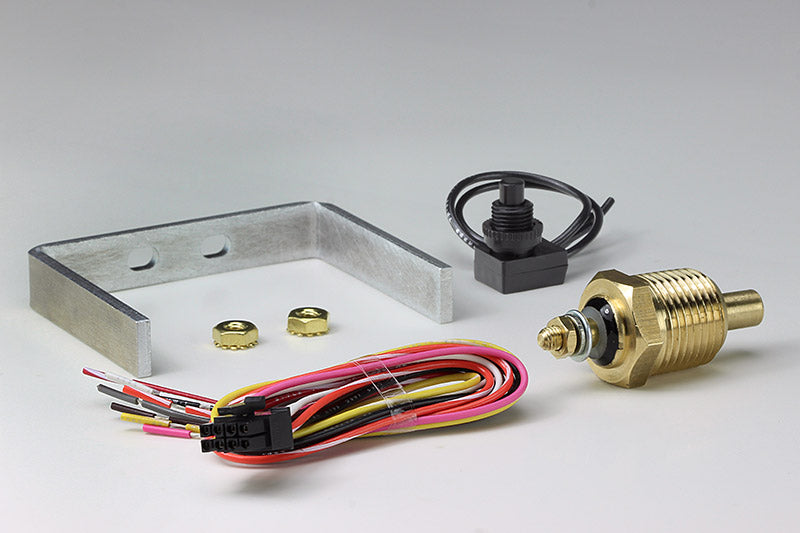

- Temperature sending unit included
- Installation hardware and wiring harness included

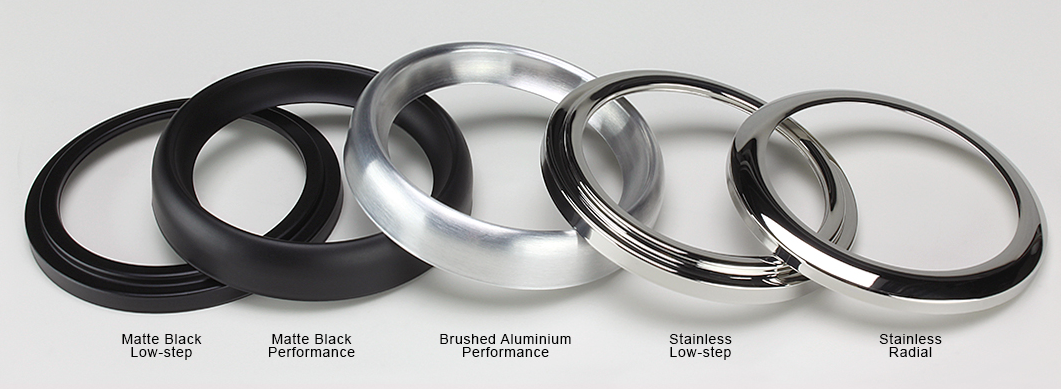

All American Nickel 2 5/8" Full sweep Water Temperature gauge with standard stainless steel low step bezel and curved glass lens. See available bezel, lens, and pointer upgrades in the appropriate drop-down menus.
Features and Benefits
• Integrated red warning light, illuminates entire gauge red when activated
• LED lighting, choose between Warm White or Cool White
• Full sweep provides increased accuracy
• Rugged air core movement combined with microprocessor technology for precision and durability
• Analog 5
• 4.5VDC output for data logging systems
• Easy to read 2 5/8" size - Push-button calibration
• Temperature sending unit included
• Warning light output for additional warning indicator lights
• Installation hardware included
Part Number: AN326SLC-12
Features include:
- Rugged air core movement combined with microprocessor technology for precision and durability
- Full sweep provides increased accuracy
- Easy to read 2 5/8" size
- Push-button calibration
- Integrated red warning light, illuminates entire gauge red when activated
- Warning light output for additional warning indicator lights
- Analog .5 – 4.5VDC output for data logging systems
- LED lighting, choose between Warm White or Cool White
- Temperature sending unit included
- Installation hardware and wiring harness included
All American Nickel 2 5/8" Full sweep Water Temperature gauge with standard stainless steel low step bezel and curved glass lens. See available bezel, lens, and pointer upgrades in the appropriate drop-down menus.
Features and Benefits
• Integrated red warning light, illuminates entire gauge red when activated
• LED lighting, choose between Warm White or Cool White
• Full sweep provides increased accuracy
• Rugged air core movement combined with microprocessor technology for precision and durability
• Analog 5
• 4.5VDC output for data logging systems
• Easy to read 2 5/8" size - Push-button calibration
• Temperature sending unit included
• Warning light output for additional warning indicator lights
• Installation hardware included
Specifications
Specifications
-
Specifications
Bezel Color Silver Bezel Material Steel Brand Classic Instruments Bulb Type Incandescent Category Body Color Nickel Display Type Analog Emission Code 6 Gauge Background Color Nickel Gauge Bezel Color Silver Gauge Diameter 2-5/8" Gauge Series All American Nickel Gauge Size 2-5/8" Gauge Size (Mm) 66.68 Grade Type Performance Illuminated Yes Illumination Color White Indicator Markings Color Black Lens Color Clear Liquid Filled No Mounting Hardware Included Yes part type Engine Coolant Temperature Gauge Pointer Color Red Product Type Engine Coolant Temperature Gauge Sensor Included Yes Sub Category Instrument Panel Sweep Full Sweep Universal Or Specific Fit Universal Warning California Proposition 65 Warranty Manufacturer's 7 Year Warranty Weight 1 -
