Classic Instruments | SKU:
AN198SHC

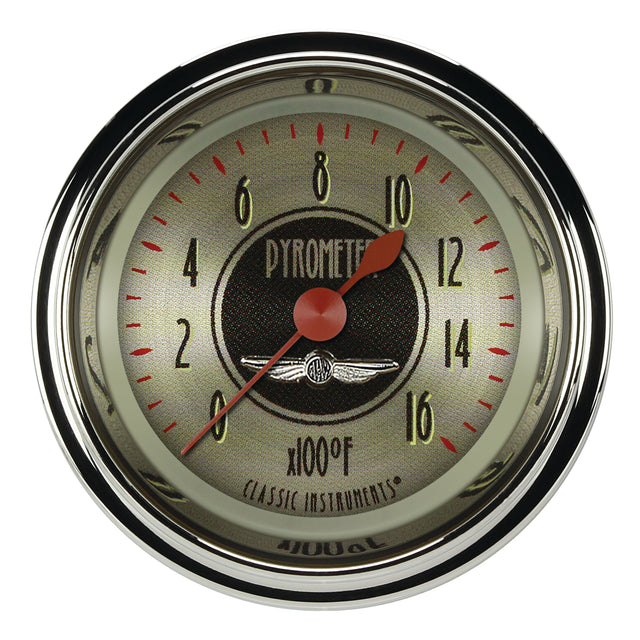

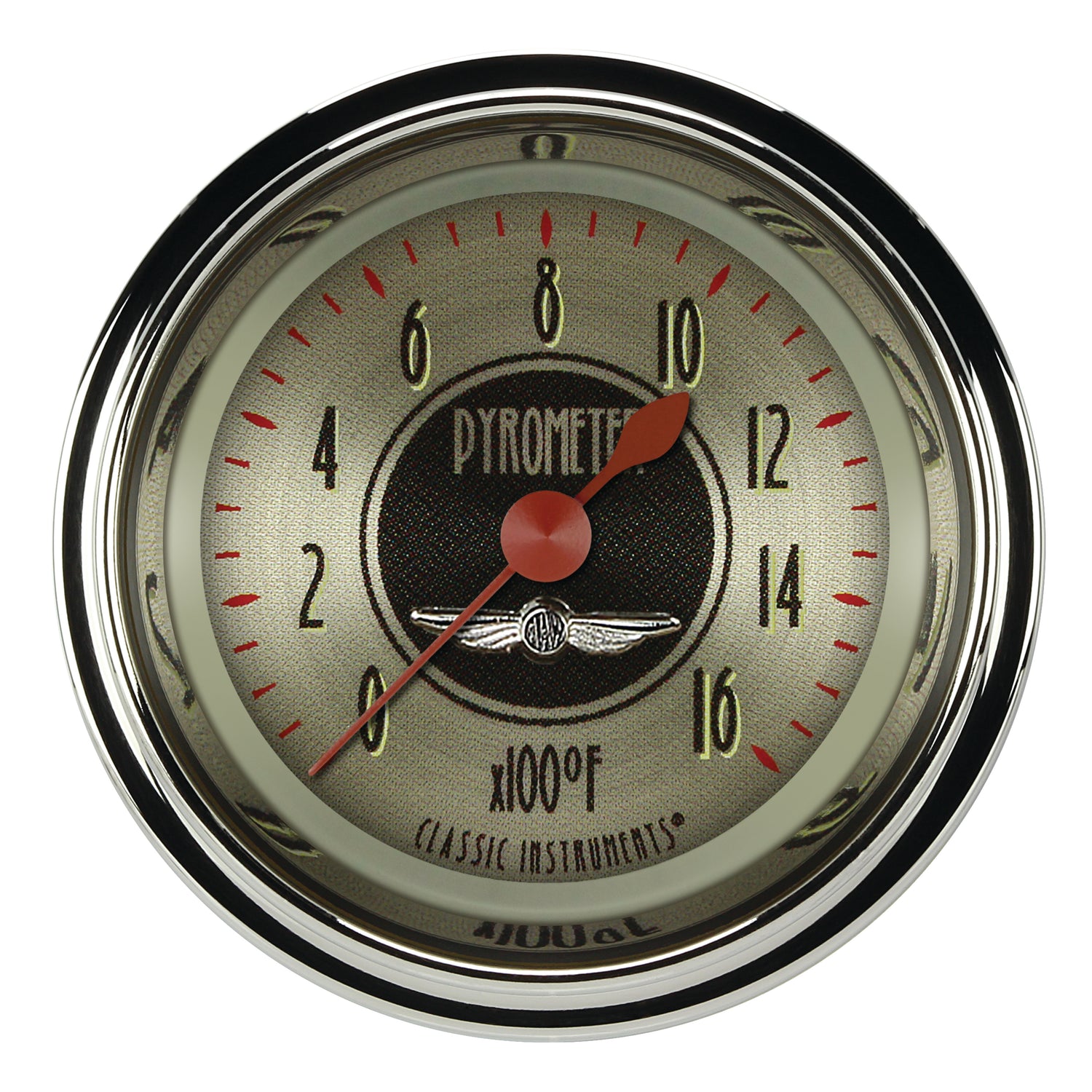

Classic Instruments All American Nickel 2-1/8" Exhaust Gas Tempature Gauge - AN198SHC
Full Sweep
Sold out
Regular price
$734.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Classic Instruments All American Nickel 2-1/8" Exhaust Gas Tempature Gauge - AN198SHC
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Stock Status:
Description
Description
Full Sweep
Part Number: AN198SHC

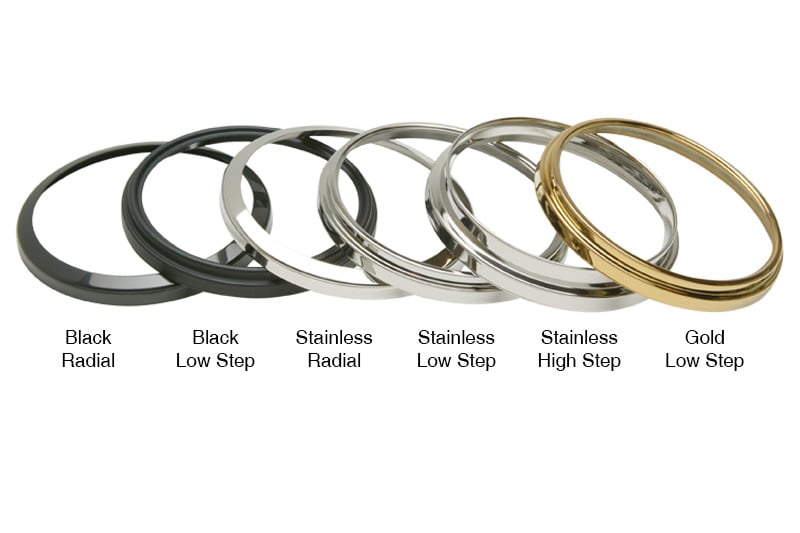

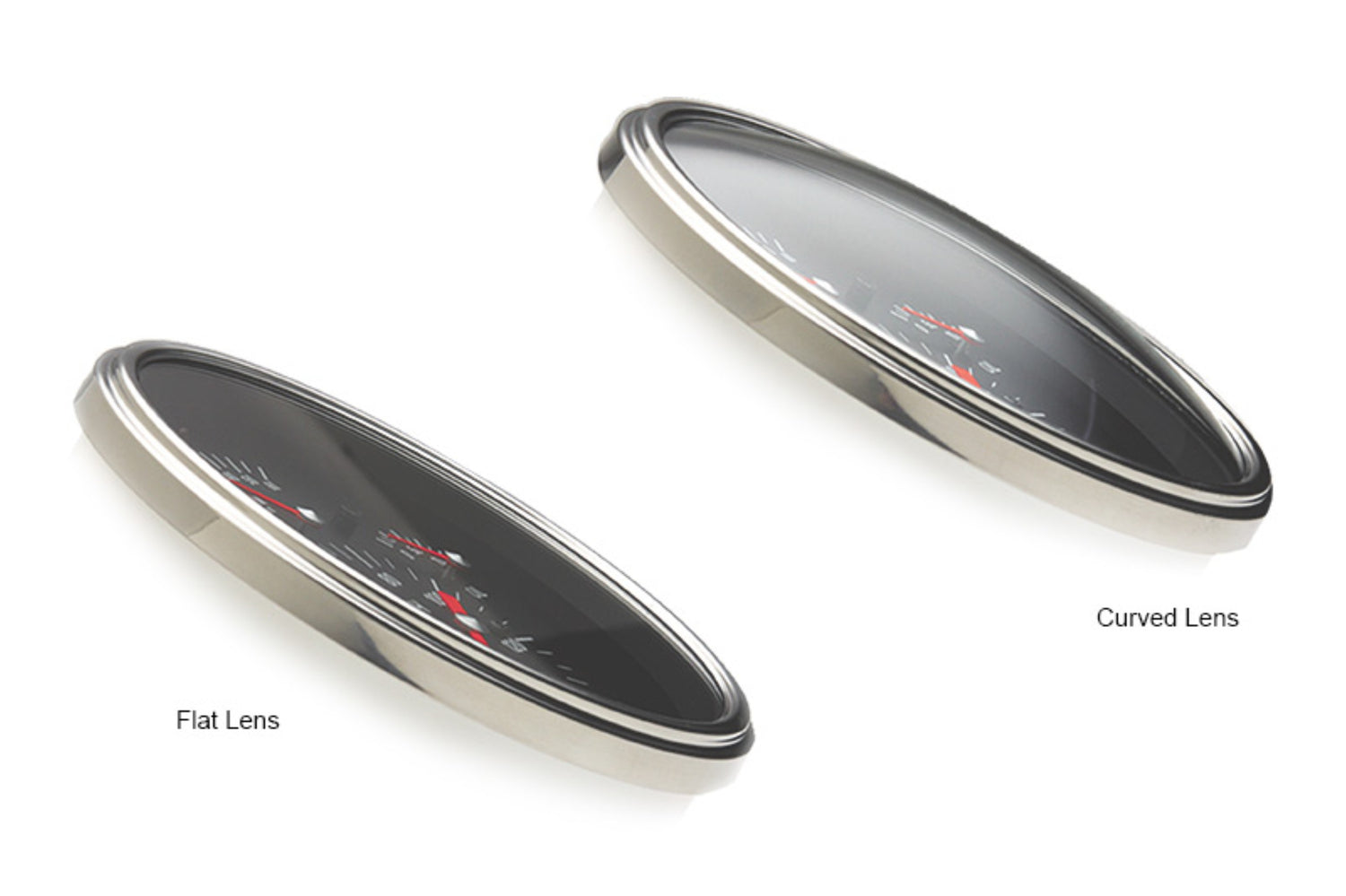

All American Nickel 2 1/8" Full sweep Exhaust Gas Temp. gauge, with standard stainless high step bezel and curved glass lens. See available bezel, lens, and pointer upgrades in the appropriate drop-down menus.
Features and Benefits

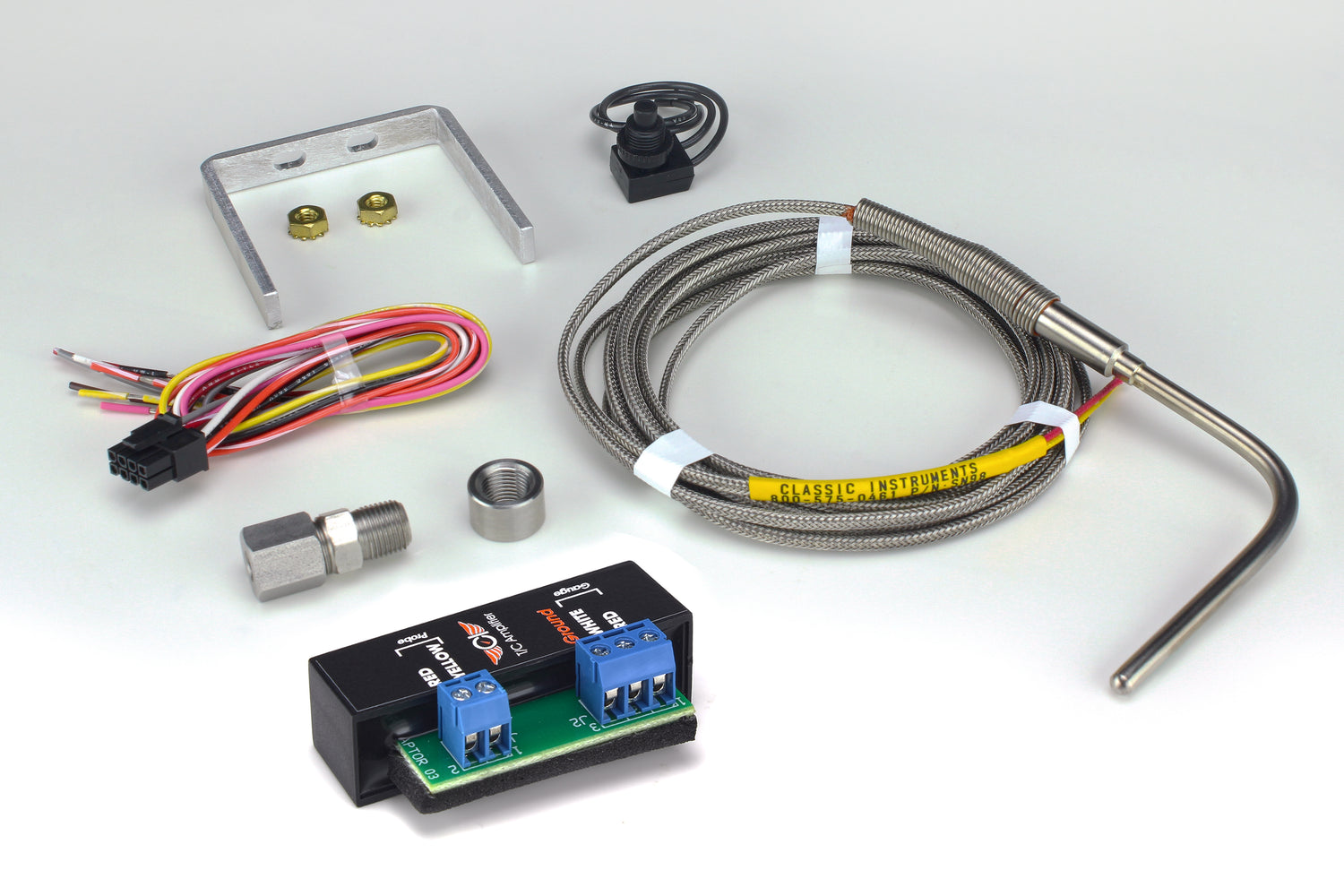

• Thermocouple amplifier included
• Push button calibration
• Type K thermocouple, with 3/16" diamter probe, 1/8" compression fitting and bung, and 10ft. stainles steel braided wire, included
• Configurable LED lighting, with choice of Warm White or Cool White lights
• Warning light output for additional warning indicator lights
• Small 2 1/8" hole size
• A singleconnection wire harness
• Rugged air core movement for durability
• Integrated red warning light, illuminates entire gauge red when activated
• Microprocessor technology for precision
• .5 - 4.5VDC analog datalogging output
• Full sweep provides increased accuracy
• Completely electric
Part Number: AN198SHC
All American Nickel 2 1/8" Full sweep Exhaust Gas Temp. gauge, with standard stainless high step bezel and curved glass lens. See available bezel, lens, and pointer upgrades in the appropriate drop-down menus.
Features and Benefits
• Thermocouple amplifier included
• Push button calibration
• Type K thermocouple, with 3/16" diamter probe, 1/8" compression fitting and bung, and 10ft. stainles steel braided wire, included
• Configurable LED lighting, with choice of Warm White or Cool White lights
• Warning light output for additional warning indicator lights
• Small 2 1/8" hole size
• A singleconnection wire harness
• Rugged air core movement for durability
• Integrated red warning light, illuminates entire gauge red when activated
• Microprocessor technology for precision
• .5 - 4.5VDC analog datalogging output
• Full sweep provides increased accuracy
• Completely electric
Specifications
Specifications
-
Specifications
Brand Classic Instruments Bulb Type Incandescent Category Body Color Nickel Display Format Analog Emission Code 6 Gauge Background Color Nickel Gauge Diameter 2-1/8" Gauge Series All American Nickel Gauge Size 2-1/8" Gauge Size (Mm) 53.98 Illuminated Yes Illumination Color White Mounting Hardware Included Yes Mounting Pod Included No part type Exhaust Gas Temperature (Egt) Gauge Product Type Individual Gauge Sensor Included Yes Sub Category Instrument Panel Sweep Full Sweep Temperature Range 0-1600°F Universal Or Specific Fit Universal Warning California Proposition 65 Warranty Manufacturer's 7 Year Warranty Weight 2 -
