Classic Instruments | SKU:
AW397SRC

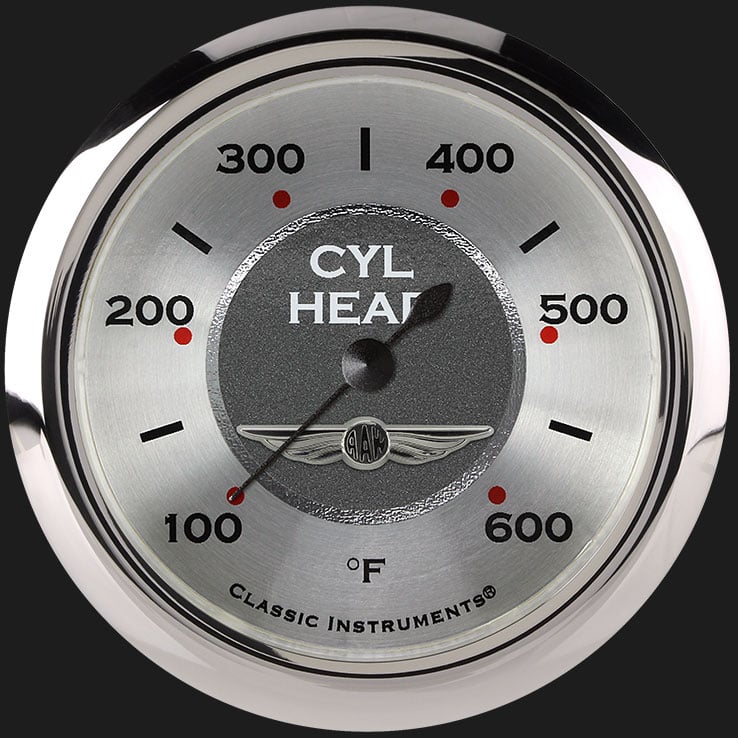

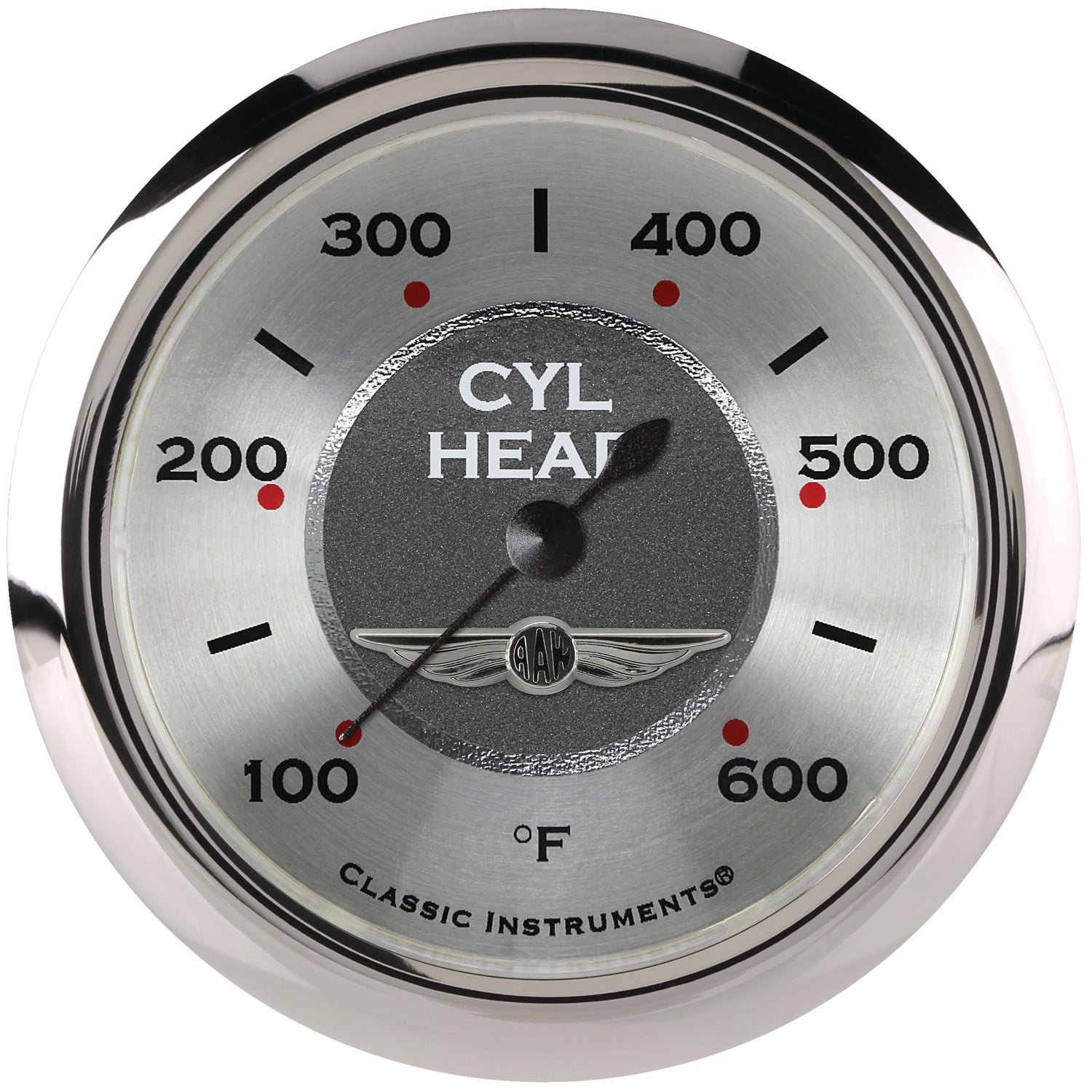

Classic Instruments All American 2-5/8" Cylinder Head Tempature Gauge - AW397SRC
Full Sweep
Sold out
Regular price
$674.20 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Special Order Item
This item is available to order. Additional freight charges will apply. Please contact us for current availability and lead time.
Contact to order
Classic Instruments All American 2-5/8" Cylinder Head Tempature Gauge - AW397SRC
Special order item. Additional freight charges will apply.
Classic Instruments All American 2-5/8" Cylinder Head Tempature Gauge - AW397SRC
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
Full Sweep
Part Number: AW397SRC

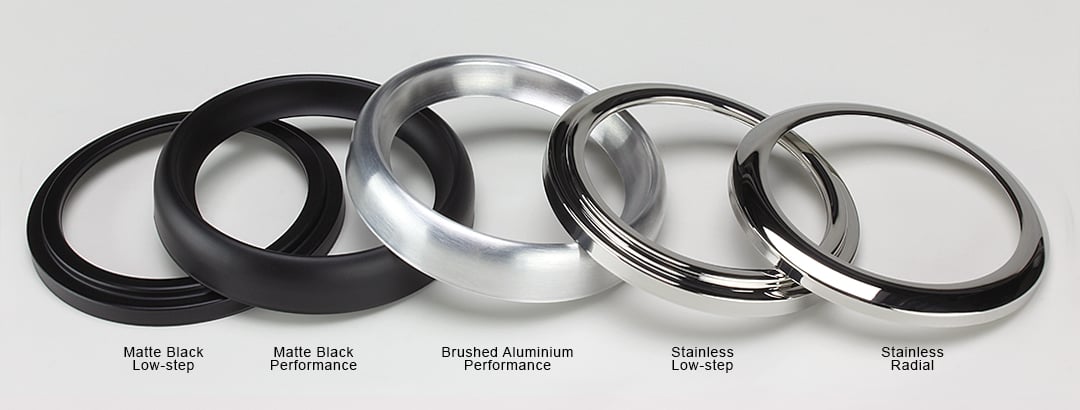

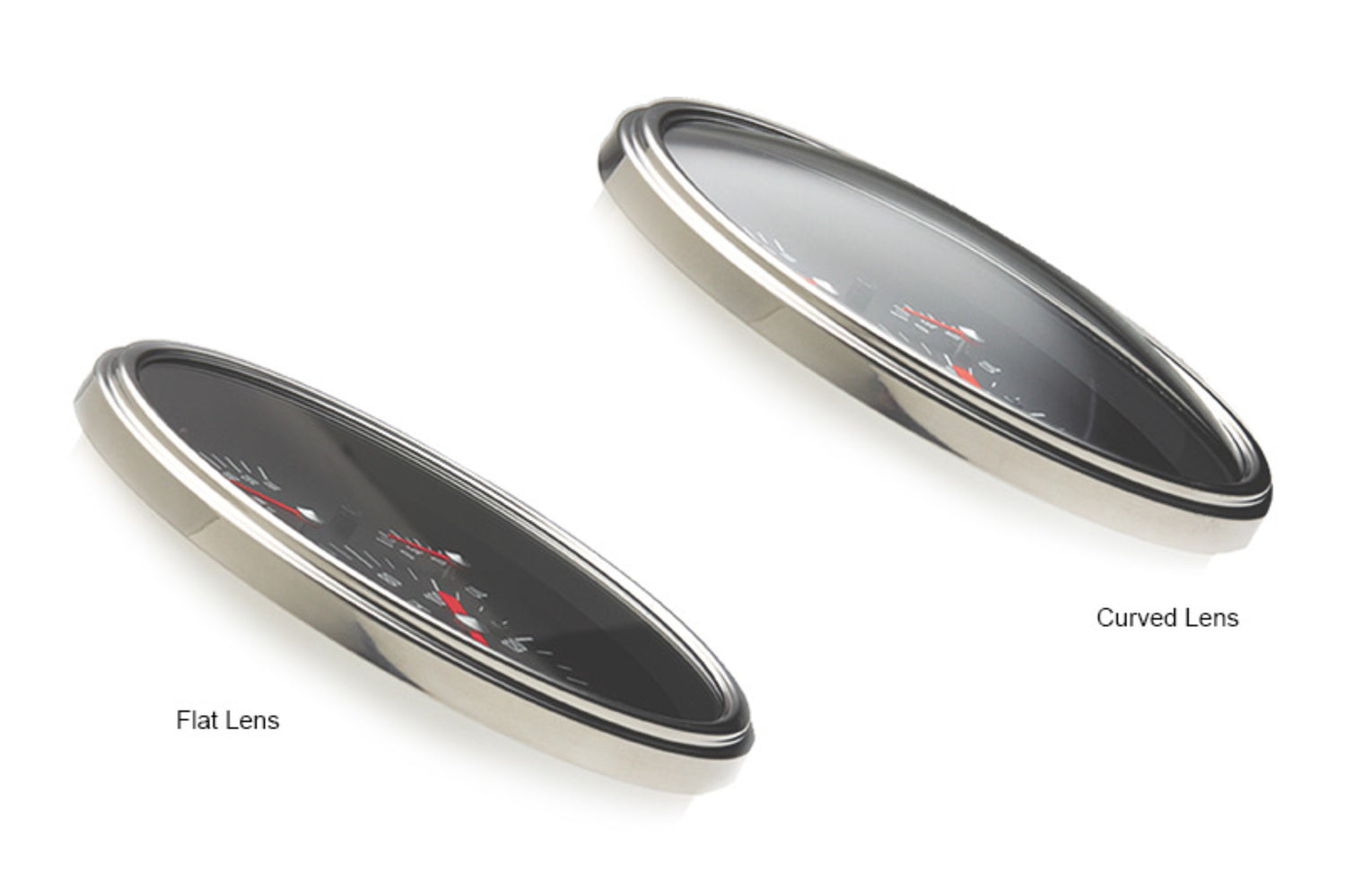

All American 2 5/8" Full sweep Cylinder Head Temp. gauge, with standard stainless steel radial;bezel and curved;glass lens. See available bezel, lens, and pointer upgrades in the appropriate drop-down menus.
Features and Benefits
• .5 - 4.5VDC analog datalogging output
• Integrated red warning light, illuminates entire gauge red when activated
• Easy to read 2 5/8" size
• A singleconnection wire harness
• Completely electric
• Rugged air core movement for durability
• Warning light output for additional warning indicator lights
• Microprocessor technology for precision
• Type K thermocouple, with 14mm copper lug and 10ft. stainles steel braided wire, included
• Thermocouple amplifier included
• Configurable LED lighting, with choice of Warm White or Cool White lights
• Full sweep provides increased accuracy
• Push button calibration
Part Number: AW397SRC
All American 2 5/8" Full sweep Cylinder Head Temp. gauge, with standard stainless steel radial;bezel and curved;glass lens. See available bezel, lens, and pointer upgrades in the appropriate drop-down menus.
Features and Benefits
• .5 - 4.5VDC analog datalogging output
• Integrated red warning light, illuminates entire gauge red when activated
• Easy to read 2 5/8" size
• A singleconnection wire harness
• Completely electric
• Rugged air core movement for durability
• Warning light output for additional warning indicator lights
• Microprocessor technology for precision
• Type K thermocouple, with 14mm copper lug and 10ft. stainles steel braided wire, included
• Thermocouple amplifier included
• Configurable LED lighting, with choice of Warm White or Cool White lights
• Full sweep provides increased accuracy
• Push button calibration
Specifications
Specifications
-
Specifications
Brand Classic Instruments Bulb Type Incandescent Category Body Color Silver Emission Code 6 Gauge Background Color Silver Gauge Diameter 2.625 Gauge Series All American Gauge Size 2-5/8" Gauge Size (Mm) 66.68 Illuminated Yes Illumination Color White part type Engine Cylinder Head Temperature Gauge Product Type Individual Gauge Sub Category Instrument Panel Universal Or Specific Fit Universal Warning California Proposition 65 Warranty Manufacturer's 7 Year Warranty -
