Classic Instruments 1957 - 1960 Ford Truck Gauge Set Hot Rod - FT57HR65

The Classic Truck Gauge Set for 1957 - 1960 Ford Truck Hot Rod

Part Number: FT57HR65

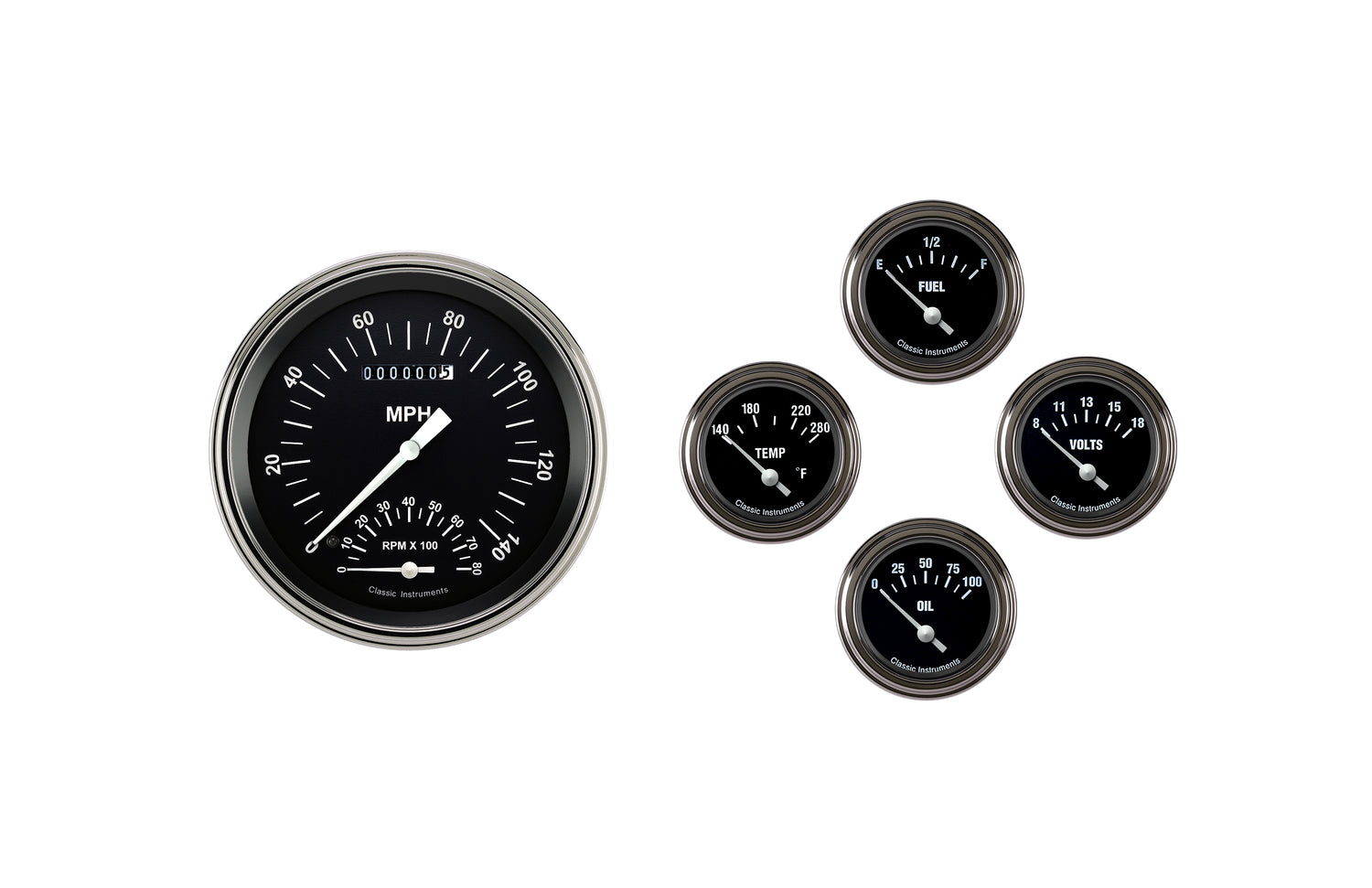

Our 1957-60 Ford Truck direct-fit package features an option between our standard 4 5/8” speedometer or our Speedtachular; Speedometer/Tachometer combination gauge. Plus, 2 1/8” Fuel (75-10ohm), oil, temperature, and volt short-sweep gauges. The kit arrives with all necessary sending units, fuel sending unit not included as the fuel gauge is calibrated to stock 75-10 OHM, mounting bracket & hardware, (factory bezel not included), and a speedometer wiring harness. The speedometer harness is constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors. A standard stud connection is used for the Fuel, Oil, Temp, and Volt gauges. Gauge lighting is standard incandescent with the option to upgrade to LED lighting. Green turn signals are mounted in the housing, and a red high beam indicator is built into the speedometer via our Halo lighting. The Package is equipped with our ZST™ and built-in ECM signal filter switch, meaning it works directly with ECM or VSS signals, no need for an additional control box. Choose between three different styles, OE, Hot Rod, and White Hot.

Features and Benefits

• Green turn signals are mounted in the housing, and a red high beam indicator is built into the speedometer via Classic's Halo lighting

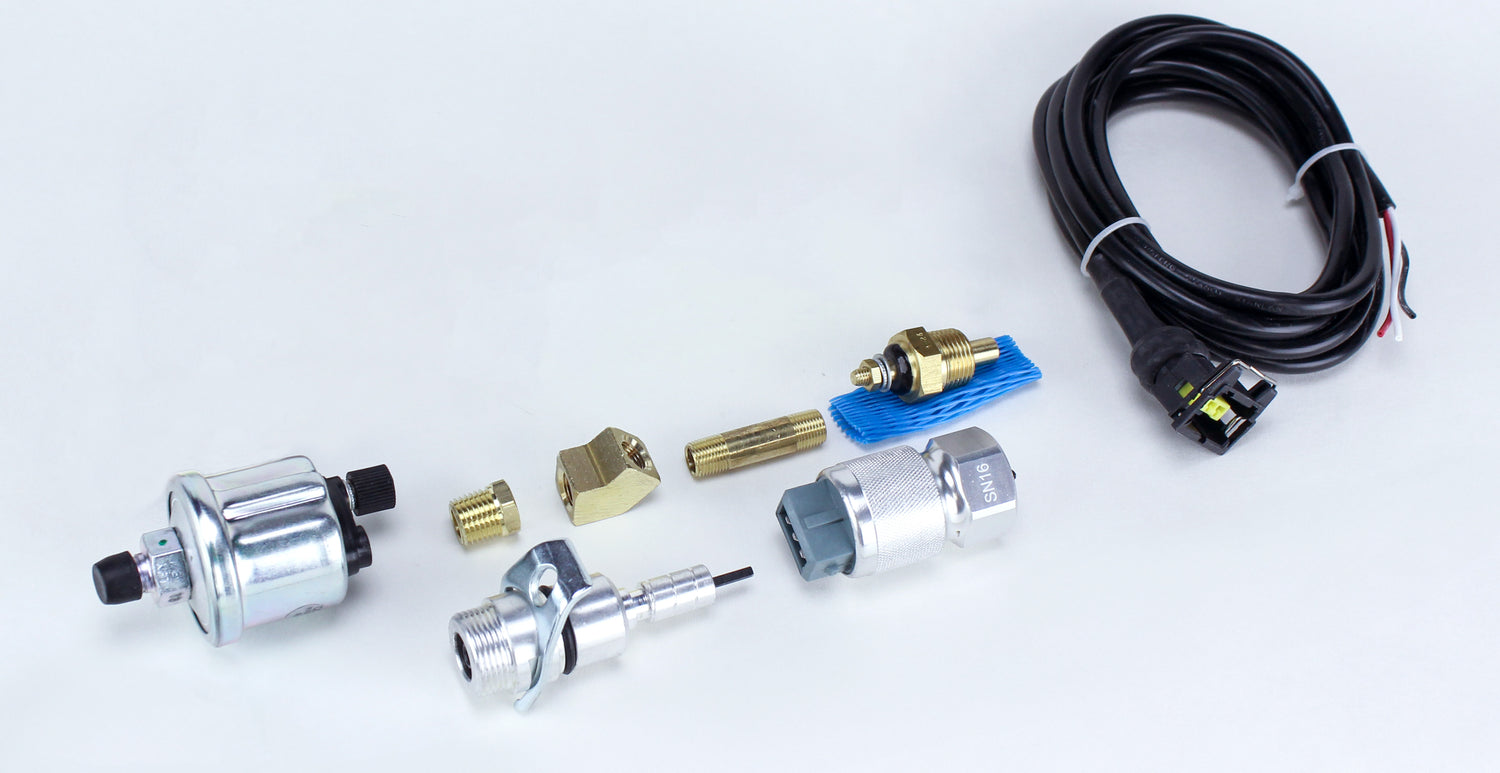

• All necessary sending units, mounting bracket and hardware, and a speedometer wiring harness is included
• Speedometer harness is constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors
• A standard stud connection is used for the fuel, oil, temperature, and volt gauges
• 2 1/8 in. fuel (75-10 ohm), oil, temperature, and volt short-sweep gauges
• Gauge lighting is standard incandescent with the option to upgrade to LED lighting
