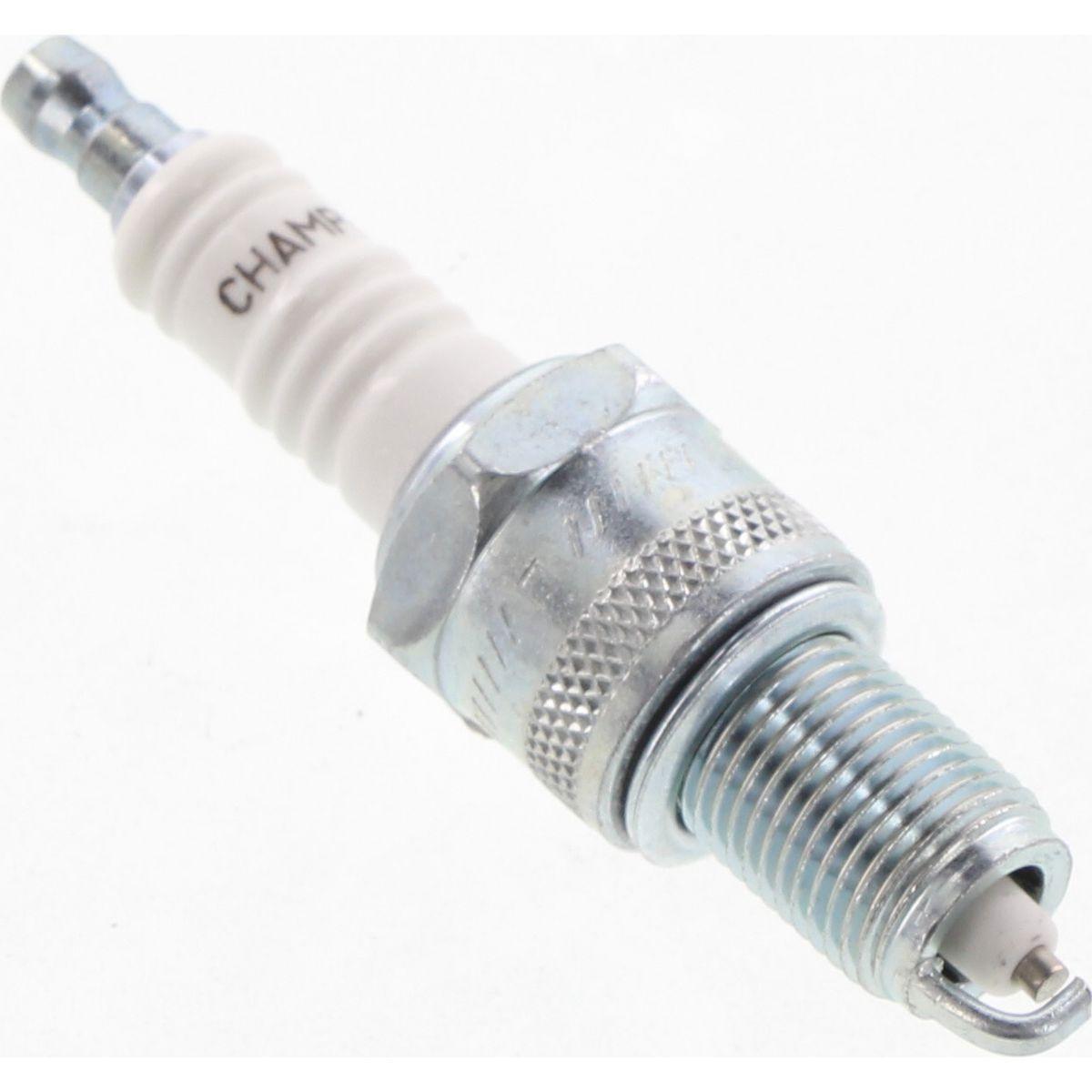

Champion Spark Plug 14mm (CHN12YC)

CHN12YC - CHAMPION - SPARK PLUG

.750" Reach Gasket Seat, Projected Core Nose, Copper Plus Design

Part Number: CHN12YC

Spark Plug Specifications
Plug Type: N12YC
Seat Type: Gasket
Hex Size (Inch): 0.813
Hex Size (MM): 20.650
Thread Size (Inch): 0.551
Thread Size (MM): 14.000
Thread Reach (Inch): 0.75
Taper Diameter (Inch): 0.25
Installed Height (Inch): 2.24
Insulator Projection (Inch): 0.12
Gap Style: N/A
Gap (Inch): 0.03-0.035
Gap (MM): 0.76-0.89
Center Electrdoe Diameter (Inch): N/A
Center Electrode Material: Nickel Copper Alloy
Ground Electrode Material: Nickel Copper Alloy
Ground Electrode Quantity: 1
Classification: Champion Copper Plus
Resistor plug: No
Resistor Type: N/A
Manufature Heat Range: 12
Electrical Terminal Type: Non-Removable Nut
