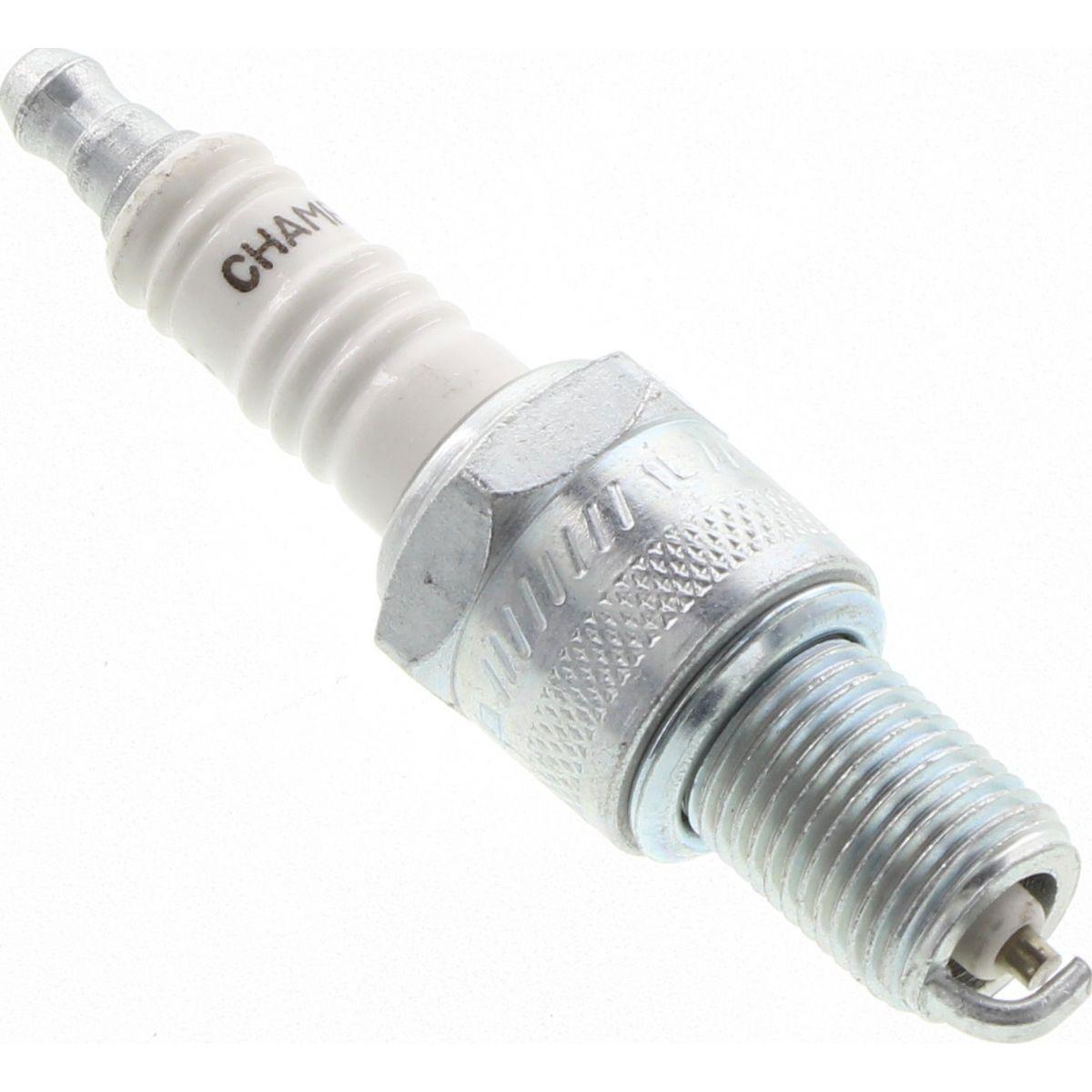

Champion Resistor Spark Plug 14mm (CHRN9YC)

CHRN9YC - CHAMPION - RACE SPARK PLUG

.750" Reach Gasket Seat, Nickle Electrode

Part Number: CHRN9YC

Spark Plug Specifications
Plug Type: RN9YC
Seat Type: Gasket
Hex Size (Inch): 0.813
Hex Size (MM): 20.650
Thread Size (Inch): 0.551
Thread Size (MM): 14.000
Thread Reach (Inch): 0.75
Taper Diameter (Inch): 0.25
Installed Height (Inch): 2.24
Insulator Projection (Inch): 0.06
Gap Style: N/A
Gap (Inch): 0.029-0.035
Gap (MM): 0.74-0.89
Center Electrdoe Diameter (Inch): 0.1
Center Electrode Material: Nickel Copper Alloy
Ground Electrode Material: Nickel Copper Alloy
Ground Electrode Quantity: 1
Classification: Champion Copper Plus
Resistor plug: Yes
Resistor Type: SAC-9A
Manufature Heat Range: 9
Electrical Terminal Type: Non-Removable Nut
