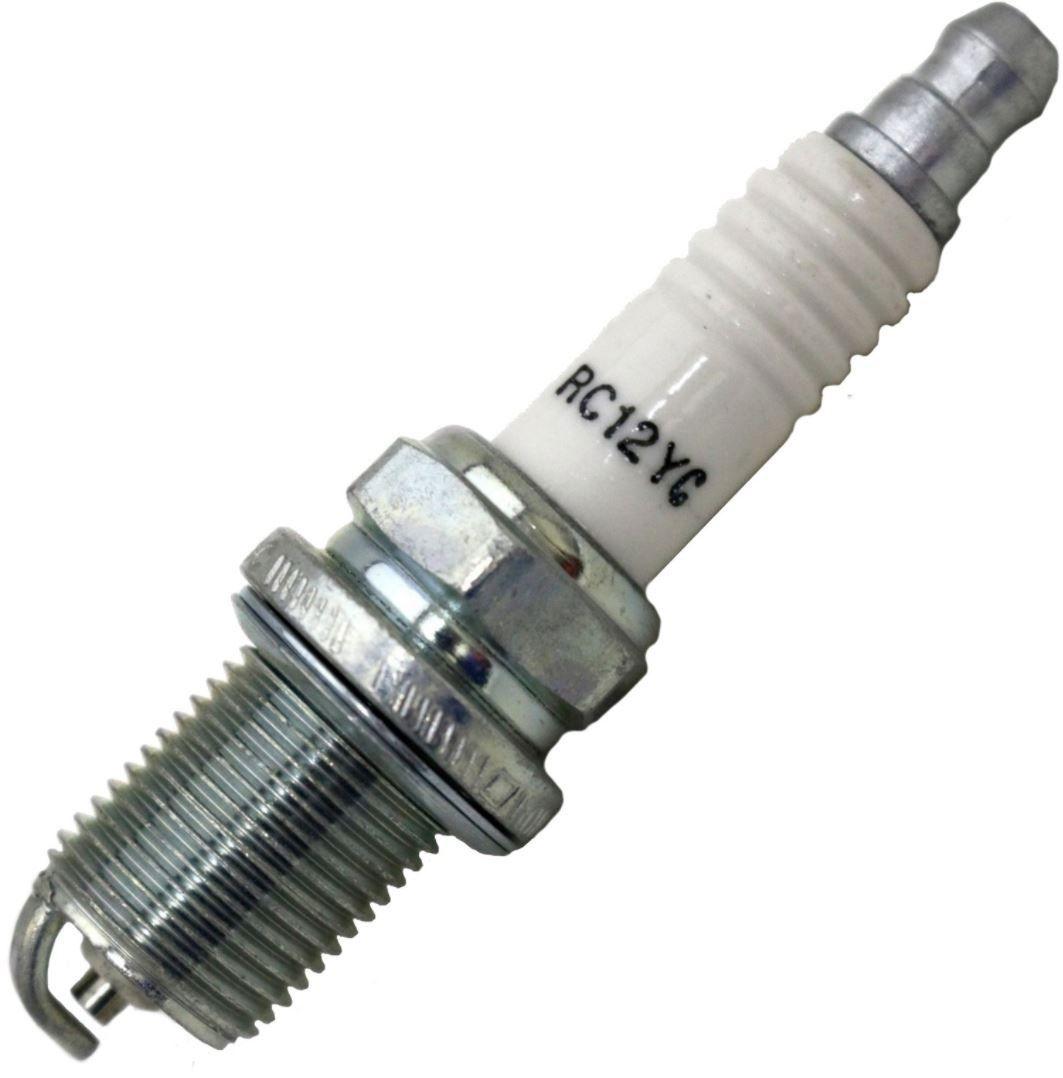

Champion Resistor Spark Plug 14mm (CHRC12YC)

CHRC12YC - CHAMPION SPARK PLUG, 5/8" HEX

.750" Reach Gasket Seat, Projected Core Nose Copper Plus Design

Part Number: CHRC12YC

Spark Plug Specifications
Plug Type: RC12YC
Seat Type: Gasket
Hex Size (Inch): 0.625
Hex Size (MM): 15.880
Thread Size (Inch): 0.551
Thread Size (MM): 14.000
Thread Reach (Inch): 0.75
Taper Diameter (Inch): 0.25
Installed Height (Inch): 1.99
Insulator Projection (Inch): 0.06
Gap Style: J Gap
Gap (Inch): 0.032-0.038
Gap (MM): 0.81-0.97
Center Electrdoe Diameter (Inch): 0.1
Center Electrode Material: Nickel Copper Alloy
Ground Electrode Material: Nickel Copper Alloy
Ground Electrode Quantity: 1
Classification: Champion Copper Plus
Resistor plug: Yes
Resistor Type: SAC-9
Manufature Heat Range: 12
Electrical Terminal Type: Non-Removable Nut
