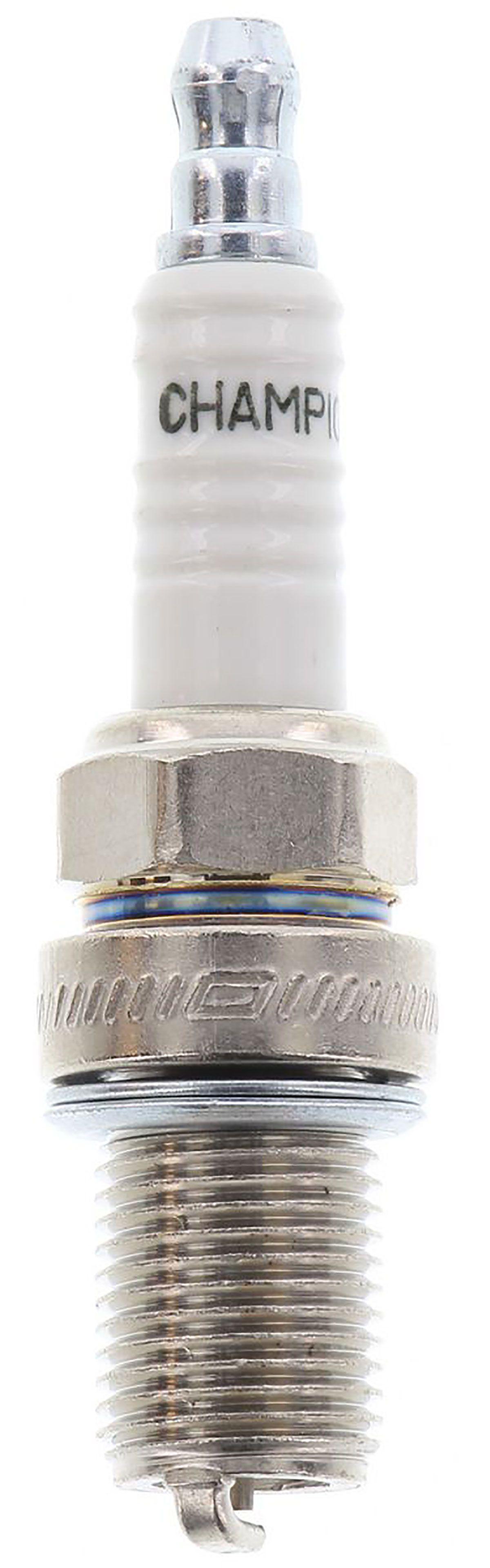

Champion Race Spark Plug 14mm (CHN59YDR)

CHN59YDR - CHAMPION-RACE SPARK PLUG F/CAR

.750" Reach Gasket Seat, J-Gap Projected, Suit Top Doorslammer & Alcohol

Part Number: CHN59YDR

Spark Plug Specifications
Plug Type: N59YDR
Seat Type: Gasket
Hex Size (Inch): 0.813
Hex Size (MM): 20.650
Thread Size (Inch): 0.551
Thread Size (MM): 14.000
Thread Reach (Inch): 0.75
Taper Diameter (Inch): 0.25
Installed Height (Inch): 2.24
Insulator Projection (Inch): 0.06
Gap Style: J Gap
Gap (Inch): 0.023-0.028
Gap (MM): 0.58-0.71
Center Electrdoe Diameter (Inch): 0.082
Center Electrode Material: Nickel Copper Alloy
Ground Electrode Material: Nickel Copper Alloy
Ground Electrode Quantity: 1
Classification: Champion Racing Plugs
Resistor plug: No
Resistor Type: N/A
Manufature Heat Range: 59
Electrical Terminal Type: Non-Removable Nut
