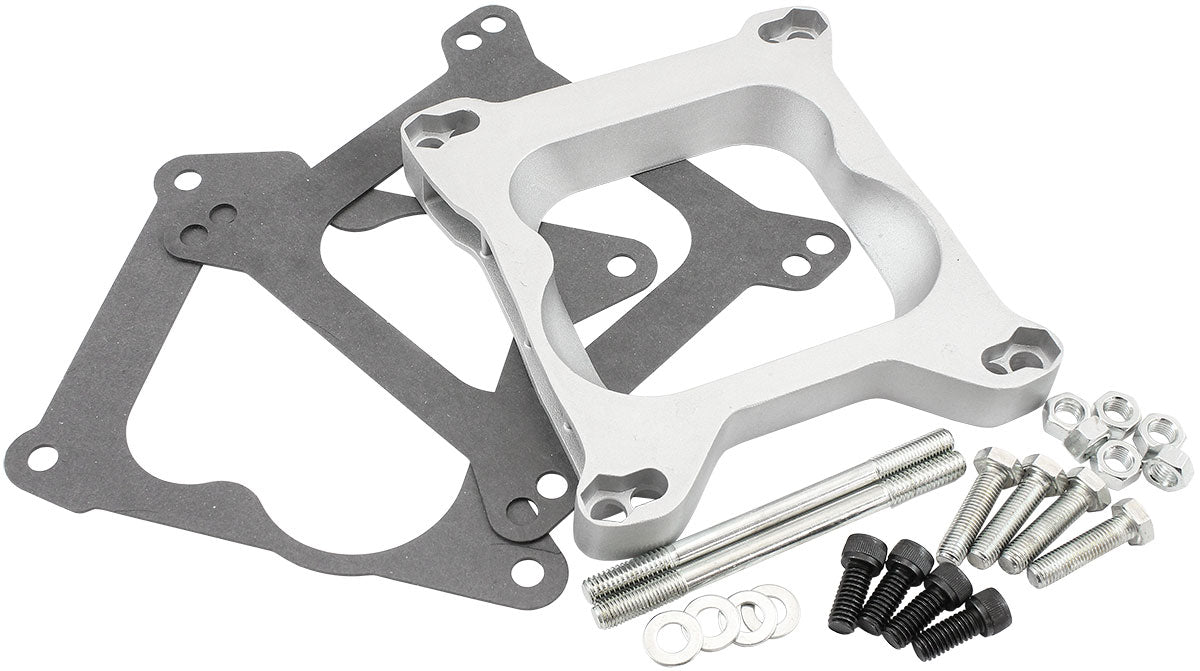

Aeroflow Carburettor Alloy 3/4" Adapter Spacer - Spread to Square Bore - AF42-2066
Gaskets and Mounting Hardware Included
Aeroflow Carburettor Alloy 3/4" Adapter Spacer - Spread to Square Bore - AF42-2066 is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description

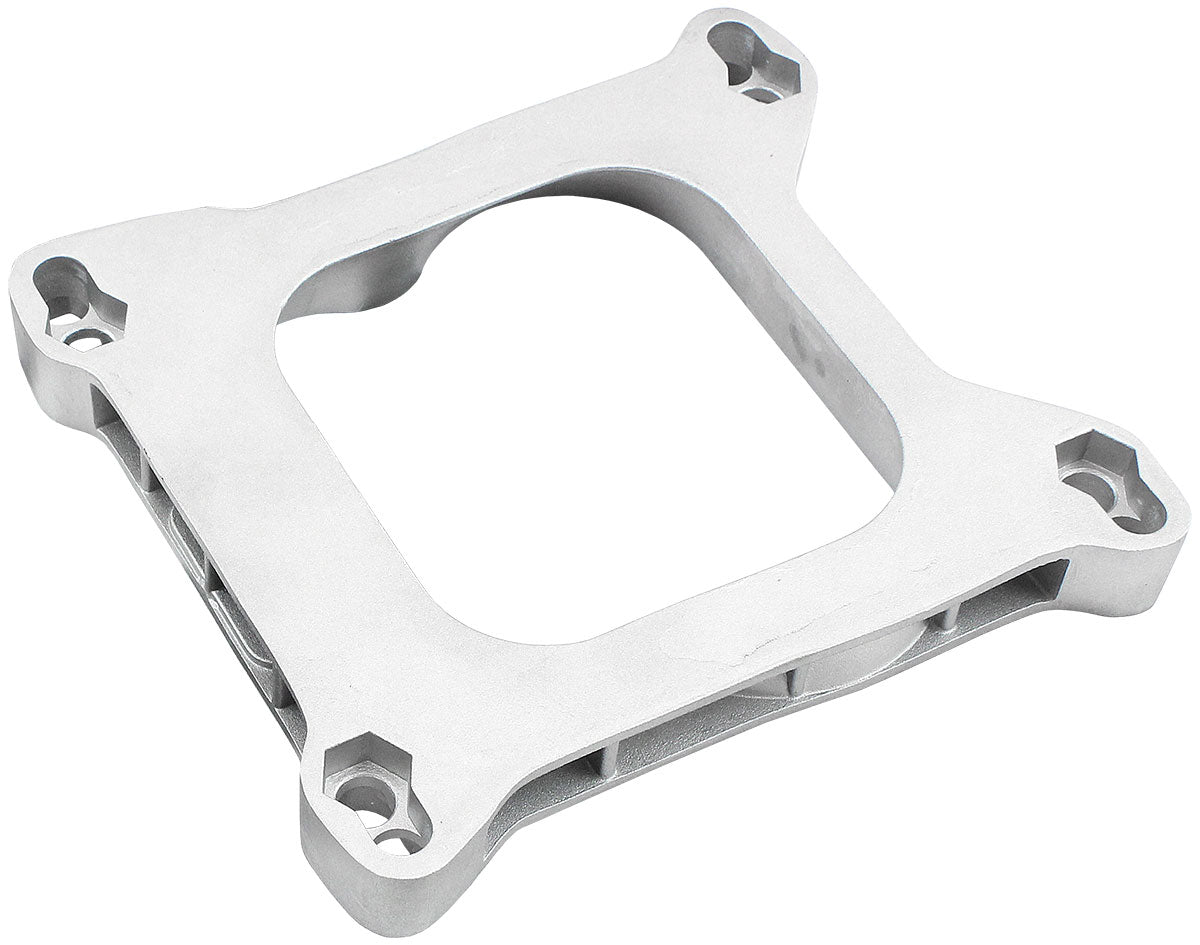

CARBURETTOR ALLOY ADAPTER 3/4"
Gaskets and Mounting Hardware Included
Part Number: AF42-2066
Aeroflow die cast aluminium adapter carburettor spacer improve air/fuel distribution and reduce the fuel temperature for a denser fuel mixture, reduce vapor lock, and add additional plenum volume to increase engine performance. They help with linkage clearance on aftermarket or custom throttle cable setups.
This adapter spacer specifically allows you to adapt any square bore carburettor to a spread bore flange on the intake manifold. It can also the other way to adapt a spread bore carburettor to a square bore flange on the intake manifold. This spacer includes gaskets and mounting hardware required.
Specifications:
Carburettor Spacer
- 3/4" (19mm) Thickness
- 4150 Square Bore bolt pattern and Spread Bore Pattern
- 3.580" (90.9mm) Width x 3.620" (91.9mm) Length open style centre
Mounting Studs
- 4 x 5/16"-18 threads on intake end and 5/16"-24 on carburettor end
- 2.550" (64.8mm) Overall Length
Mounting Stud Nuts
- 4 x 5/16"-24 threads with a 1/2" hex head
Mounting Stud Washers
- 4 x 5/16" (7.9mm) internal diameter, 0.591" (15mm) outside diameter, 0.060" (1.5mm) thickness
