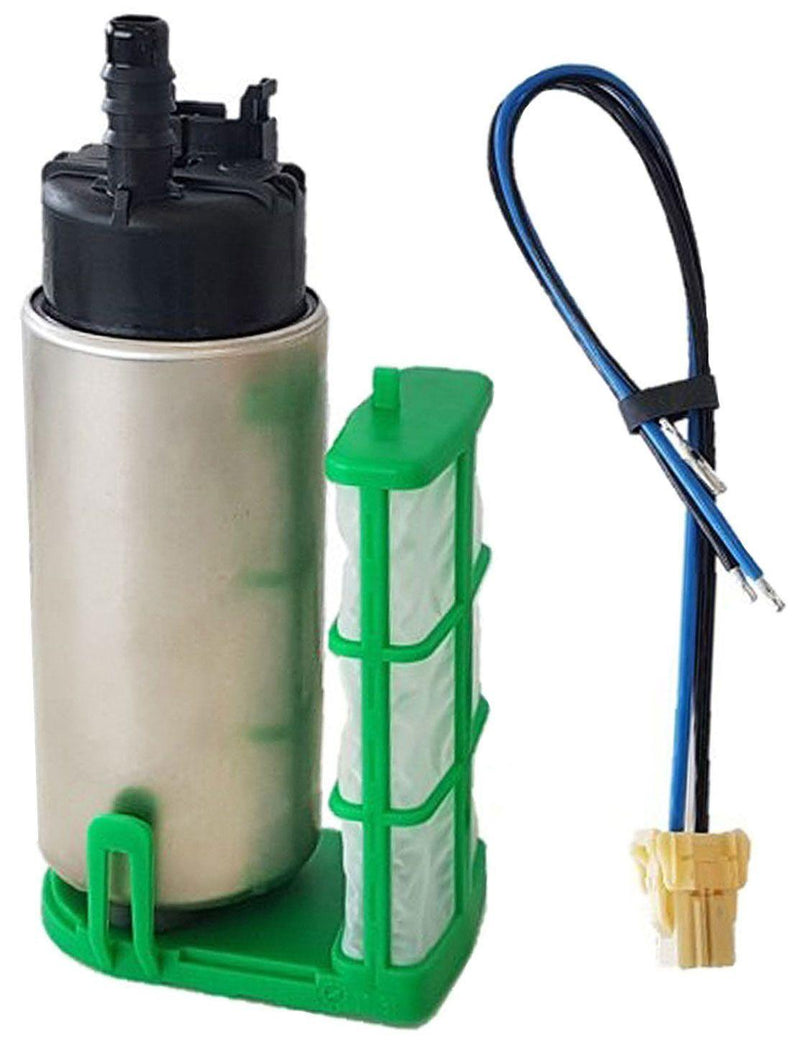

Bosch BR540 Intank Electric Fuel Pump (BOF02UV0U343-01)
460LPH@ 40psi, 380LPH @ 80psi
Bosch BR540 Intank Electric Fuel Pump (BOF02UV0U343-01)
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
BR540 INTANK FUEL PUMP
460LPH@ 40psi, 380LPH @ 80psi
Part Number: BOF02UV0U343-01
Specifically released by Bosch Motorsport (FPx-HF, F 02U V0U 343-01) and ONLY available direct or through Bosch Motorsport stockists.
Highest flowing Bosch in-tank fuel pump available!
- Up to 460 l/h @ 40Psi (2.75bar)
- Up to 380 l/h @ 80Psi (5.5bar)
- An amazing 270l/h @ 145Psi (10.0bar)
- High flow all the way up to the 190Psi (13.0bar) Pressure Relief Valve setting
- 9.0mm (nom.) barbed outlet fitting suits rubber or nylon hose
- Light weight (550g) and Compact 46mm body size
- Includes electrical connector with wires
- Includes High flow filter
- Draws ~16A@ 40Psi (2.75bar), ~19A @ 80Psi (5.5bar), ~24A @ 145Psi (10.0bar)
NOTE: This pump needs to be securely installed inside the fuel tank via hanger or similar. Care should be taken to prevent separation of the filter from the pump.
