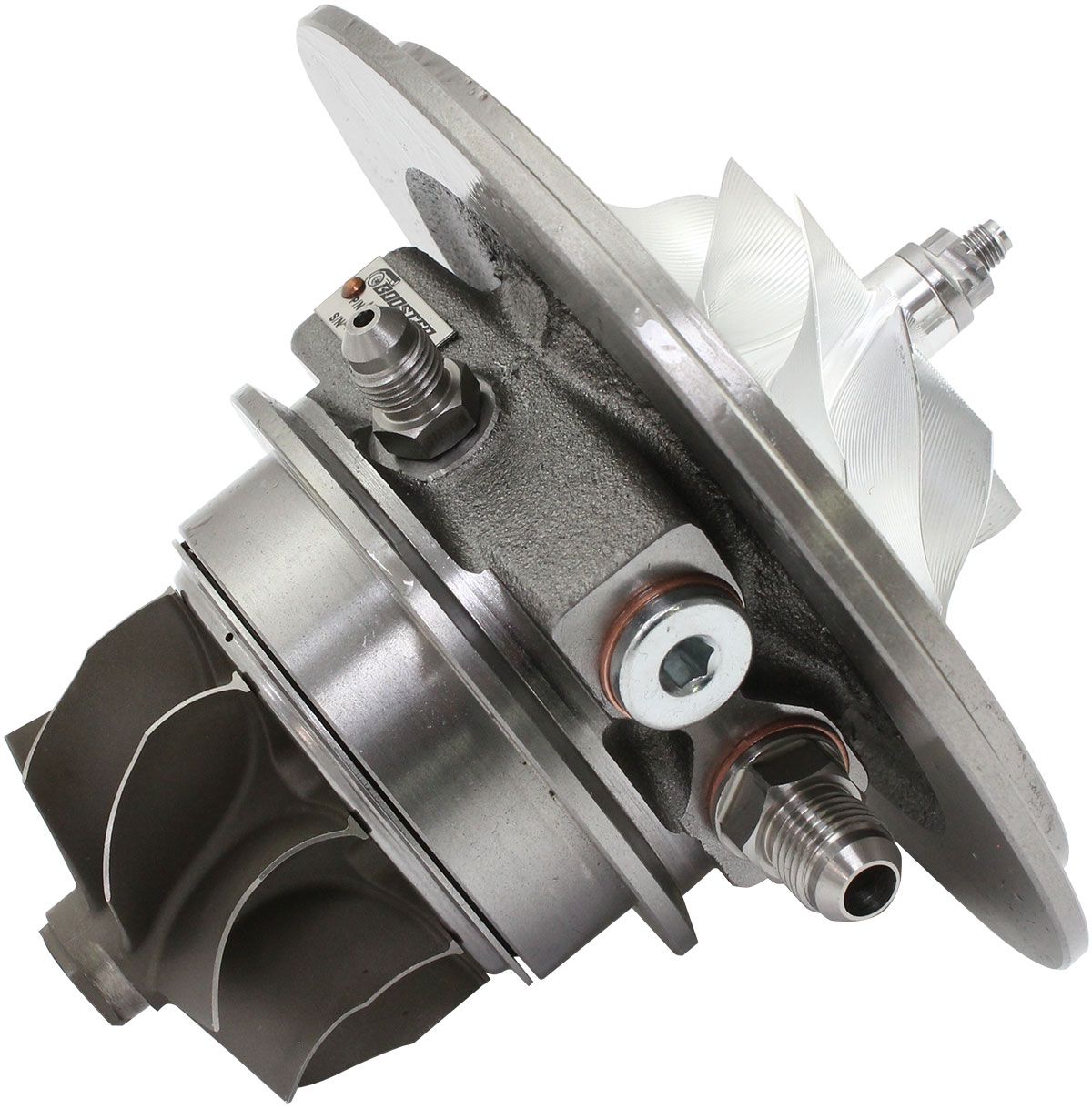

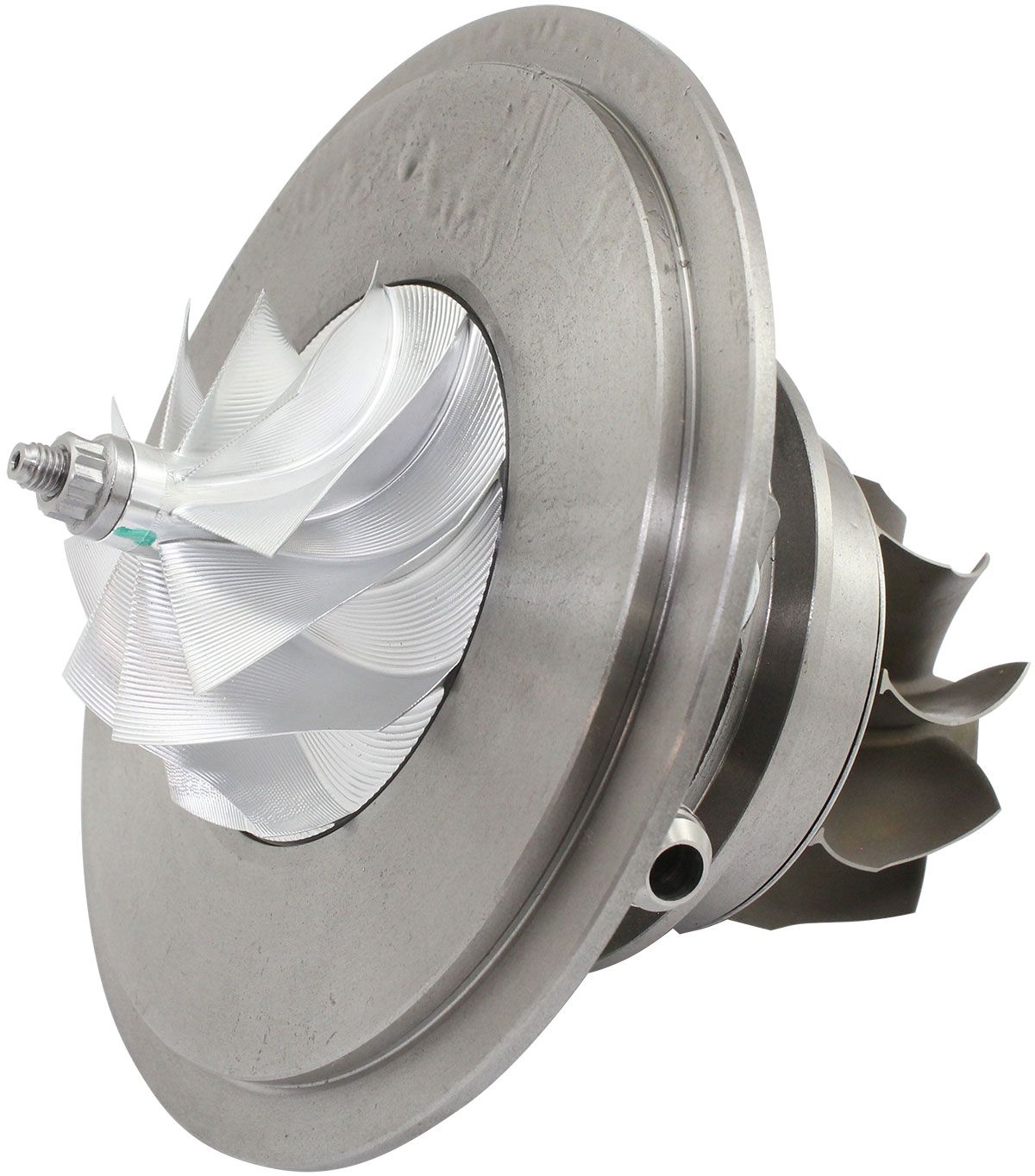

Aeroflow BOOSTED 6262 Turbocharger Core Only (AF8059-3060)
Dual Ball Bearing, No Housing6262 CORE ONLY CHRA Dual BB
Dual Ball Bearing, No Housing
Part Number: AF8059-3060
Boosted Turbocharger Replacement Core.
As another way of backing up our excellent Boosted Turbocharger range, we stock replacement core's for all popular Boosted Turbo models. This way if you have a mis-hapthat has damaged either of thewheels or even the internals of the turbocharger you can easily purchase the core and swap it out. These cores are designed to suit Boosted Turbochargers specifically however you may find some crossover on other brands thathave a similar core design.
Specifications: BOOSTED 6262 Core Specifications
Recommended horsepower rating: 550-900HP
Recommended engine displacement: 2.0L to 3.5L
- Dual ceramicball bearing
- Point Milled 7075 billet compressor wheel
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty
VOID
if not used)
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fittingwith in-built restrictor
- 38mm bolt centre turbodrain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 62mm
Exducer: 71.6mm
Extended Tip: 79.4mm
Turbine Specifications
Inducer: 68mm
Exducer: 62mm
Wastegate
External wastegate
Important Information: Boosted by Aeroflow products are manufactured to industry standard specifications from quality materials. Utmost care is taken to ensure products are free from blemishes, inconsistencies and defects. Aeroflow products carry a one year warranty from the date ofpurchase however warranty willbe void if the product is not used in the correct way for which it was intended. BoostedTurbochargers and replacement parts are designed for street use only. Products used in race applications and/or products that have been modified, damaged, incorrectlyinstalled or incorrectly/poorly maintained are not covered by this warranty. Proof of purchase will be required for all warranty claims.
This Boosted ball bearing turbocharger from Aeroflow Performance does not feature an internal oil flow restrictor. A -4AN fitting is provided with a built in external oil feed restrictor and must be used to ensure oildoes not push past the seals and shorten the life span of the turbocharger. Should you choose not to use the provided-4AN fitting then an external oil feed restrictor (AF399-04 or AF399-03, available for purchase separately) must be installed in the turbo oil feed line at the engine side and turbo side of the line. Failure to use a suitable restrictor will void the warranty. Boosted turbochargers that feature water cooling ports must have these ports connected to the water cooling system in order to cool the turbocharger core.Failure to connect any and allof these ports will void all warranties.
