B&M | SKU:
80836
B&M Super Duty Race Shifter Cable - 12-Foot Length - Red - 80836
For most B&M Shifters including Race Models
Regular price
$313.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
B&M Super Duty Race Shifter Cable - 12-Foot Length - Red - 80836 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
For most B&M Shifters including Race Models
Part Number: 80836

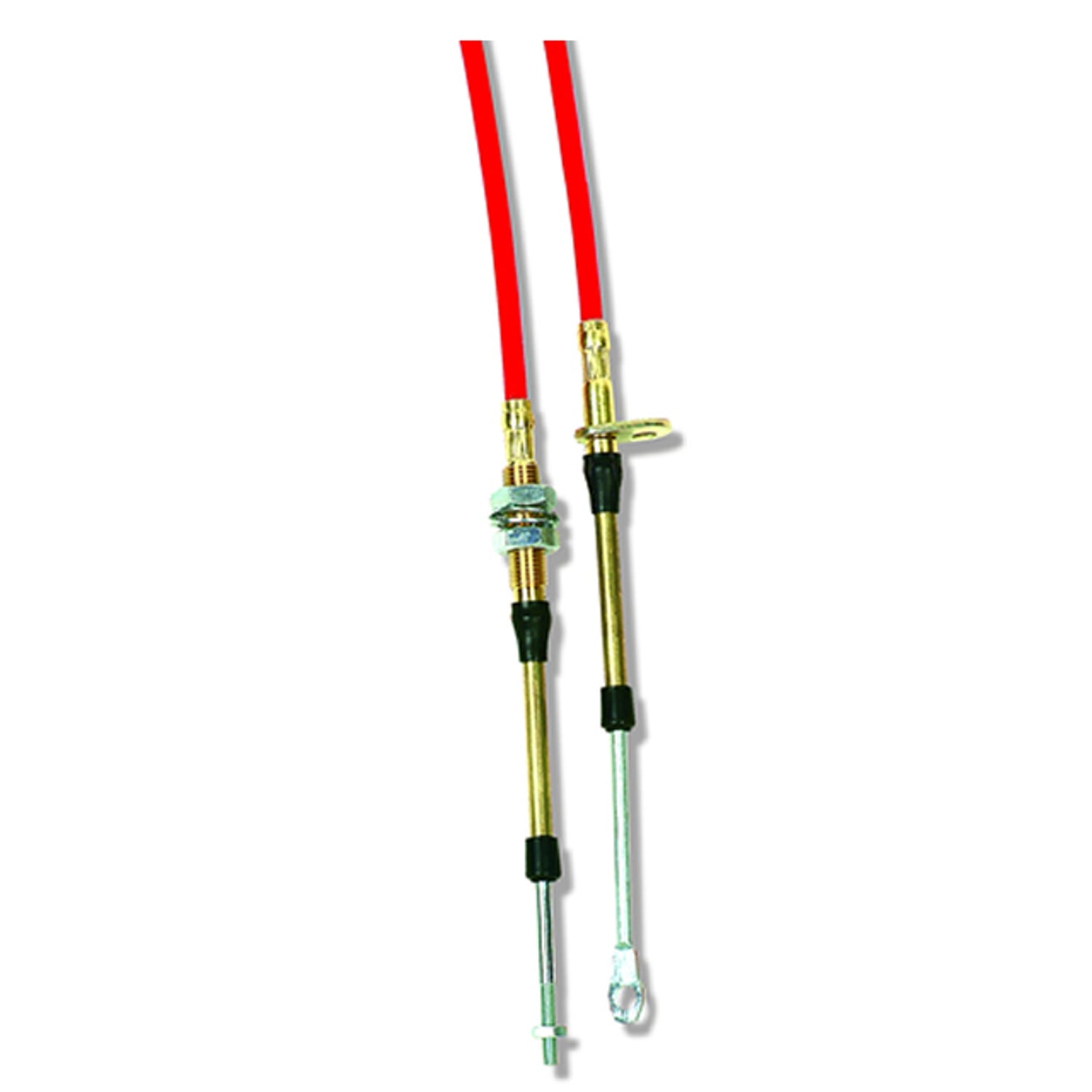

This is our hard-core Super Duty Race 12-ft shifter cable for most B&M shifters. It's properly clearanced to reduce backlash and has a large .375-inch 'long-lay' (stiffer, less prone to kinking) outer jacket for durability and dependability. The cable features an eyelet at one end to connect to the shifter, and a 10-32 threaded end at the transmission side of the cable and has a 2.50-inch stroke. This is the standard cable supplied in the box when you purchase a B&M Race shifter. Note: Does not fit B&M shifters manufactured before 1981, or B&M Unimatic shifters.
Features and Benefits
• Features a Large .375 Diameter Cable Housing
• Comes Standard with Most B&M Race Shifters
• Less Than 0.015 in./ft. Backlash
• Pre-lubed for Smooth Operation
• 1000 lbs. Pull Strength
• Rotary Swaged Ends
12-foot long, 10-32 threads, 2.50-inch stroke and less than .015 in./ft. backlash.
Part Number: 80836
This is our hard-core Super Duty Race 12-ft shifter cable for most B&M shifters. It's properly clearanced to reduce backlash and has a large .375-inch 'long-lay' (stiffer, less prone to kinking) outer jacket for durability and dependability. The cable features an eyelet at one end to connect to the shifter, and a 10-32 threaded end at the transmission side of the cable and has a 2.50-inch stroke. This is the standard cable supplied in the box when you purchase a B&M Race shifter. Note: Does not fit B&M shifters manufactured before 1981, or B&M Unimatic shifters.
Features and Benefits
• Features a Large .375 Diameter Cable Housing
• Comes Standard with Most B&M Race Shifters
• Less Than 0.015 in./ft. Backlash
• Pre-lubed for Smooth Operation
• 1000 lbs. Pull Strength
• Rotary Swaged Ends
12-foot long, 10-32 threads, 2.50-inch stroke and less than .015 in./ft. backlash.
Specifications
Specifications
-
Specifications
Brand B&M Cable End (Shifter) Single Eylet Cable End (Transmission) 10-32 Threaded Cable Material Long lay thermoplastic jacket and spiral wound steel strand inner cable Cable Stroke (in) 2.5 California Proposition 65 Chemical Name 1 Chromium (hexavalent compounds) California Proposition 65 Chemical Name 2 Lead California Proposition 65 Required Yes Category Transmission Color Red Diameter (in) 0.375 Emission Code 5 End 1 Type Single Eyelet End 2 Type 10-32 Threaded Grade Type Performance Jacket Material Thermoplastic Kit Contents Shifter Cable Length 12 Length (ft) 12 Length (In) 144 Material Long lay thermoplastic jacket and spiral wound steel strand inner cable part type Automatic Transmission Shifter Cable Product Type Shifter Cable Shifter Model QuickSilver Shifter Model Pro Bandit Shifter Model Pro Ratchet Shifter Model StarShifter Shifter Model Street Bandit Shifter Model SportShifter Shifter Model Hammer Shifter Model Z-Gate Shifter Model Pro Stick Shifter Model MegaShifter Shifter Model Pro Gate Sub Category Transmission Hard Parts Warning California Proposition 65 -
