B&M | SKU:
118002BM

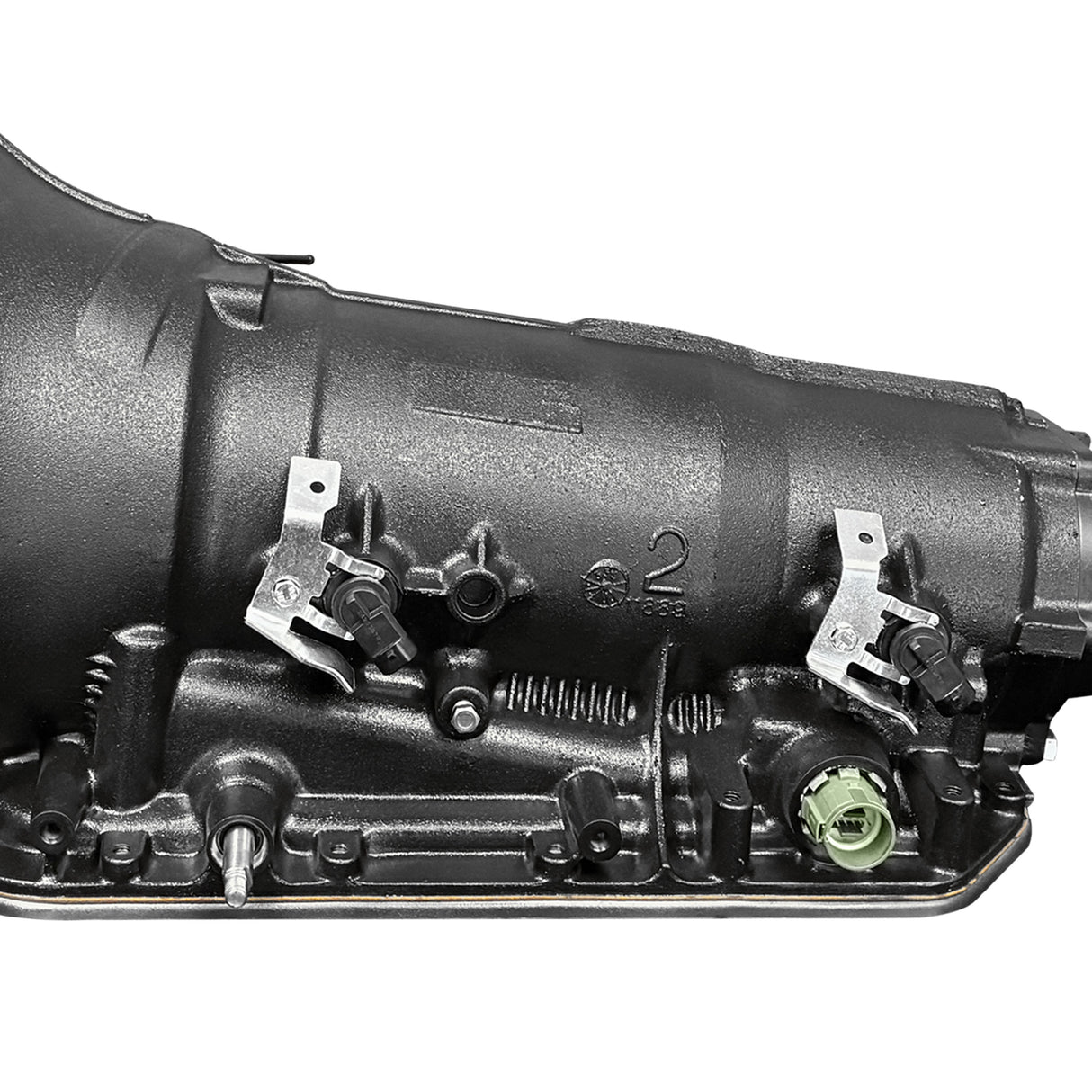

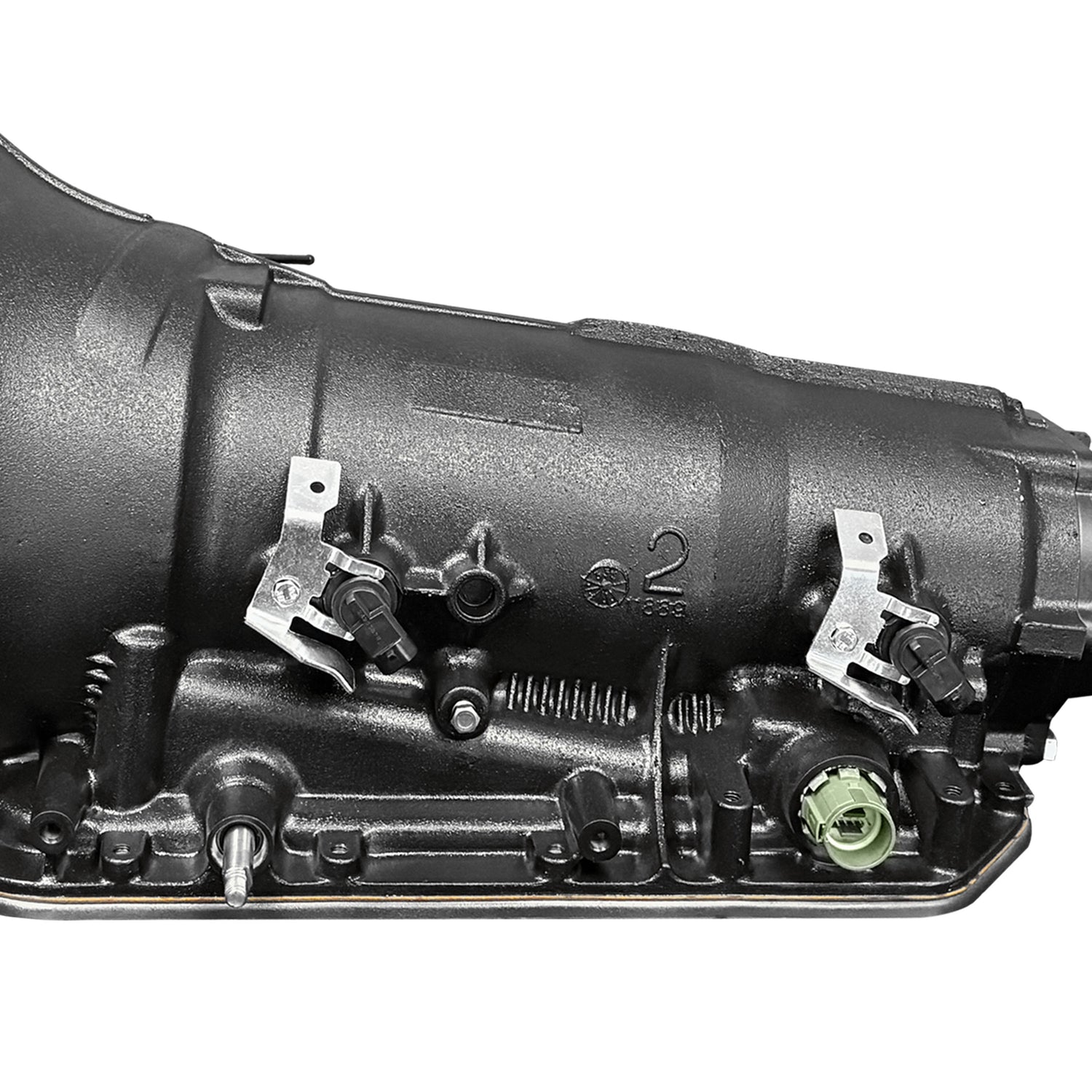

B&M Street/Strip 4L80E Automatic Transmission - 118002BM
Fits 1997-2015 GM Models - 2WD - Automatic Shift Valve Body
Regular price
$8,210.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
B&M Street/Strip 4L80E Automatic Transmission - 118002BM is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Fits 1997-2015 GM Models - 2WD - Automatic Shift Valve Body
Part Number: 118002BM
Built for serious power and weight, this Street/Strip 4L80E features a 34-element intermediate sprag, high-energy band, new overdrive sprag and low roller assemblies, performance frictions, recalibrated valve body, performance pump, steel forward hub, and all-new solenoids/harness for crisp, durable shifts. Designed for up to 800 hp/650 lb-ft, it uses a standard shift pattern and accepts HGM Compushift control in swaps. Converter not included; a quality cooler is strongly recommended.
Features and Benefits
• Designed for up to 800 horsepower & 650 ft/lbs of torque
• All new high performance friction plates
• Rebuilt performance pump assembly
• 34-element intermediate sprag
• High energy intermediate band
• New overdrive sprag assembly
• Fully recalibrated valve body
• New low roller assembly
• Includes front speed sensor
• Uses slip-yoke style out-put
Can be used with HGM Compushift Controller for transplant applications. Transmission shipped without speedometer driven gear or housing._x000D_ Front Speed sensor is included.
Part Number: 118002BM
Built for serious power and weight, this Street/Strip 4L80E features a 34-element intermediate sprag, high-energy band, new overdrive sprag and low roller assemblies, performance frictions, recalibrated valve body, performance pump, steel forward hub, and all-new solenoids/harness for crisp, durable shifts. Designed for up to 800 hp/650 lb-ft, it uses a standard shift pattern and accepts HGM Compushift control in swaps. Converter not included; a quality cooler is strongly recommended.
Features and Benefits
• Designed for up to 800 horsepower & 650 ft/lbs of torque
• All new high performance friction plates
• Rebuilt performance pump assembly
• 34-element intermediate sprag
• High energy intermediate band
• New overdrive sprag assembly
• Fully recalibrated valve body
• New low roller assembly
• Includes front speed sensor
• Uses slip-yoke style out-put
Can be used with HGM Compushift Controller for transplant applications. Transmission shipped without speedometer driven gear or housing._x000D_ Front Speed sensor is included.
Specifications
Specifications
-
Specifications
2WD/4WD 2WD Automotive Item Grade High Performance Brand B&M Built-In Transmission Shield No California Proposition 65 Chemical Name Chromium (hexavalent compounds) California Proposition 65 Chemical Name Lead California Proposition 65 Chemical Name Benzene Case Material Cast Aluminum Category Transmission Color Black Control Type Electronic Cooler Included No Core Change Applicable No Dipstick Included No Disclaimer Transmission shipped without speedometer driven gear or housing Drive Type RWD Emission Code 5 Friction Plates New Gear Ratio-First 2.48 Gear Ratio-Fourth 0.75 Gear Ratio-Second 1.48 Gear Ratio-Third 1 Horsepower Rating (HP) 800 Input Spline Count 35 Output Spline Count 32 part type Automatic Transmission Shift Kit Product Type Transmission Reverse Gear Ratio 2.08 Sub Category Service Kits Torque Converter Included No Torque Rating (Ft/Lbs) 650 Transbrake No Transmission Model 4L80E Transmission Series Street/Strip Transmission Speeds 4 Transmission Type Automatic Valve Body Pattern Forward Valve Body Type Automatic Warning California Proposition 65 -
