B&M | SKU:
20238
AFCO Steel U-Bolts 8" Length - 20238
1986-1997 Chevrolet Small block externally balanced engines, 153 tooth.
Regular price
$451.20 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
AFCO Steel U-Bolts 8" Length - 20238 is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
1986-1997 Chevrolet Small block externally balanced engines, 153 tooth.
Part Number: 20238

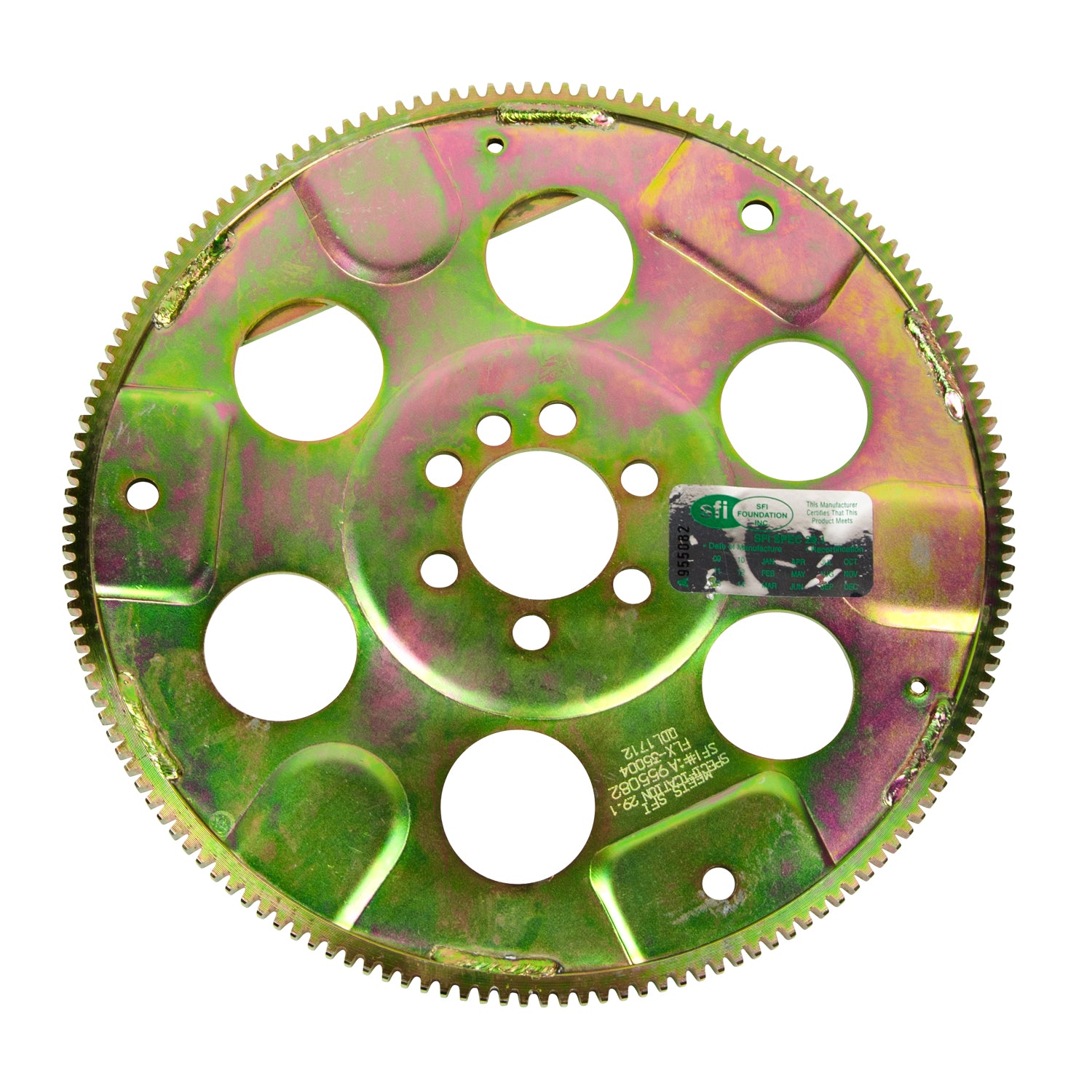

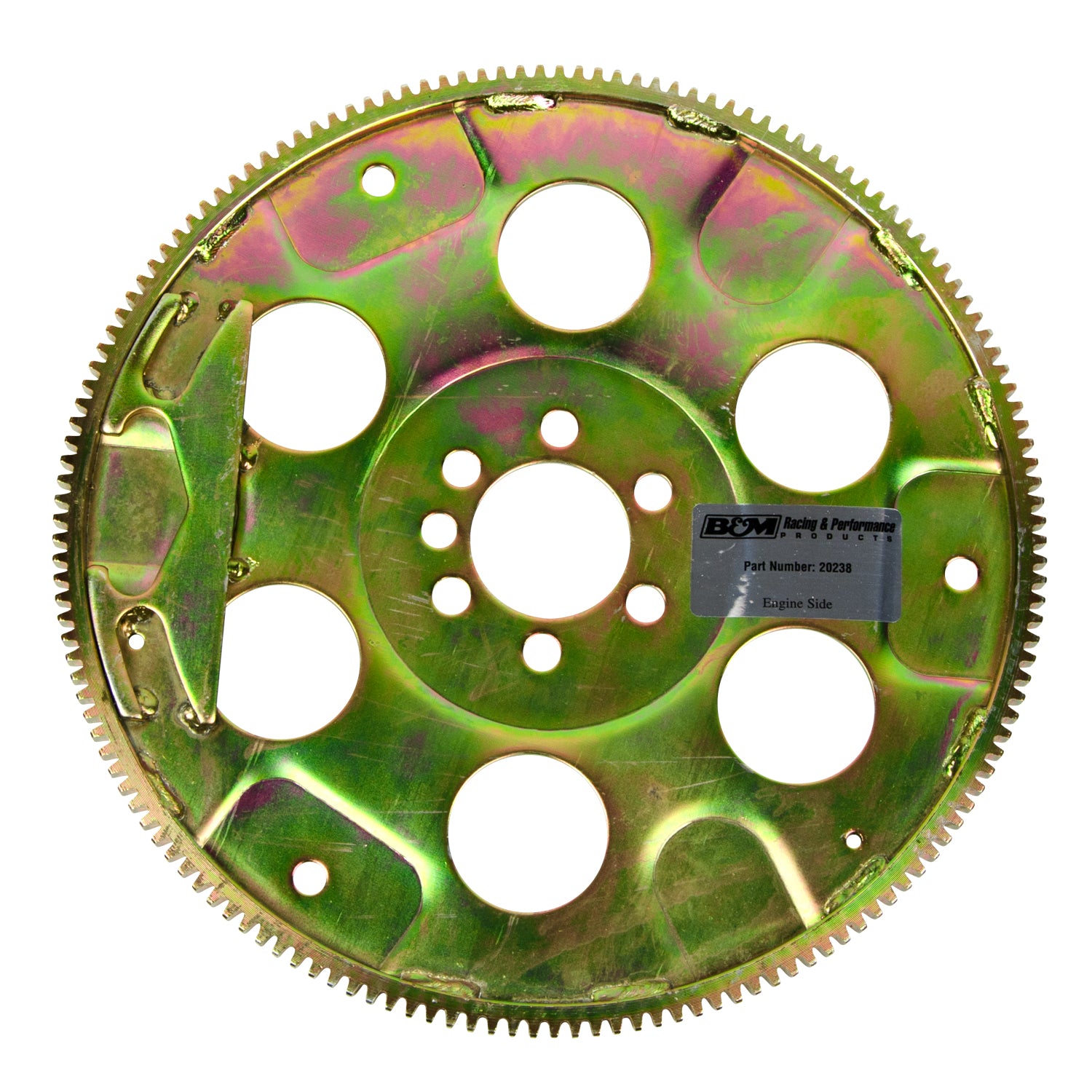

As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for 1986-1997 small block Chevy V8 engines (externally balanced) with one piece rear main seal. Features include high tensile strength steel construction to resist elongation and cracking, 10.75-inch bolt pattern, 153 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Compatible with Powerglide, TH350, TH400 and TH700R4 automatic transmissions.
Features and Benefits
• NHRA and IHRA Legal For All Classes
• Includes SFI Certification Sticker
• Ideal For Street Applications
• Zinc Plated Chromate Finish
• To Extreme Duty Racing
• Proven B&M Quality
Fits 1986-1997 Chevrolet small block engines. Externally balanced single bolt pattern 10.75-inch with a 153 tooth ring gear.
Part Number: 20238
As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for 1986-1997 small block Chevy V8 engines (externally balanced) with one piece rear main seal. Features include high tensile strength steel construction to resist elongation and cracking, 10.75-inch bolt pattern, 153 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Compatible with Powerglide, TH350, TH400 and TH700R4 automatic transmissions.
Features and Benefits
• NHRA and IHRA Legal For All Classes
• Includes SFI Certification Sticker
• Ideal For Street Applications
• Zinc Plated Chromate Finish
• To Extreme Duty Racing
• Proven B&M Quality
Fits 1986-1997 Chevrolet small block engines. Externally balanced single bolt pattern 10.75-inch with a 153 tooth ring gear.
Specifications
Specifications
-
Specifications
# of Teeth 153 Application Chevrolet Brand B&M California Proposition 65 Chemical Name Cadmium and cadmium compounds California Proposition 65 Required Yes Category Transmission Crankshaft Bolt Hole Count 6 Dual Pattern Yes Emission Code 5 Engine Chevrolet Small Block Gen I Grade Type Performance IHRA Legal Yes Material Steel Mounting Hole Quantity 6 NHRA Legal Yes Outside Diameter (In) 12.84 part type Automatic Transmission Flexplate Product Type Flexplates SFI Approved Yes SFI Certification 29.1 SFI Certification Sticker Included Sub Category Flexplate Tooth Quantity 153 Warning California Proposition 65 Weight (lb) 6
