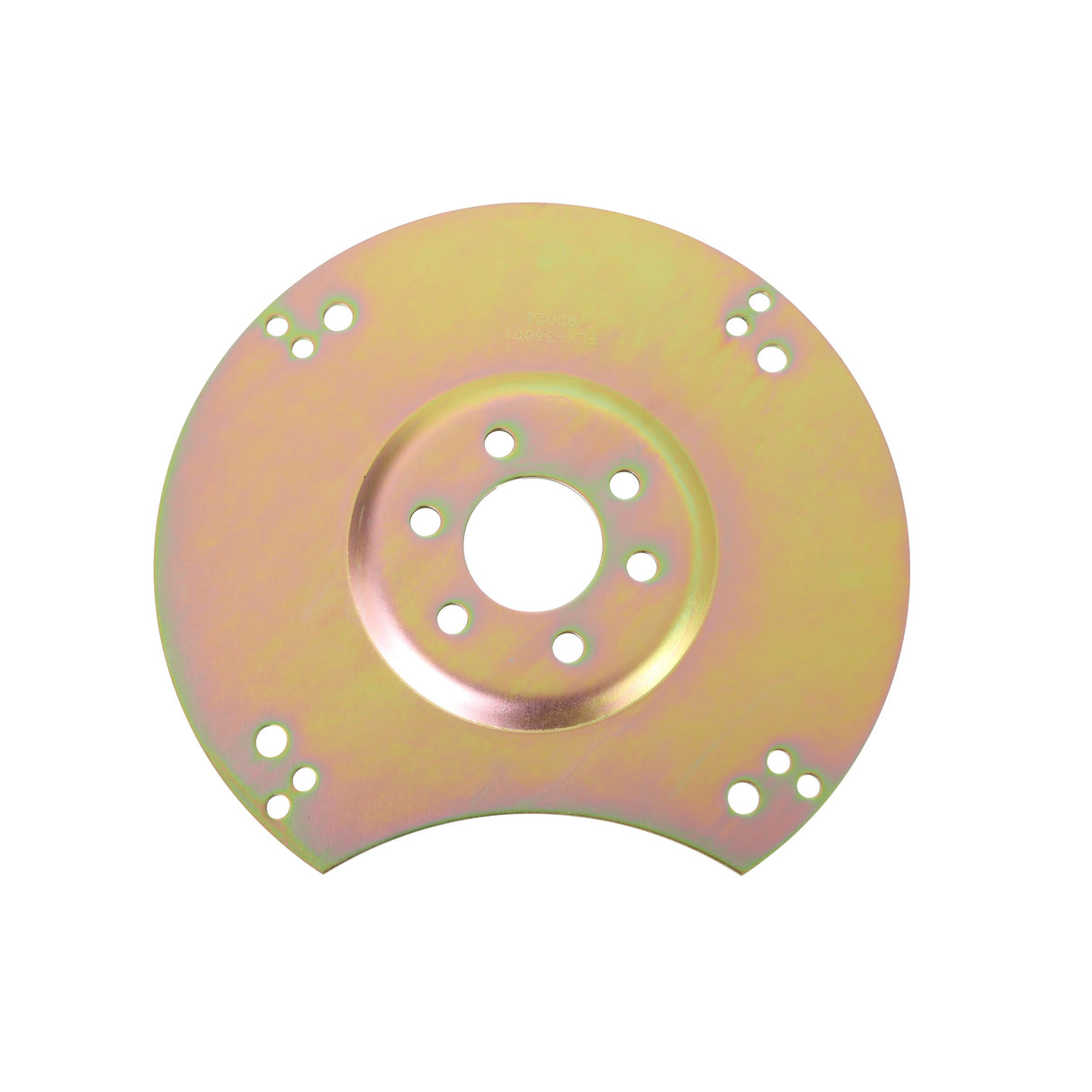

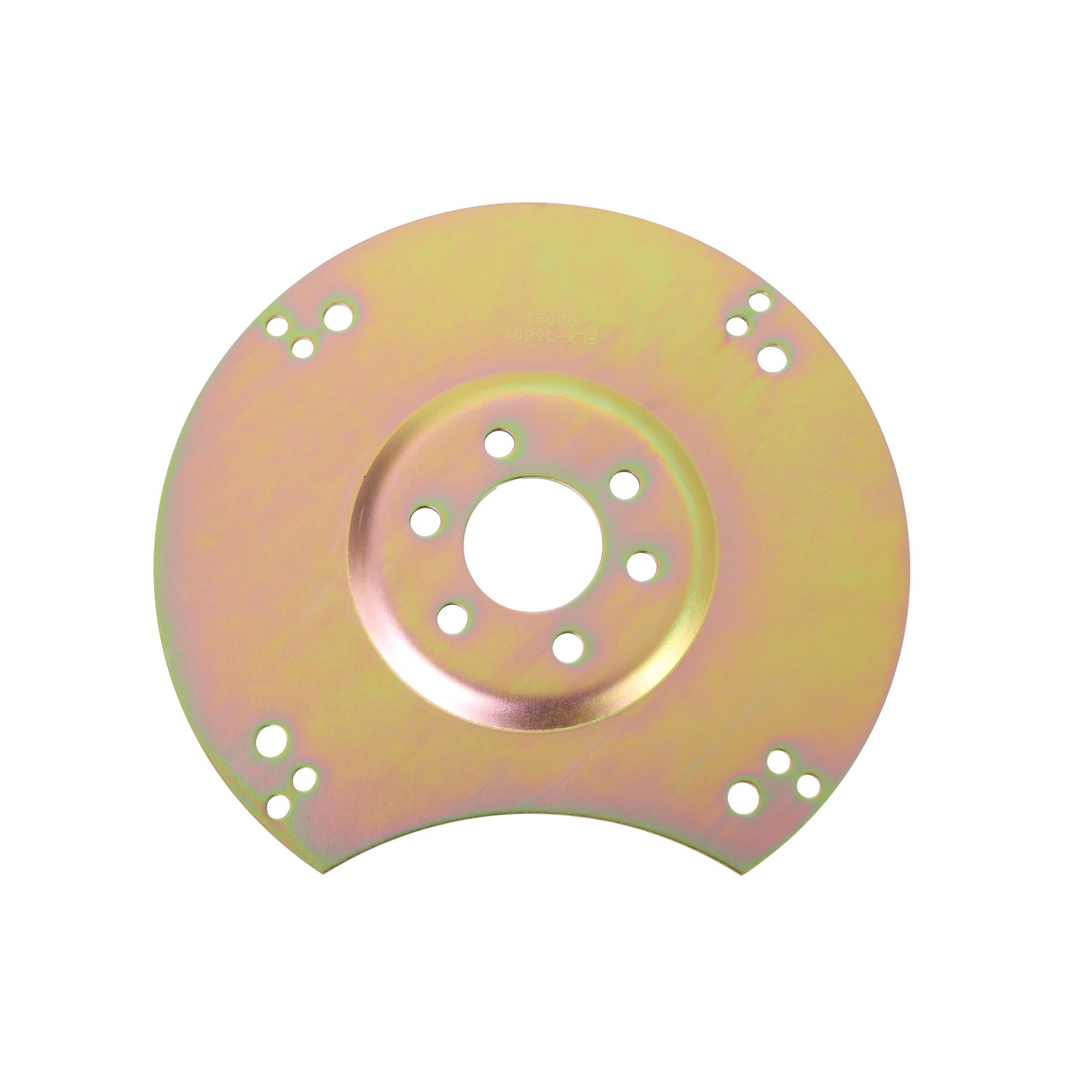

B&M Steel SFI Certified Flexplate - Mopar A904 - 10239
B&M Flexplate, 6 Bolt Crank for TF A904 360 CID
B&M Steel SFI Certified Flexplate - Mopar A904 - 10239 is not in stock at Fast Lane Spares and will ship direct from supplier.
Description
Description
Part Number: 10239

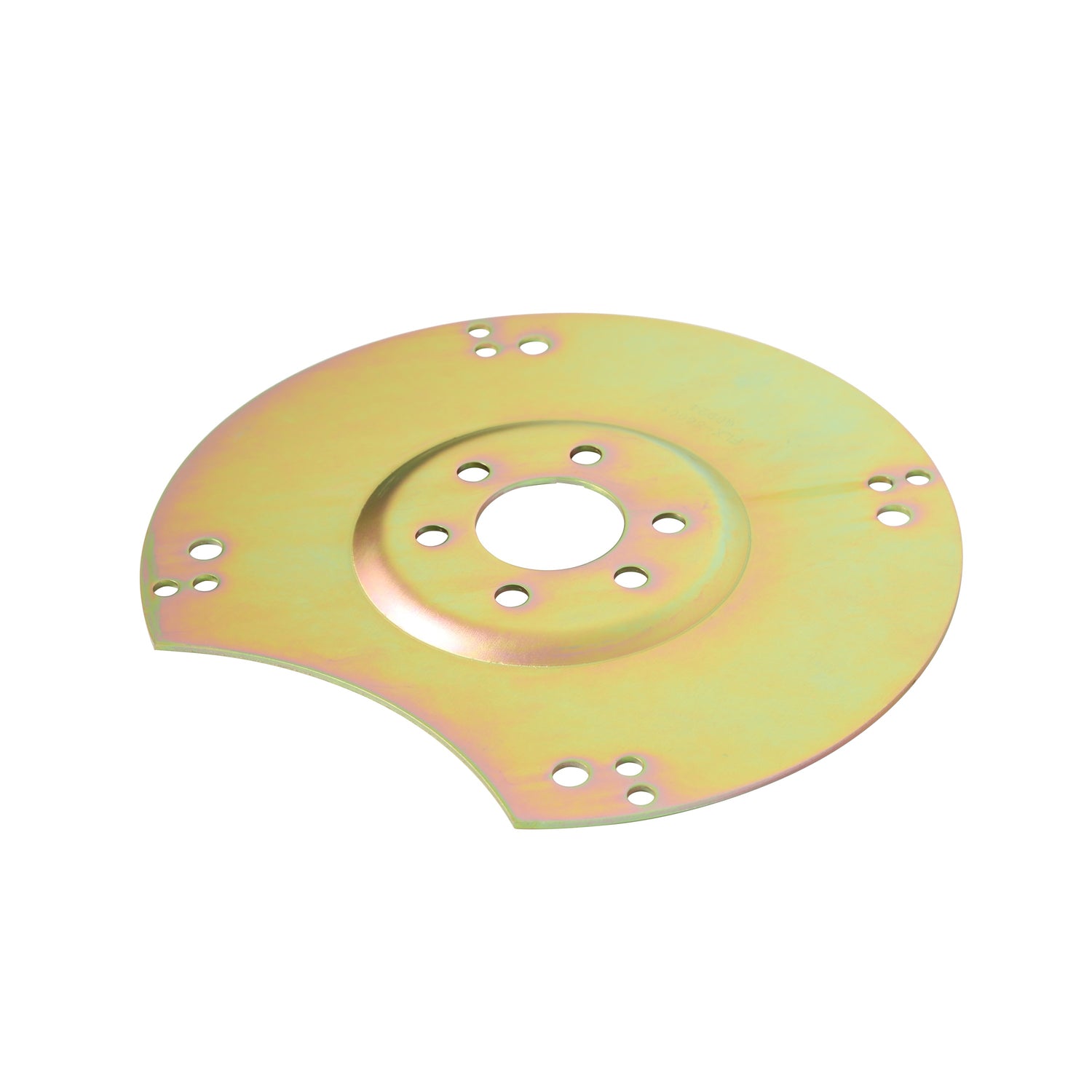

As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for 1971-1992 Chrysler, Dodge and Plymouth 360ci (externally balanced) V8 engines with A904 transmission. Features include high tensile strength steel construction to resist elongation and cracking, 10.00-inch bolt pattern and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953.
Features and Benefits
• NHRA and IHRA Legal For All Classes

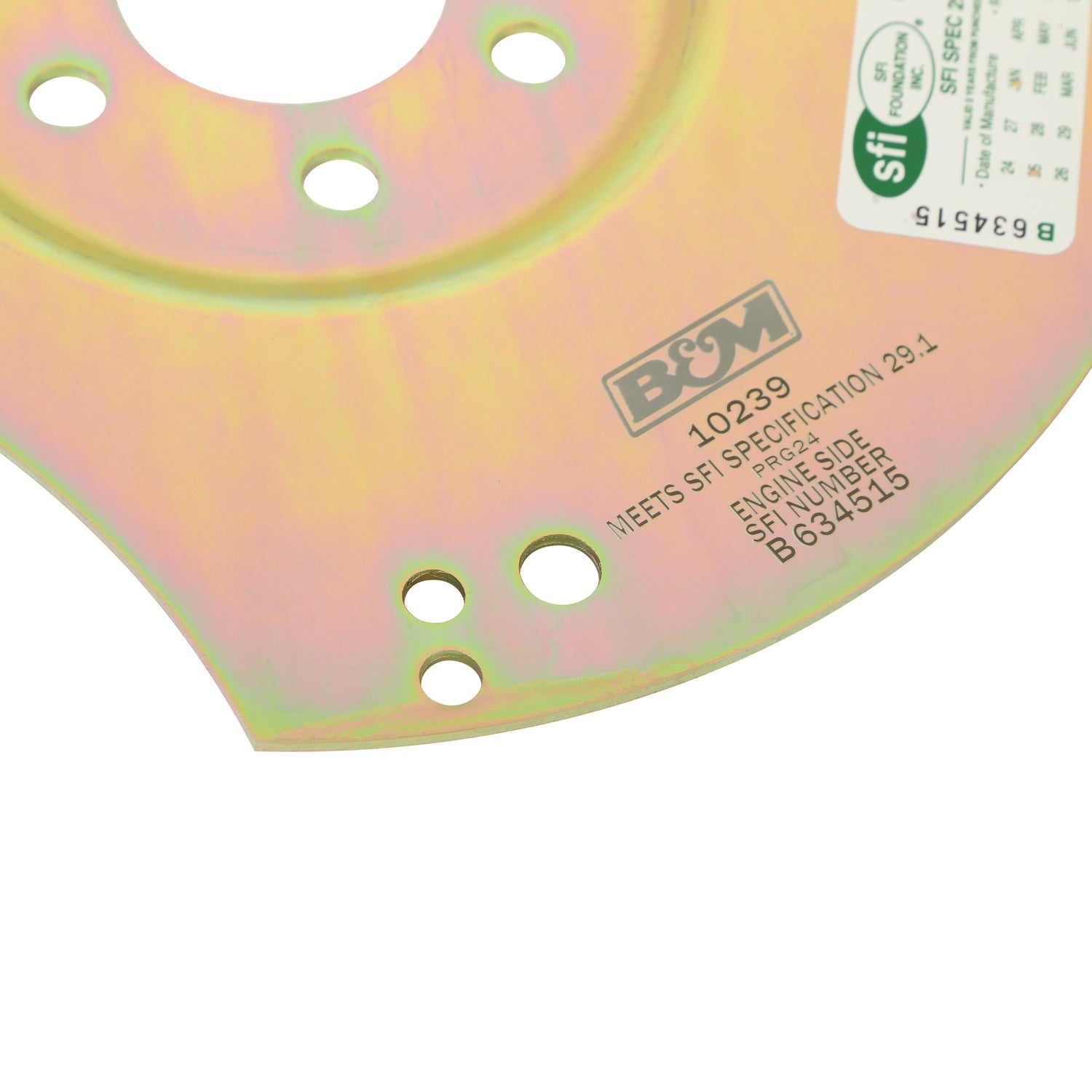

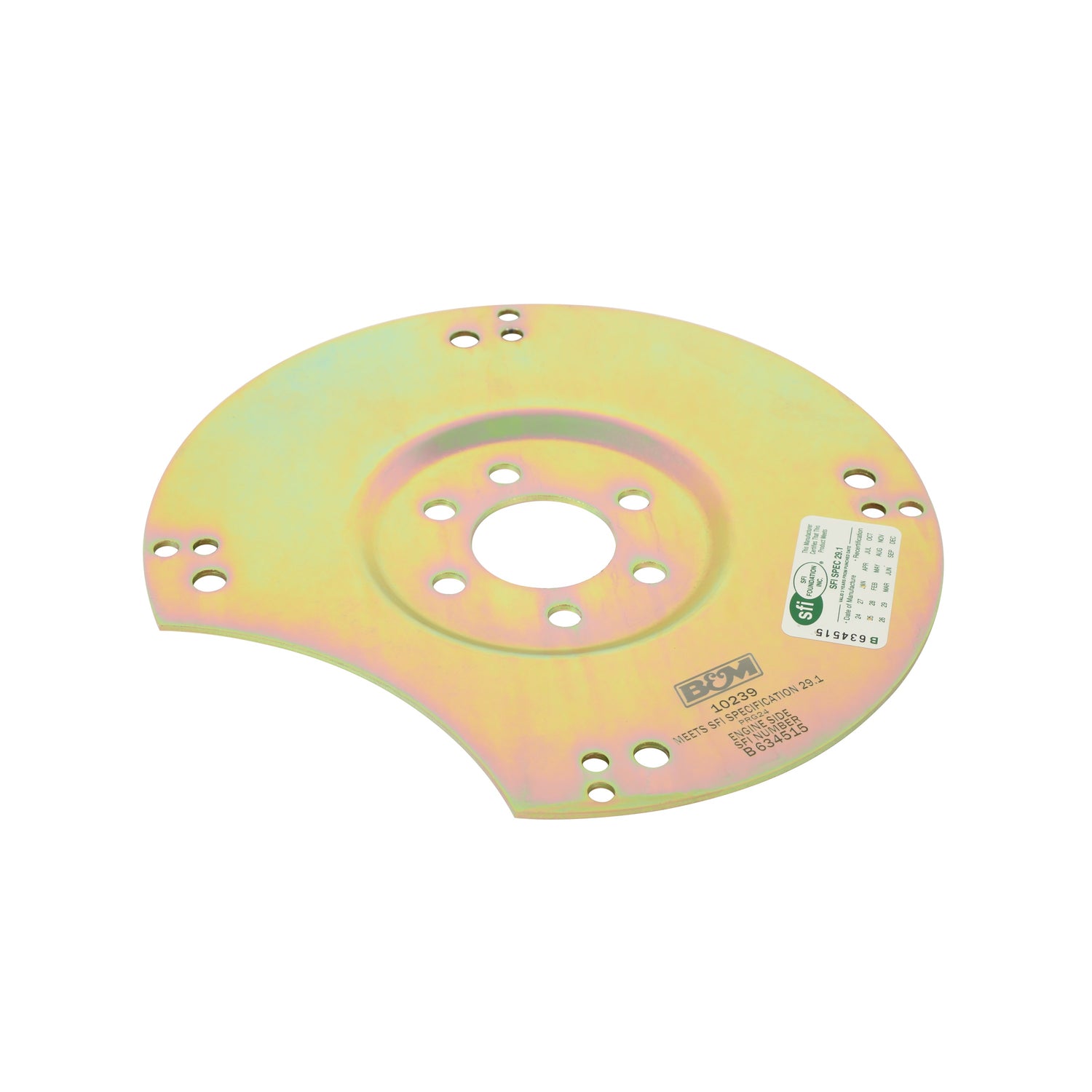

• Includes SFI Certification Sticker
• Ideal For Street Applications
• Zinc Plated Chromate Finish
• To Extreme Duty Racing
• Proven B&M Quality
Fits 1971-1992 Chrysler, Dodge, Plymouth Torqueflite A904 automatic transmissions. Bolts onto 360 cid engines with an externally balanced crankshaft using a 10-inch or 11.125-inch converter bolt pattern. *May require the use of a mini-starter if clearance around the starter or bellhousing requires a diameter less than 11.75" flexplate
Specifications
Specifications
-
Specifications
Application Mopar Attachment Type Bolt Balance External Brand B&M California Proposition 65 Chemical Name Cadmium and cadmium compounds California Proposition 65 Required Yes Category Transmission Color Gold Crankshaft Bolt Hole Count 6 Dual Pattern No Emission Code 5 Engine Chrysler Small Block Grade Type Performance IHRA Legal Yes Material Steel Mounting Hole Diameter 11.125 Mounting Hole Diameter 10 Mounting Hole Quantity 6 NHRA Legal Yes Outside Diameter 11.75 part type Automatic Transmission Flexplate Product Type Flexplates Register Diameter 2.069 Ring Gear No SFI Approved Yes SFI Certification 29.1 SFI Certification Sticker Included Sub Category Flexplate Thickness 4 Tooth Quantity NA Warning California Proposition 65 Weight 4 -
