B&M | SKU:
20485

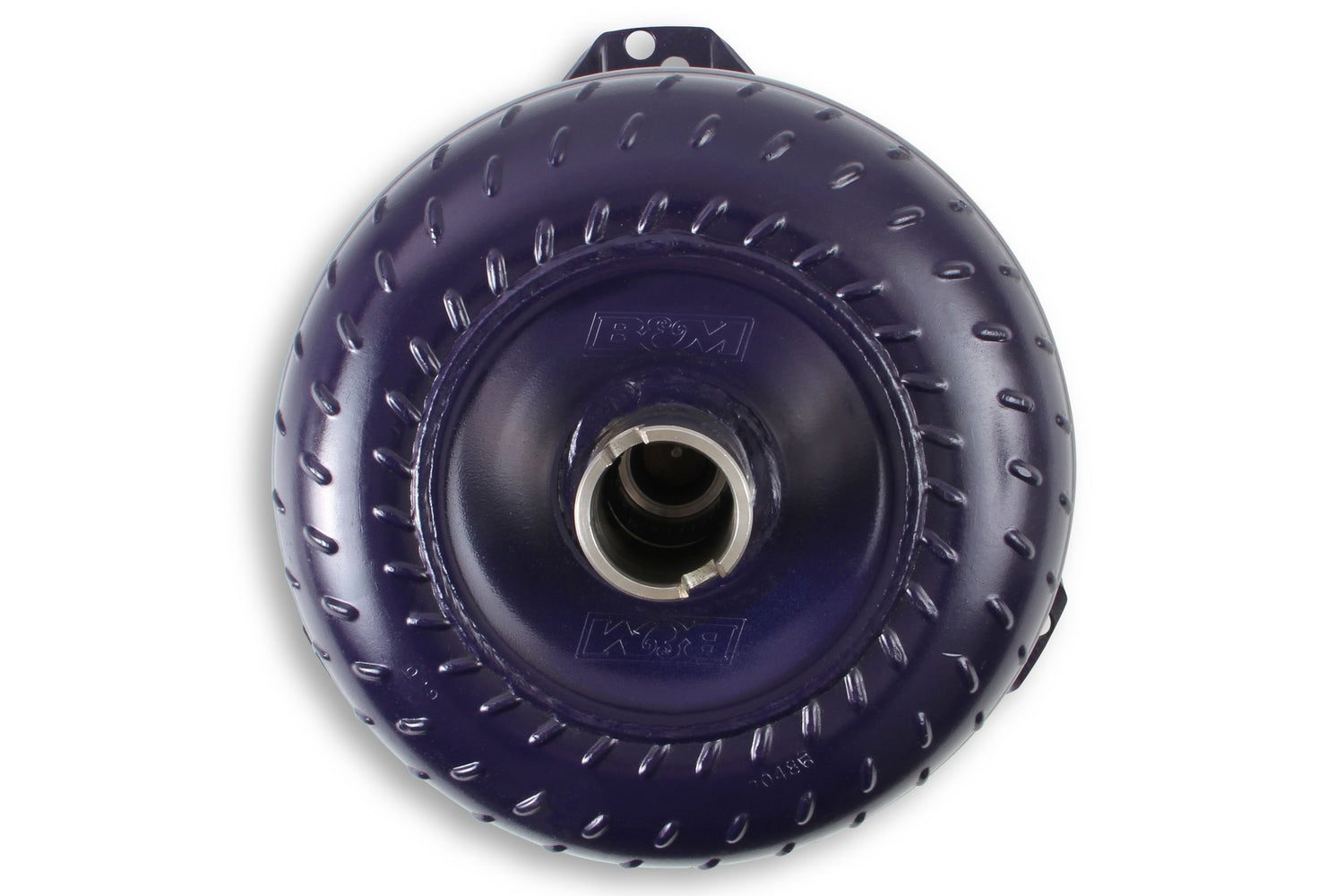

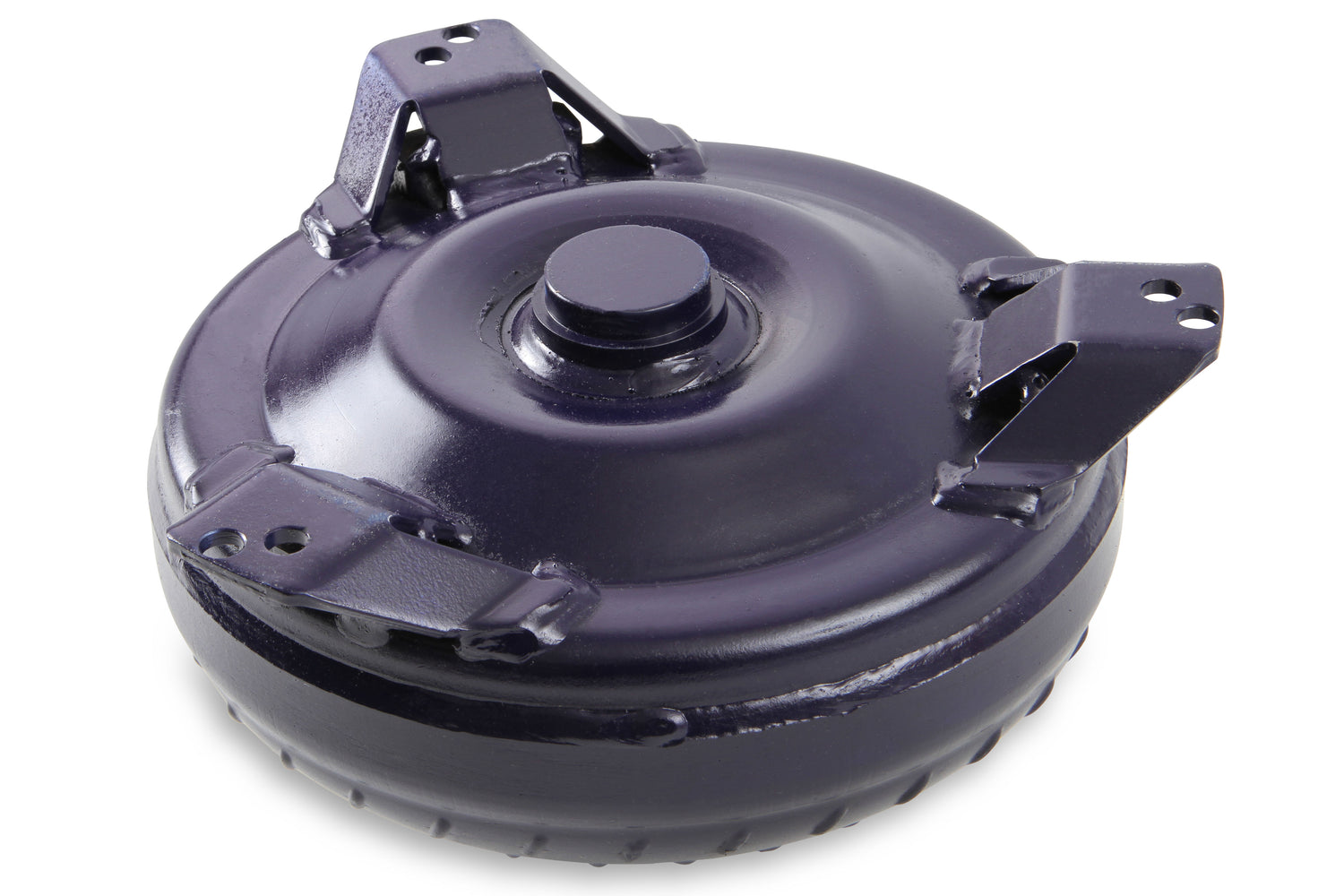

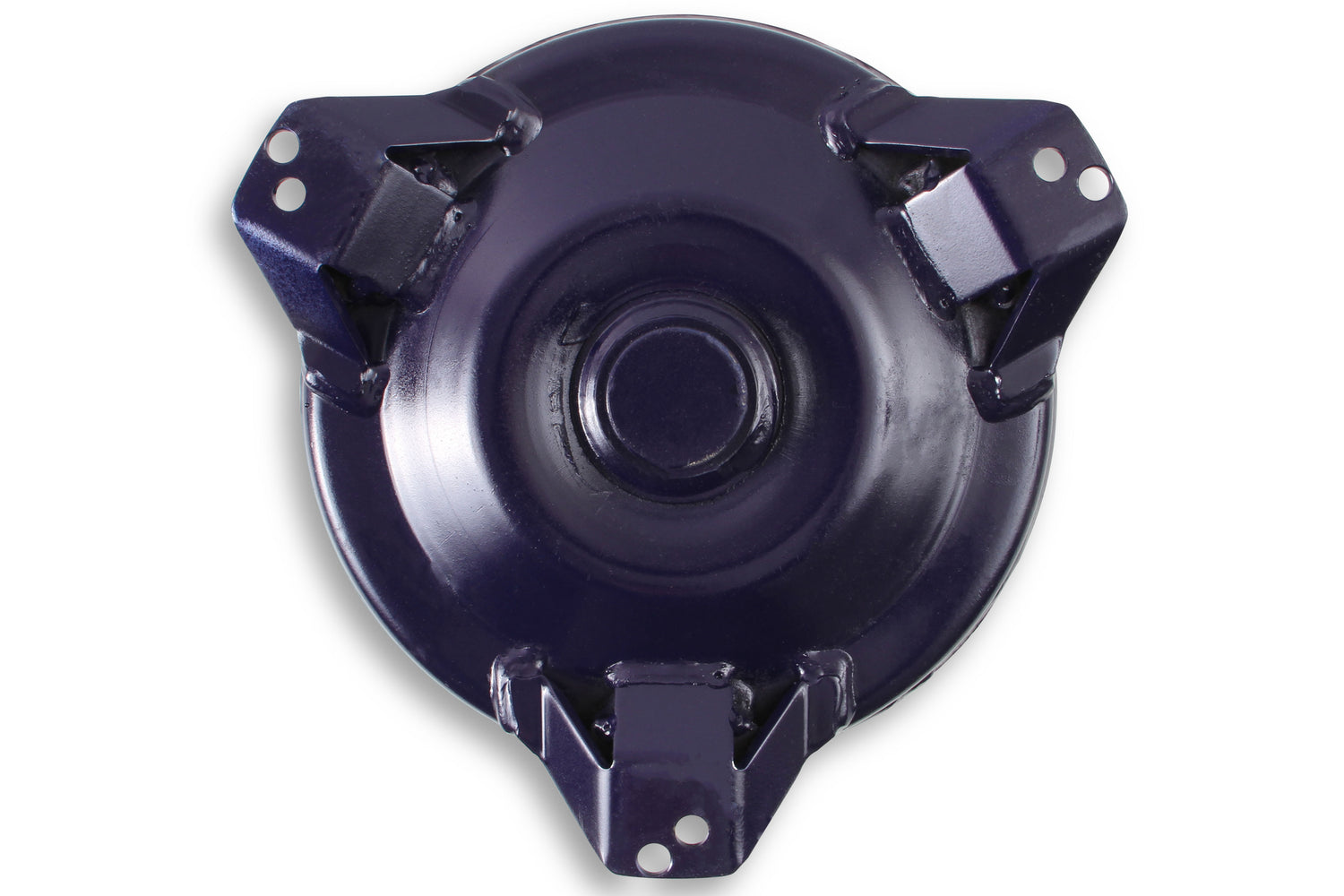

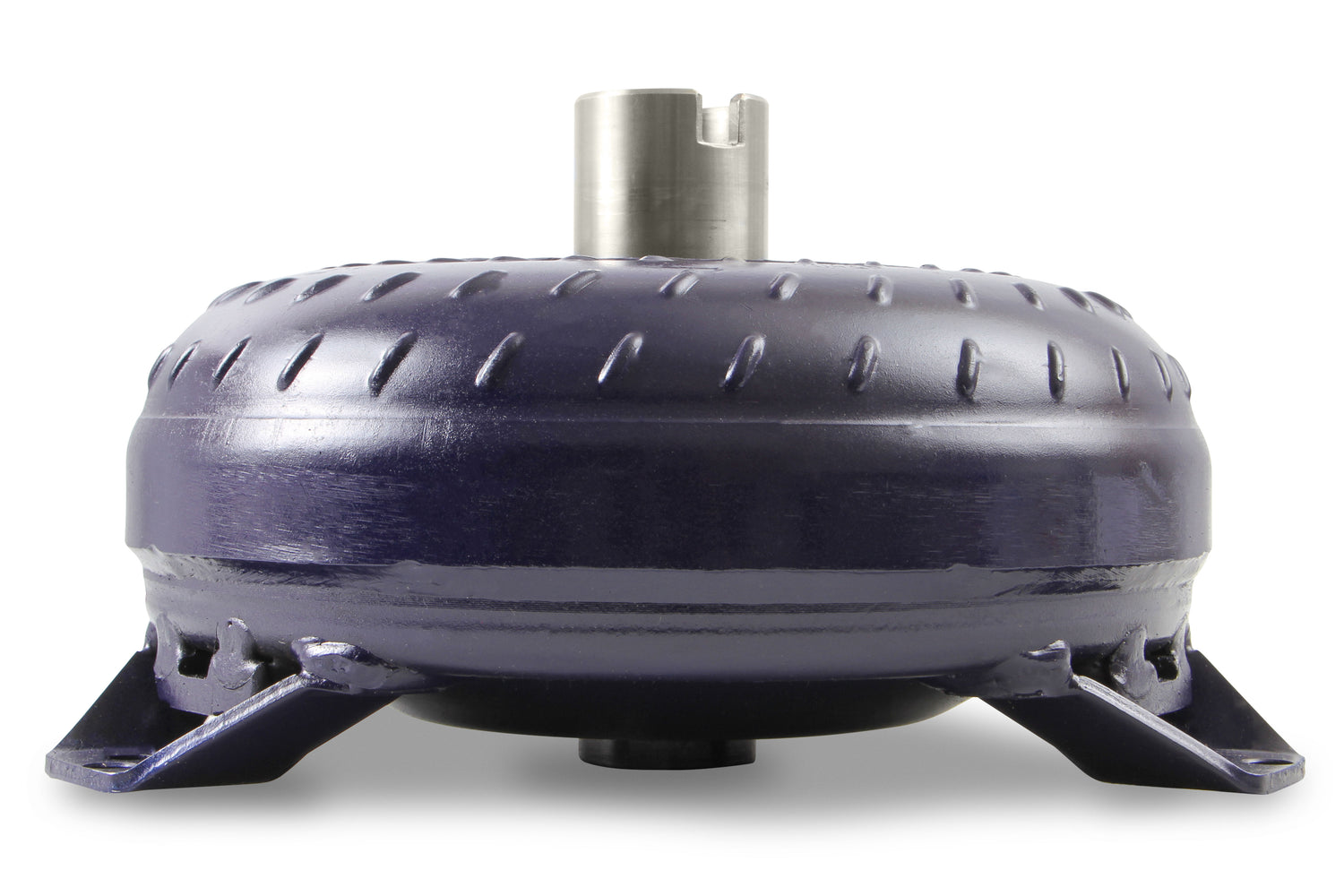

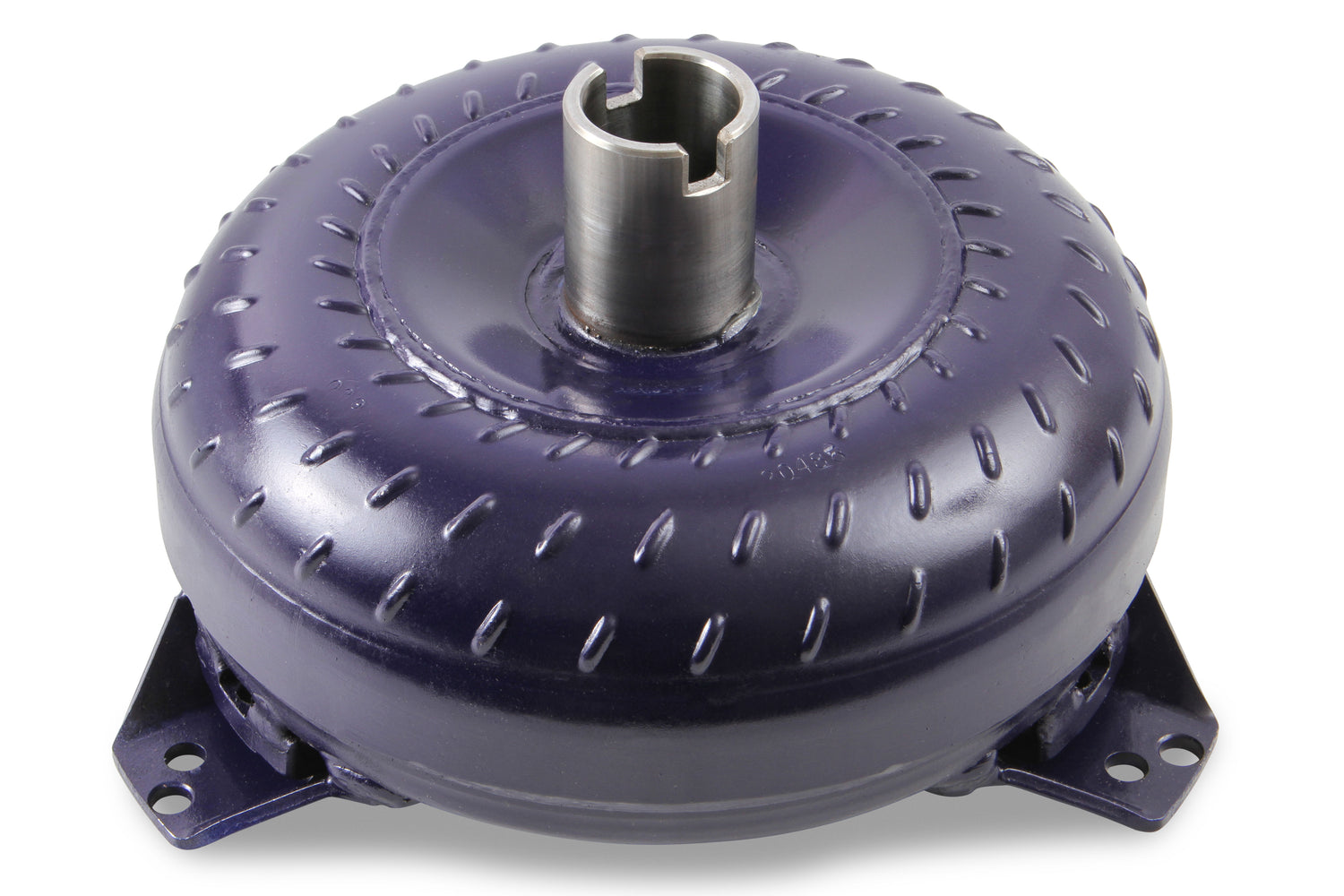

B&M Nitrous HoleShot 3800 Torque Converter,1965-91 GM TH400/425/375B, 1965-81 TH350 - 20485
10-inch diameter, 10.75-inch bolt circle, 3500-3800 RPM stall
Regular price
$1,315.00 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
B&M Nitrous HoleShot 3800 Torque Converter,1965-91 GM TH400/425/375B, 1965-81 TH350 - 20485 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
B&M Nitrous HoleShot 3800 Torque Converter,1965-91 GM TH400/425...
Regular price
$1,315.00 NZD
+ GST
Unit price
/
Unavailable
Description
Description
10-inch diameter, 10.75-inch bolt circle, 3500-3800 RPM stall
Part Number: 20485
B&M Nitrous HoleShot 3800 stall for GM 1965-91 TH400, TH425, TH375 and 1968-81 TH350, TH375B (not TH350C.) The Nitrous Holeshot 3800 stall converter is an excellent choice for vehicles with engine modifications, particularly big cams that tend to reduce low end power and torque. The higher stall speed of this converter will launch the car in a higher rpm range where more torque is readily available, resulting in quicker acceleration. Nitrous Holeshot converters feature furnace brazed impeller and turbine, new precision steel alloy pump drive tube, new heavy duty needle bearings between the stator and impeller (not a thrust washer) and needle bearings between the stator and turbine. Other features include a new turbine hub, new springs and rollers in the stator and anti-balloon plates. The anti-balloon plates will allow these converters to stand up to the instant horsepower that a Nitrous plate or fogger system delivers. These are serious converters for serious performance street cars. To prevent contamination left from worn parts being circulated in your new components causing premature wear, we strongly recommend protecting your investment by adding a B&M transmission cooler with all new transmission installations. Listed converters are NOT to be used in trans-brake applications. Not for use in trans-brake applications.
Features and Benefits
• Fully Balanced and Pressure Tested
• Dual pattern 10.75 and 11.50-inch bolt circle
• Needle Bearing Between Stator and Turbine
• Furnace Brazed Impeller and Turbine
• Anti-balloon Plate for Added Strength

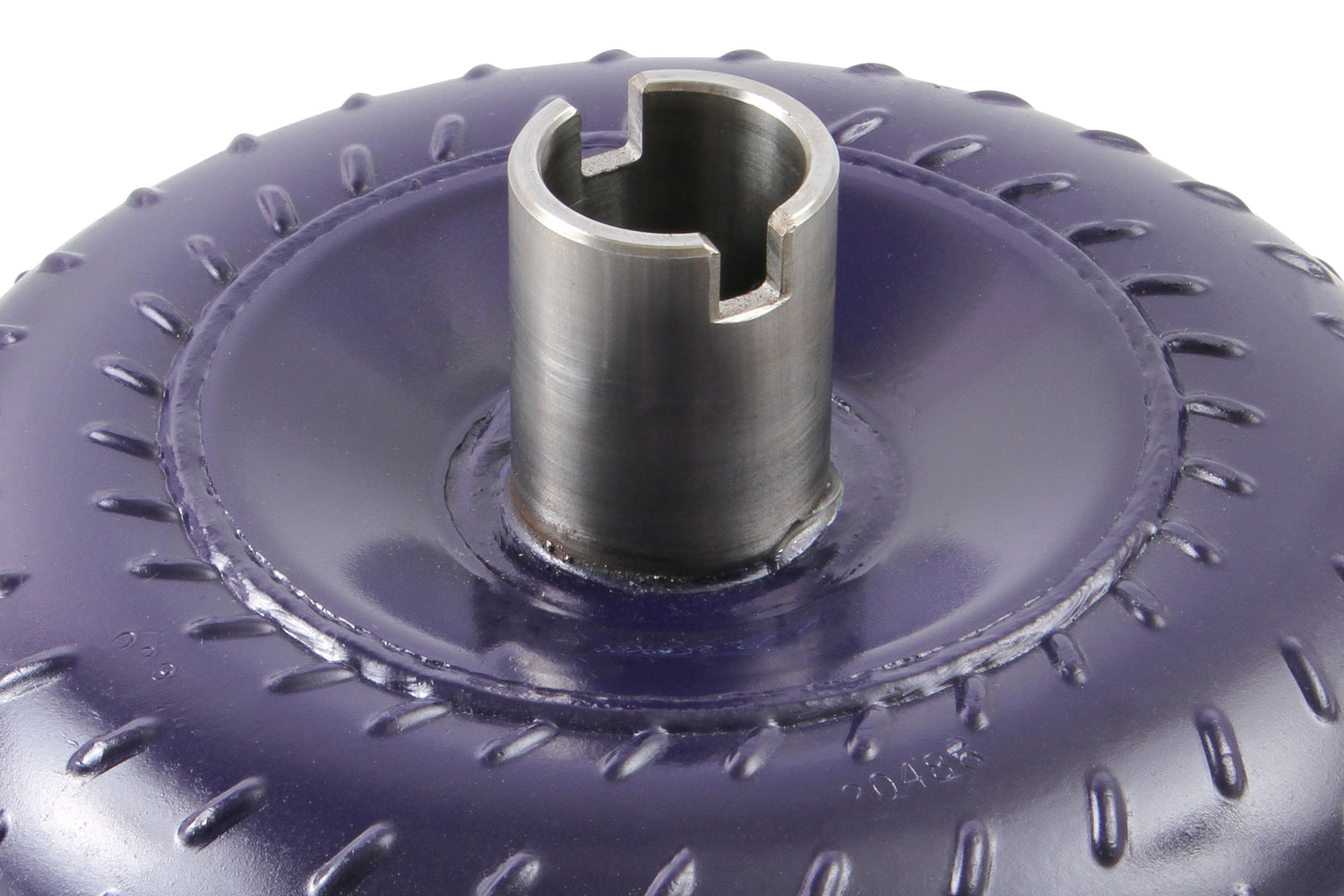

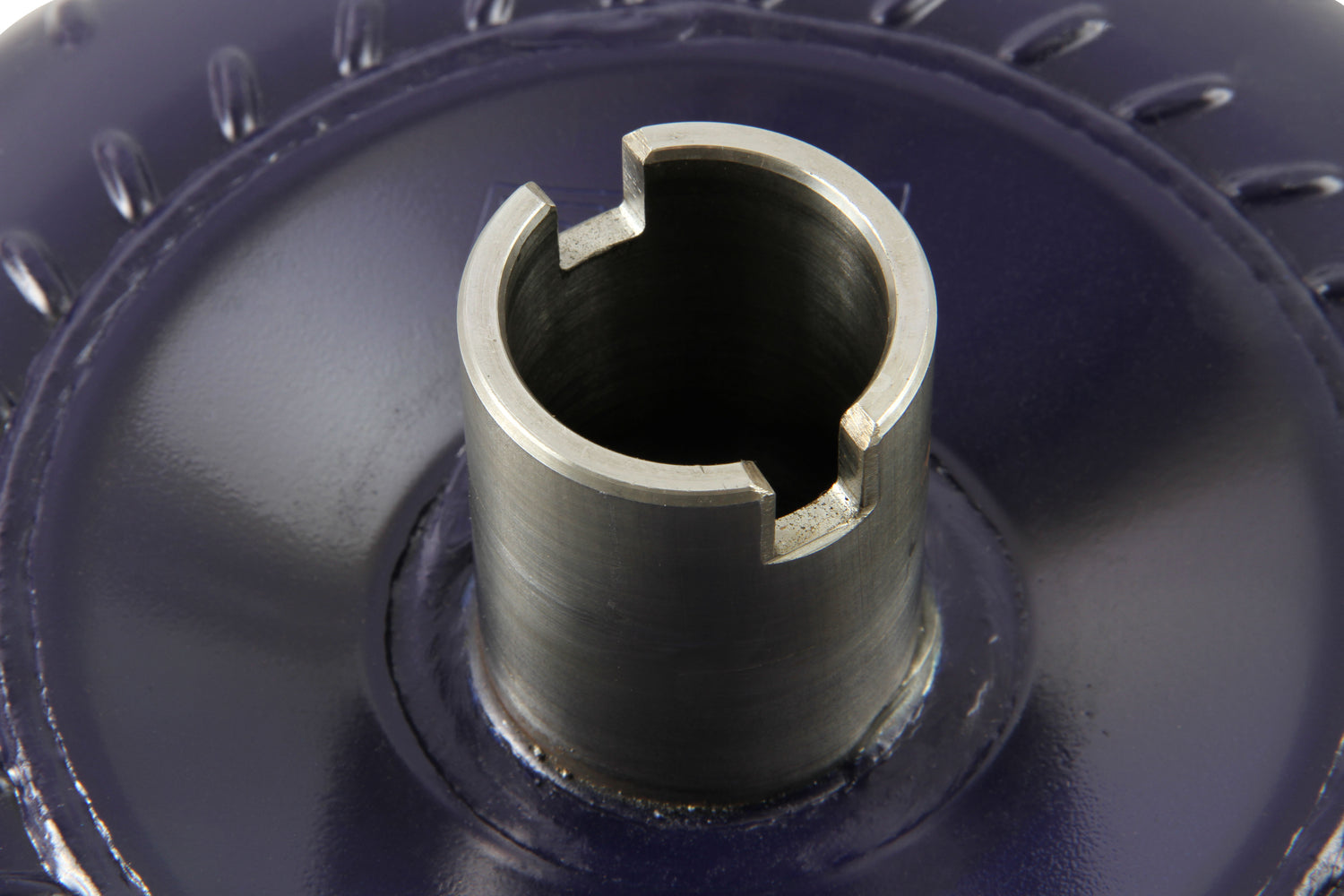

• Steel Alloy Pump Drive Tube
• Higher Stall Speed, Quicker Acceleration
• B&M Quality & Durability
"Fits vehicles with GM TH400, TH425, TH375 & TH350, TH375B (Not TH350C) Automatic Transmissions NOTE:
Part Number: 20485
B&M Nitrous HoleShot 3800 stall for GM 1965-91 TH400, TH425, TH375 and 1968-81 TH350, TH375B (not TH350C.) The Nitrous Holeshot 3800 stall converter is an excellent choice for vehicles with engine modifications, particularly big cams that tend to reduce low end power and torque. The higher stall speed of this converter will launch the car in a higher rpm range where more torque is readily available, resulting in quicker acceleration. Nitrous Holeshot converters feature furnace brazed impeller and turbine, new precision steel alloy pump drive tube, new heavy duty needle bearings between the stator and impeller (not a thrust washer) and needle bearings between the stator and turbine. Other features include a new turbine hub, new springs and rollers in the stator and anti-balloon plates. The anti-balloon plates will allow these converters to stand up to the instant horsepower that a Nitrous plate or fogger system delivers. These are serious converters for serious performance street cars. To prevent contamination left from worn parts being circulated in your new components causing premature wear, we strongly recommend protecting your investment by adding a B&M transmission cooler with all new transmission installations. Listed converters are NOT to be used in trans-brake applications. Not for use in trans-brake applications.
Features and Benefits
• Fully Balanced and Pressure Tested
• Dual pattern 10.75 and 11.50-inch bolt circle
• Needle Bearing Between Stator and Turbine
• Furnace Brazed Impeller and Turbine
• Anti-balloon Plate for Added Strength
• Steel Alloy Pump Drive Tube
• Higher Stall Speed, Quicker Acceleration
• B&M Quality & Durability
"Fits vehicles with GM TH400, TH425, TH375 & TH350, TH375B (Not TH350C) Automatic Transmissions NOTE:
Specifications
Specifications
-
Specifications
Additional Contents New needle bearings Anti-Balloon Plate Yes Automotive Item Grade High Performance Bolt Circle Diameter (in) 10.75 Brand B&M California Proposition 65 Required No Category Transmission Crank Pilot Diameter (in) 1.71 Emission Code 5 FlexPlate Bolt Circle 10-3/4", 11-1/2" Flexplate Change Needed No Furnace Brazed Yes Grade Type Performance Input Spline 30 Lock Up Type No Lockup No Lockup Type No Material Steel Mounting Studs No part type Automatic Transmission Torque Converter Product Type Automatic Transmission Torque Converter Spline Quantity 30 Stall 3500-3800 Stall Speed 3,500-3,800 Stall Speed RPM 3500-3800 Sub Category Transmission Hard Parts Torque Converter Series Nitrous Holeshot Transmission TH375 Transmission TH375B Transmission TH400 Transmission TH350 Transmission TH425 Transmission Model TH400, TH425, TH375, TH350 -
