B&M | SKU:
70444

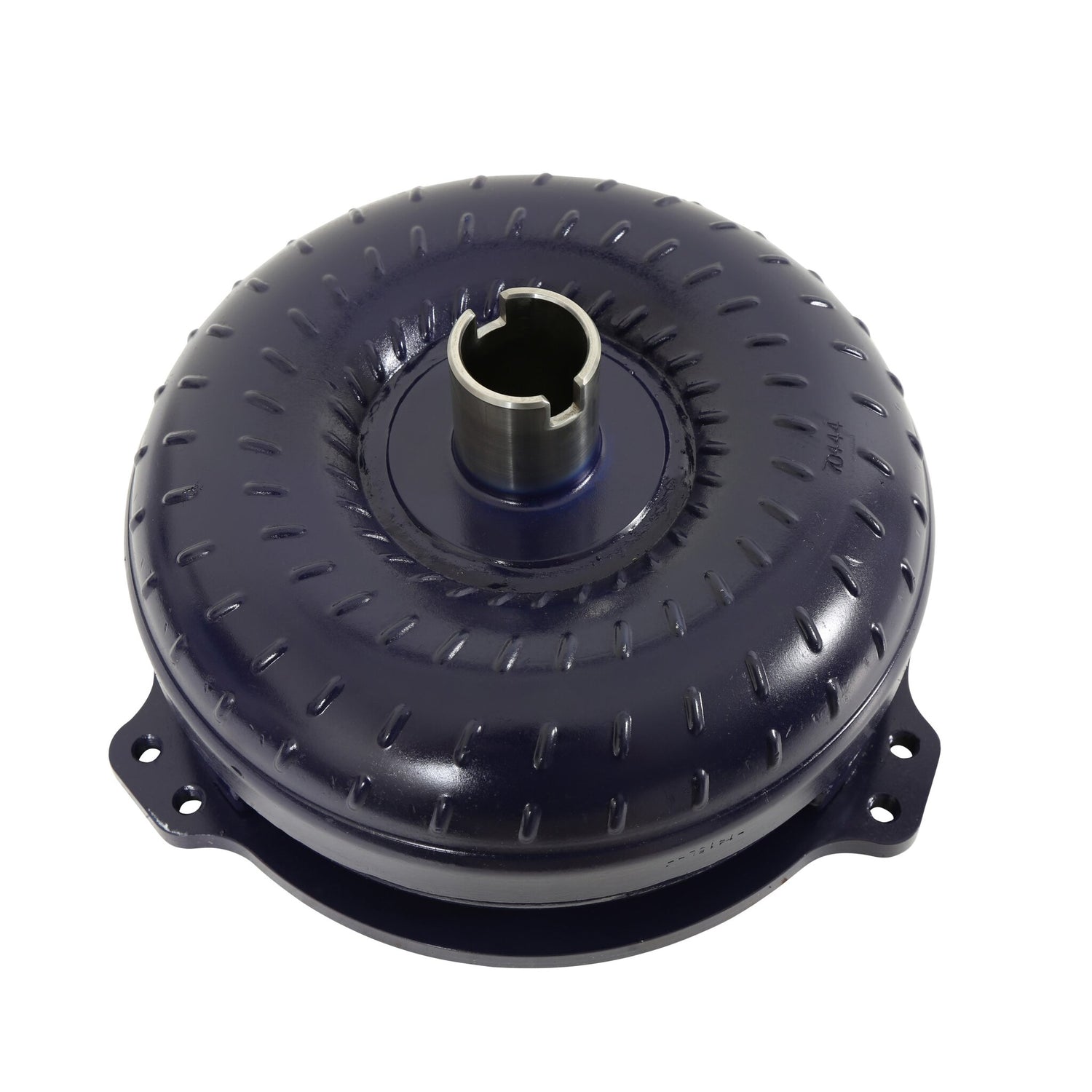

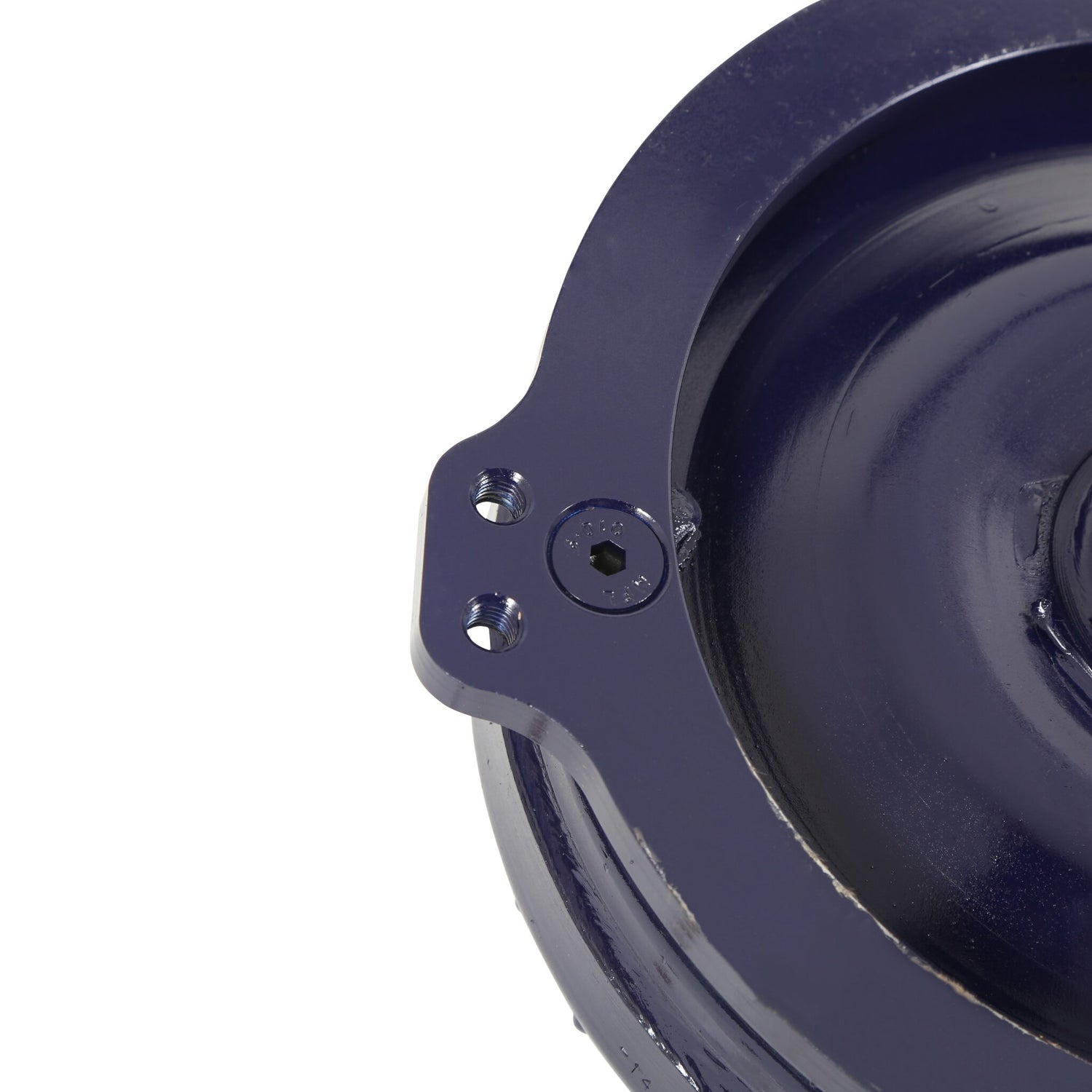

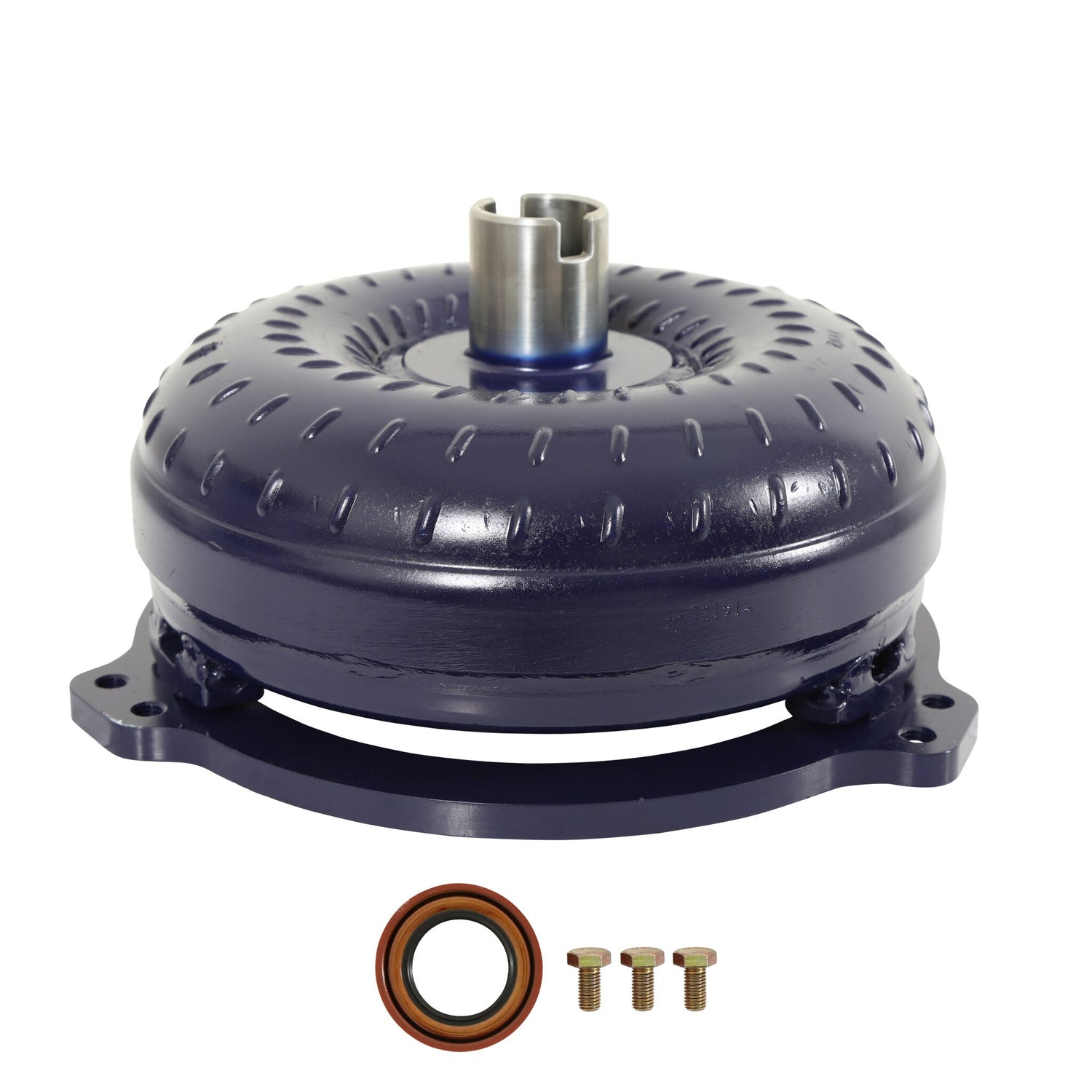

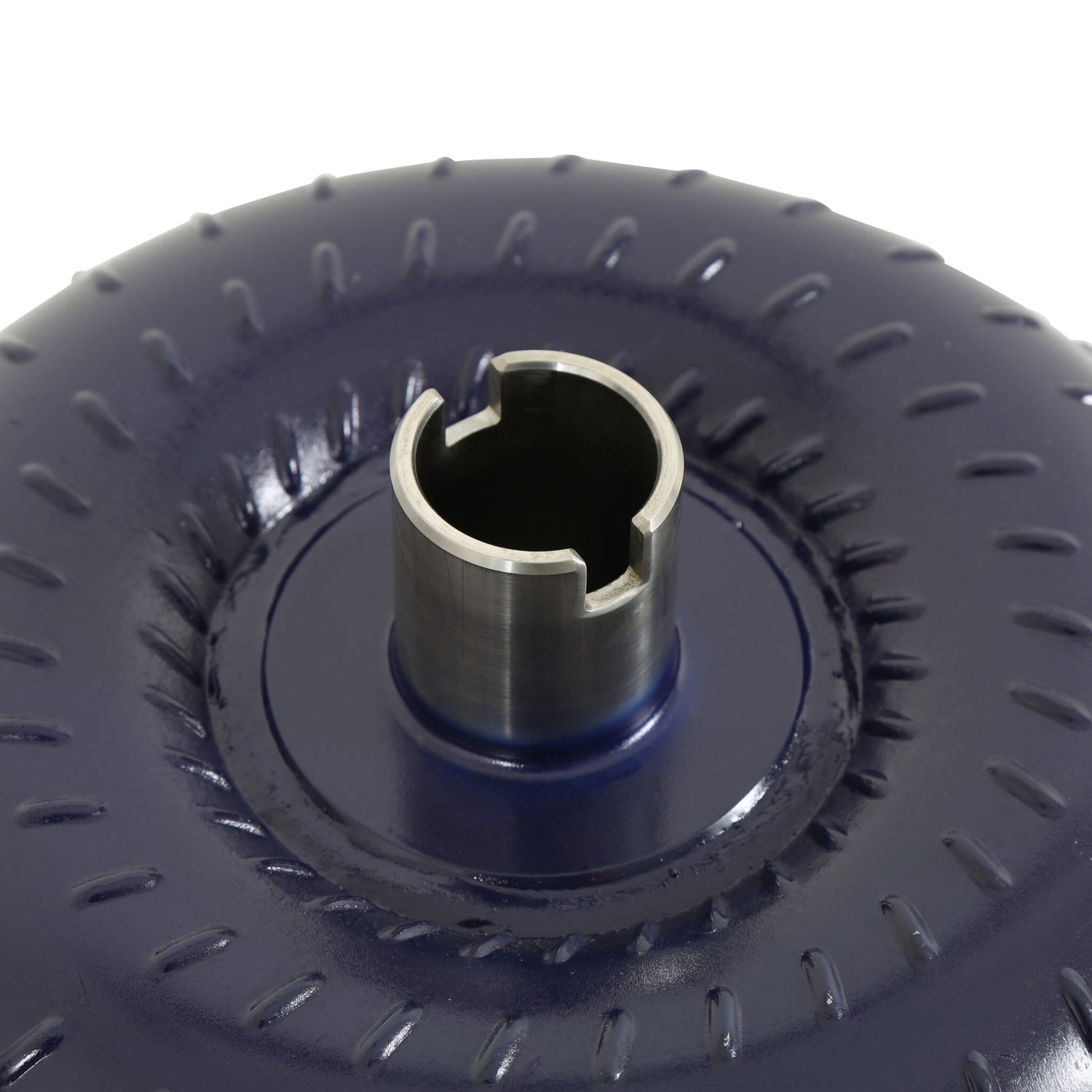

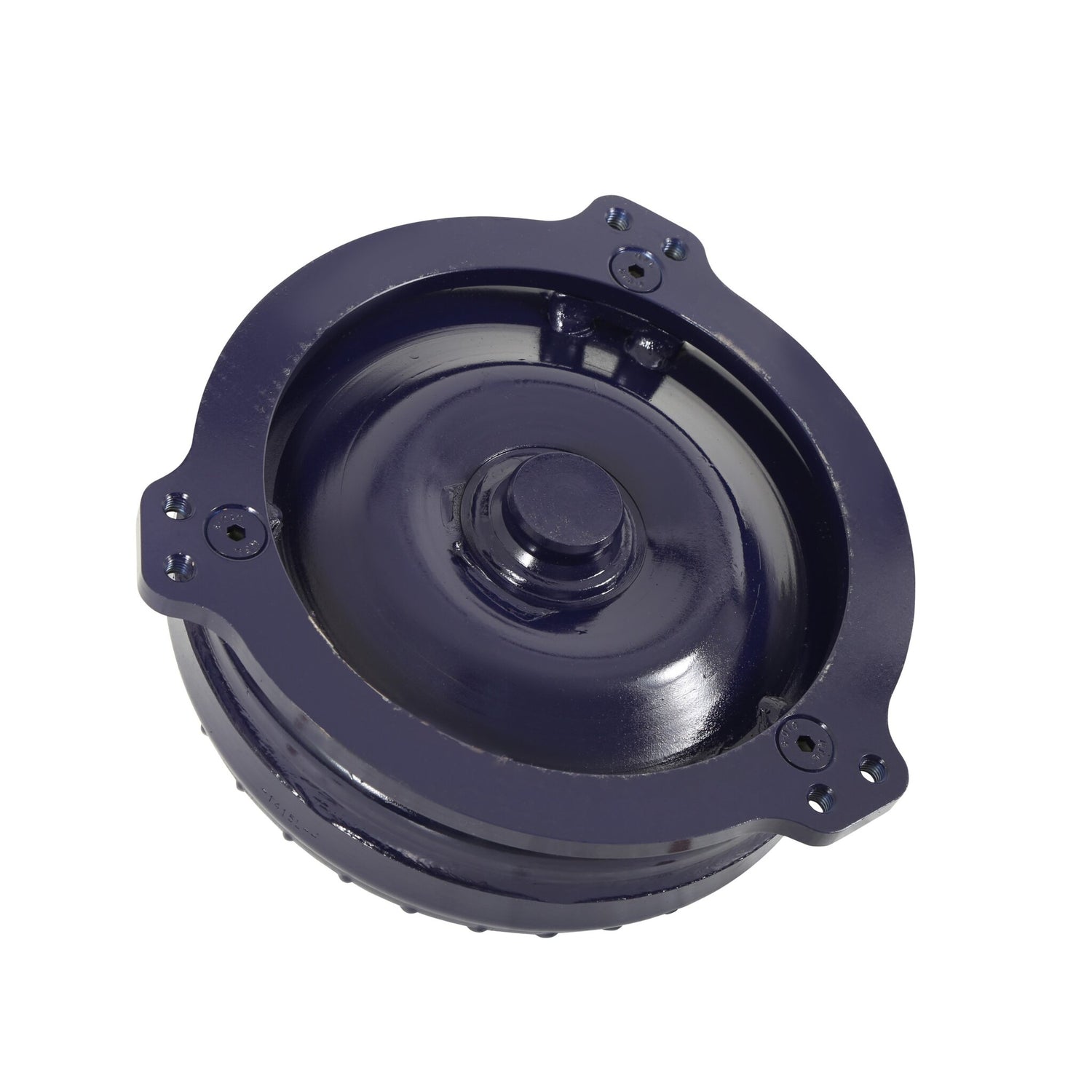

B&M HoleShot 3500 Torque Converter - 1984-93 GM 700R4/4L60 - 70444
30-Spline Input Shaft - 10.75-inch Bolt Circle - 3200-3500 RPM Stall
Regular price
$1,717.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
B&M HoleShot 3500 Torque Converter - 1984-93 GM 700R4/4L60 - 70444 is not in stock at Fast Lane Spares and will ship direct from supplier
ā Special Order Item ā ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7ā20 days shipping.
Stock Status:
Description
Description
30-Spline Input Shaft - 10.75-inch Bolt Circle - 3200-3500 RPM Stall
Part Number: 70444
This HoleShot 3500 fits 1984-93 GM TH700R4/4L60 automatic transmissions with a 30-spline input shaft. This converter retains the lock-up feature. Holeshot torque converters are for serious-minded performance enthusiasts and offer additional strength and durability features not found in our Tork Master or Traveler series of converters. The Holeshot 3500 converter is an excellent choice for vehicles with some performance engine modifications, particularly big cams that tend to reduce low-end power and torque. The higher stall speed of this converter will launch the car in a higher rpm range where more torque is readily available, resulting in quicker acceleration. Holeshot converters feature furnace-brazed impeller fins and turbine, a new precision alloy impeller hub, and new heavy-duty needle bearings. Other features include fully balanced and pressure tested by expert technicians. If your vehicle is equipped with a plate-type nitrous system or supercharger, please refer to the Nitrous Holeshot line of converters. Notes: Stall speed listings are based on engines producing 230lb. ft. of torque at 2,500 rpm. More torque at 2,500 rpm will give you more stall speed, less torque at 2,500 rpm will give you less stall speed than the stall speed ratings indicated. Higher stall converters can generate more heat, so we highly recommend adding a transmission cooler. This converter is Not recommended for supercharged, plate-type nitrous oxide, or trans-brake applications. The product images shown are for illustration purposes only and may not be an exact representation of the product. 10.75-inch bolt circle.
Features and Benefits
ā¢ Precision Balanced on Certified Balance Equipment
ā¢ Copper Furnace Brazed Impeller and Turbine
ā¢ New Precision Alloy Steel Impeller Hub
ā¢ Race Proven Technology & Quality
Fits vehicles with 1984-93 GM TH700R4/4L60 automatic transmissions with 30-spline input shaft.
Part Number: 70444
This HoleShot 3500 fits 1984-93 GM TH700R4/4L60 automatic transmissions with a 30-spline input shaft. This converter retains the lock-up feature. Holeshot torque converters are for serious-minded performance enthusiasts and offer additional strength and durability features not found in our Tork Master or Traveler series of converters. The Holeshot 3500 converter is an excellent choice for vehicles with some performance engine modifications, particularly big cams that tend to reduce low-end power and torque. The higher stall speed of this converter will launch the car in a higher rpm range where more torque is readily available, resulting in quicker acceleration. Holeshot converters feature furnace-brazed impeller fins and turbine, a new precision alloy impeller hub, and new heavy-duty needle bearings. Other features include fully balanced and pressure tested by expert technicians. If your vehicle is equipped with a plate-type nitrous system or supercharger, please refer to the Nitrous Holeshot line of converters. Notes: Stall speed listings are based on engines producing 230lb. ft. of torque at 2,500 rpm. More torque at 2,500 rpm will give you more stall speed, less torque at 2,500 rpm will give you less stall speed than the stall speed ratings indicated. Higher stall converters can generate more heat, so we highly recommend adding a transmission cooler. This converter is Not recommended for supercharged, plate-type nitrous oxide, or trans-brake applications. The product images shown are for illustration purposes only and may not be an exact representation of the product. 10.75-inch bolt circle.
Features and Benefits
ā¢ Precision Balanced on Certified Balance Equipment
ā¢ Copper Furnace Brazed Impeller and Turbine
ā¢ New Precision Alloy Steel Impeller Hub
ā¢ Race Proven Technology & Quality
Fits vehicles with 1984-93 GM TH700R4/4L60 automatic transmissions with 30-spline input shaft.
Specifications
Specifications
-
Specifications
Anti-Balloon Plate No Automotive Item Grade High Performance Brand B&M California Proposition 65 Required No Category Transmission Crank Pilot Diameter (in) 1.71 Emission Code 5 FlexPlate Bolt Circle 10-3/4", 11-1/2" Grade Type Performance Input Spline 30 Lock Up Type No Lockup Type No Mounting Studs No part type Automatic Transmission Torque Converter Product Type Automatic Transmission Torque Converter Spline Quantity 30 Stall 3200-3500 Stall Speed 3,200-3,500 Stall Speed RPM 3200-3500 Sub Category Transmission Hard Parts Torque Converter Series Holeshot Transmission 700R4 Transmission 4L60 Transmission Model 700R4 -
