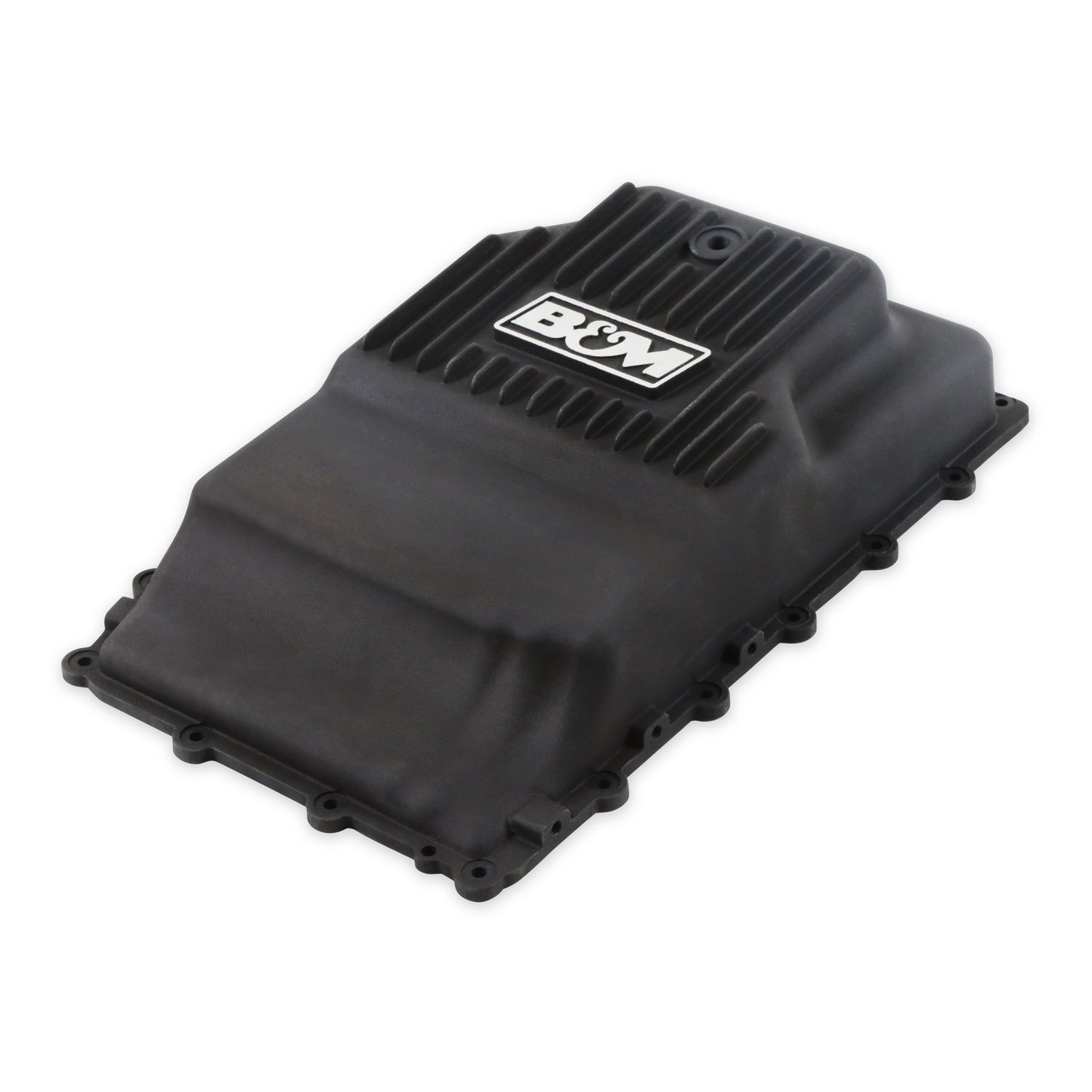

B&M Hi-Tek Heavy-Duty Deep Transmission Pan - Ford 10R80 - Aluminum - Black - 71400

Fits 2017-2024 Ford F-150, Expedition, Explorer, Bronco, Ranger, and Lincoln Navigator, Aviator with 10R80 or 10R60 Transmissions

Part Number: 71400

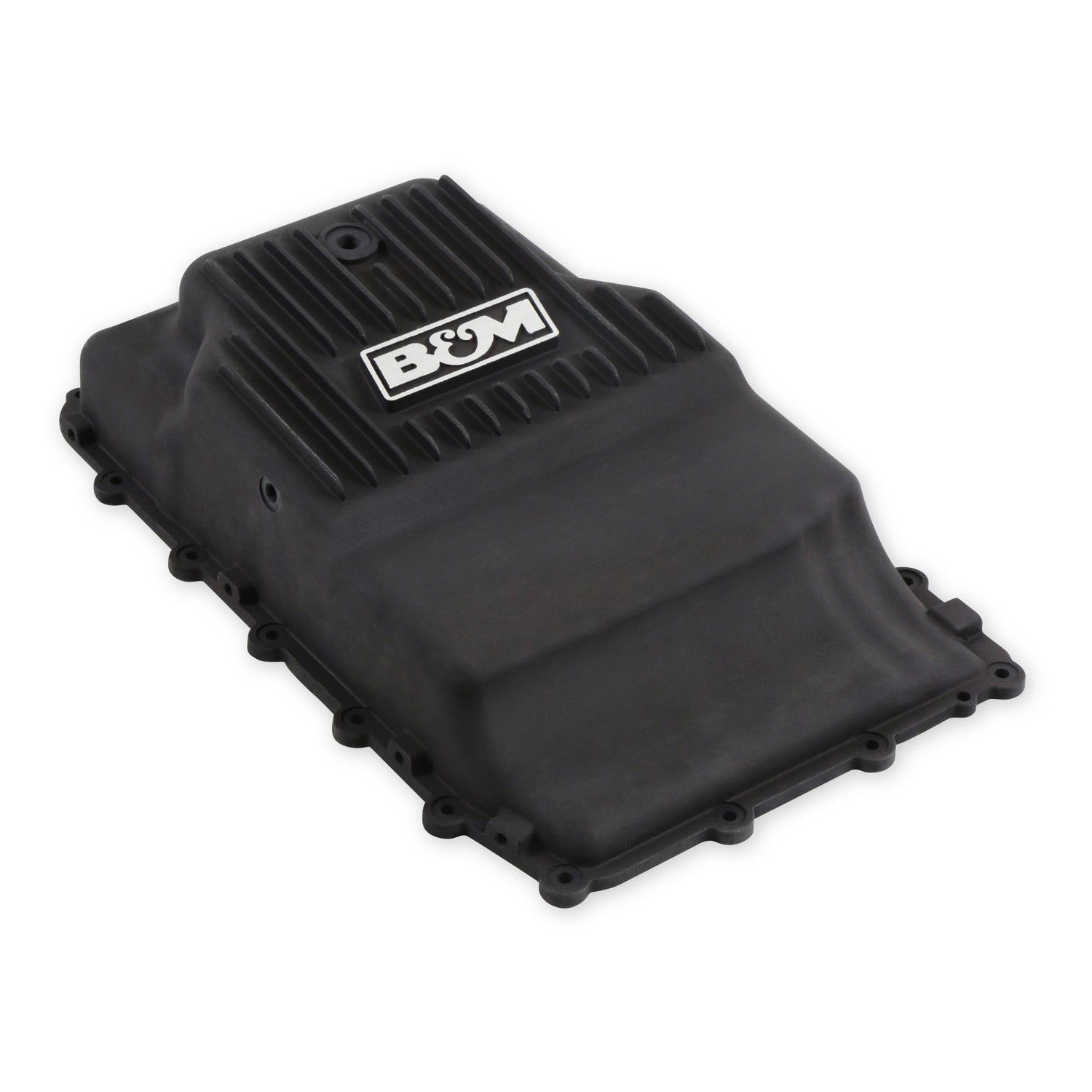

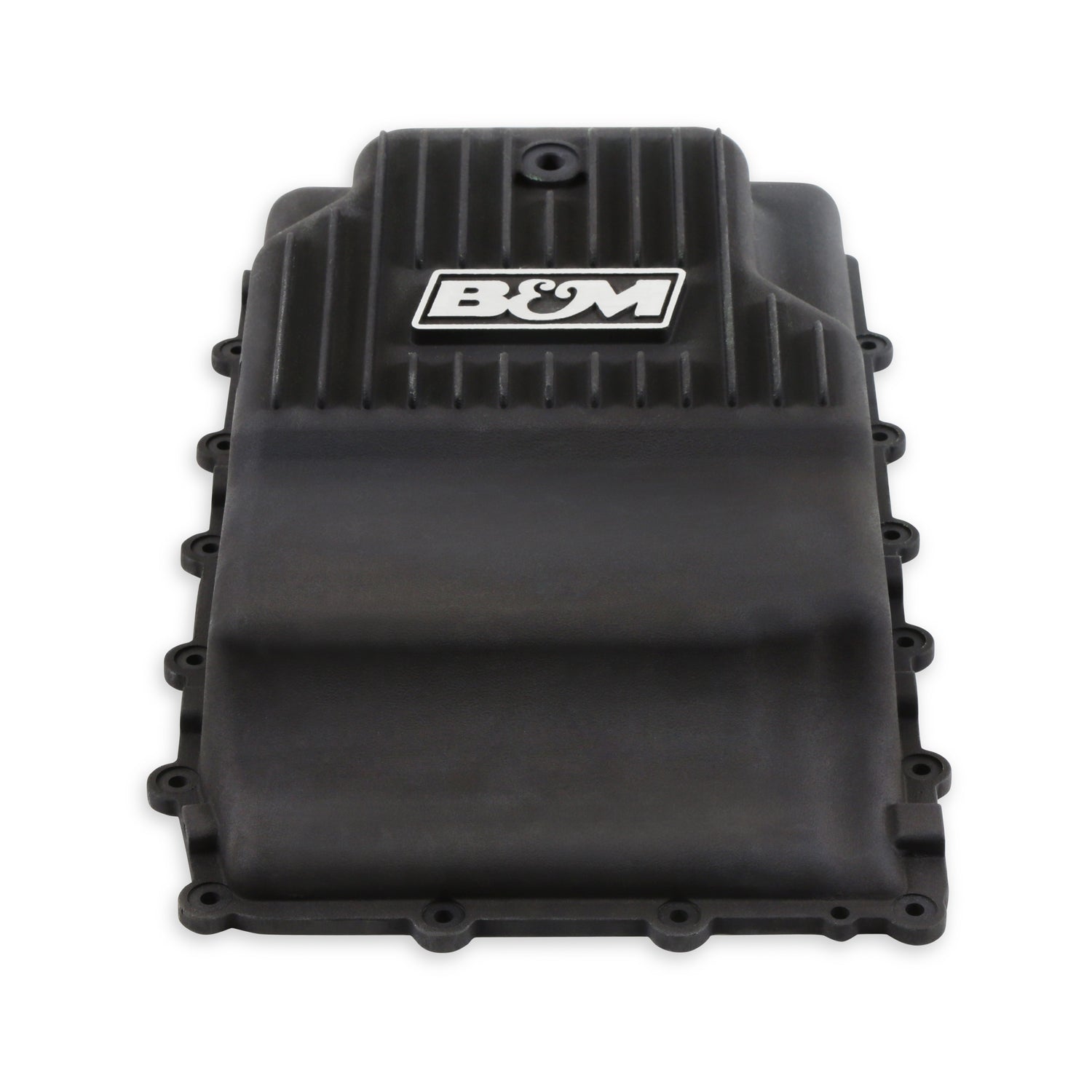

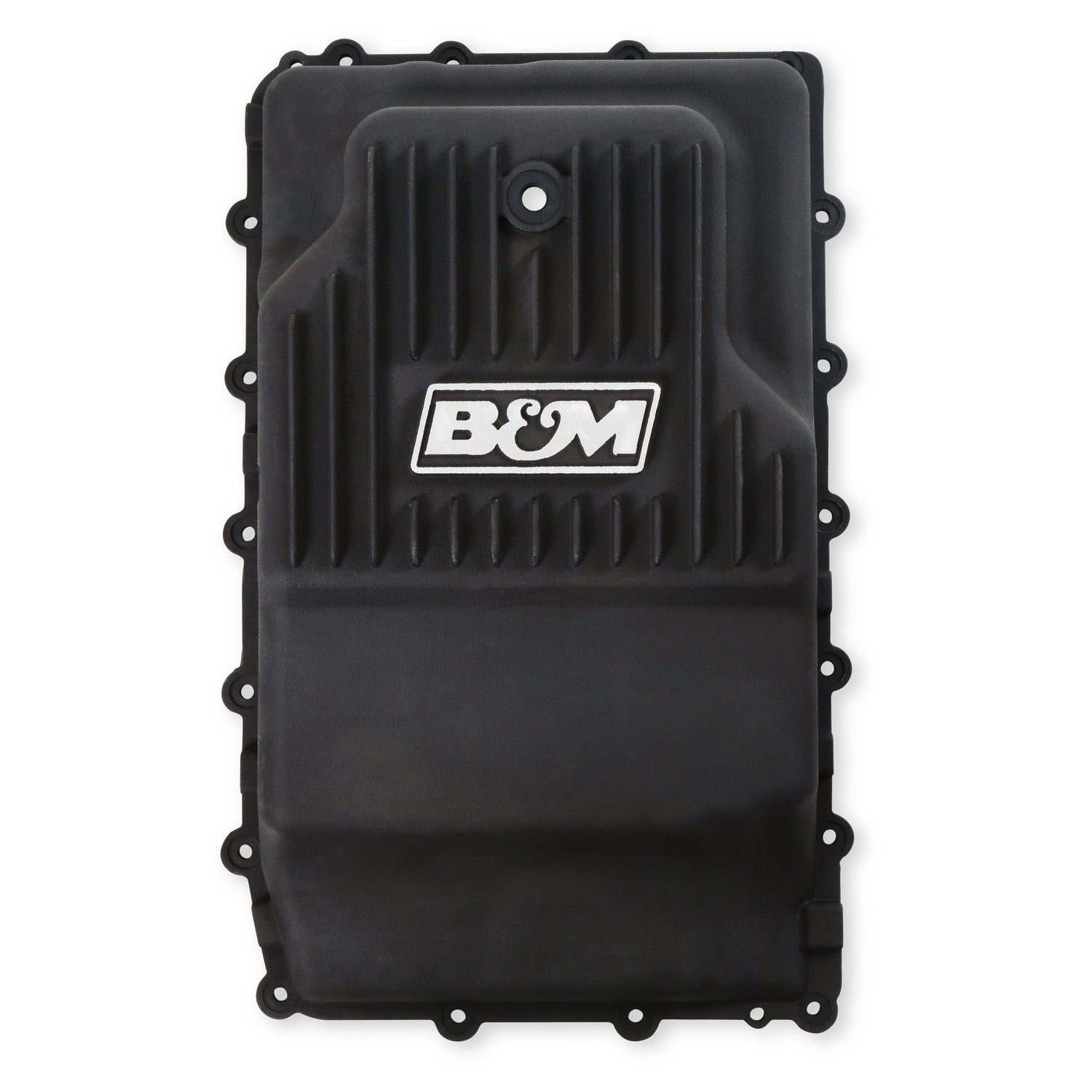

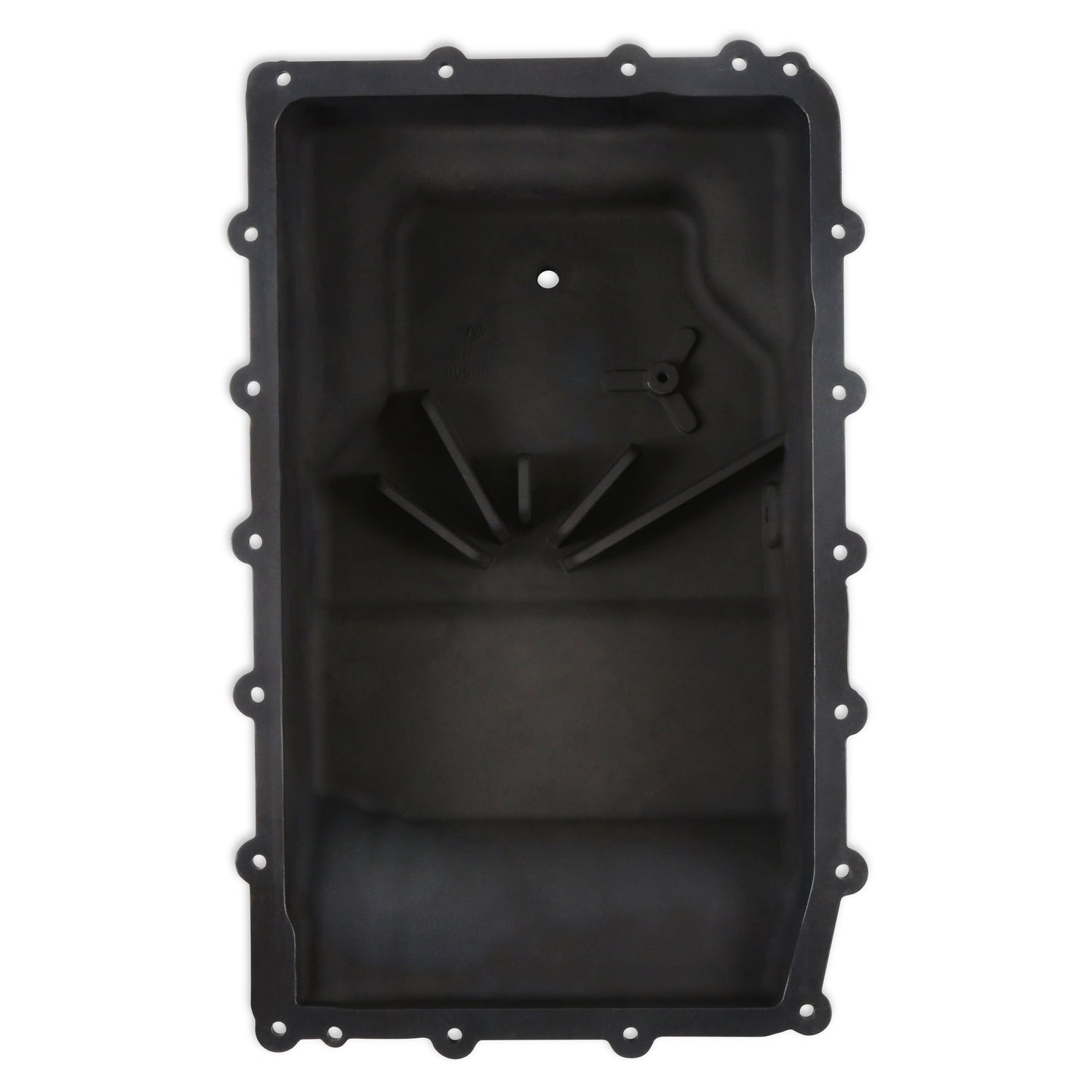

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2 quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures and prolonging the life of your transmission, transmission fluid, and corresponding components. Other features of this popular pan include a drain port with a magnetic drain plug for clean and easy servicing. Also includes a 1/8-inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing, or racing. Includes detailed instructions with all necessary hardware for an easy at-home installation. Note: 10R80 transmissions do not come with a dipstick from the factory to check the fluid level. As a solution, B&M offers an optional locking dipstick part #22200 to measure transmission fluid level. _x000D_ _x000D_ Also available in a natural finish (B&M Part #70400).

Features and Benefits

• Drain Port with Magnetic Drain Plug for Easy Servicing
• Durable A356 Aluminum Construction
• Features a Temperature Sensor Port
• Additional 2-Quart Fluid Capacity
• MIL-Spec Black Anodized Finish
• Lifetime Limited Warranty
• Over 65 Years of B&M Experience and Quality
• Increased Cooling Properties

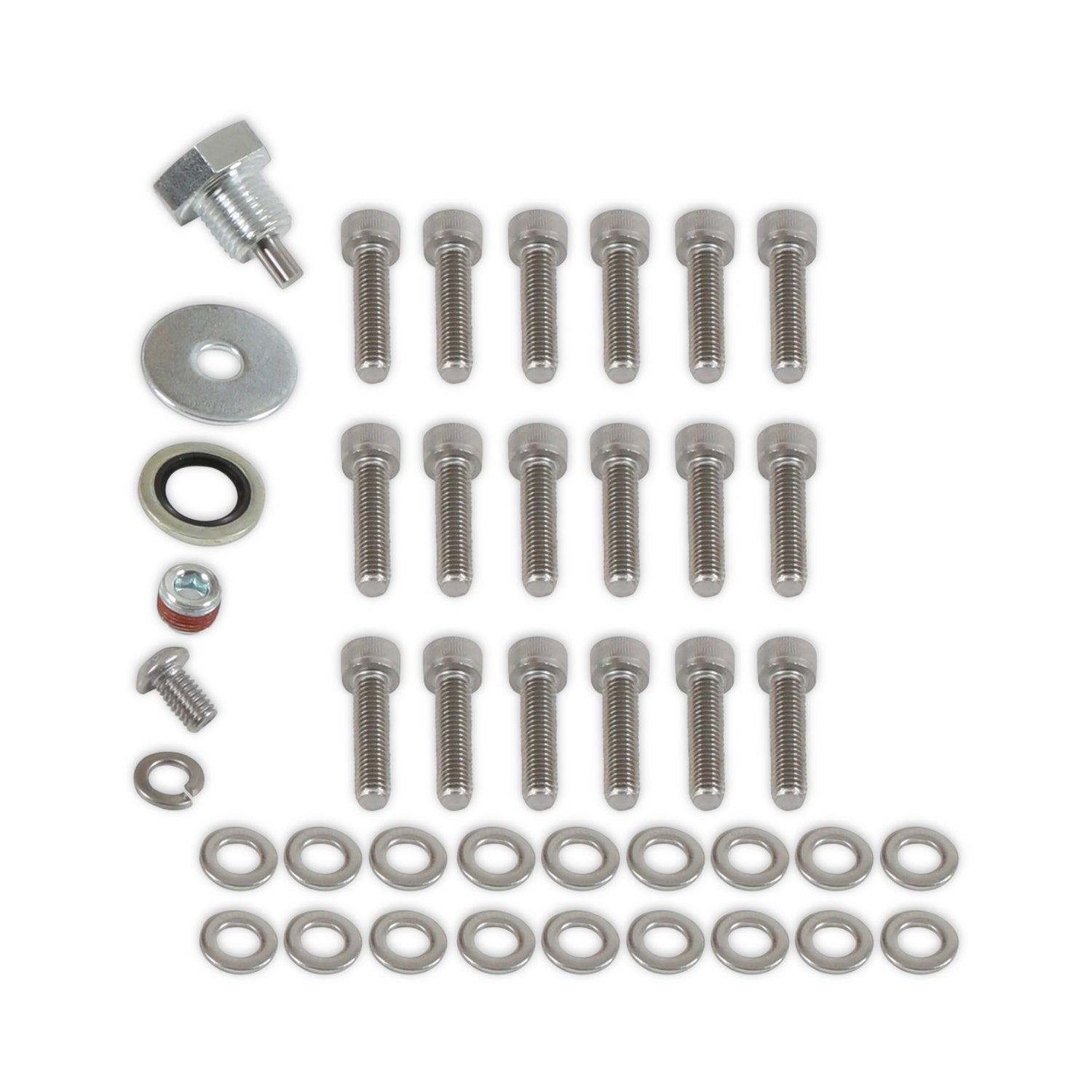

• Hardware Included
• Easy Installation

Fits 2017-2024 Ford F-150, Expedition, Explorer, Bronco, Ranger, and Lincoln Navigator, Aviator with 10R80 or 10R60 Transmissions. Increase of 2.0-quarts of fluid capacity. Pan is 4 5/8" deep and while it will physically fit car applications, it will sit about flush with the bellhousing depthwise and could cause issues with road debris and other hazards (speed bumps, etc.), especially on lowered vehicles._x000D_ _x000D_ AVOID SERIOUS INJURY OR DEATH BY CRUSHING! If additional clearance is required, securely support the vehicle on a lift or jack stands. WARNING: NEVER work under a vehicle that is supported only by jacks! _x000D_ _x000D_ AVOID BURNS! Automatic transmissions typically operate at 150-250°F. Allow the transmission to cool down sufficiently before starting work.
