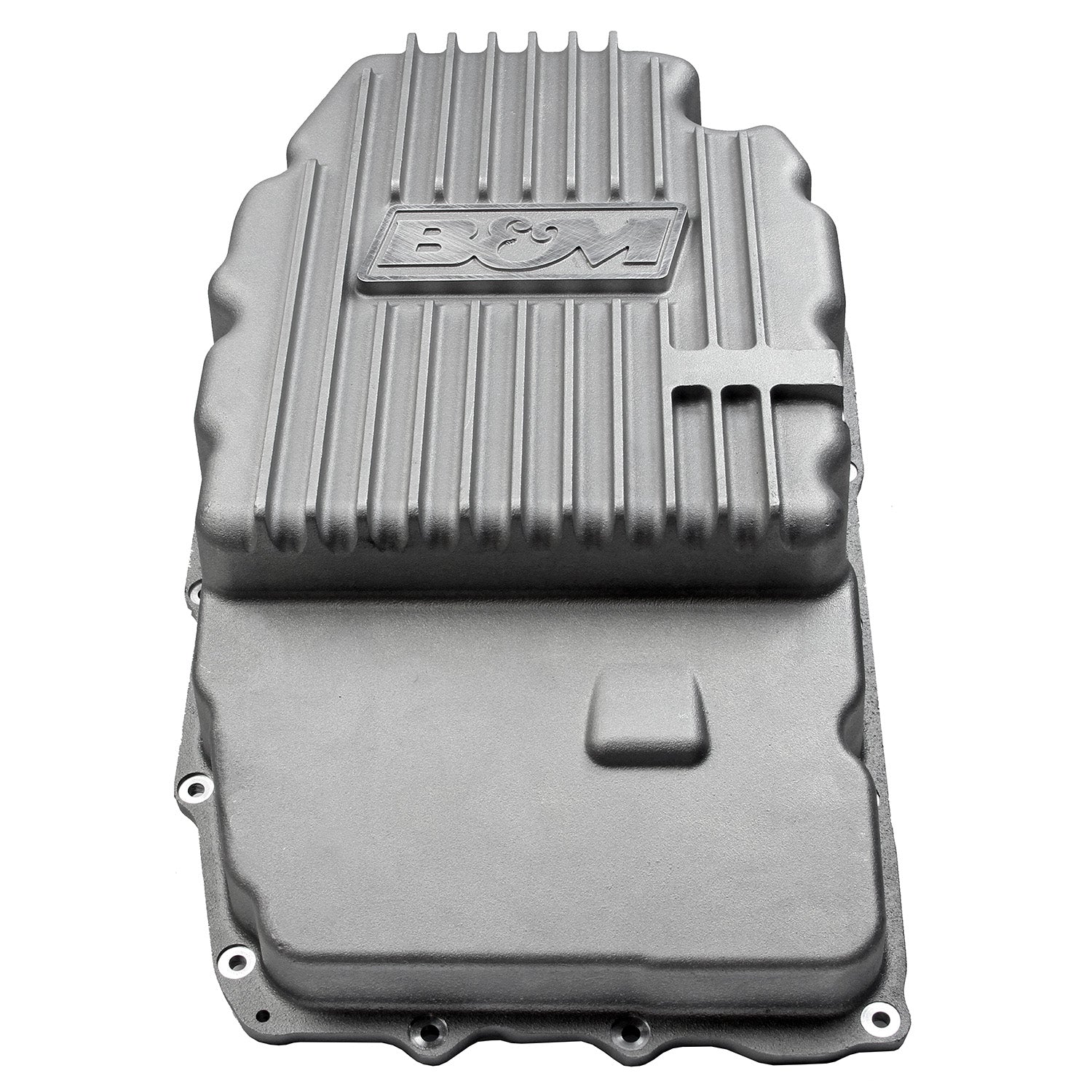

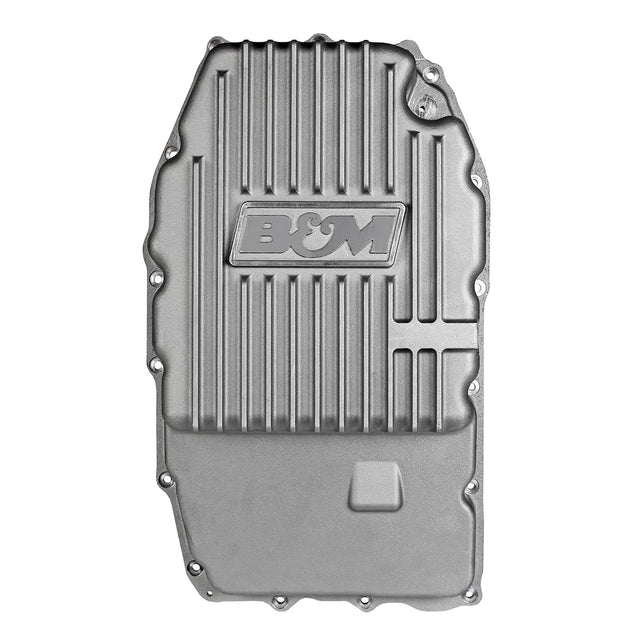

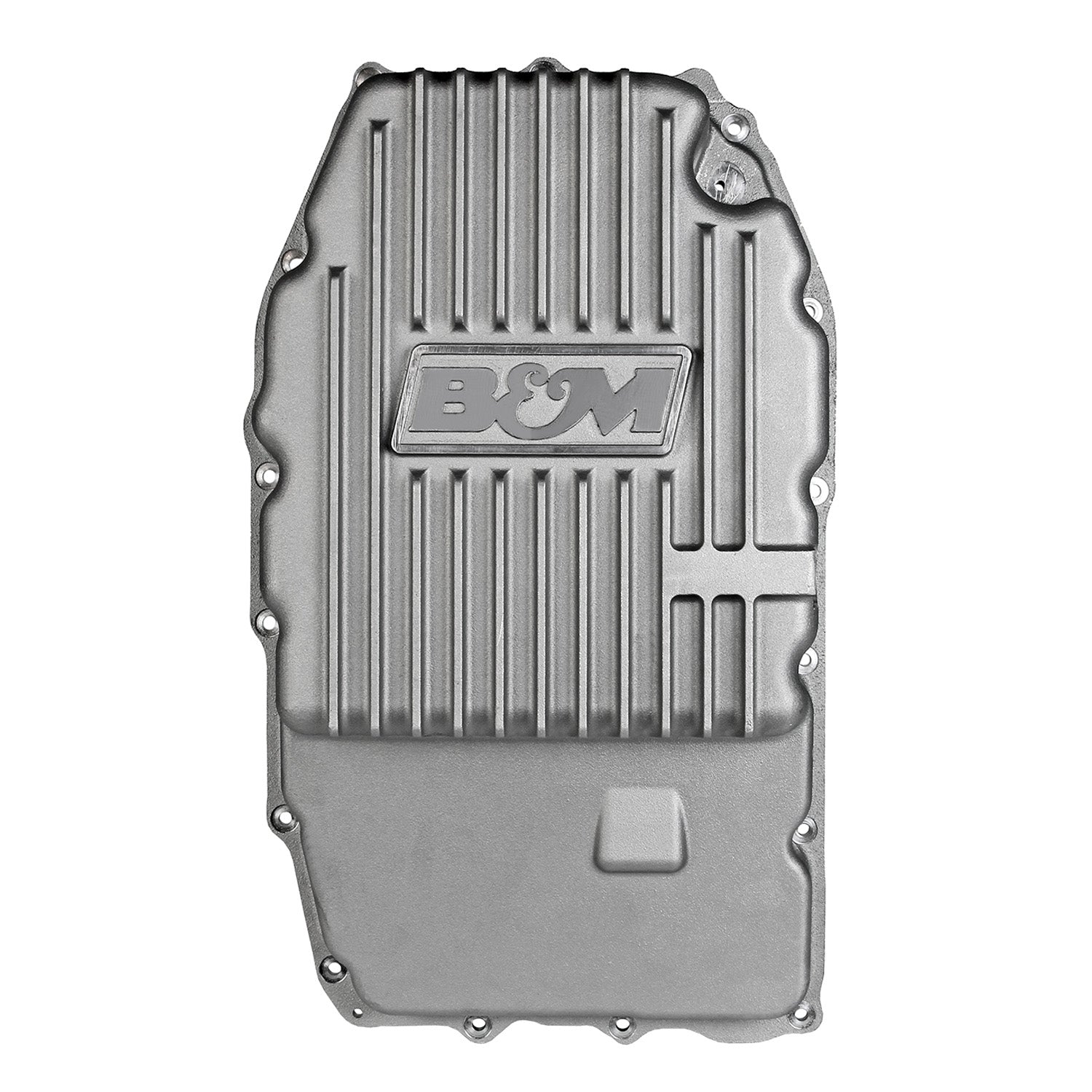

B&M Hi-Tek Deep Transmission Pan - Aluminum - 70396
Fits 2015-2018 GM 1500 trucks, 2015-2017 GM SUV's & 2017-2020 GM 2500/3500 vans with 8L90E 8-Speed Transmission.
Regular price
$1,009.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
B&M Hi-Tek Deep Transmission Pan - Aluminum - 70396 is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Fits 2015-2018 GM 1500 trucks, 2015-2017 GM SUV's & 2017-2020 GM 2500/3500 vans with 8L90E 8-Speed Transmission.
Part Number: 70396

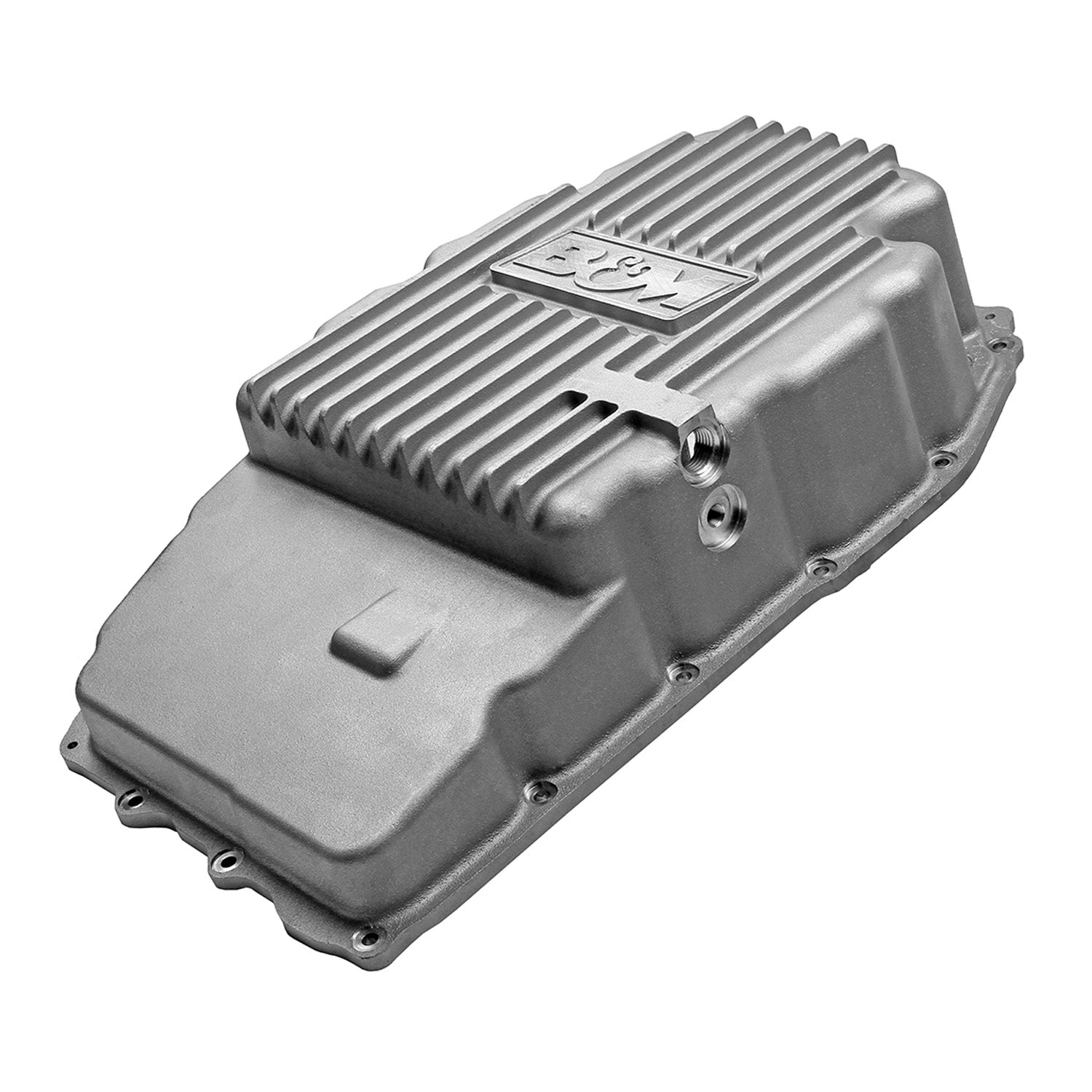

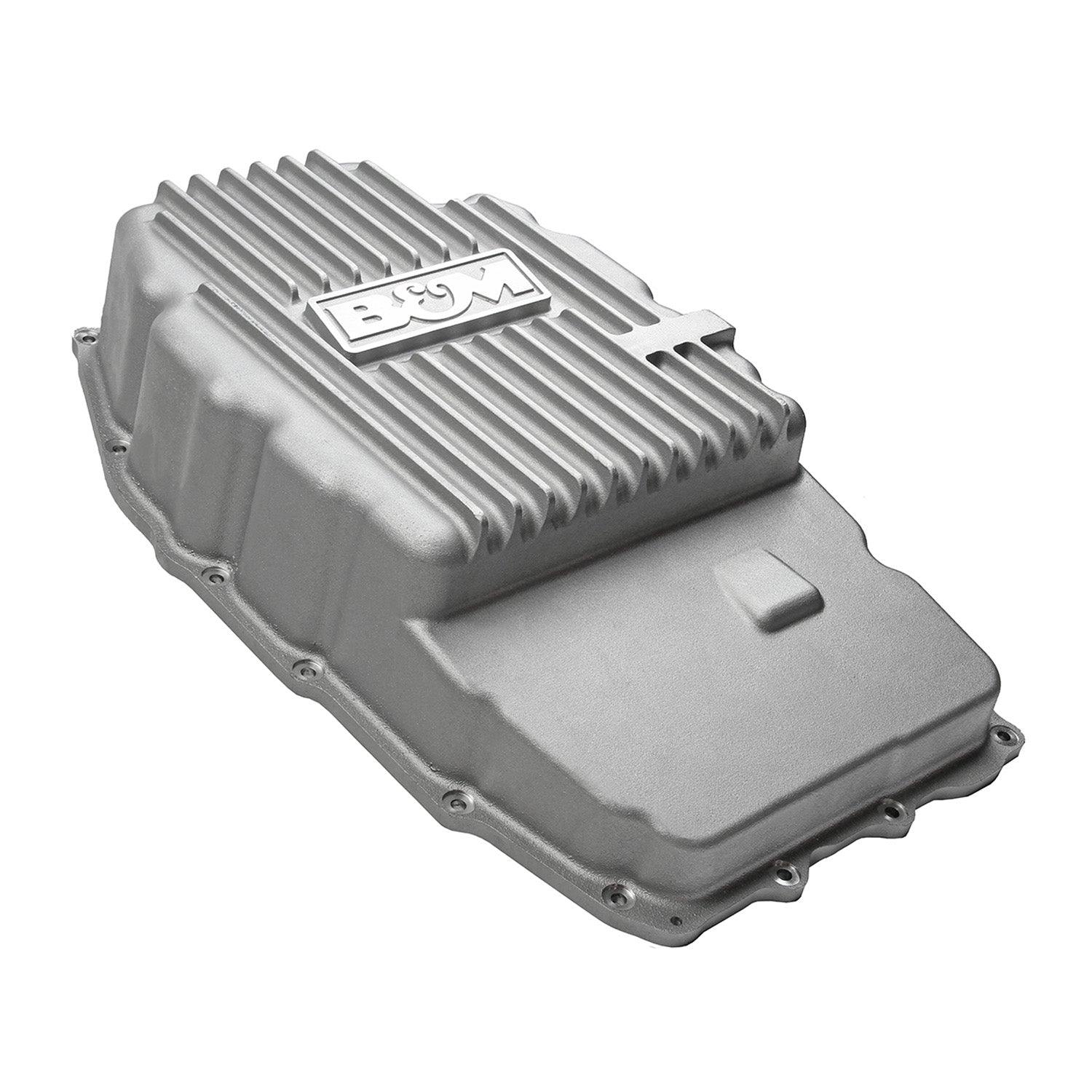

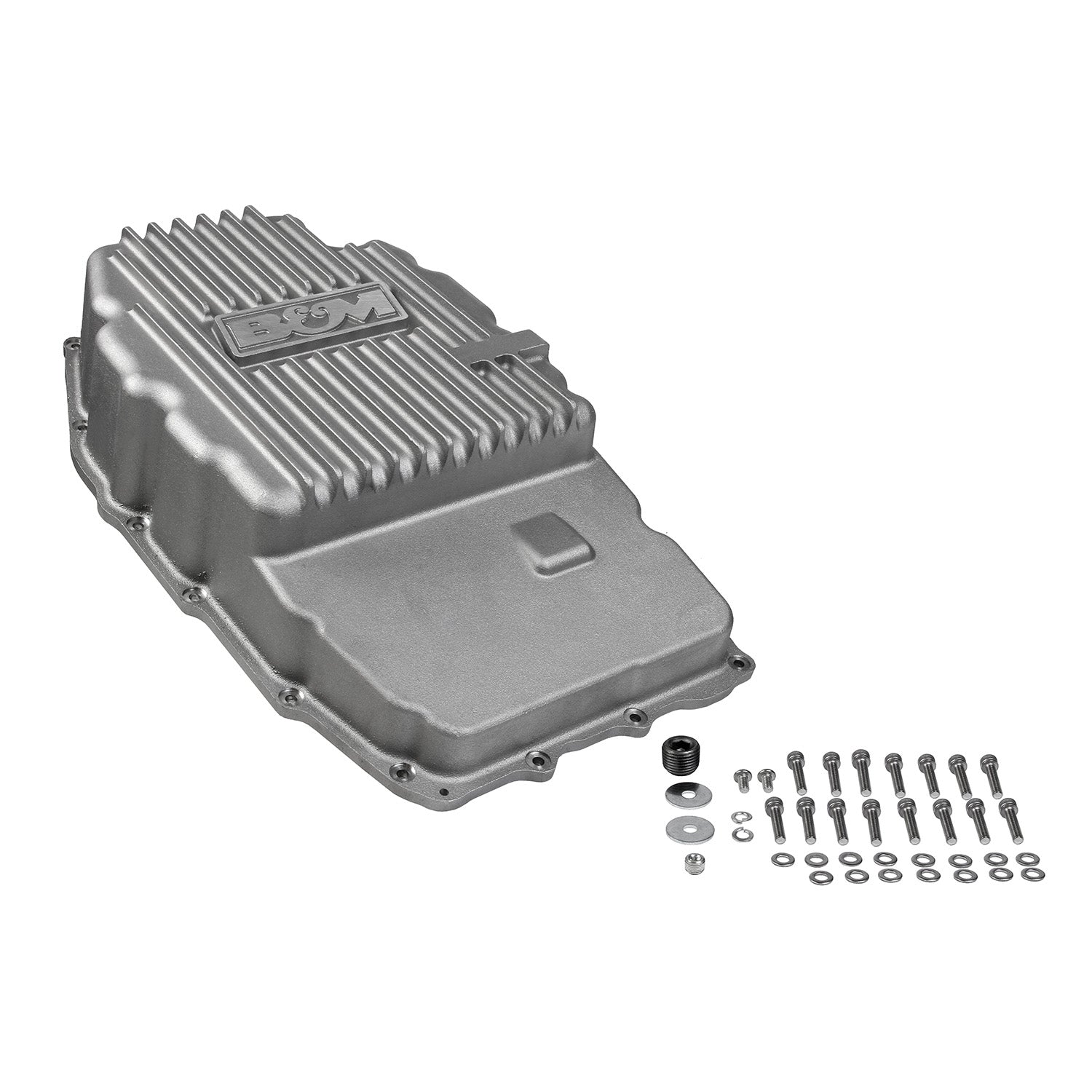

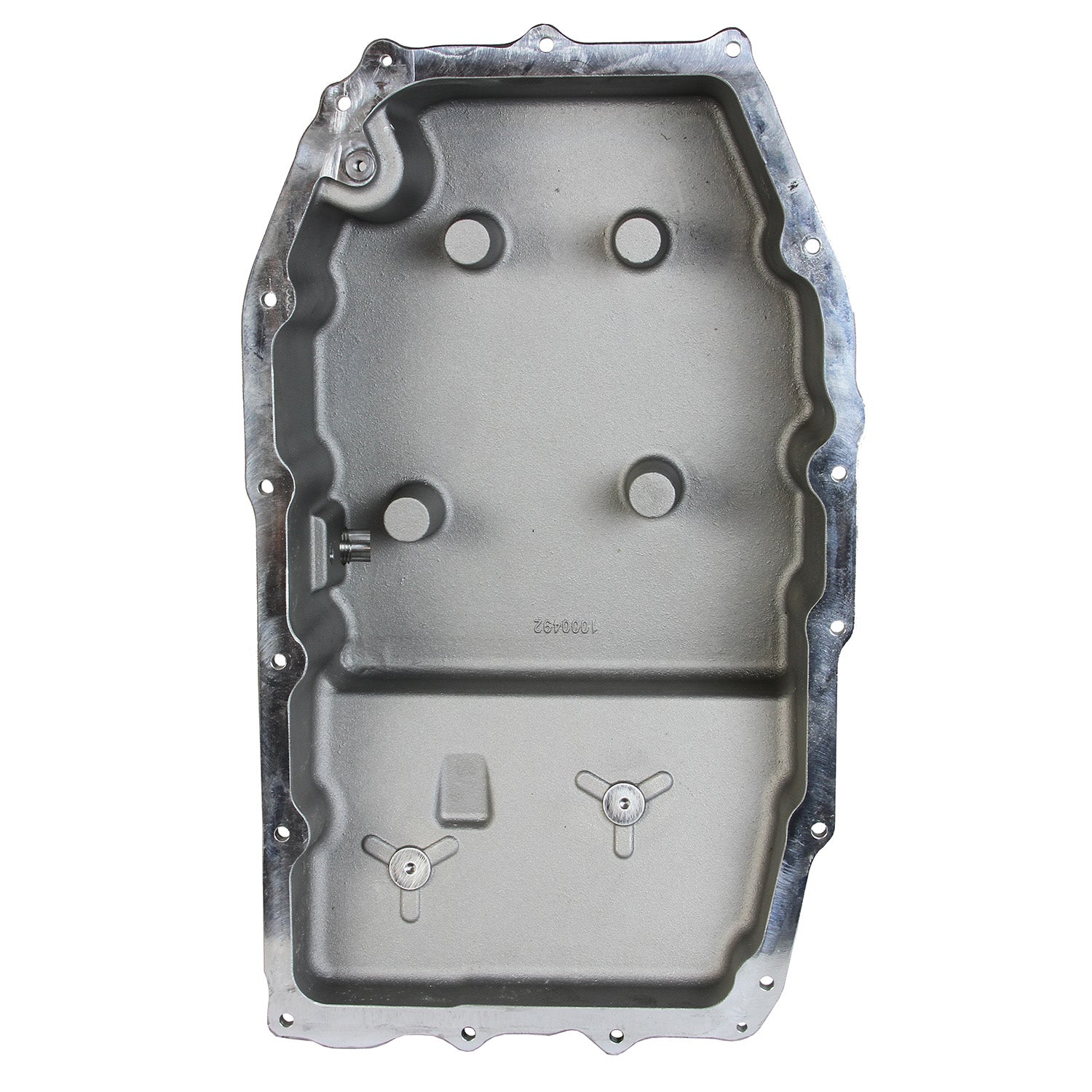

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.4 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port and the pan accepts the two factory magnets to capture wear materials protecting the transmission and for clean and easy servicing. Also includes 1/8 inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: Does Not fit 2010-2015 Camaro 8L90E transmissions. See Part# 70391 for 2010-2015 Camaro 8L90E transmission pan.
Features and Benefits
• Magnetic Drain Plug for Easy Servicing
• Adds 3.4-quarts of Transmission Fluid
• Includes Temperature Sensor Port
• Internal & External Cooling Ribs
• Increased Cooling Properties
• Lifetime Limited Warranty
• Custom B&M Logo
Fits 2015-2018 GM 1500 trucks, 2015-2017 GM SUV's & 2017-2020 GM 2500/3500 vans with 8L90E 8-Speed Transmission. Does Not fit 2010-2015 Camaro 8L90E transmissions.
Part Number: 70396
Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.4 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port and the pan accepts the two factory magnets to capture wear materials protecting the transmission and for clean and easy servicing. Also includes 1/8 inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: Does Not fit 2010-2015 Camaro 8L90E transmissions. See Part# 70391 for 2010-2015 Camaro 8L90E transmission pan.
Features and Benefits
• Magnetic Drain Plug for Easy Servicing
• Adds 3.4-quarts of Transmission Fluid
• Includes Temperature Sensor Port
• Internal & External Cooling Ribs
• Increased Cooling Properties
• Lifetime Limited Warranty
• Custom B&M Logo
Fits 2015-2018 GM 1500 trucks, 2015-2017 GM SUV's & 2017-2020 GM 2500/3500 vans with 8L90E 8-Speed Transmission. Does Not fit 2010-2015 Camaro 8L90E transmissions.

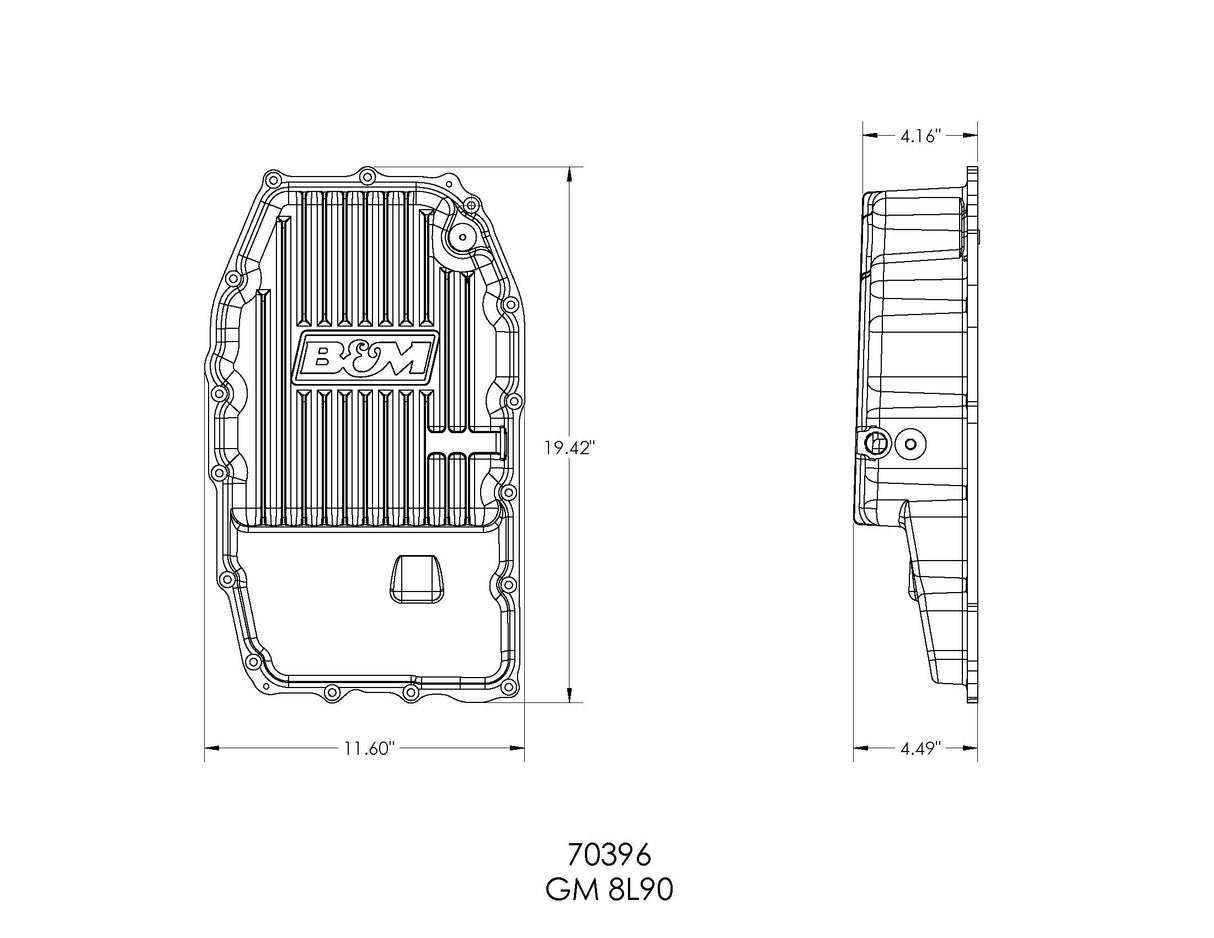

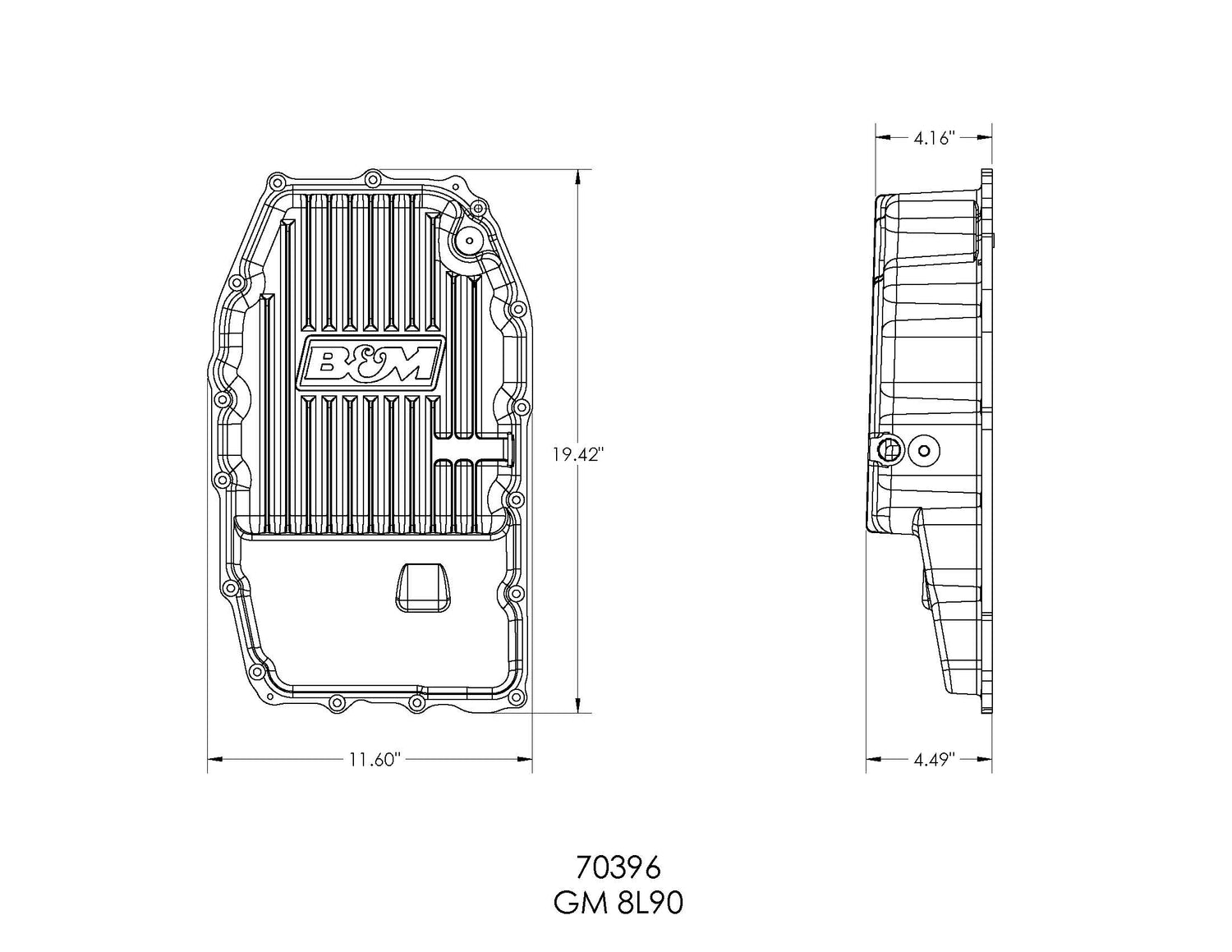

Specifications
Specifications
-
Specifications
Additional Fluid Capacity (qts) 3.4 Bolt Count 15 Bolt/Studs Included Yes Brand B&M California Proposition 65 Chemical Name Chromium (hexavalent compounds) California Proposition 65 Required Yes Capacity 14.5 Category Transmission Color Aluminum Color/Finish Natural Drain Plug Included Yes Emission Code 5 Filler Plug Included No Finish Zinc Gasket Included No Gasket Or Seal Included No Grade Type Performance Material A356.0-T6 Aluminum Mounting Hardware Included Yes Oil Pan Gaskets Included No part type Transmission Oil Pan Product Type Automatic Transmission Pans Sub Category Transmission Hard Parts Transmission 8L90E Transmission Filter Included No Transmission Type Automatic Warning California Proposition 65 -
