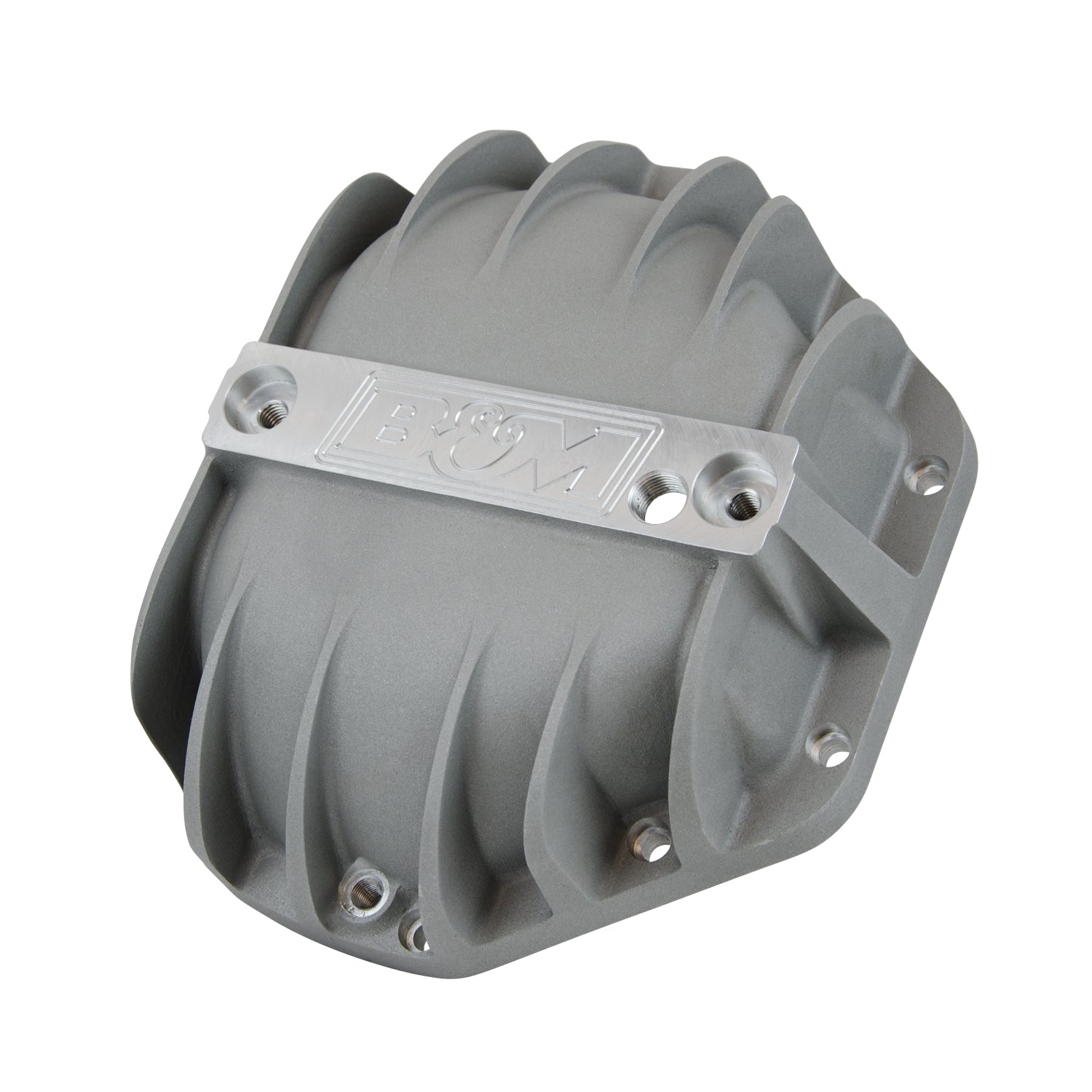

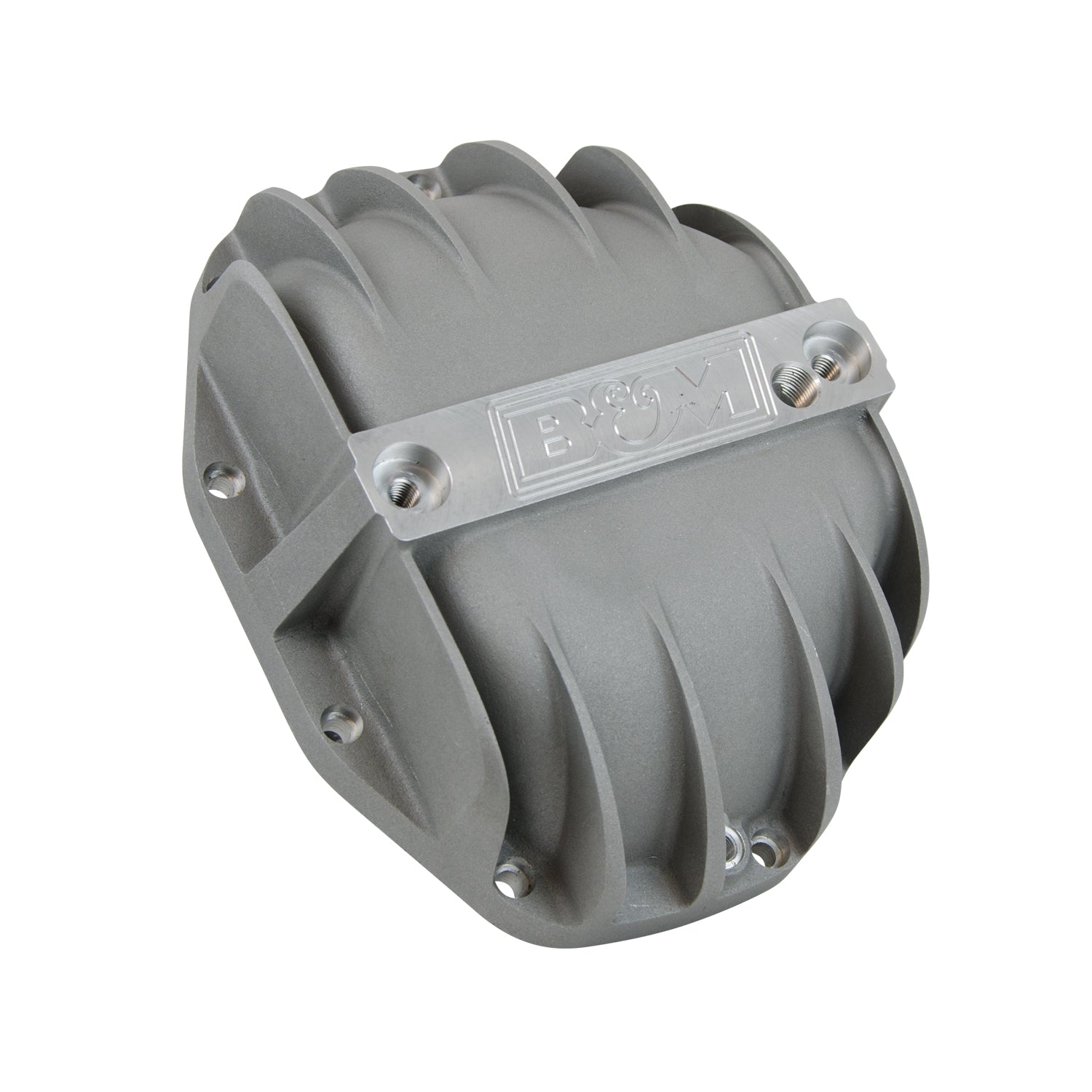

B&M Hi-Tek Aluminum Differential Cover for Dana 80 - 10315

Dana 80 Differential Cover.

Part Number: 10315

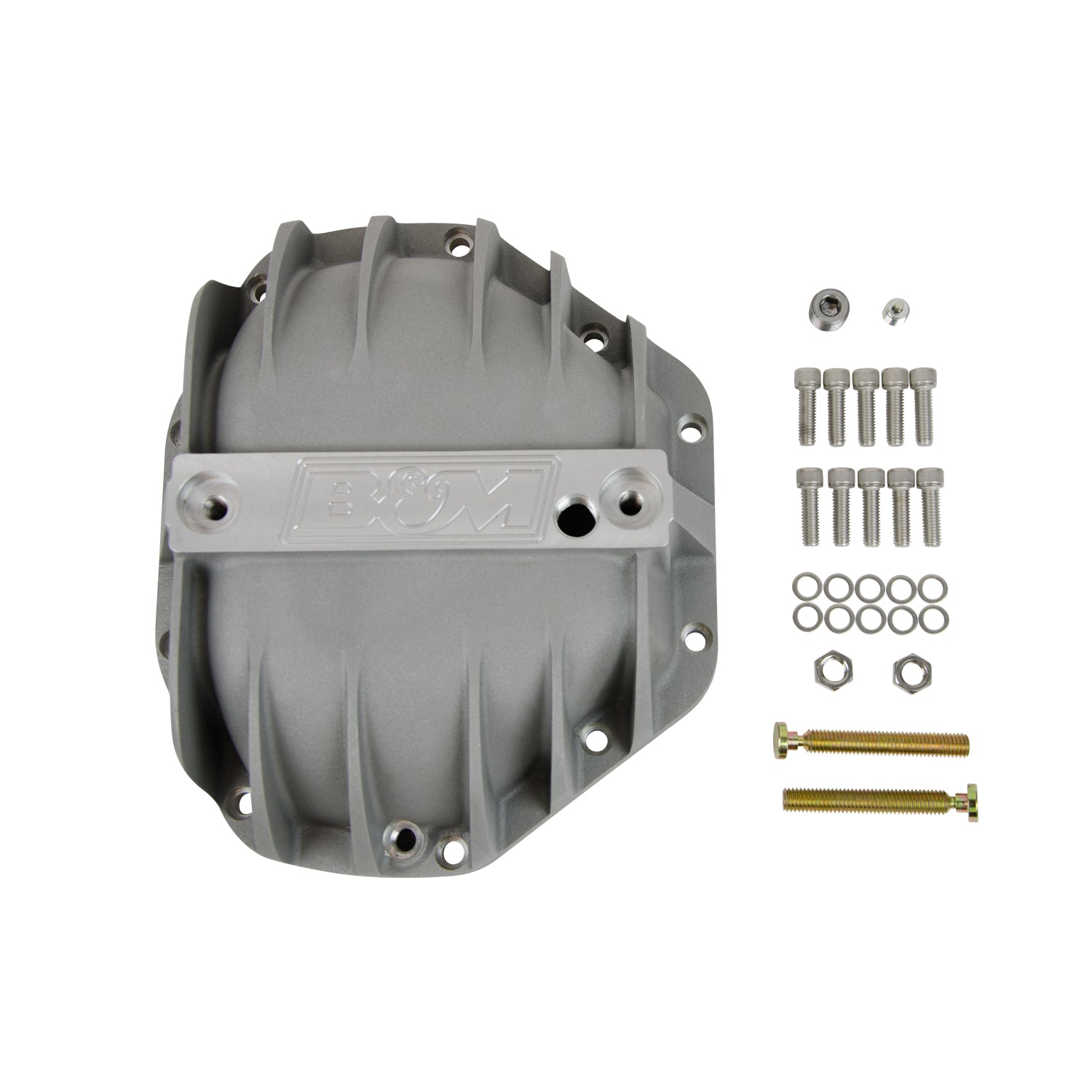

Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, machined B&M logo and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included.

Features and Benefits

• Load Bolts Provide Additional Support to Bearing Caps
• Magnetic Drain Plug for Easy Servicing
• Additional .75-quart Fluid Capacity
• A356.0-T6 Aluminum Construction
• Over 65 Years of B&M Quality
• Lifetime Limited Warranty
• Machined B&M Logo

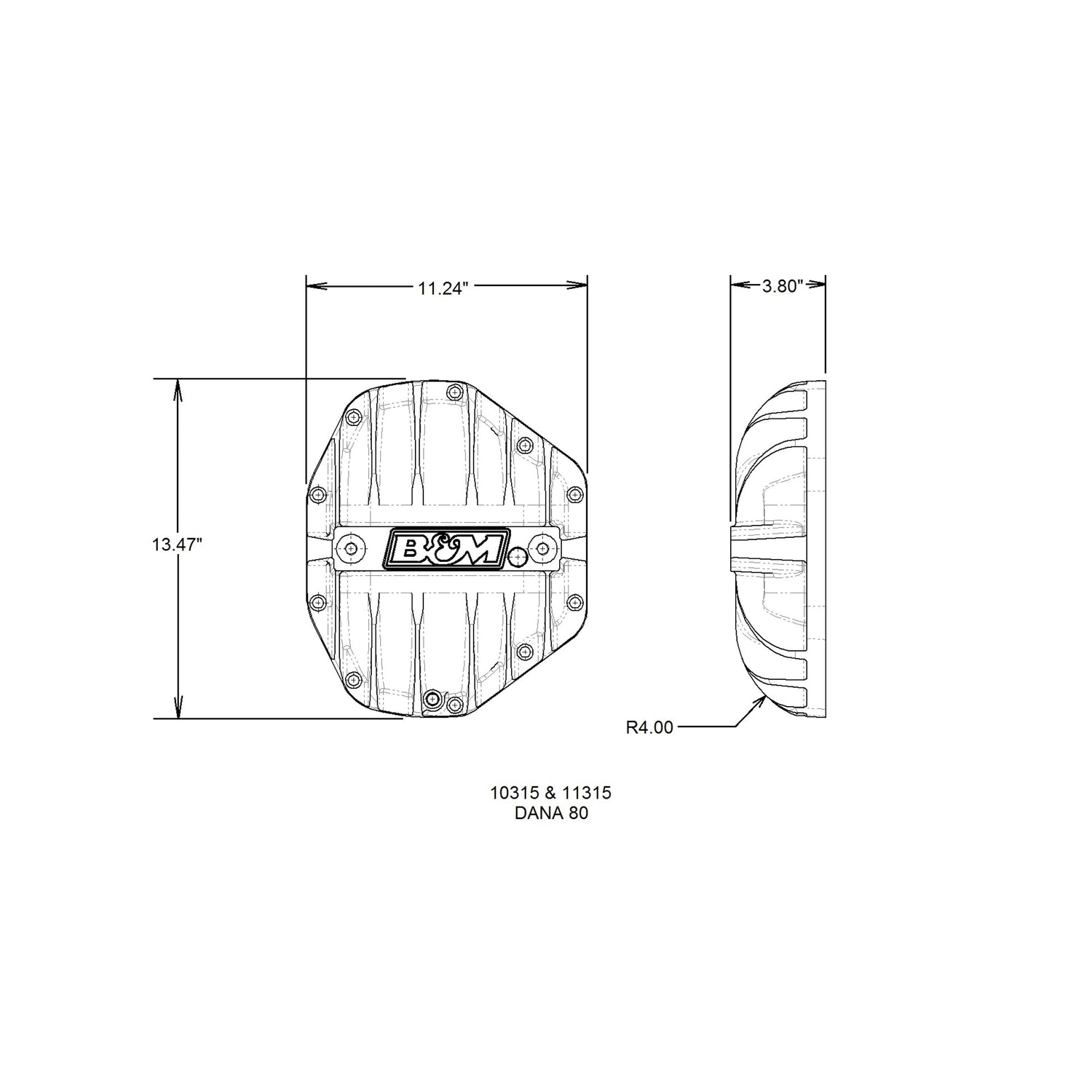

Designed to fit most vehicles with Dana 80 differential, however vehicles may have other interfering components that may require modifications or moving of existing brackets, require longer cover bolts or different cover bolts, clearance of sway bars etc. - Checking for adequate clearance and fitment for your application should be verified prior to purchase & installation. Refer to ID guide and measurement drawings for specifications.
