B&M | SKU:
117309

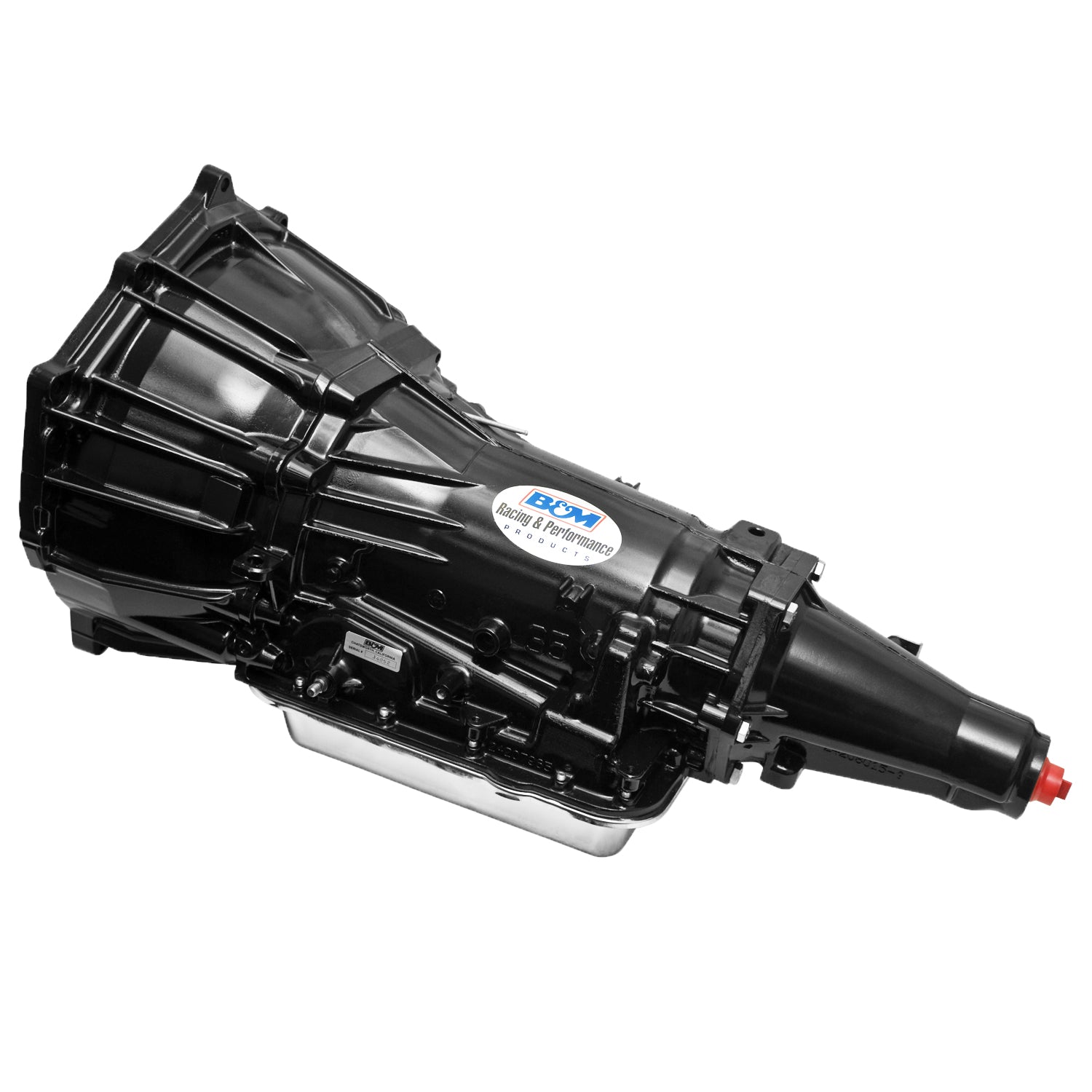

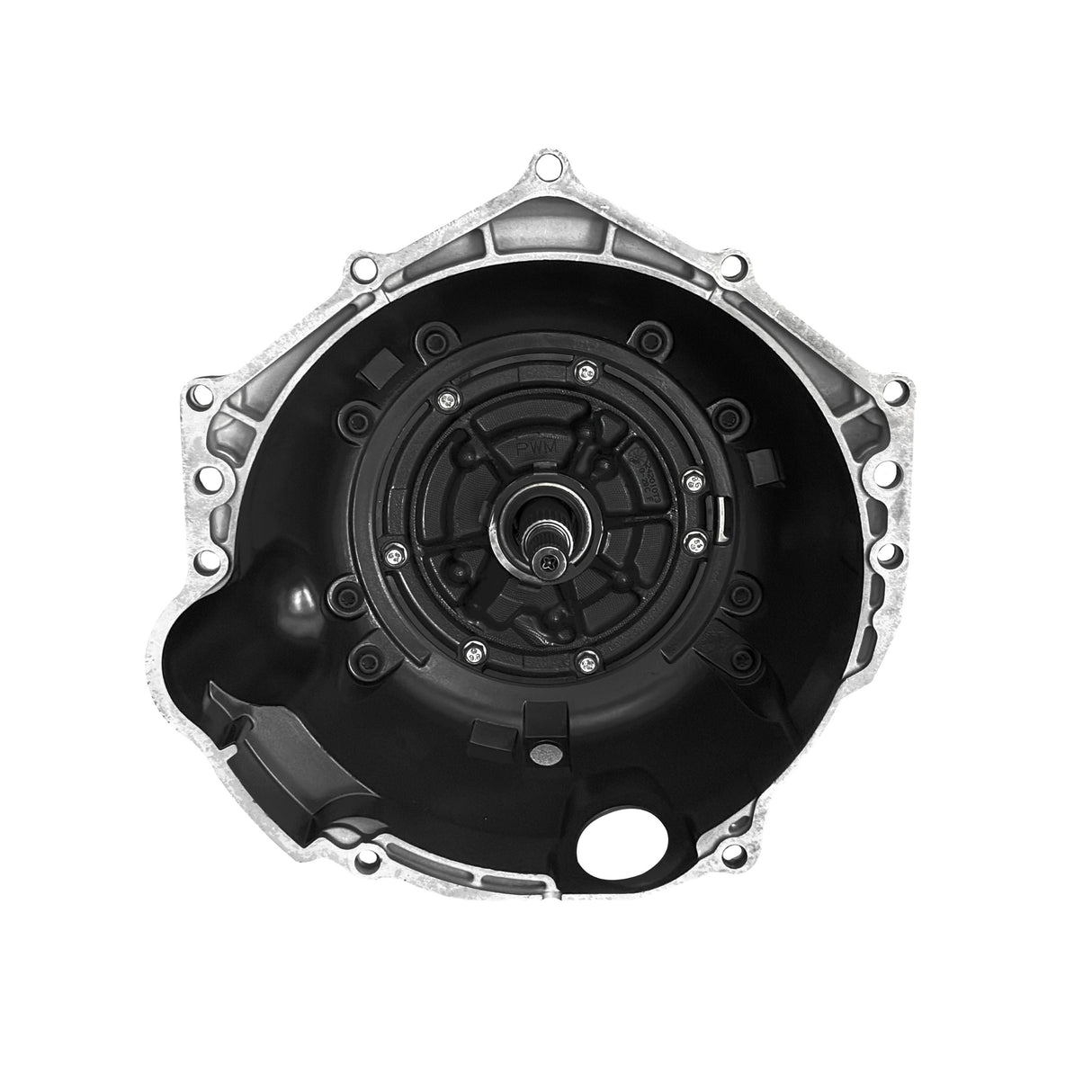

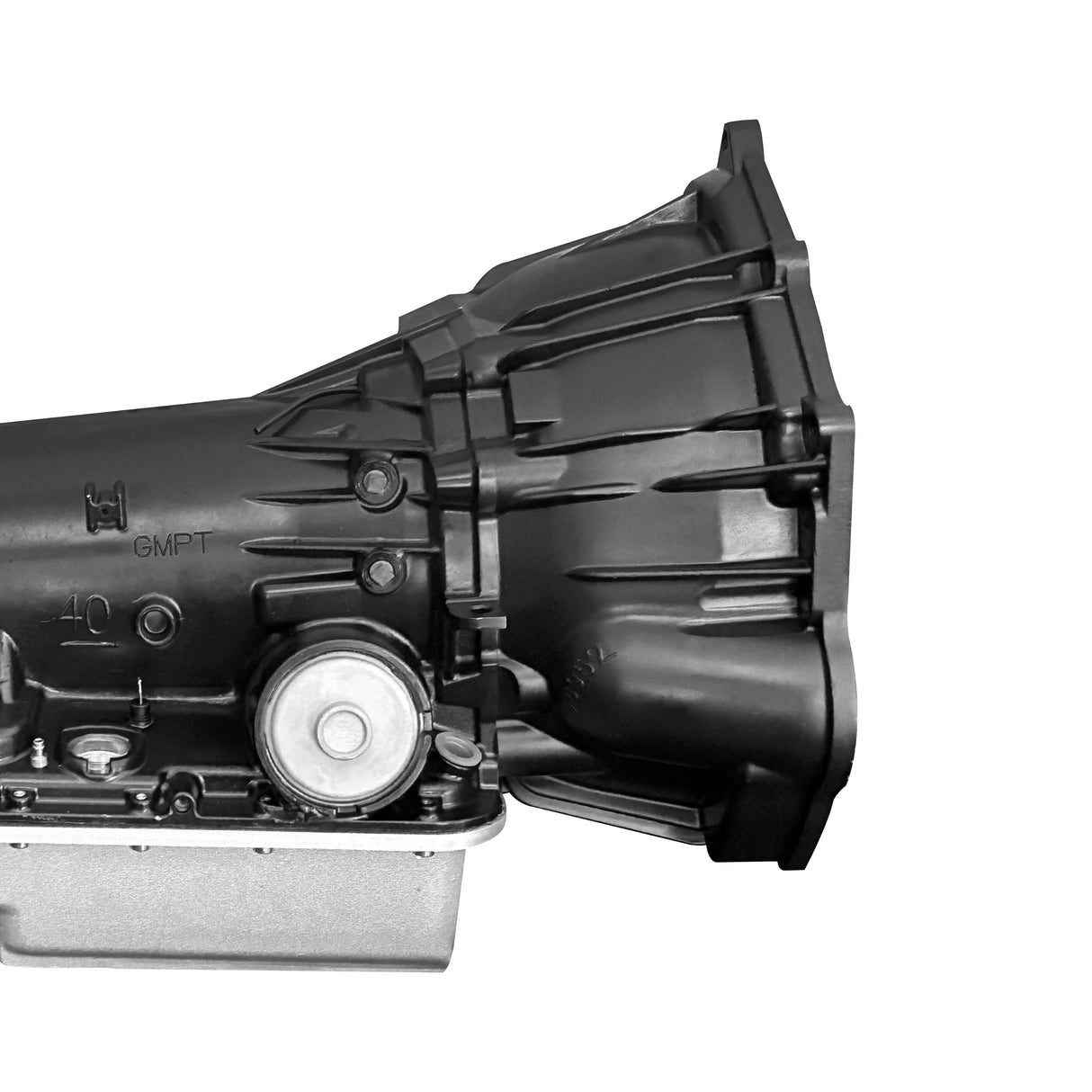

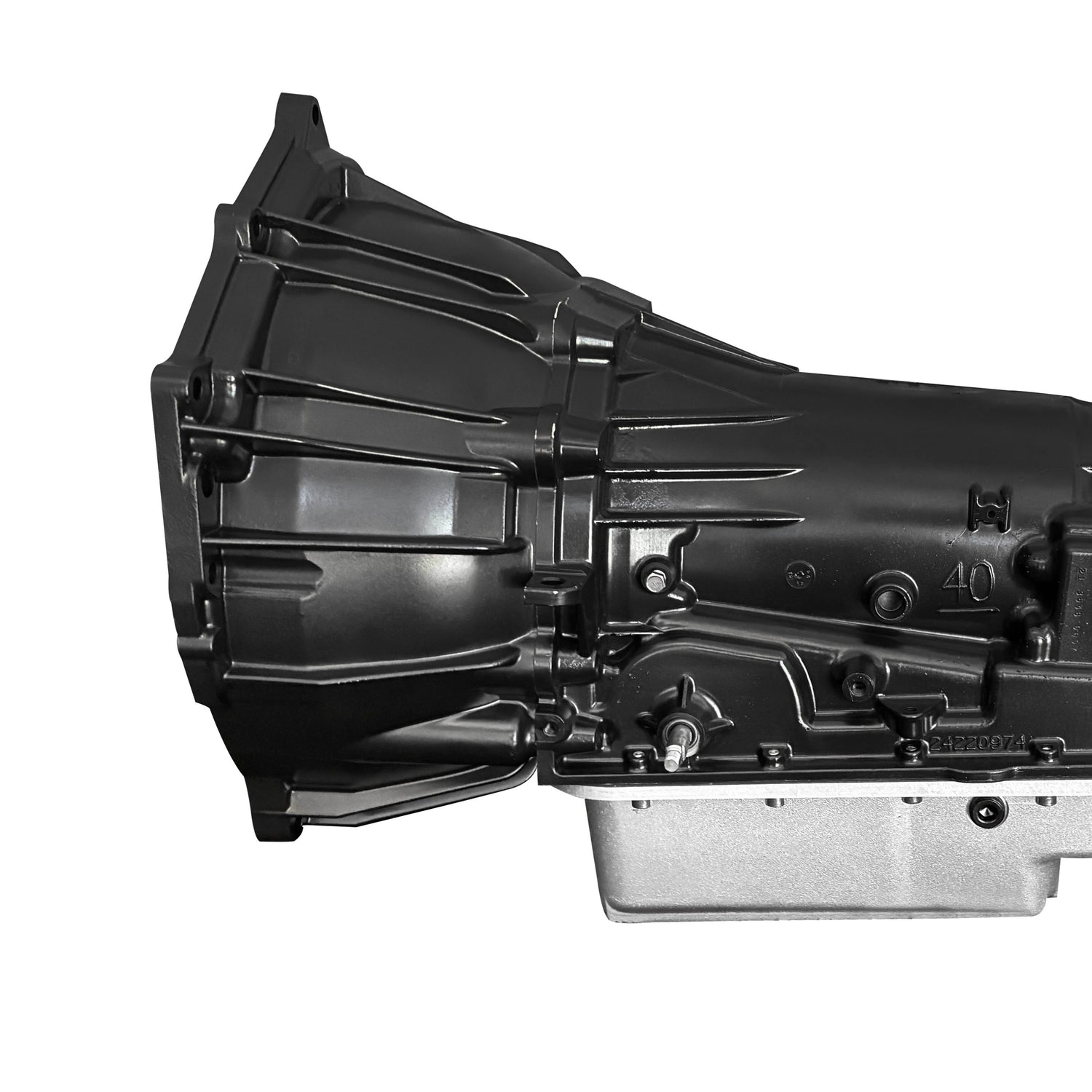

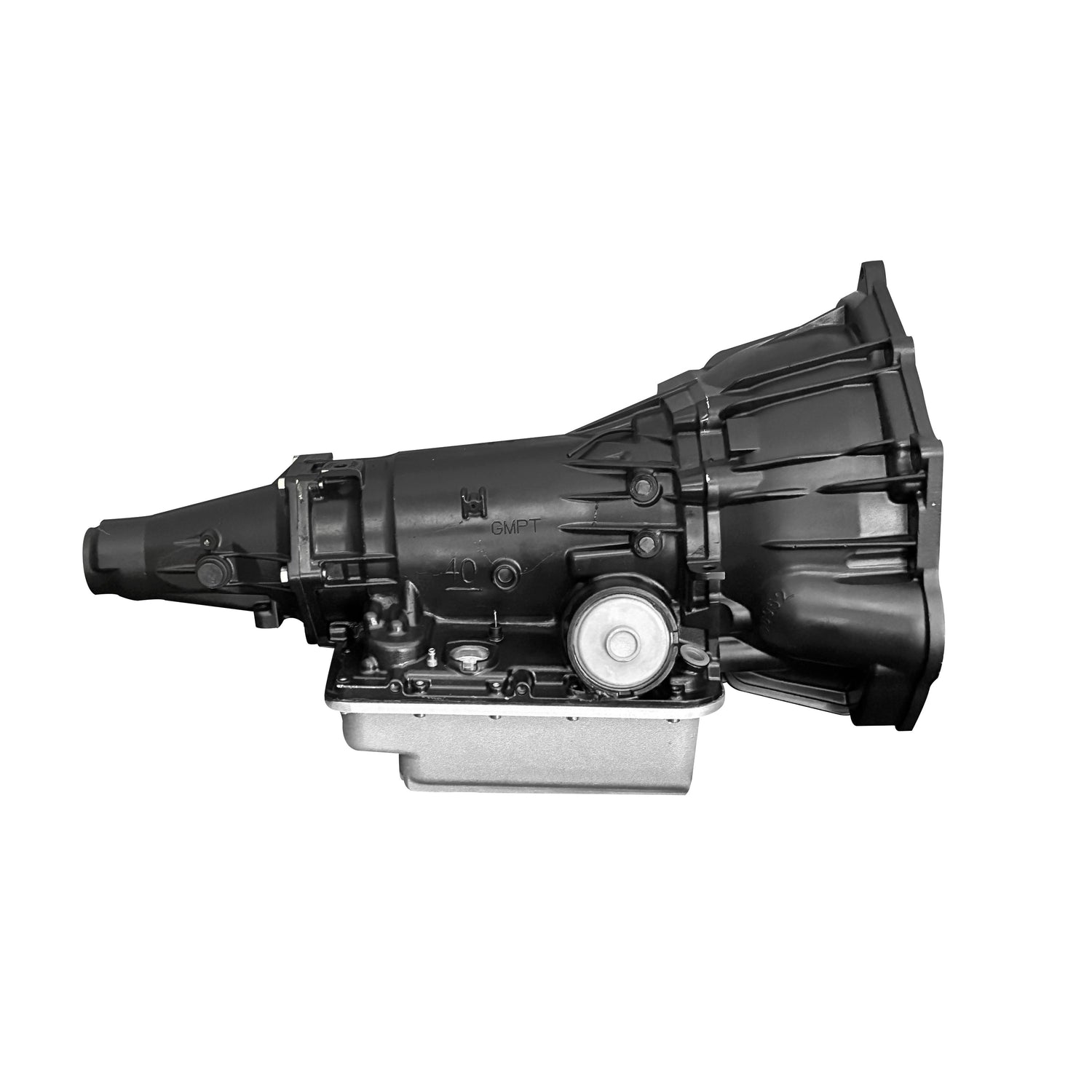

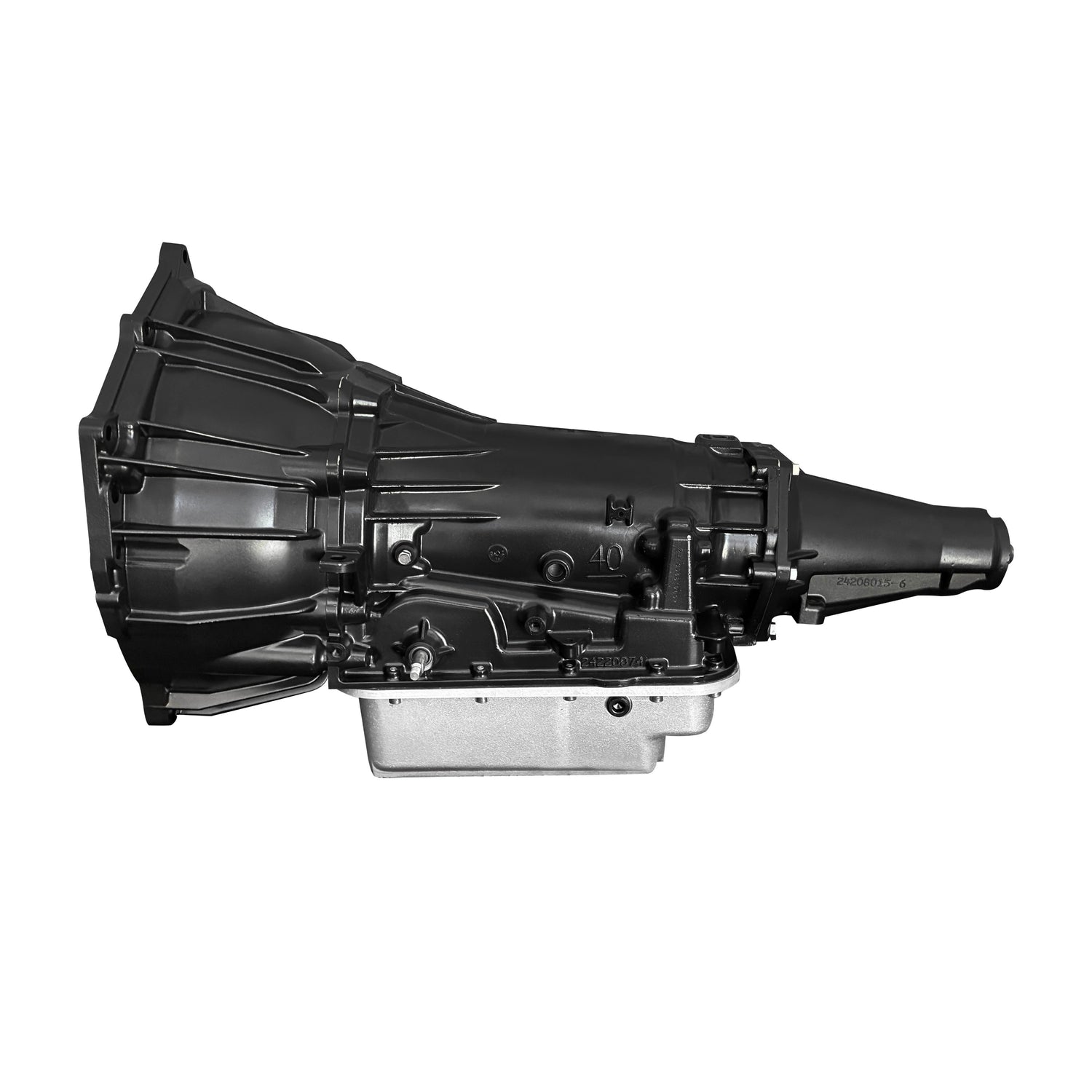

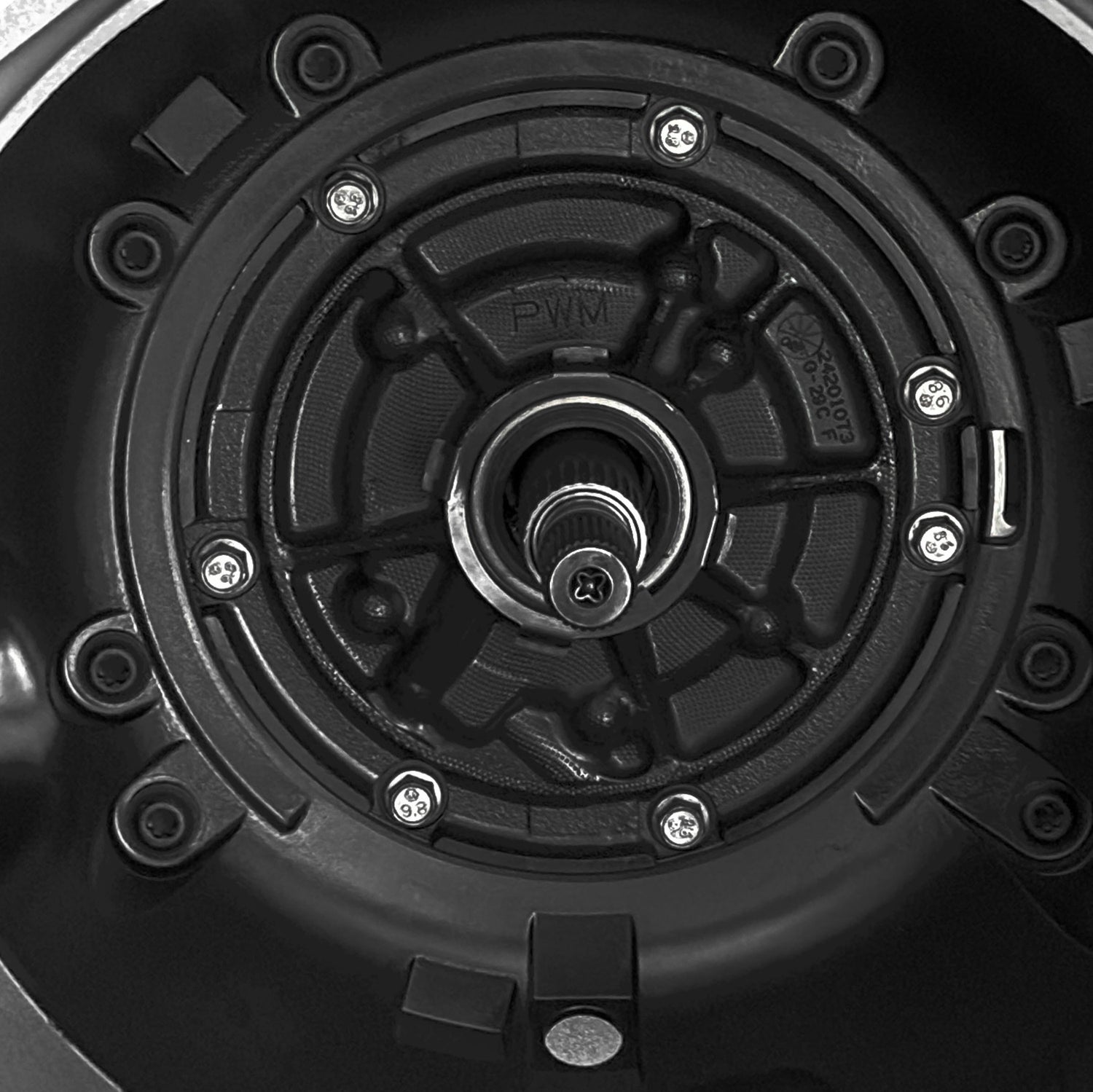

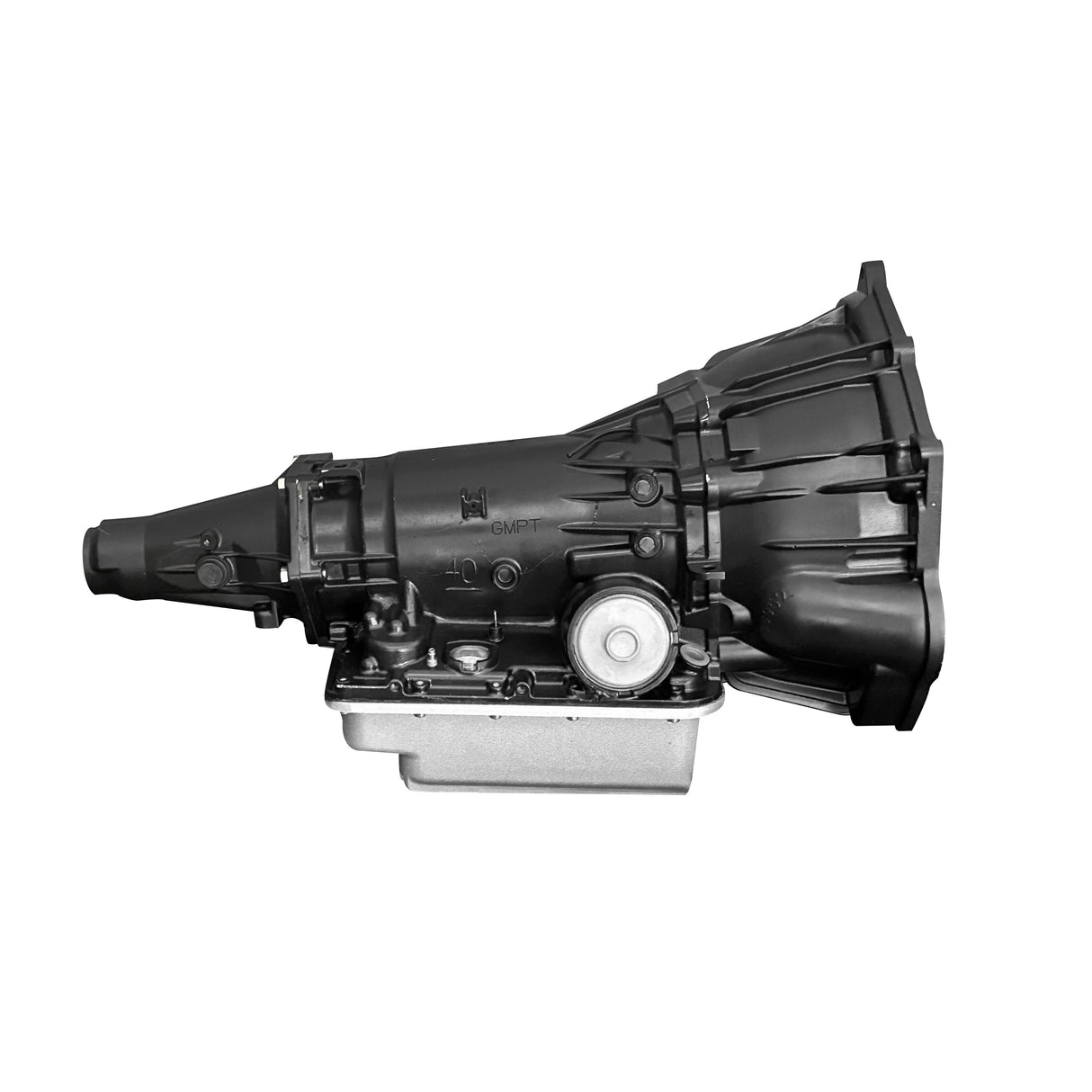

B&M Full Race Automatic Transmission - LS Engine 4L60E - 117309
1998-2006 GM LS 4L60E (Electronic) 2-Wheel Drive, Manual Shift Valve Body.
Regular price
$8,963.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
B&M Full Race Automatic Transmission - LS Engine 4L60E - 117309 is not in stock at Fast Lane Spares and will ship direct from supplier.
ā Special Order Item ā ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7ā20 days shipping.
Stock Status:
Description
Description
1998-2006 GM LS 4L60E (Electronic) 2-Wheel Drive, Manual Shift Valve Body.
Part Number: 117309
The B&M GM 4L60E PreRunner/Trail automatic transmission is for use with Chevrolet LS based engines. This transmission features a manual/forward valve body and includes a deep, cast aluminum pan. Internal components include a beast sunshell, reinforced input drum, "Billet" Corvette 4th gear servo, all new solenoids & wiring harness, 29 element dual cage sprag, all new high performance friction plates, and 8 Count 3-4 Friction Pack with Koleen steels. Max 550 HP / 450 Ft/Lbs. Intended for off road/trail use.
Features and Benefits
ā¢ Rated to 550HP and 450 FT/LBS
ā¢ Includes Deep Aluminum Pan
ā¢ Manual/Forward Valve Body
ā¢ Intended for Off-Road Use
For use on LS engines. Does not replace 4L60 (manual shift model). Transmission shipped without speedometer driven gear or housing.
Part Number: 117309
The B&M GM 4L60E PreRunner/Trail automatic transmission is for use with Chevrolet LS based engines. This transmission features a manual/forward valve body and includes a deep, cast aluminum pan. Internal components include a beast sunshell, reinforced input drum, "Billet" Corvette 4th gear servo, all new solenoids & wiring harness, 29 element dual cage sprag, all new high performance friction plates, and 8 Count 3-4 Friction Pack with Koleen steels. Max 550 HP / 450 Ft/Lbs. Intended for off road/trail use.
Features and Benefits
ā¢ Rated to 550HP and 450 FT/LBS
ā¢ Includes Deep Aluminum Pan
ā¢ Manual/Forward Valve Body
ā¢ Intended for Off-Road Use
For use on LS engines. Does not replace 4L60 (manual shift model). Transmission shipped without speedometer driven gear or housing.
Specifications
Specifications
-
Specifications
2WD/4WD 2WD Automotive Item Grade High Performance Brand B&M Built-In Transmission Shield No California Proposition 65 Chemical Name Chromium (hexavalent compounds) California Proposition 65 Chemical Name Benzene California Proposition 65 Chemical Name Lead Case Material Cast Aluminum Category Transmission Color Black Control Type Electronic Cooler Included No Core Change Applicable No Dipstick Included No Drive Type RWD Emission Code 5 Friction Plates New Gear Ratio-First 3.06 Gear Ratio-Fourth 0.7 Gear Ratio-Second 1.63 Gear Ratio-Third 1 Horsepower Rating (HP) 550 part type Automatic Transmission Shift Lever Assembly Product Type Transmission Reverse Gear Ratio 2.29 Sub Category Automatic Transmission Components Torque Converter Included No Torque Rating (Ft/Lbs) 450 Transbrake No Transmission Model 4L60E Transmission Pan Finish Natural Transmission Pan Material Aluminum Transmission Pan Type Deep, Cast Transmission Series Full Race Transmission Speeds 4 Transmission Type Automatic Valve Body Pattern Forward Valve Body Type Manual Warning California Proposition 65 -
