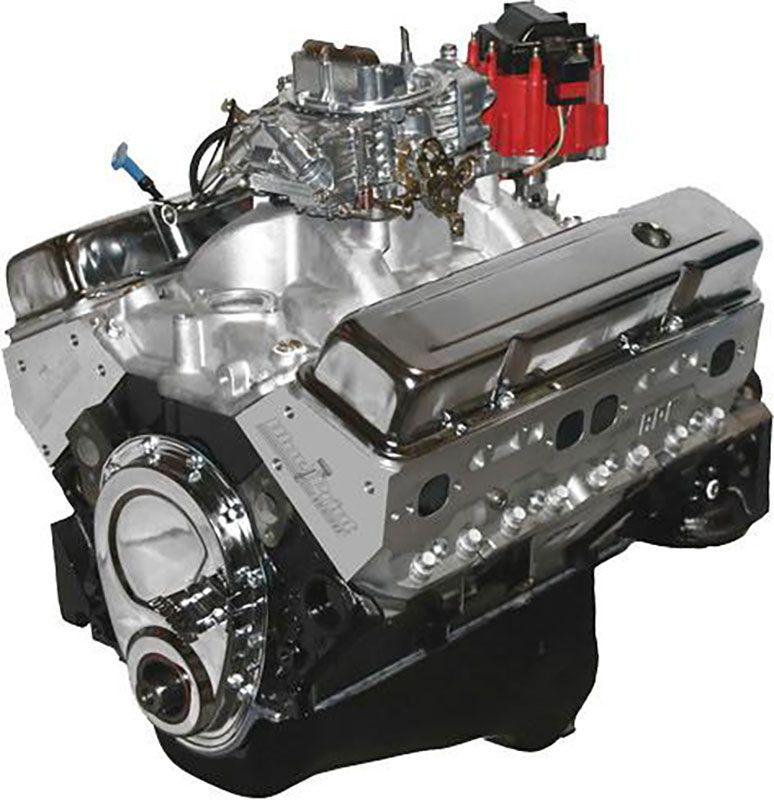

Blueprint SB Chev 383 c.i.d Crate Engine, Dressed (PSEBP38318CTC1)

PSEBP38318CTC1 - CHEV 383 CU CRATE MOTOR 435HP

435 hp/450 ft-lbs torque, 10.0:1 Comp

Part Number: PSEBP38318CTC1

NOTE:
Pictures of Crate Engines are for reference only, engine componenets & accessories are subject to change by manufacture without notice based on availability of parts at time of assembly.
Engine Features
HP & Torque: 435 HP / 443 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank
Hypereutectic Pistons
BLOCK:
Hand picked seasoned block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
4-Bolt Main
4.000" Bored .040" Over
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage
ROTATING ASSEMBLY:
New BluePrint Cast steel crankshaft
3.750" Stroke
OEM type 5.700" connecting rods w/ 150,000 psi bolts
Hypereutectic pistons
External Front/ External Rear
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - H8002K
64cc chamber
2.02" intake/1.60" exhaust valves
195cc intake/75cc exhaust runners
CAM SPECS:
Cam Type: Roller
.544 Intake .555 Exhaust
230 Intake / 236 Exhaust duration
@.050 - 110 degree lobe separation
IGNITION TIMING:
34 Degrees Total at 3500 RPM
ALSO INCLUDES:
Valve covers, oil pan and timing cover
Aluminum Intake Manifold
HEI distributor
750cfm Carburetor
Brass freeze plugs
Dyno tested and shipped with results
NOTES:
Not for use in pollution controlled vehicles.
The harmonic balancer recommend for the BP38313CTC1 is a 400 ci weighted, 8" diameter.
The flexplate / flywheel recommend for the BP38313CTC1 is a late 350 Weighted (1 pc Rear Main Seal, Externally balanced)
Recommended Stall Converter: 2000 to 2400 RPM.
