Blueprint SB Chev 355 c.i.d Crate Engine, Dressed (PSEBP35513CTC1)

PSEBP35513CTC1 - 355CID 390 HP SBC CRATE ENGINE

390HP / 410 FT LBS, 10.0:1 Comp, Aluminium Heads

Part Number: PSEBP35513CTC1

NOTE:

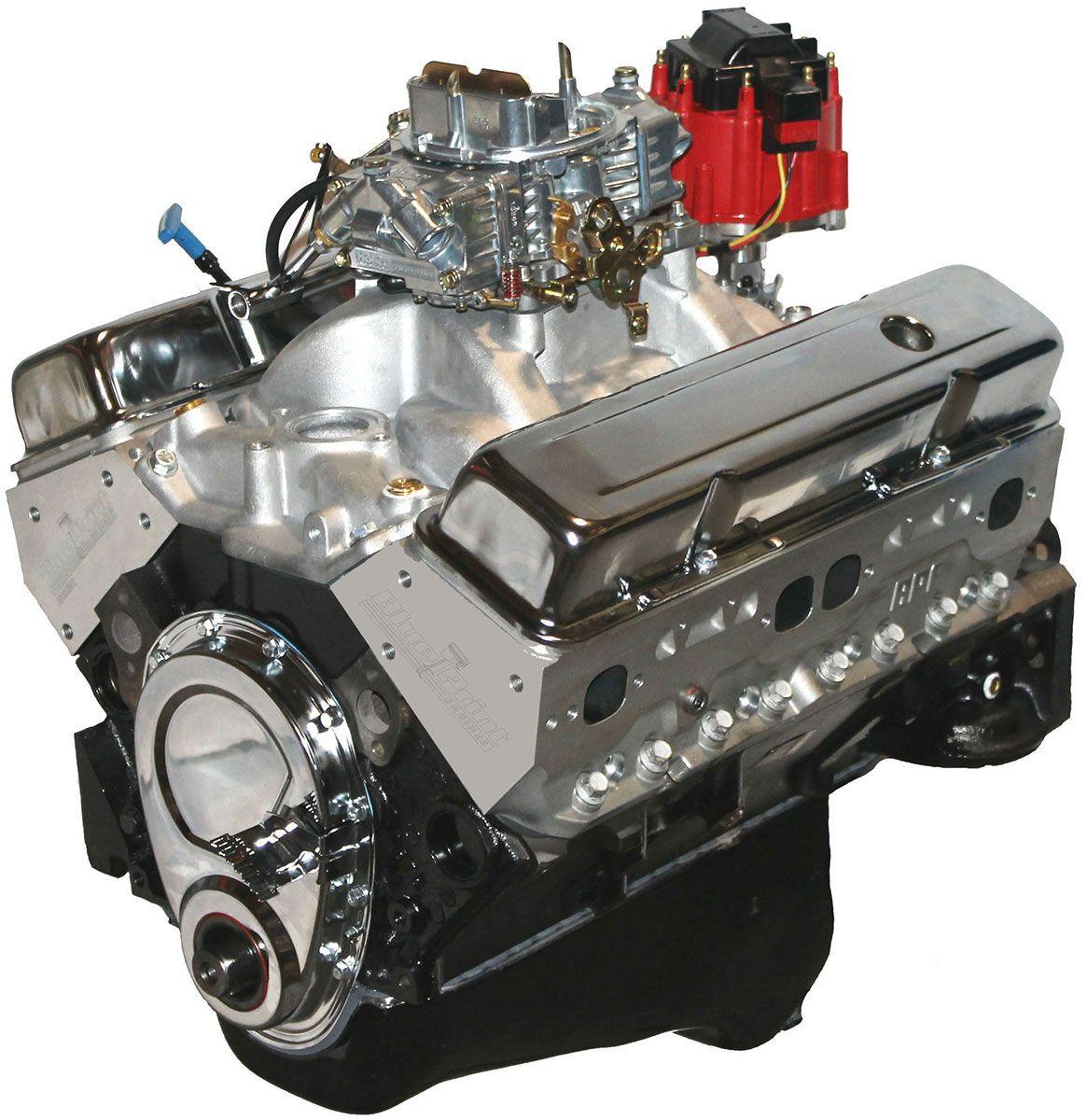

Pictures of Crate Engines are for reference only, engine componenets & accessories are subject to change by manufacture without notice based on availability of parts at time of assembly.
DESCRIPTION:
Dyno Tested Warranty
HP & Torque: 390 HP / 410 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank
Hypereutectic Pistons
BLOCK:
Hand picked seasoned block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
4-Bolt Main
4.000" Bored .040" Over
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage
ROTATING ASSEMBLY:
Cast steel crankshaft
3.480" Stroke
OEM type 5.700" connecting rods w/ 150,000 psi bolts
Hypereutectic pistons
Internal Front/ External Rear
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - H8002K
64cc chamber
2.02" intake/1.60" exhaust valves
195cc intake/75cc exhaust runners
CAM SPECS:
Cam Type: Roller
.495 Intake .503 Exhaust
220 Intake / 224 Exhaust duration
@ .050 - 112 degree lobe separation
IGNITION TIMING:
34 Degrees Total at 3500 RPM
ALSO INCLUDES:
New valve covers
Oil pan
Timing cover
Aluminum intake
HEI distributor
600 cfm carburetor
Brass freeze plugs
Dyno test results shipped with engine
NOTES:
Not for use in pollution controlled vehicles.
Recommended spark plugs are Champion 792 with .045" gap
