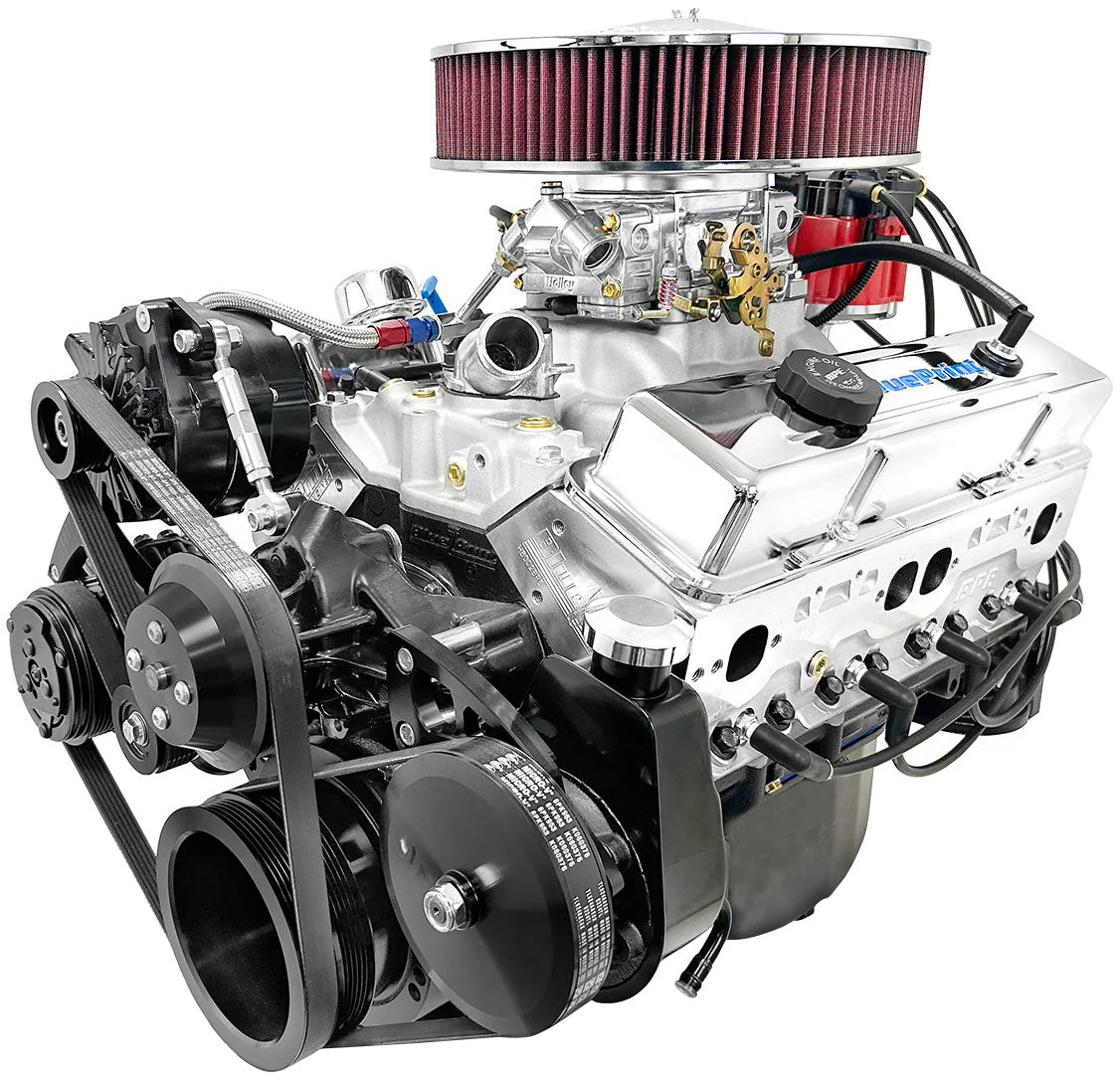

BluePrint S/B Chev 383ci 436 Horsepower Crate Engine, Deluxe Dressed - PSEBP38318CTC1DK
443 ft. lbs Torque, 10.0:1 Comp, Aluminium Heads, Hydraulic Roller Camshaft, Black Pulley Kit
Sold out
Regular price
$20,934.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
BluePrint S/B Chev 383ci 436 Horsepower Crate Engine, Deluxe Dressed - PSEBP38318CTC1DK is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
CHEV 383 CU CRATE MOTOR 436HP
443 ft. lbs Torque, 10.0:1 Comp, Aluminium Heads, Hydraulic Roller Camshaft, Black Pulley Kit
Part Number: PSEBP38318CTC1DK
Specifications:
Horsepower & Torque: 436 Horsepower / 443 ft. lbs. Torque
Compression Ratio: 10.0:1
BluePrint Engines Aluminium Heads
BluePrint Engines Hydraulic Roller Cam
BluePrint Engines Cast Crankshaft
BluePrint Engines Hypereutectic Pistons
Block:
BluePrint Engines High Strength Cast Iron Block
Manufactured and Machined in the USA
Drilled and Tapped for Clutch Linkage
Mech Fuel Pump Provision: Yes
Passenger Side Dipstick
1-Piece Rear Main Seal
4-Bolt Main
4.000" Bore
Rotating Assembly:
Cast Crankshaft
3.750" Stroke
OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
Hypereutectic Pistons
Externally Balanced Front and Rear
Cylinder Heads:
BluePrint Aluminium Cylinder Heads
64cc Chamber
2.02" Intake / 1.60" Exhaust Valves
195cc Intake / 75cc Exhaust Runners
Cam Specs:
Hydraulic Roller
.544 Intake / .555 Exhaust Lift
230 Intake / 236 Exhaust Duration @ .050"
110 Degree Lobe Separation
Ignition Timing:
34 Degrees Total at 3500 RPM
Also Includes:
Black Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
Holley Classic 750 cfm Vacuum Secondary Carburettor with Manual Choke
Aluminium Intake Manifold
Thermostat and Thermostat Housing
Mechanical Fuel Pump
HEI Distributor
Valve Covers
Spark Plugs and Wires
Harmonic Balancer
Timing Cover
Oil Pan
Compression Ratio: 10.0:1
BluePrint Engines Aluminium Heads
BluePrint Engines Hydraulic Roller Cam
BluePrint Engines Cast Crankshaft
BluePrint Engines Hypereutectic Pistons
Block:
BluePrint Engines High Strength Cast Iron Block
Manufactured and Machined in the USA
Drilled and Tapped for Clutch Linkage
Mech Fuel Pump Provision: Yes
Passenger Side Dipstick
1-Piece Rear Main Seal
4-Bolt Main
4.000" Bore
Rotating Assembly:
Cast Crankshaft
3.750" Stroke
OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
Hypereutectic Pistons
Externally Balanced Front and Rear
Cylinder Heads:
BluePrint Aluminium Cylinder Heads
64cc Chamber
2.02" Intake / 1.60" Exhaust Valves
195cc Intake / 75cc Exhaust Runners
Cam Specs:
Hydraulic Roller
.544 Intake / .555 Exhaust Lift
230 Intake / 236 Exhaust Duration @ .050"
110 Degree Lobe Separation
Ignition Timing:
34 Degrees Total at 3500 RPM
Also Includes:
Black Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
Holley Classic 750 cfm Vacuum Secondary Carburettor with Manual Choke
Aluminium Intake Manifold
Thermostat and Thermostat Housing
Mechanical Fuel Pump
HEI Distributor
Valve Covers
Spark Plugs and Wires
Harmonic Balancer
Timing Cover
Oil Pan
