Blueprint | SKU: PSEBP3479CTC

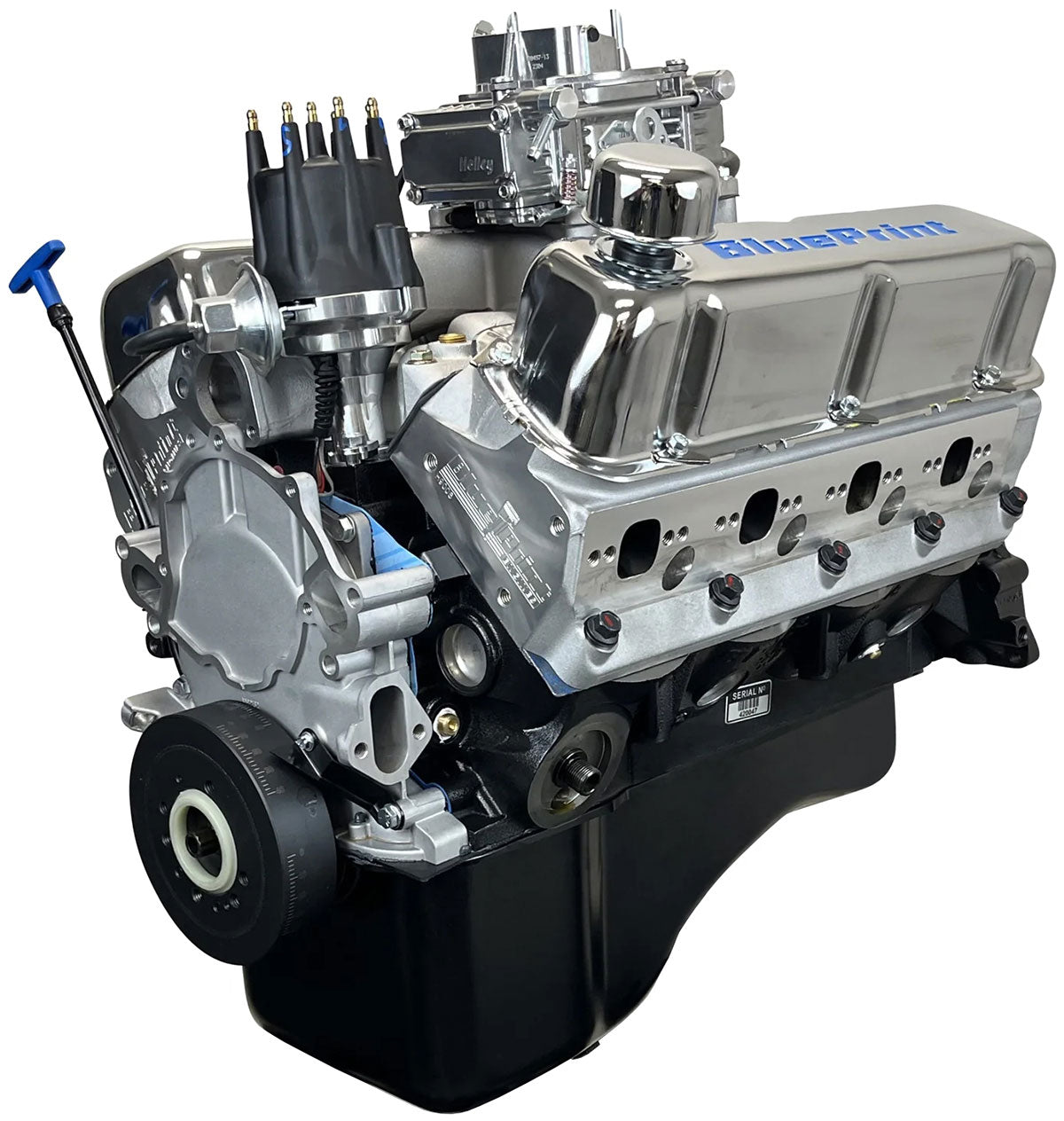

BluePrint Ford Windsor 347ci 415 Horsepower Crate Engine, Long Block - PSEBP3479CTC

Name: BluePrint Ford Windsor 347ci 415 Horsepower Crate Engine, Long Block - PSEBP3479CTC
Brand: Blueprint
SKU: PSEBP3479CTC
Price: 21476.2 NZD
Availability: InStock

415 ft. lbs Torque, 10.0:1 Comp, Aluminium Heads, Hydraulic Roller Camshaft

$21,476.20 NZD + GST

Shipping calculated at checkout.

We do not carry this item in stock & it will be special ordered for you. Please contact us before ordering for delivery times. Additional freight charges will occour after checkout.

Description

FORD 347 COMPLETE CRATE ENG

415 ft. lbs Torque, 10.0:1 Comp, Aluminium Heads, Hydraulic Roller Camshaft

Part Number: PSEBP3479CTC

Specifications:

Horsepower & Torque: 415 Horsepower / 415 Ft. lbs. Torque
Compression Ratio: 10.0:1
Aluminium Heads
Cast Crankshaft
Hydraulic Roller Cam

Block:
BluePrint Engines High Strength Cast Iron Block
Increased Deck Thickness and Strength Webbing
Priority Main Oiling
4.000" Bore
4-Bolt Main
1-Piece Rear Main Seal
Improved Water Jacket Design

Rotating Assembly:
Cast Crankshaft
3.400" Stroke
Forged 5.400" Connecting Rods
Forged Pistons
28oz Externally Balanced Front and Rear

Cylinder Heads:
BluePrint Aluminium Cylinder Heads
60cc Chamber
2.02" Intake / 1.60" Exhaust Valves
190cc Intake / 60cc Exhaust Runners

Cam Specs:
Hydraulic Roller Cam
.543 Intake / .554 Exhaust Lift
218 Intake / 226 Exhaust Duration @.050"
112 Degree Lobe Separation

Ignition Timing:
10-16 Degrees Initial, 32-34 Total

Also Includes:
Holley Brawler 670cfm Vacuum Secondary Carburetor w/ Electric Choke
Front Sump Oil Pan
Intake Manifold
Distributor
Harmonic Balancer
Valve Covers
Timing Cover
