Aeroflow | SKU: AF95-0393-64

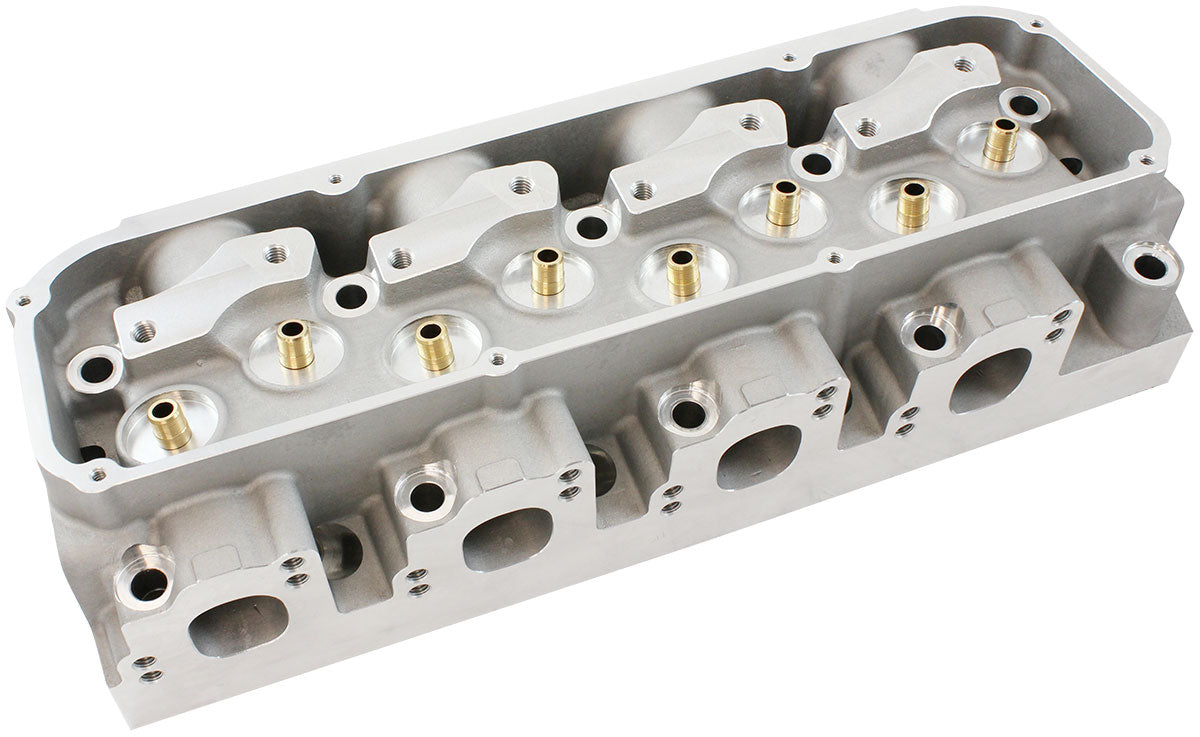

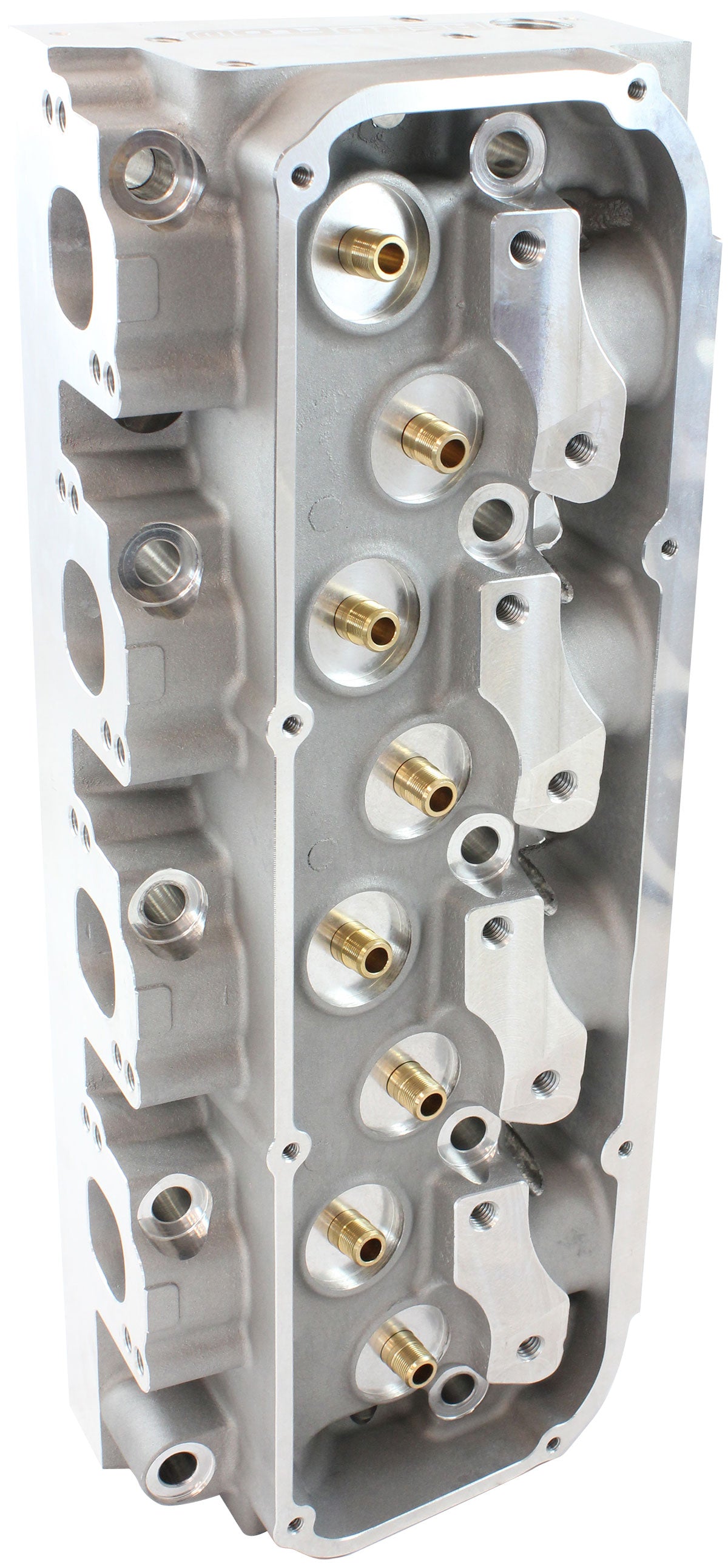

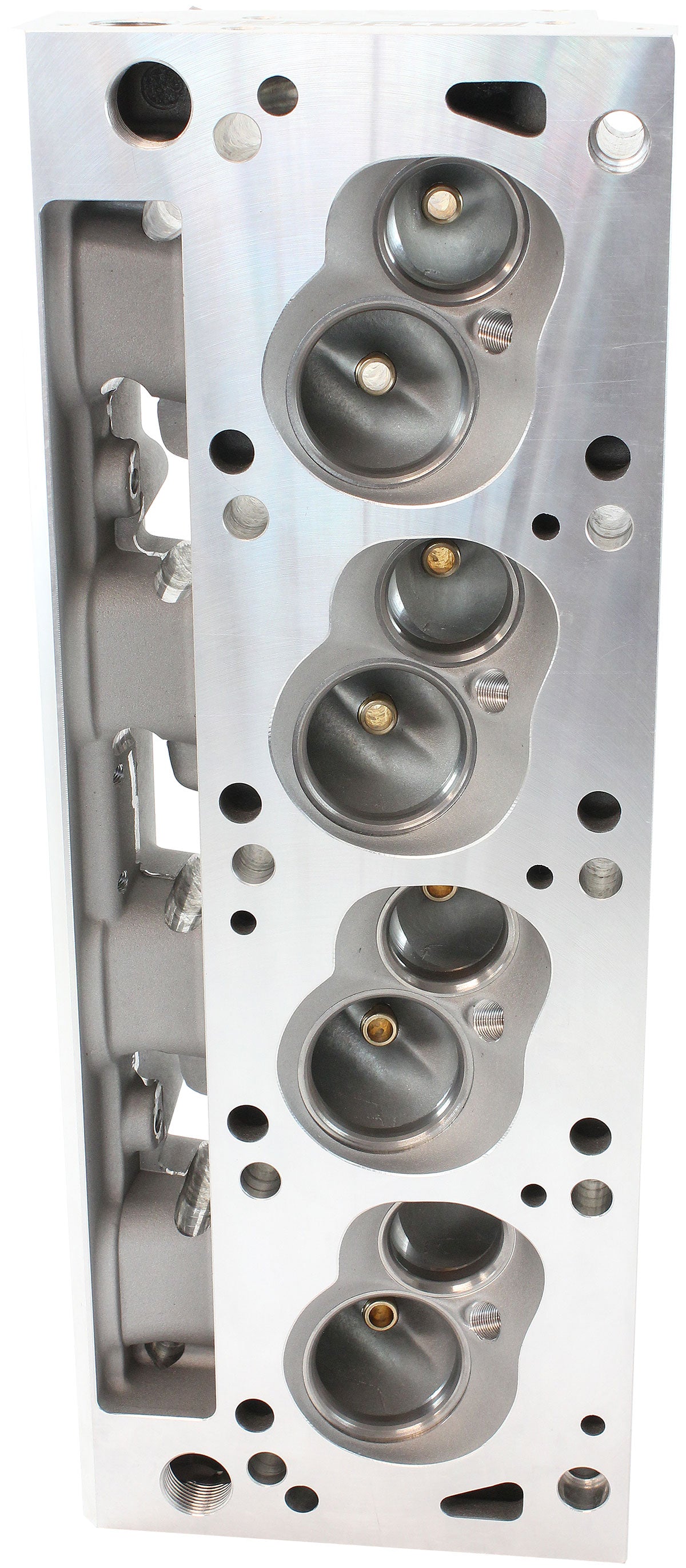

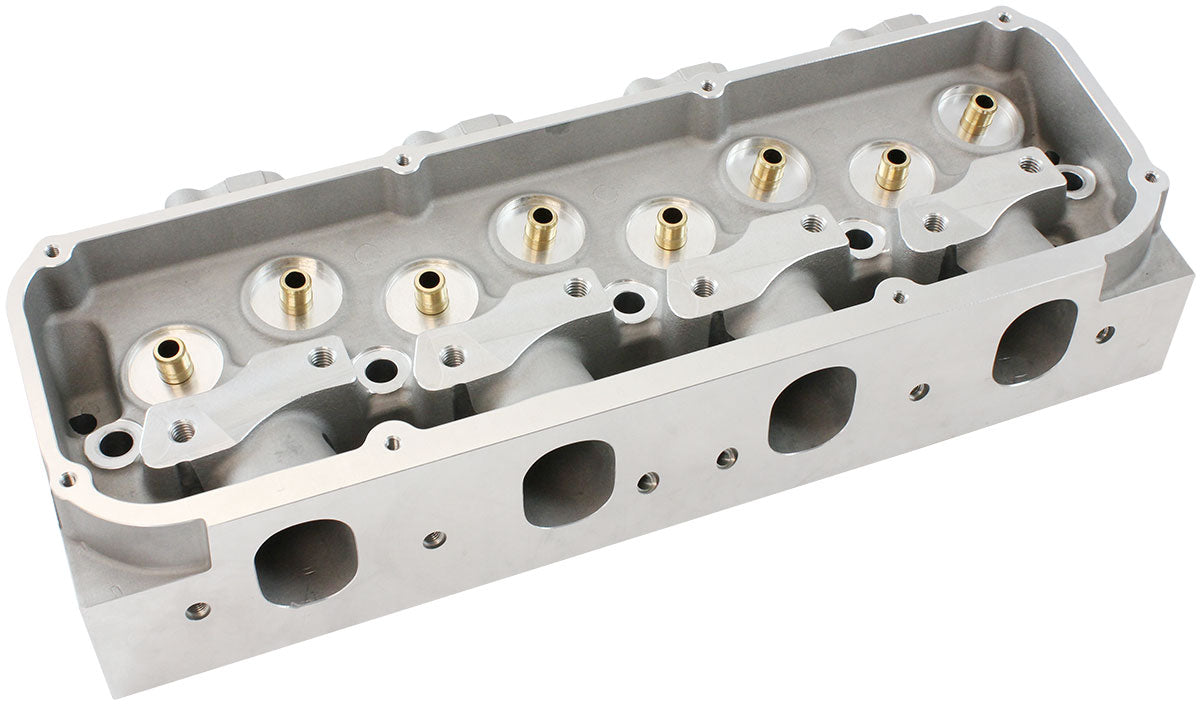

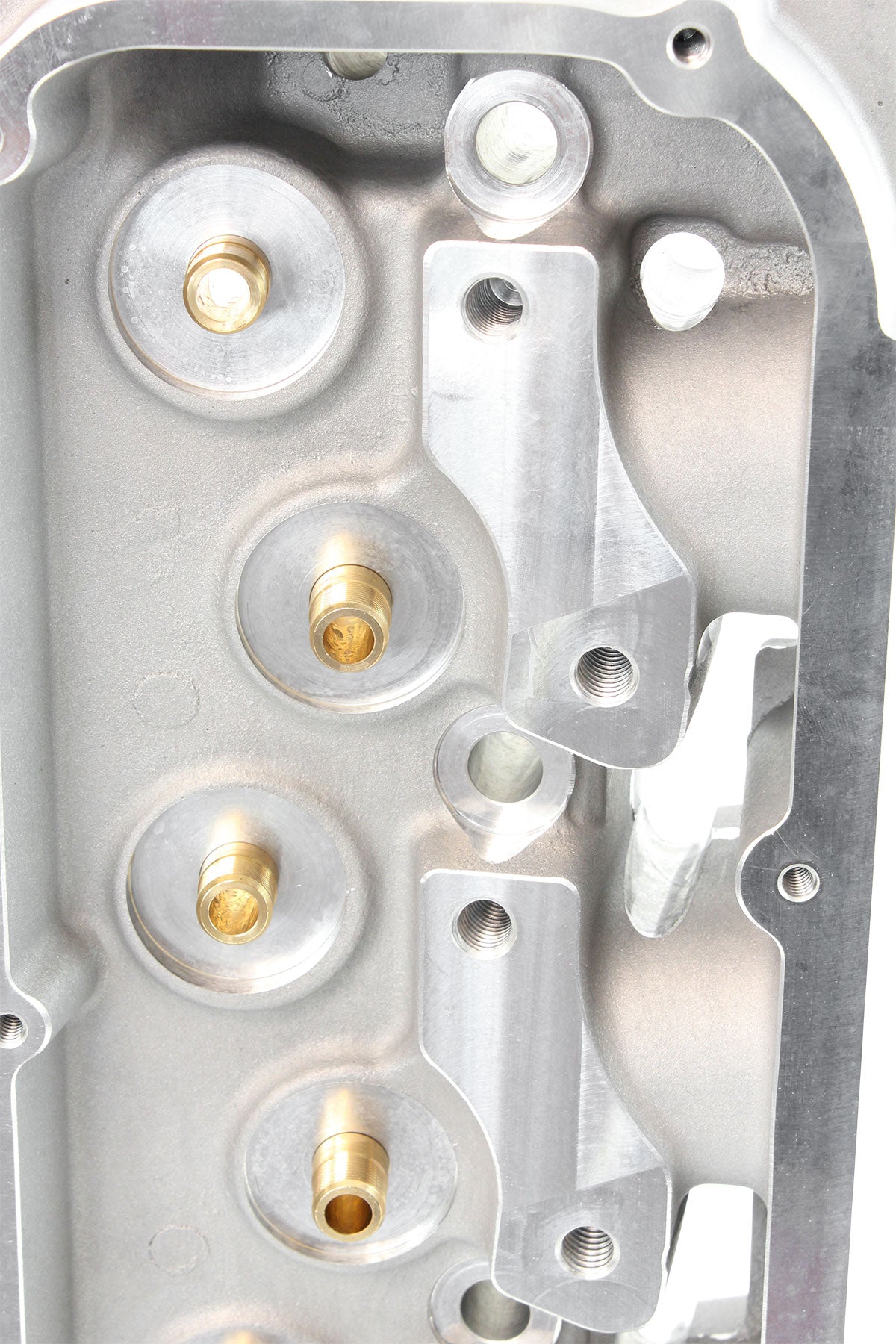

Aeroflow Bare 3V 235cc Aluminium Cylinder Heads with 64cc Chamber (Pair) Suit Ford 302-351 Cleveland (AF95-0393-64)

Name: Aeroflow Bare 3V 235cc Aluminium Cylinder Heads with 64cc Chamber (Pair) Suit Ford 302-351 Cleveland (AF95-0393-64)
Brand: Aeroflow
SKU: AF95-0393-64
Price: 2861.6 NZD
Availability: InStock

Suit Ford 302-351 Cleveland

$2,861.60 NZD + GST

Shipping calculated at checkout.

Description

3V CLEVELAND ALLOY HEADS BARE

Suit Ford 302-351 Cleveland

Part Number: AF95-0393-64

The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These Ford Cleveland cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price.
These heads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. Diamond-honed bronze guides and hand bowl blending to help outperform some of the best brands in the business.

Specifications:

Head Specifications

Material: A356 Aluminium

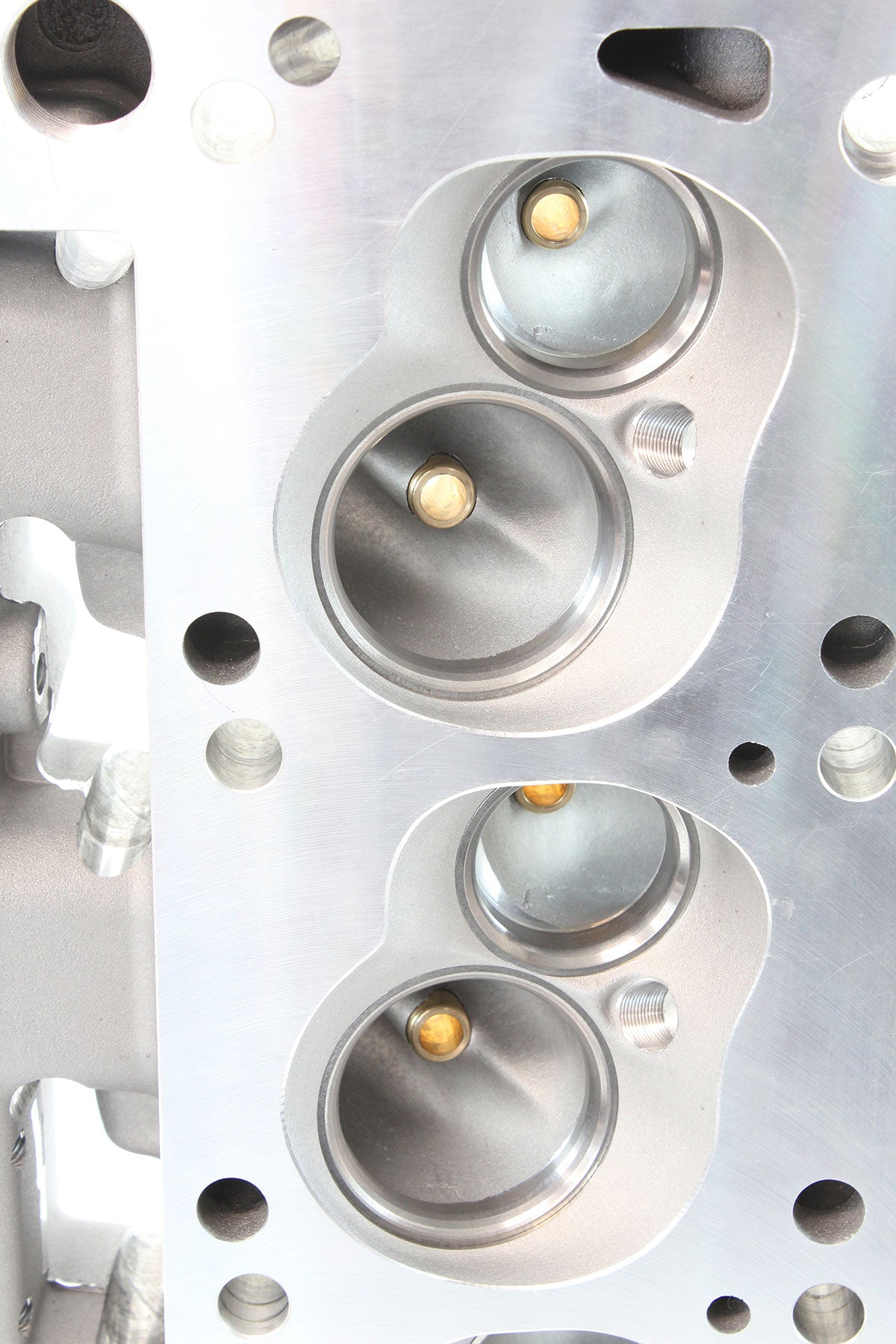

Chamber: 64cc
Intake Port Volume: 235cc
Intake Port Dimension: 2.05" x 1.60"

Exhaust Port Volume: 125cc
Exhaust Port Dimension: 1.61" H x 1.50" W
Exhaust Port Location: Raised .080"
Spark Plug Location: OEM
Intake Valve Diameter: 2.100"
Intake Valve Length: 5.275"
Intake Valve Tip: 0.250"
Exhaust Valve Diameter: 1.65"
Exhaust Valve Length: 5.060"
Intake Valve Tip: 0.250"

Valve Stem Diameter: 11/32"
Valve Spring Pocket I.D.: 1.570"
Valve Guide Material: Manganese Bronze
Valve Guide O.D.: .530 Valve Stem Seal
Rocker Stud Thread Size: 7/16" x 14
Valve Angle: 10°
Deck Thickness: .750"

Important Information:

IMPORTANT NOTICE:
We recommend to check installed spring seat pressure & open pressure before installing your cylinder heads to make sure the spring pressure is correct for your application.
