B&M Cable Bracket & Shift Lever Kit - Pro Gate Shifter - 4R100/E4OD - 40508

CLEARANCE ITEM / ALL SALES FINAL - Fits Ford 4R100 and E4OD Automatic Transmissions - Use with B&M 3-Speed Rear Exit Cable Shifters

Part Number: 40508

This B&M Bracket and Lever Kit allows a B&M 3-Speed Rear-Exit Cable Shifter (ex: Pro Gate Shifter #80905) to be used on a vehicle equipped with Ford 4R100 and E4OD automatic transmissions. Both the selector shaft and selector lever are made of T6 Aluminum. Due to the countless uses and exposure to the elements, both parts are Hard Anodized to prevent wear and corrosion.
Although the E4OD and 4R100 are 4-speed transmissions, they have only three forward shifter positions, so a 3-speed shifter must be used.
The 40507, 40508, and 40509 bracket and selector lever kits can be used with B&M Pro Gate, Pro Bandit, and Street Bandit shifters.

Features and Benefits

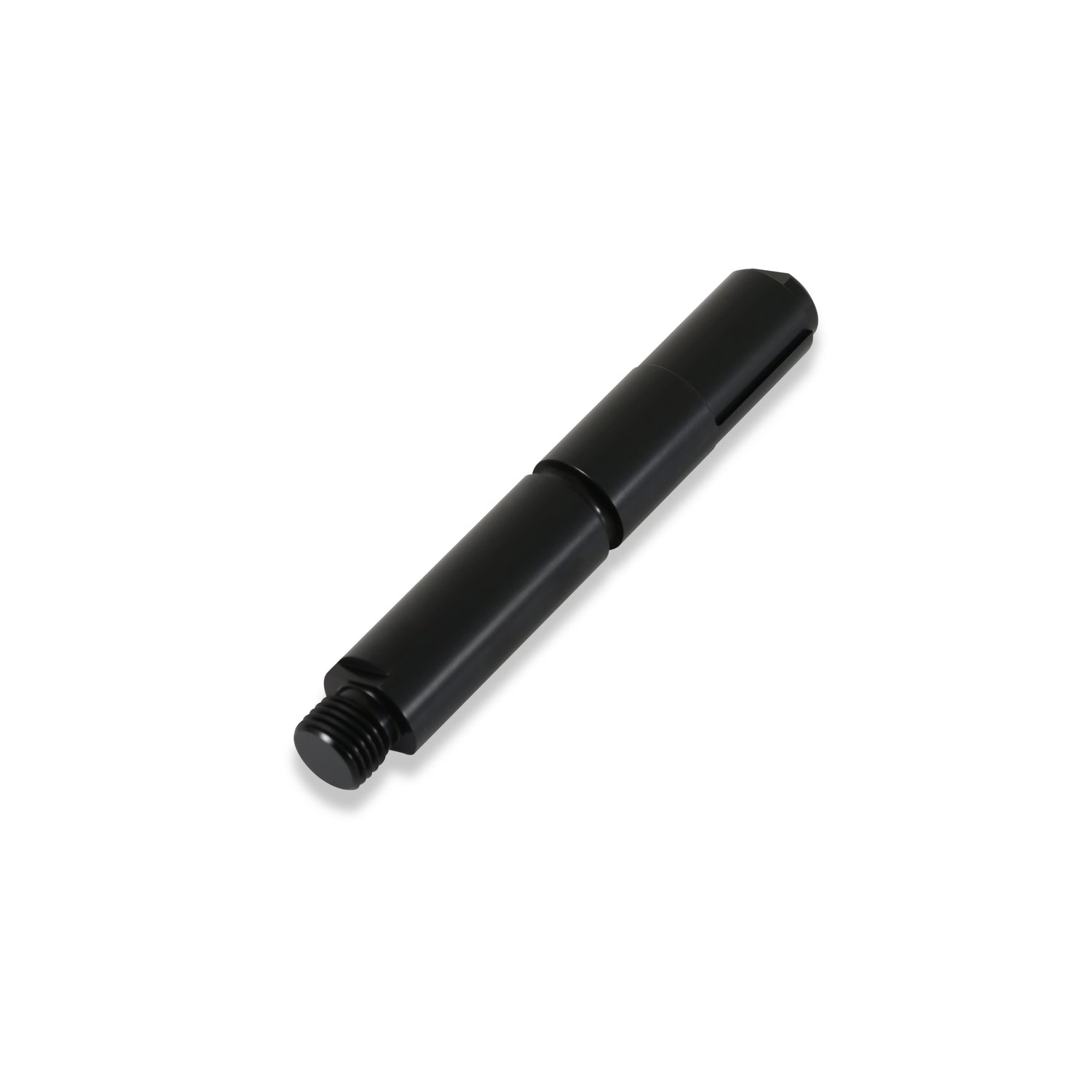

• Hard Anodized Selector Shaft Constructed from Billet 7075-T6 Aluminum

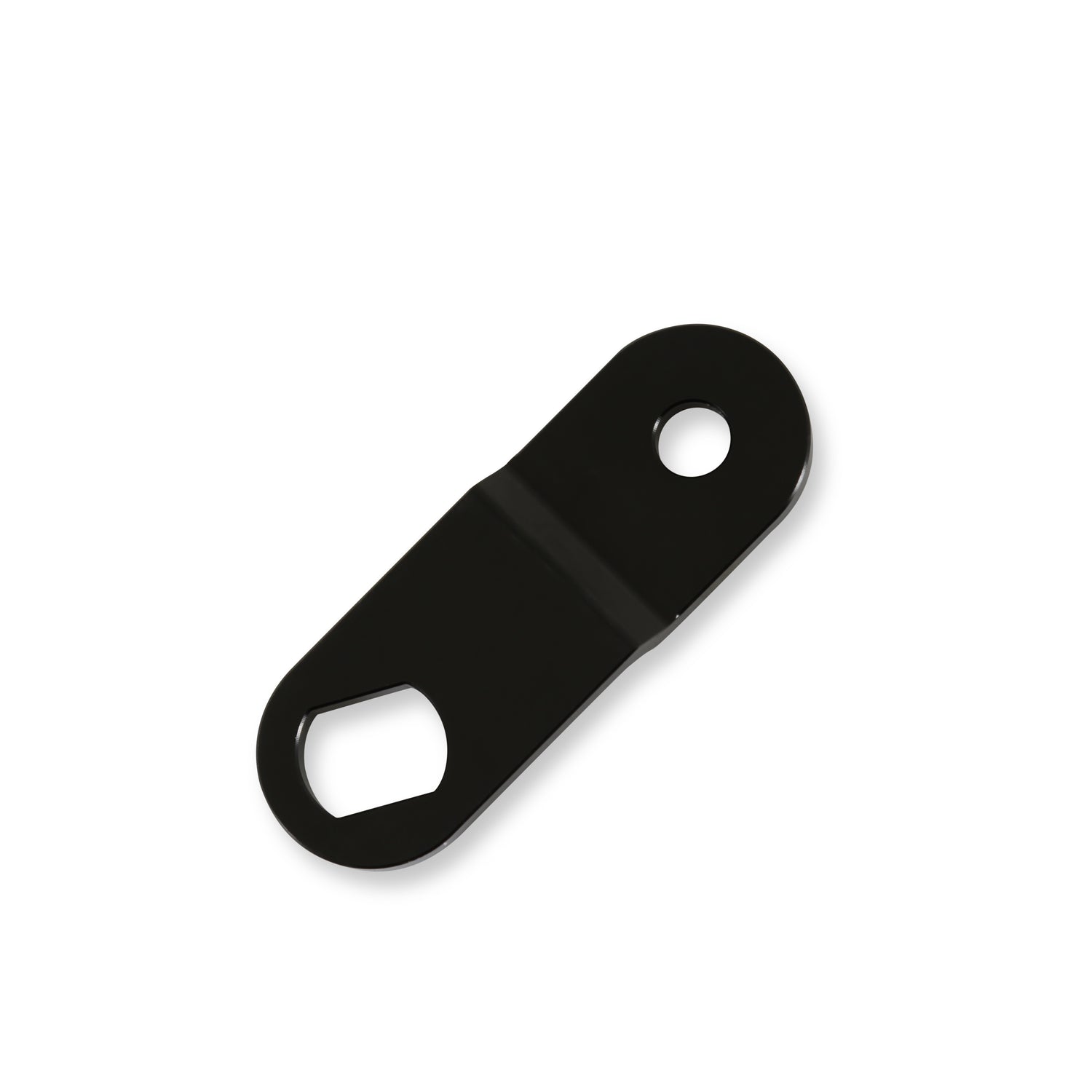

• Hard Anodized Shift Lever Constructed from Stamped 6061-T6 Aluminum

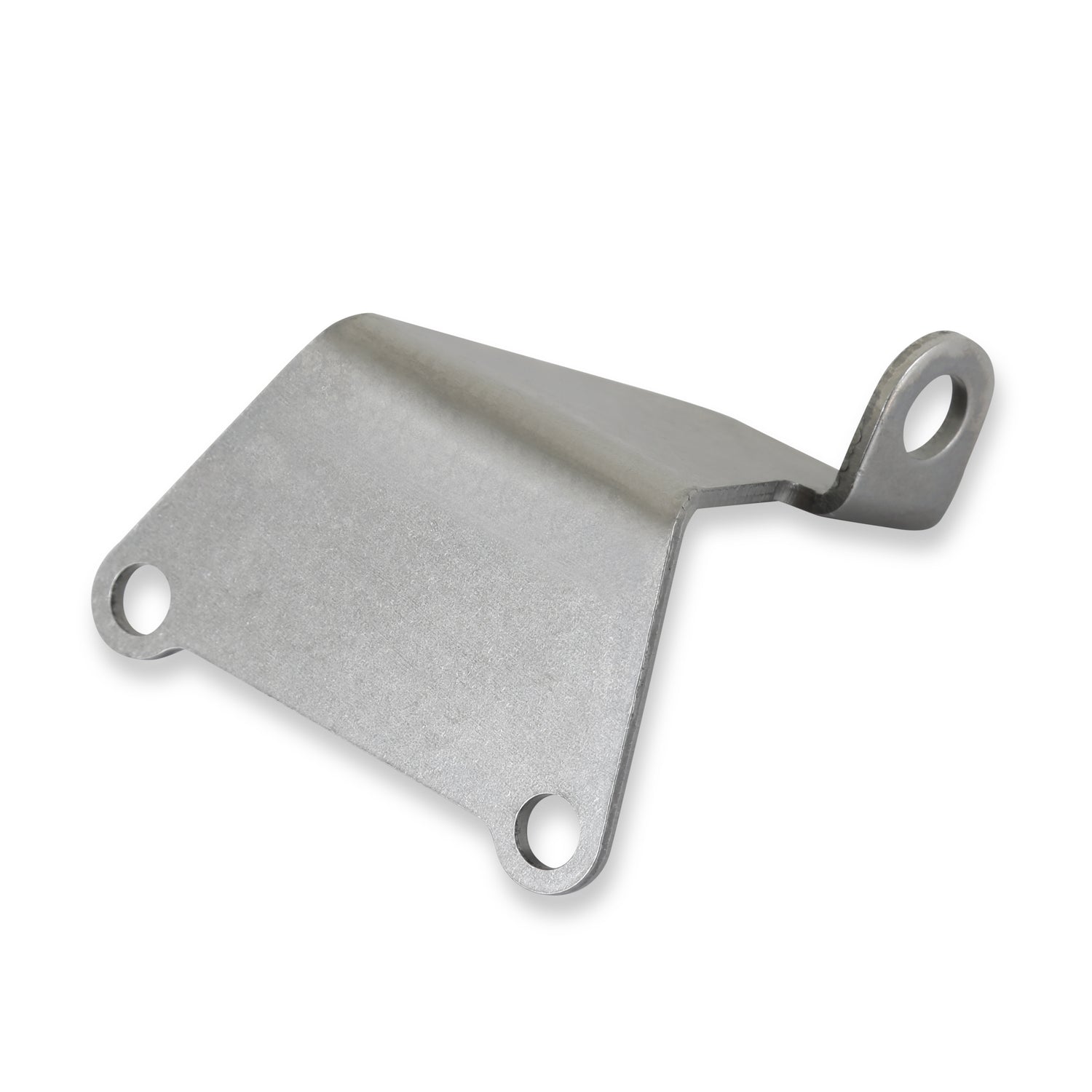

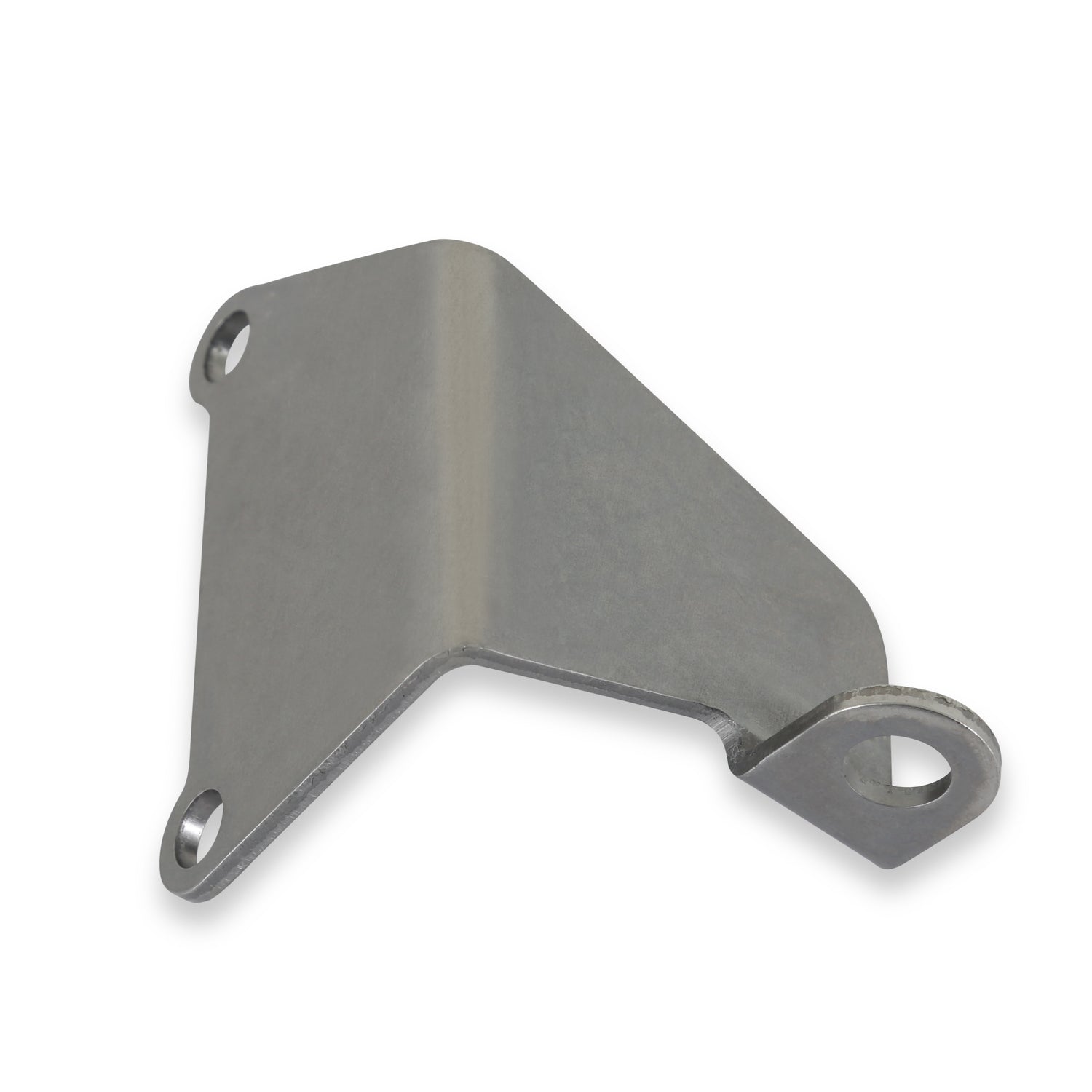

• 12-gauge Cold Rolled Steel Cable Bracket

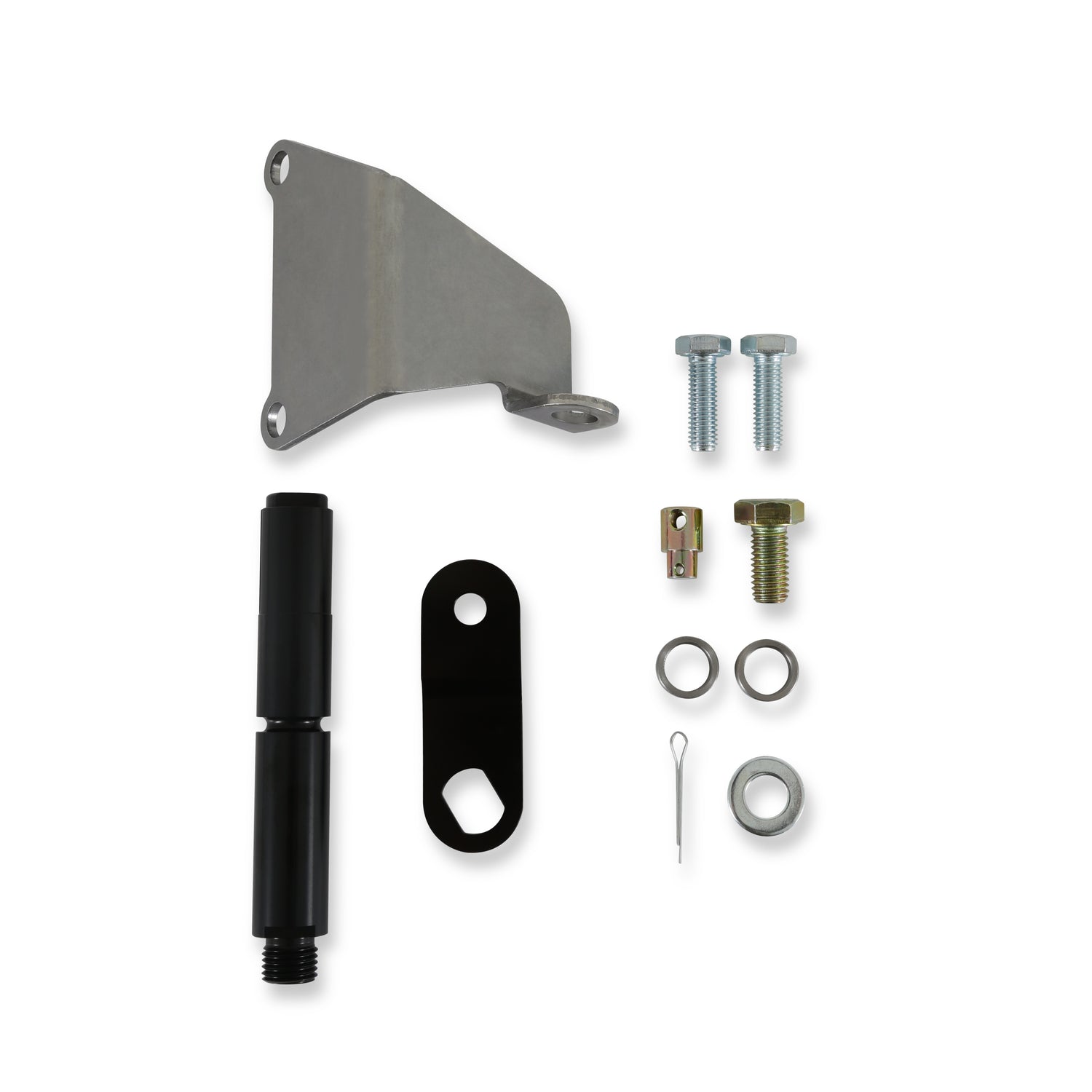

• Includes all Necessary Hardware
• Over 65 Years of B&M Quality
• Easy Installation

It is necessary to drain the transmission fluid and drop the pan to install the new selector lever. You will need 7-10 quarts of transmission fluid (depending on pan depth), and a new pan gasket. A new transmission filter is also recommended. Installation requires better-than-average mechanical knowledge and skills. If this job is beyond your abilities, seek the services of a qualified technician. If you do not understand any part of these instructions, please call B&M Technical Support at (866) 464-6553 for assistance. The 40507, 40508, and 40509 bracket and selector lever kits can be used with B&M Pro Gate, Pro Bandit, and Street Bandit shifters.
