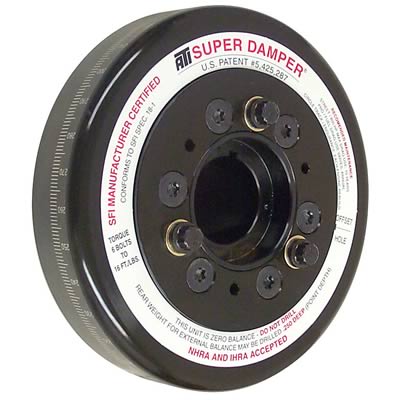

ATI Super Damper Standard Harmonic Balancers ATI917680
DAMPER - 6.325 - AL - FORD SB & 6 CYL - 3 BOLT OEM - 3 IN LONG - C TIMING - AL HUB - 3RG
Regular price
$1,003.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
ATI Super Damper Standard Harmonic Balancers ATI917680 is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
DAMPER - 6.325 - AL - FORD SB & 6 CYL - 3 BOLT OEM - 3 IN LONG - C TIMING - AL HUB - 3RG
Patented ATI Super Damper standard harmonic balancers are the only crankshaft dampers designed exclusively for high performance engines. Inner and outer shells are available in aluminum or steel, and contain a steel inertia weight. The inertia weights have six (2-ring design) or eight (3-ring design) computer-machined grooves to retain the proper durometer O-rings (dyno tested for each application). Whether you race or just drive on the street, ATI harmonic balancers are the perfect choice.
Features include:
* Eliminates torsional crankshaft vibrations
* Exceeds SFI 18.1 specs
* Black zinc chromate finished
* OEM equipment on a variety of crate engines
* Tunable, rebuildable, and extremely efficient at all rpm
* Laser-engraved 360 degree timing marks
* Supercharger and power steering drive pulleys available for some applications
Patented ATI Super Damper standard harmonic balancers are the only crankshaft dampers designed exclusively for high performance engines. Inner and outer shells are available in aluminum or steel, and contain a steel inertia weight. The inertia weights have six (2-ring design) or eight (3-ring design) computer-machined grooves to retain the proper durometer O-rings (dyno tested for each application). Whether you race or just drive on the street, ATI harmonic balancers are the perfect choice.
Features include:
* Eliminates torsional crankshaft vibrations
* Exceeds SFI 18.1 specs
* Black zinc chromate finished
* OEM equipment on a variety of crate engines
* Tunable, rebuildable, and extremely efficient at all rpm
* Laser-engraved 360 degree timing marks
* Supercharger and power steering drive pulleys available for some applications
Specifications
Specifications
-
Specifications
Brand ATI Performance Products Manufacturer's Part Number ATI917680 Part Type Harmonic Balancers Product Line ATI Super Damper Standard Harmonic Balancers UPC 800157029134 Engine Balance Internal SFI Rating SFI 18.1 Degree Markings Yes Degree Marking Range 360 Outside Diameter (in.) 6.325 Crankshaft Pulley Bolt Hole Quantity Three Keyway Quantity One Harmonic Balancer Material Aluminum Harmonic Balancer Construction Elastomer Harmonic Balancer Color Black zinc chromate Mounting Hardware Included No Quantity Sold individually. Notes Designed for custom internal balanced build applications only. Aluminum shell/aluminum hub, 3-ring. Shell weight 3.90 lbs., inertia weight 2.40 lbs. Average hub weight 0.85 lbs. Special Attention 3 in. C timing tab location.
