ATI Performance Products | SKU:
ATI-918039

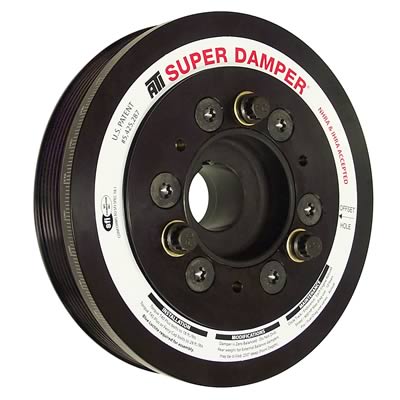

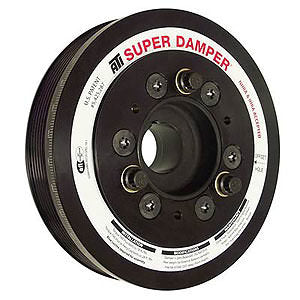

ATI Serpentine SFI 18.1 Super Damper - 6.780 in OD - Black - Internal Balance - Ford Modular
DAMPER - 6.78 - AL - 6 GRV - FORD 4.6 MOD - 05-10 - OEM SIZE
Regular price
$1,003.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
ATI Serpentine SFI 18.1 Super Damper - 6.780 in OD - Black - Internal Balance - Ford Modular is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
DAMPER - 6.78 - AL - 6 GRV - FORD 4.6 MOD - 05-10 - OEM SIZE
ATI Super Damper Serpentine Series harmonic balancers are patented and feature grooves for serpentine belts machined into the outer damper shell. The dampers come with six outer grooves for standard OEM drive systems—but eight and 10 grooves are available for supercharger or turbo applications. Serpentine dampers are offered in a variety of diameters, and crank hubs may be fitted with a 6-groove serpentine pulley to drive external oil pumps or vehicle accessories. The Serpentine Series Super Dampers fit all ATI GM-front crank hubs and can be adapted to many engine combinations, providing maximum flexibility. They're available in steel or lightweight, hardcoated aluminum.
Features and benefits:
* Eliminates torsional crankshaft vibrations
* Exceeds SFI 18.1 specs
* Black zinc chromate finished
* Tunable, rebuildable, and extremely efficient at all rpms
* Laser-engraved 360 degree timing marks
ATI Super Damper Serpentine Series harmonic balancers are patented and feature grooves for serpentine belts machined into the outer damper shell. The dampers come with six outer grooves for standard OEM drive systems—but eight and 10 grooves are available for supercharger or turbo applications. Serpentine dampers are offered in a variety of diameters, and crank hubs may be fitted with a 6-groove serpentine pulley to drive external oil pumps or vehicle accessories. The Serpentine Series Super Dampers fit all ATI GM-front crank hubs and can be adapted to many engine combinations, providing maximum flexibility. They're available in steel or lightweight, hardcoated aluminum.
Features and benefits:
* Eliminates torsional crankshaft vibrations
* Exceeds SFI 18.1 specs
* Black zinc chromate finished
* Tunable, rebuildable, and extremely efficient at all rpms
* Laser-engraved 360 degree timing marks
Specifications
Specifications
-
Specifications
Brand ATI Performance Products Manufacturer's Part Number ATI918039 Part Type Harmonic Balancers Product Line ATI Super Damper Serpentine Series Harmonic Balancers UPC 800157029653 Engine Balance Internal SFI Rating SFI 18.1 Degree Markings Yes Degree Marking Range 360 Outside Diameter (in.) 6.780 Groove Quantity 6 Keyway Quantity One Harmonic Balancer Material Aluminum Harmonic Balancer Construction Elastomer Harmonic Balancer Color Black zinc chromate Mounting Hardware Included No Quantity Sold individually. Notes 6-groove aluminum shell/steel hub. Shell weight 4.50 lbs. Average hub weight 2.90 lbs.
