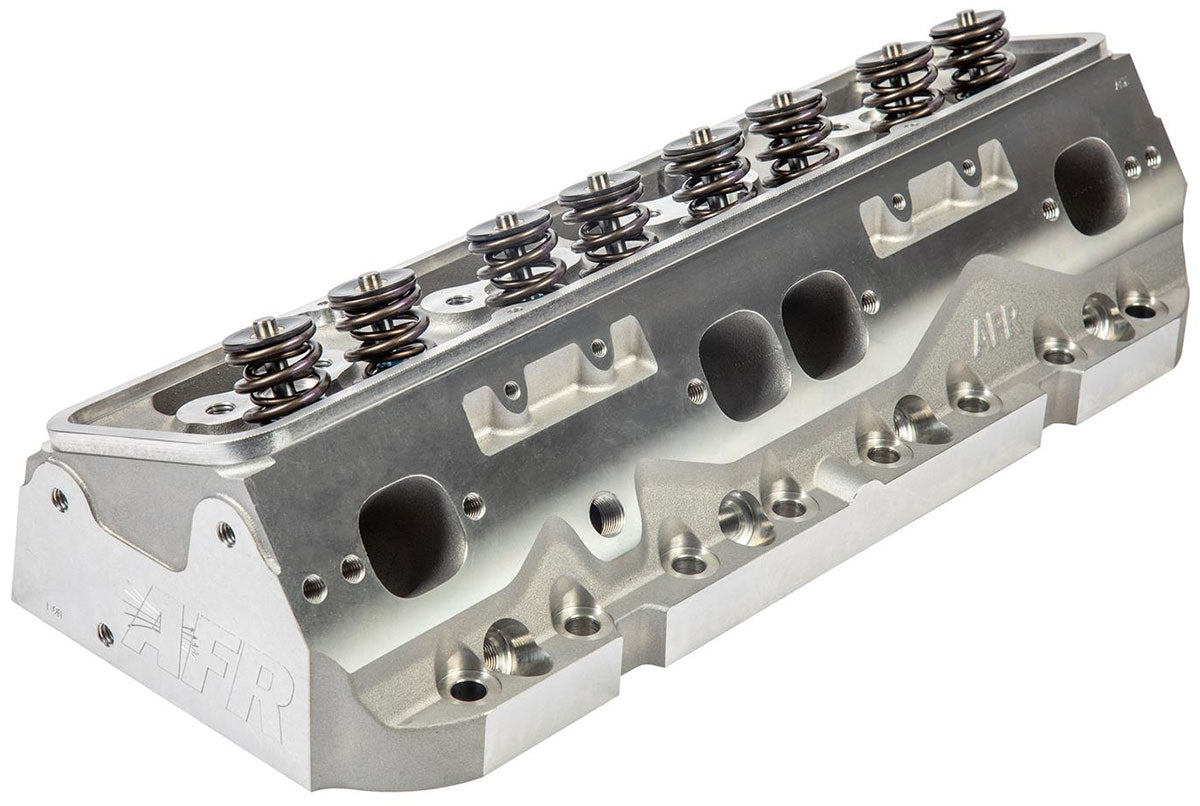

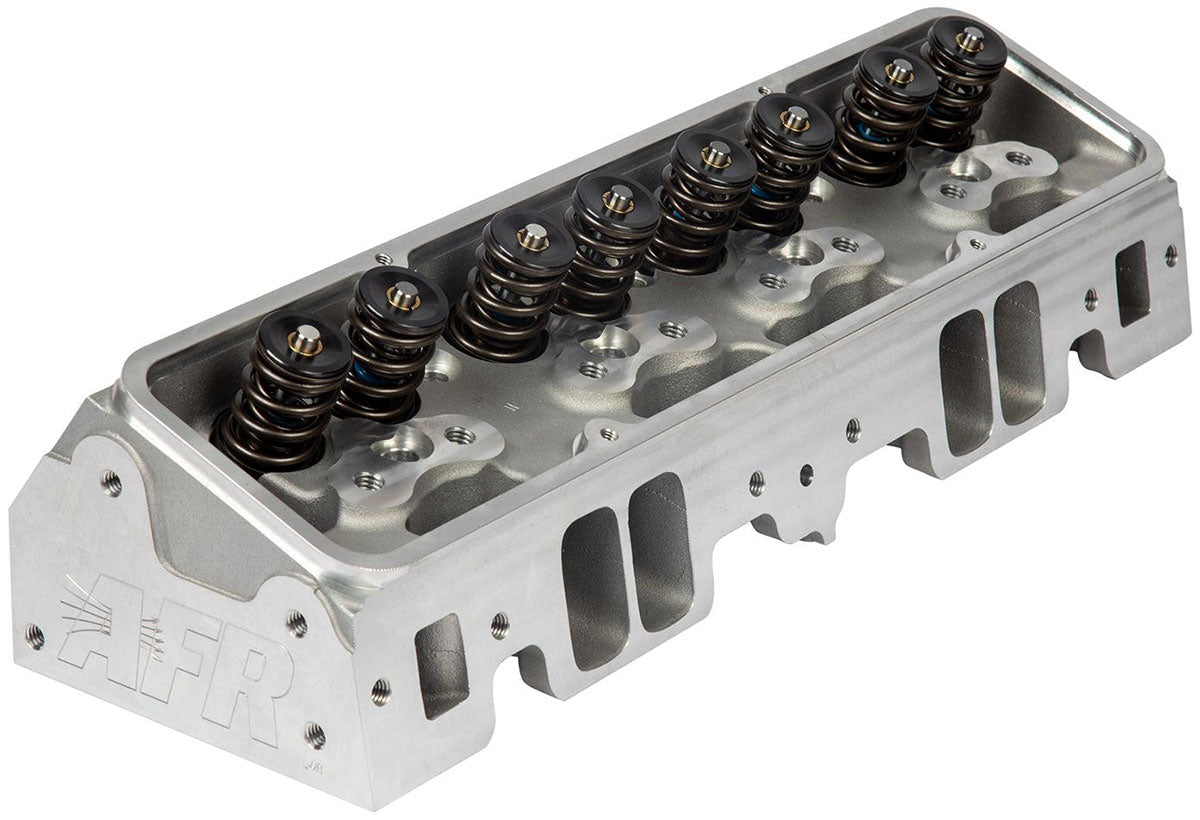

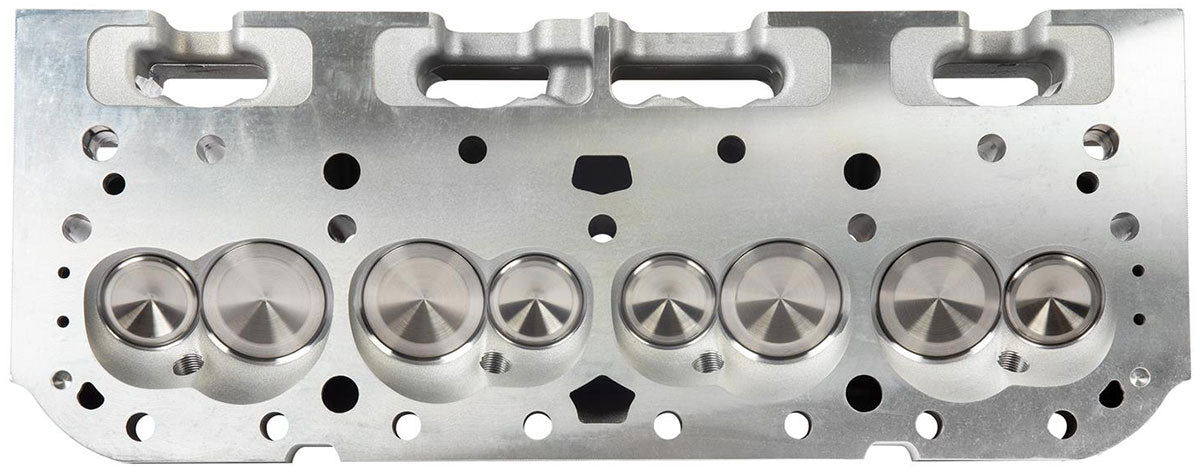

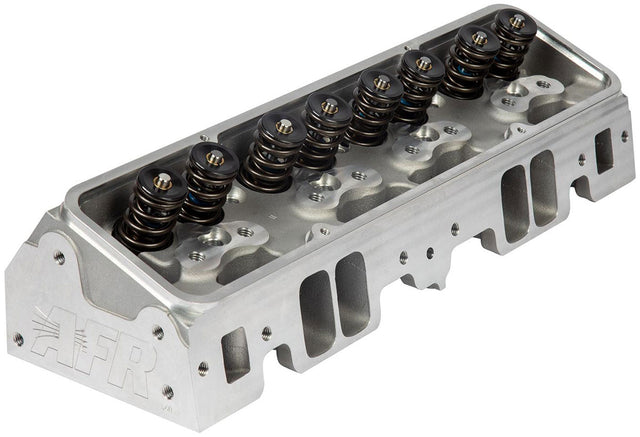

AFR Enforcer 200cc Complete Aluminium Cylinder Heads, Angle Plug (Each) - AFR1016

AFR's 200cc SB Chevy Enforcer Cylinder heads feature our permanent mold “As-Cast” technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your 350 to 400 cubic inch operating below 6000 RPM.

They come fully assembled with the identical components found in our higher-end CNC ported cylinder heads; such as ARP rockers studs, racing springs, Viton valve seals, AFR adjustable guide plates, machined bead valve locks (not stamped), hardened spring cups and our one piece 8mm 21 4N stainless steel valves.

They are available in straight or angle plug and bare without any parts for the DIY racer. Sold as a single piece; 2 are required per engine. Please see footnotes for additional information.

Included Components

• As Cast Combustion Chambers
• As Cast Exhaust Ports
• As Cast Intake Ports
• Multi-Angle Valve Job
• 8mm Stainless Steel 2.050 x 4.900 O.A.L. Race Intake Valve
• 8mm Stainless Steel 1.600 X 4.950 O.A.L. Race Exhaust Valve
• Melling Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500
• 7° Chrome Moly Retainers 1.245" O.D x .885" I.D x .655" I.D
• 7° Bead Lock Valve Keepers
• ARP 3/8" Rocker Studs
• Adjustable 5/16" Guide Plates
• 8mm LS Enforcer Viton Valve Seals .620" O.D x .490" I.D
• Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D
