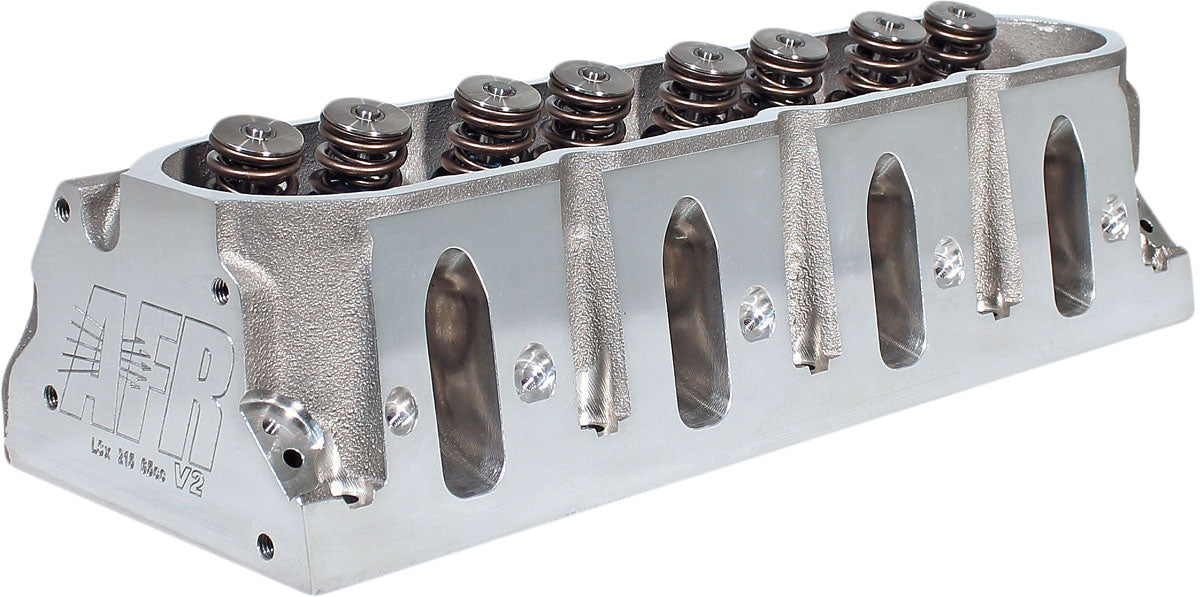

AFR 215cc LSX Mongoose Aluminium Cylinder Heads - AFR1530
65cc Combustion Chamber. Suit Chev LS1/LS2/LS6
AFR 215cc LSX Mongoose Aluminium Cylinder Heads - AFR1530
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
LS1 MONGOOSE 215CC COMPLETE
65cc Combustion Chamber. Suit Chev LS1/LS2/LS6
Part Number: AFR1530
AFR's 215cc mongoose cylinder heads a recommended for moderate street or street/strip builds with displacements up to 408 cubic inches operating at or below 6500 RPM. This medium sized, high velocity torque monster flows 312 CFM @0.600" of lift.

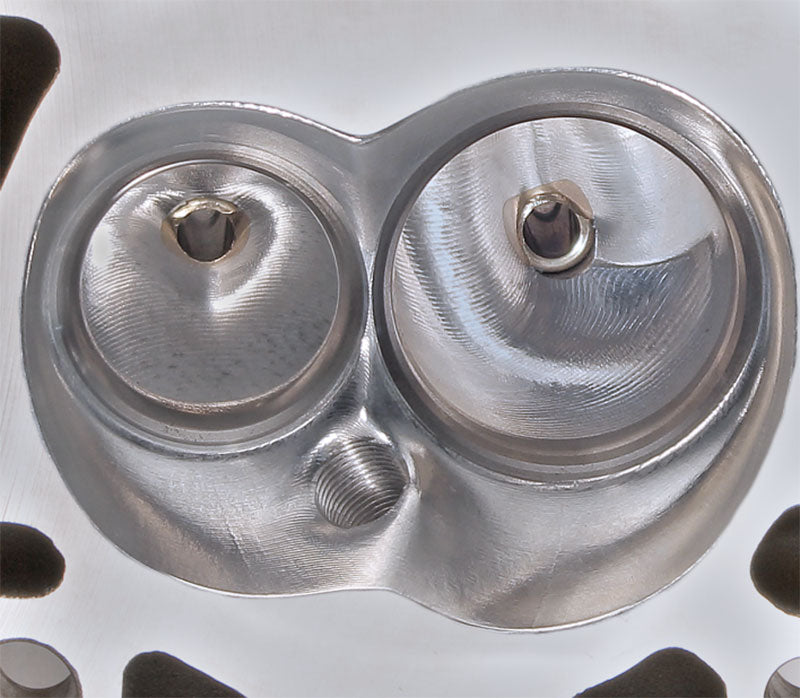

100% CNC Ported Combustion Chambers
100% CNC Ported Exhaust Ports

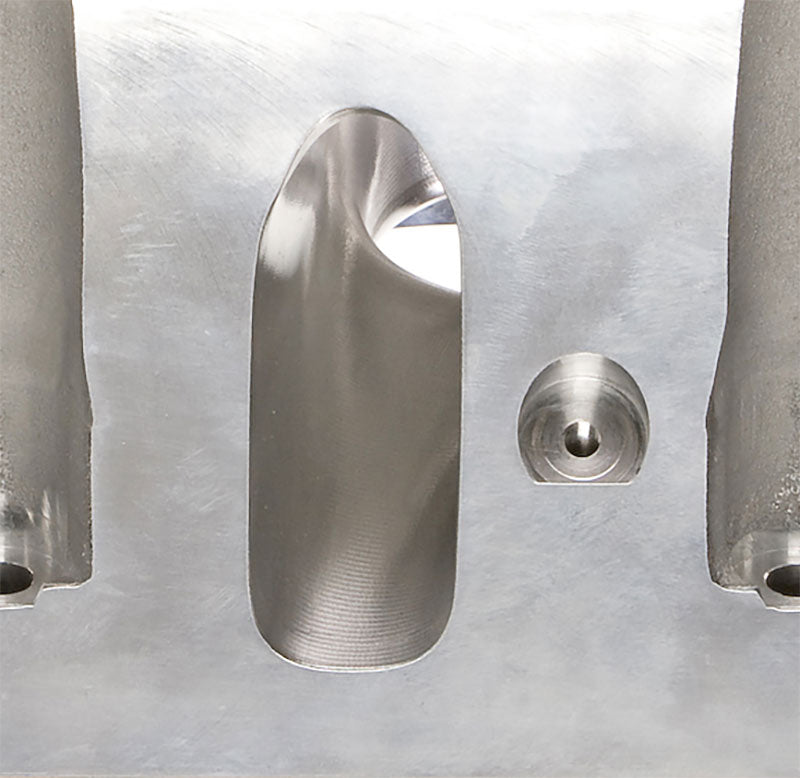

100% CNC Ported Intake Ports
Competition 5-angle Valve Job
Specifications:
8mm Bead Lock Intake Valve, 2.020" x 4.900" Overall Valve Length
8mm Bead Lock Exhaust Valve, 1.600" x 4.900" Overall Valve Length
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500, less than 235* duration, upgraded spring #8019 recommended for higher RPM & larger cams
7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D
7° Bead Lock Valve Keepers
Viton Valve Seals .600" O.D x .495" I.D
Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D
Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375"
Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375"
8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L
