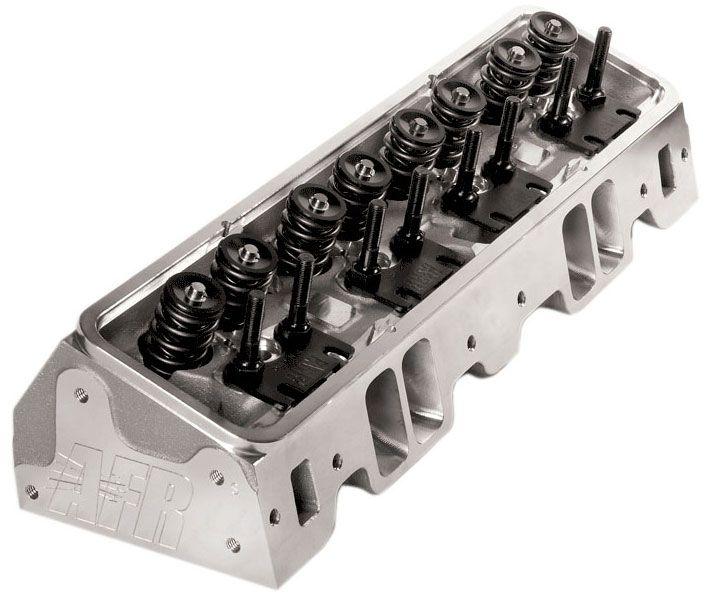

AFR 220cc Eliminator Racing Aluminium Cylinder Heads (Angled Plug) (AFR1110)

AFR1110 - SBC ELIMINATOR 220CC COMPLETE

Competition Package 65cc Combustion Chamber. Suit S/B Chev

Part Number: AFR1110

AFR is reviving its popular 220cc moniker due to overwhelming request from customers for a larger bolt on standard valve location head. Unlike the previous 220, the new Eliminator version requires no special parts. Valves and studs are in stock GM L98 locations just like the popular, 180, 195, and 210 series heads. They do not require offset rockers of any kind yet are still able to muster flow numbers that are in raised runner head territory. A 325 CFM head that is perfect for someone wanting to retain all their standard components while still having the airflow to reach that elusive 700 HP mark in aggressive drag race trim. Displacement ranging from a high RPM 350 to a 427 CID with natural applications in the various sportsman classes, bracket/drag cars, oval track, and larger displacement street machines with typical operating ranges between 4000 to 8000 RPM nding on application. Getting this much flow from a stock geometry 23° head means they will only be available in fully optimized "competition" CNC porting. As always, they come with AFR's trademark 3/4" thick head deck (ideal for nitrous or blower applications). Standard valves are lightweight 8mm 2.100 intake and 1.600 exhaust with AFR's hardened ductile iron interlocking seats. Dual valve cover bolt pattern is standard. Exhaust port is raised .250 over GM L98.
Basic Package Components:
100% CNC Ported Combustion Chambers
100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
3-angle Radiused Valve Job
Bead Lock Intake Valve, 2.080" x .100" long
Bead Lock Exhaust Valve, 1.600" x .100" long
1.550" OD Roller Dual Valve Spring w/ dampener, 225 lbs on seat, .710" maximum lift

10° 4140 Chrome Moly Retainers
10° Bead Lock Valve Keepers

7/16" Rocker Studs
Guide Plates
Viton Valve Seals
Hardened Spring Seat
Intake Valve Seats
Exhaust Valve Seats
Bronze Valve Guides
