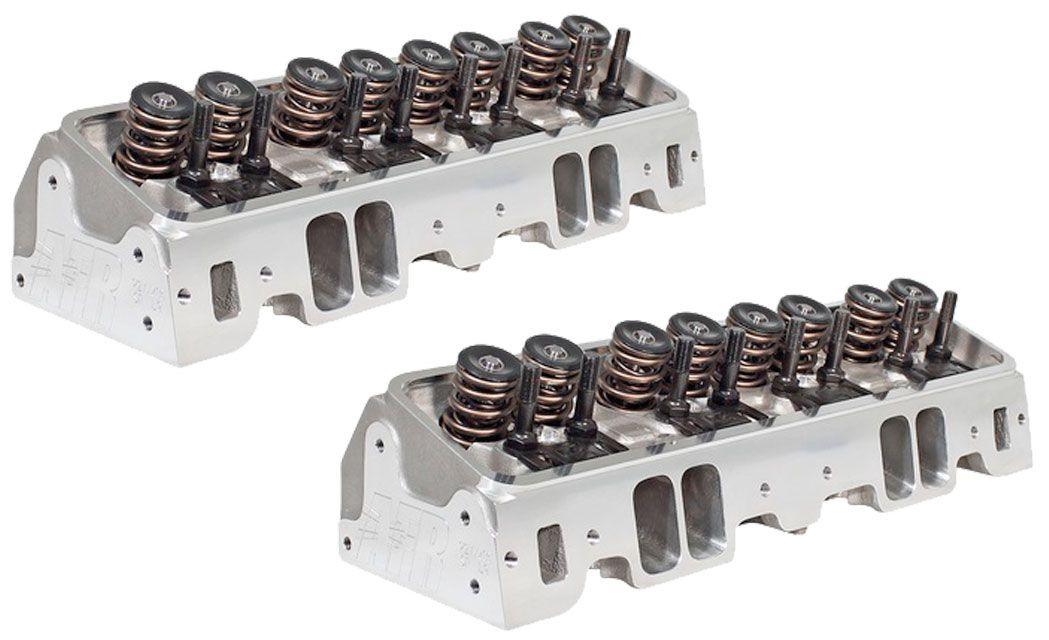

AFR 195cc Eliminator Aluminium Cylinder Heads (Angled Plug) (AFR1095-716)

AFR1095-716 - SBC ELIMINATOR 195CC COMPLETE

Competition Package 65cc Combustion Chamber. Suit S/B Chev

Part Number: AFR1095-716

The AFR 195cc intake port small block Chevy cylinder heads are available in your choice of straight or L98 angle plug versions. These cylinder heads feature a 65cc or 75cc combustion chamber with a 64cc exhaust port and a 3/4" thick head deck (ideal for nitrous or blower applications). Standard valves are lightweight 8mm 2.050 (comp package has 2.080) intake and 1.600 exhaust with AFR's hardened ductile iron interlocking valve seats. The exceptional flow characteristics, ideal operating range of 2000 rpm to 6500rpm, 23° valve angle, and standard valve spacing make this the perfect street head for 350 cid to 400 cid engines from 1955-86.
Basic Package Components:
100% CNC Ported Combustion Chambers
100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
3-angle Radiused Valve Job
Bead Lock Intake Valve, 2.080" stud mount
Bead Lock Exhaust Valve, 1.600" stud mount, 58cc
1.290" OD Hydraulic Dual Valve Spring, 135 lbs on seat,
.600" maximum lift (upgrades available)
7° Chrome Moly Retainers
7° Bead Lock Valve Keepers
7/16" Rocker Studs
Guide Plates
Viton Valve Seals
Hardened Spring Cup
Intake Valve Seats
Exhaust Valve Seats
Bronze Valve Guides
