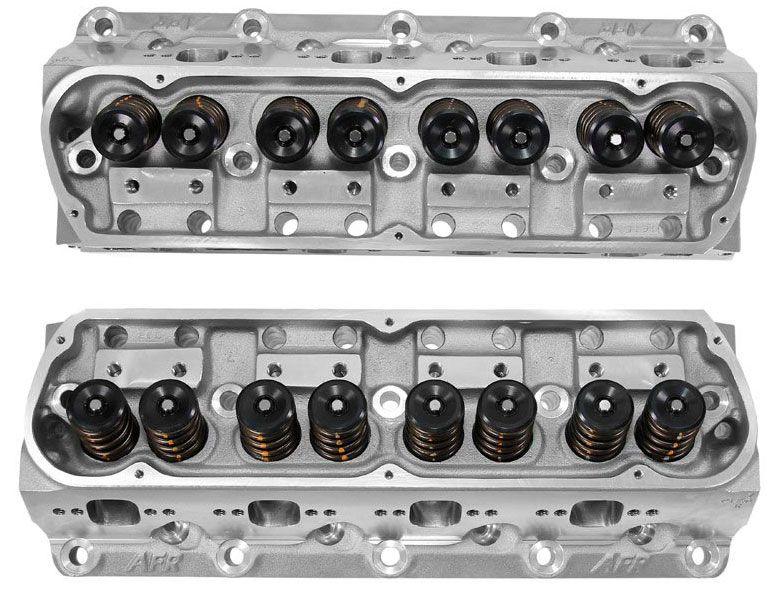

AFR 185cc S/S Outlaw Aluminium Cylinder Heads (AFR1388)
Street CNC Ported 58cc Combustion Chamber. Suit Small Block FordAFR1388 - SBFORD RENEGADE 185CC COMPLE
Street CNC Ported 58cc Combustion Chamber. Suit Small Block Ford
Part Number: AFR1388
These heads come ready for the maximum street/strip Small Block Ford performance possible. AFR's 185cc sport lightweight 8mm 2.020 intake and 1.600 exhaust valves with options for either 58cc or 72cc combustion chambers and 70cc exhaust ports. With AFR's 3/4" thick head deck, it's no problem handling that additional cylinder pressure. Each head is also drilled for the larger 1/2" head bolt for maximum head gasket retention as a standard feature of this serious race piece in street disguise.
Basic Package Components:
100% CNC Ported Combustion Chambers
100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
3-angle Radiused Valve Job
Bead Lock Intake Valve, 2.020" stud mount
Bead Lock Exhaust Valve, 1.600" stud mount
1.290" OD Hydraulic Dual Valve Spring, 135 lbs on seat, .600" maximum lift (upgrades available)
Hydraulic Roller Spring 1.270 O.D.
7° Chrome Moly Retainers
7° Bead Lock Valve Keepers
3/8" Rocker Studs
5/16" Guide Plates
Viton Valve Seals
Hardened Spring Cup
Intake Valve Seats
Exhaust Valve Seats
Bronze Valve Guides
