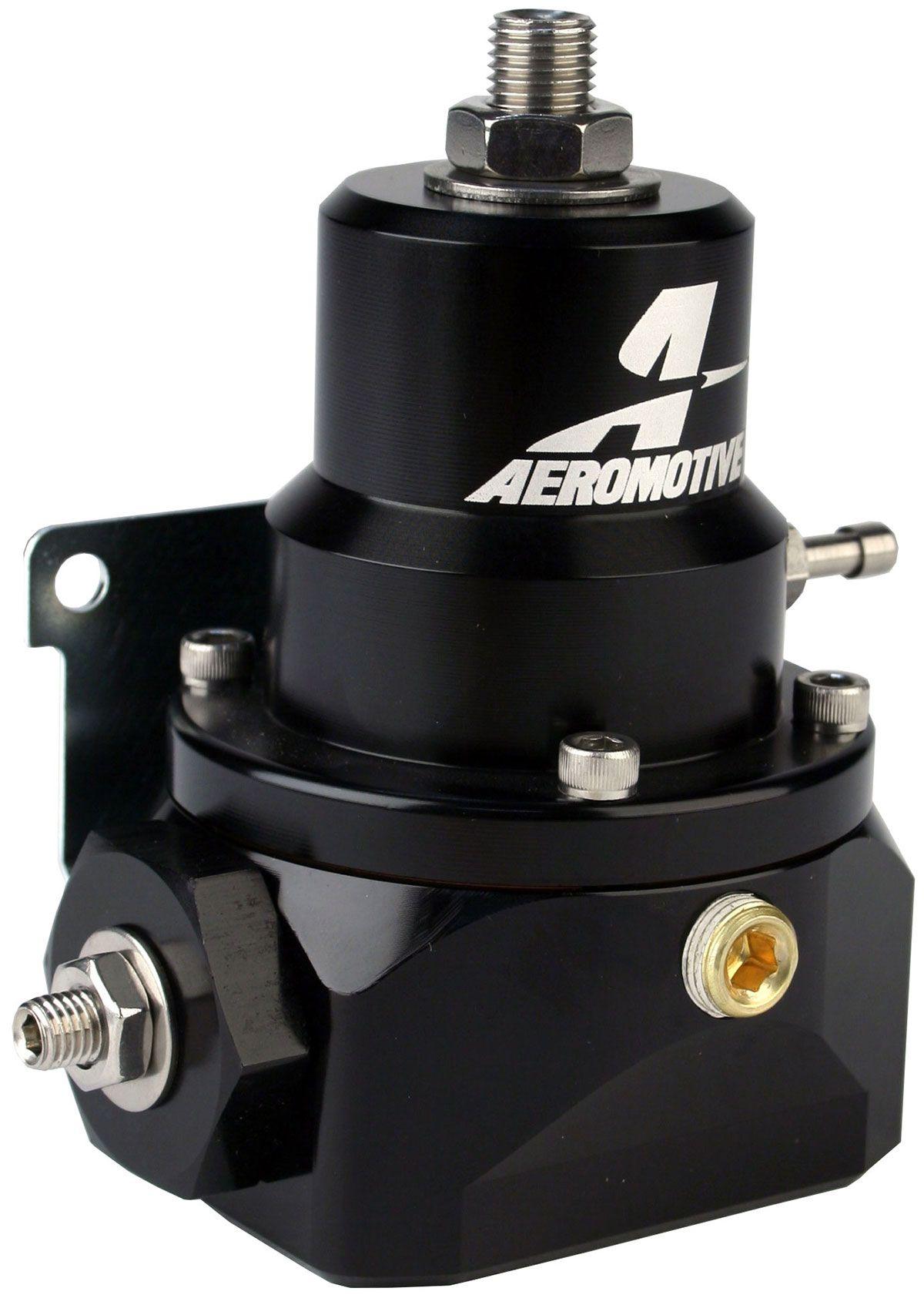

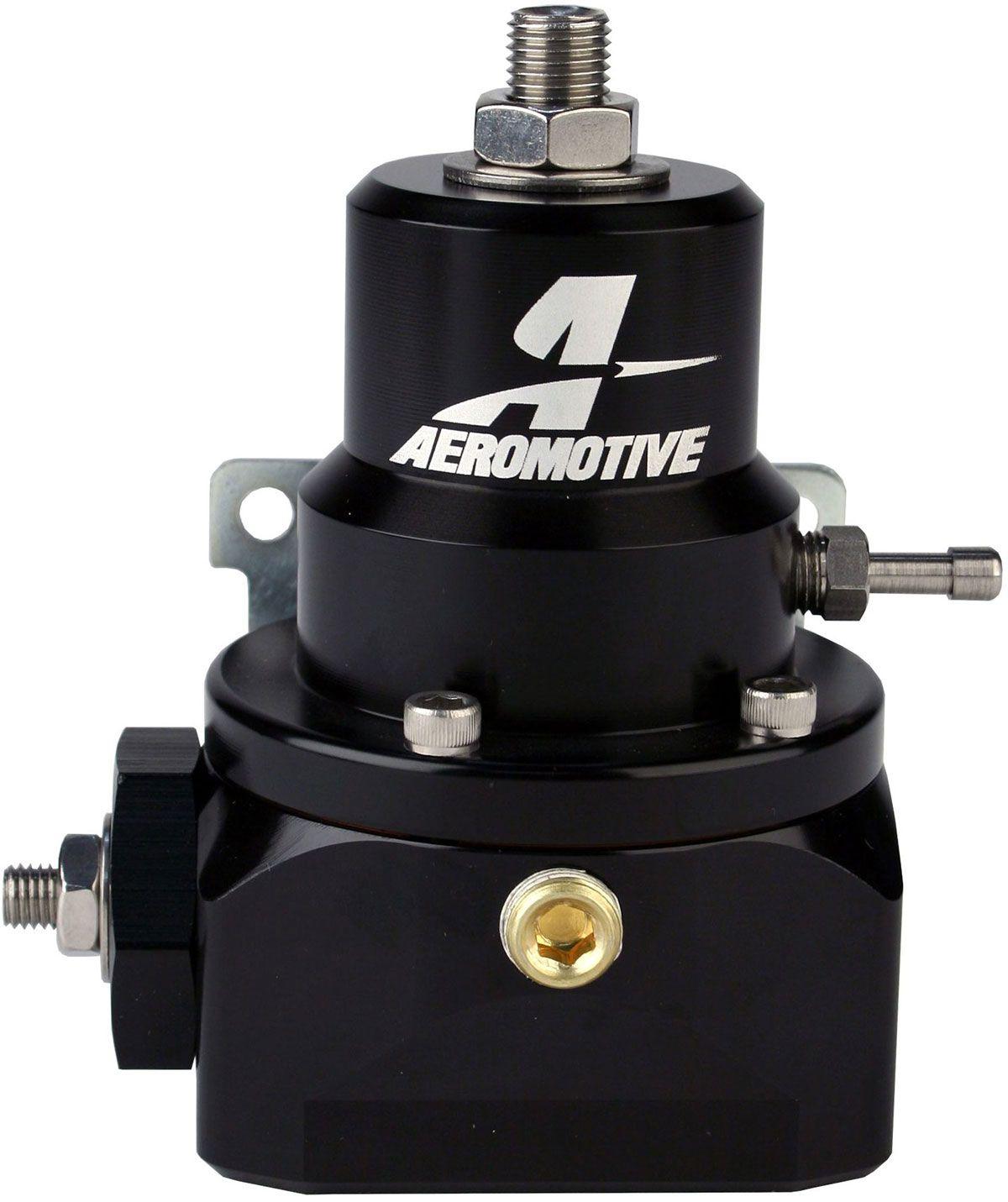

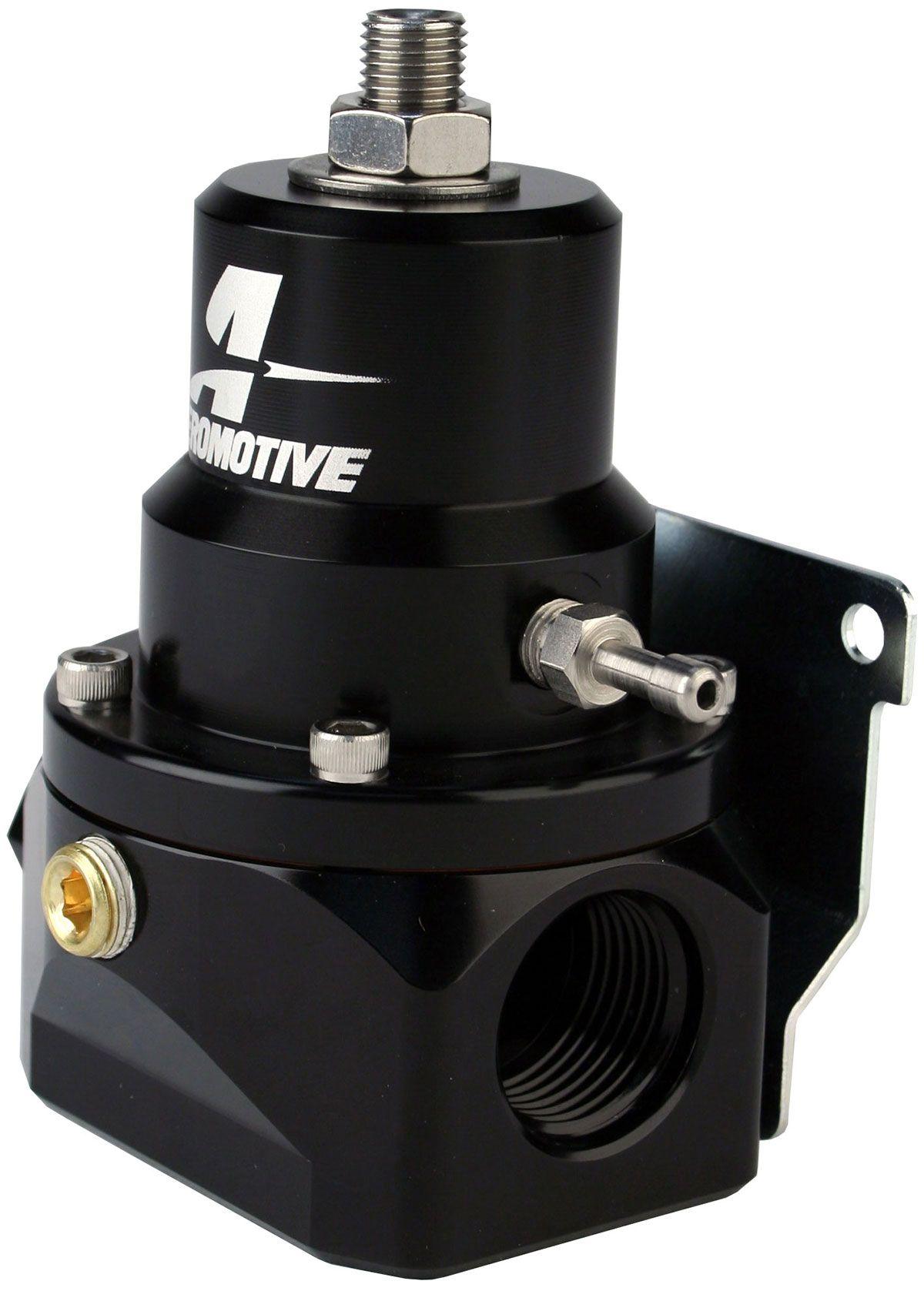

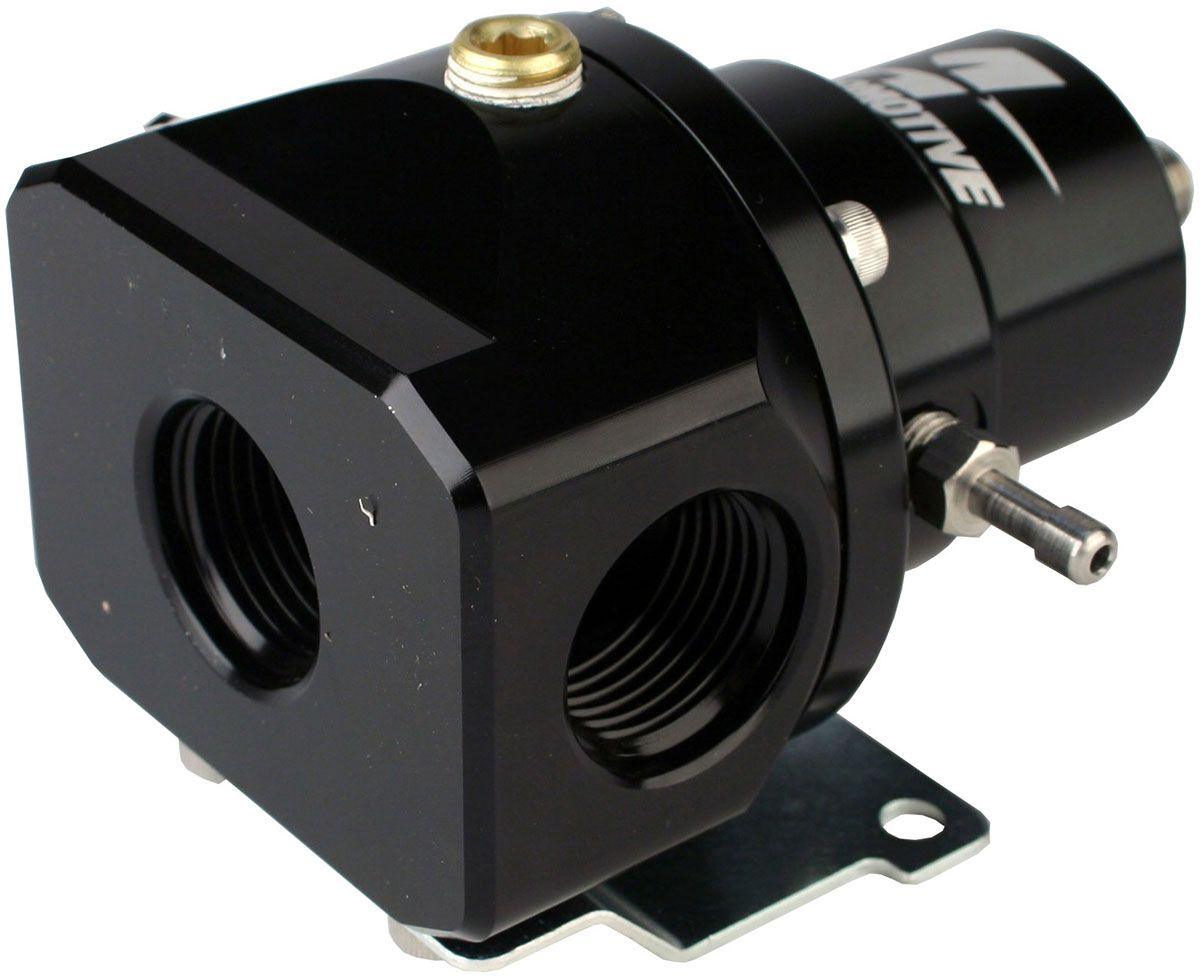

Aeromotive Double Adjustable 2-Port Bypass Fuel Regulator (ARO13214)

ARO13214 - DOUBLE ADJUSTABLE CARB FUEL

Suit Carburettor With -10AN Inlet & Outlet

Part Number: ARO13214

Revolutionary design provides two independent pressure adjustments; one adjustment for idle and one for wide open throttle. Engineered for use with variable volume pumps tied to engine RPM. This regulator creates the smoothest and most repeatable fuel curve from idle to wide open throttle of any bypass system.
Features:
ORB-10 return port.
1/8" NPT gauge port.
Provides superior pressure control and flow when installed before the carburettor or after a fuel log.
P/N 13214 available with fuel log P/N 14201 or 14202, fittings and gauge as P/N 17249 or 17251.
