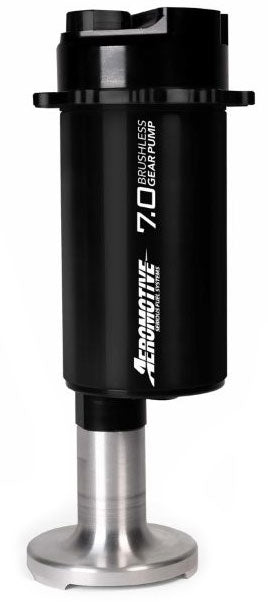

Aeromotive 7.0 GPM Brushless Shallow In-Tank Fuel Pump -12ORB Inlet/10ORB Outlet with Variable Speed Controller - ARO18054
'-12ORB Inlet/10ORB Outlet with Variable Speed Controller
Aeromotive 7.0 GPM Brushless Shallow In-Tank Fuel Pump -12ORB Inlet/10ORB Outlet with Variable Speed Controller - ARO18054
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
BRUSHLESS SPEED GEAR IN-TANK
-12ORB Inlet/10ORB Outlet with Variable Speed Controller
Part Number: ARO18054
Designed as a direct drop-in replacement for the any Aeromotive Stealth Fuel Cell, including COPO, Cobra Jet or Drag Pak race cars. This configuration is also a great option when building a 10″ deep custom fuel cell.
- E85 Compatible, reduce max FWHP by 30%
- Lighter than the traditional external mount pumps
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 60-PSI continuous operating pressure and up to 100-PSI peak pressure, base plus boost.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- ORB-12 inlet and ORB-10 outlet ports.
- Requires straight 12-VDC to 16-VDC power supply.
- Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range. If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.
Specifications:
Fuel Injected Engines:
- up to 4,800 FWHP on GAS - naturally aspirated
- up to 3,400 FWHP on GAS - forced air induction
- up to 3,360 FWHP on E85 - naturally aspirated
- up to 2,380 FWHP on E85 - forced air induction
- up to 1,680 FWHP on METHANOL - naturally aspirated
- up to 1,190 FWHP on METHANOL - forced air induction
Carbureted Engines:
- up to 5,400 FWHP on GAS - naturally aspirated
- up to 3,800 FWHP on GAS - forced air induction
- up to 3,780 FWHP on E85 - naturally aspirated
- up to 2,400 FWHP on E85 - forced air induction
- up to 1,890 FWHP on METHANOL - naturally aspirated
- up to 1,200 FWHP on METHANOL - forced air induction
